Purge control solenoid valve (FA20)
Components Inspection Removal / installation
EMISSION CONTROL
PURGE CONTROL SOLENOID VALVE (FA20)

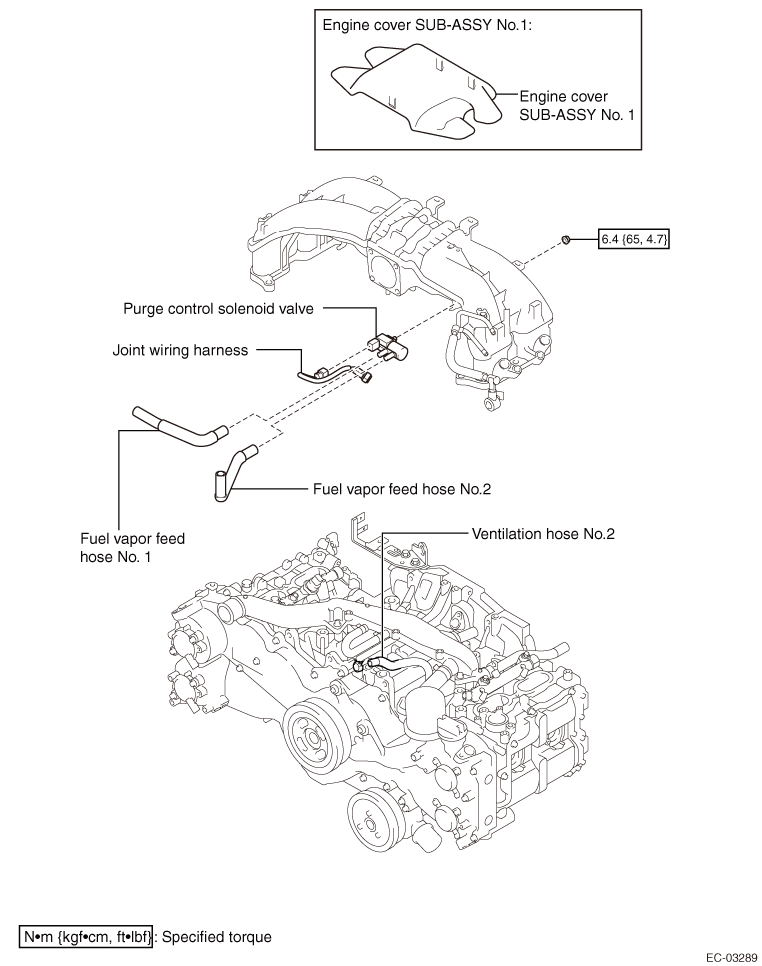

EXPLODED VIEW
REMOVAL
1. Removal of engine cover SUB-ASSY NO.1 (with air conditioning) (Refer to
)
)
2. Removal of purge control solenoid valve

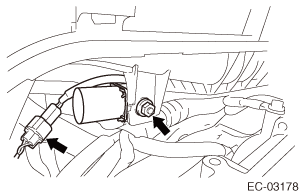

(1) While holding the purge control solenoid valve by hand, remove the nut.
(2) Disconnect the connector for the purge control solenoid valve.

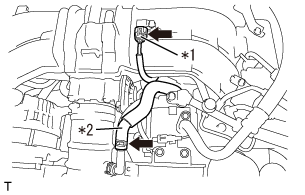

(3) Disconnect the vacuum sensor connector.
(4) Disconnect the ventilation hose NO. 2 from the air intake boot.
Captions in illustration
| *1 |
Vacuum sensor connector |
| *2 |
Ventilation hose NO. 2 |

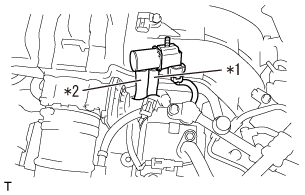

(5) Disconnect the fuel vapor feed hose No. 1 and fuel vapor feed hose No. 2, and remove the purge control solenoid valve.
Captions in illustration
| *1 |
Fuel vapor feed hose NO.1 |
| *2 |
Fuel vapor feed hose NO.2 |

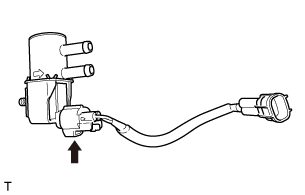

(6) Disconnect the joint wire harness connector from the purge control solenoid valve.
INSTALLATION
1. Installation of purge control solenoid valve
(1) Connect the joint wire harness connector to the purge control solenoid valve.
(2) Connect the fuel vapor feed hose No. 1 and fuel vapor feed hose No. 2 to the purge control solenoid valve.
(3) Connect the ventilation hose NO.1 to the air intake boot.
(4) Connect the vacuum sensor connector.
(5) Connect the purge control solenoid valve connector.
(6) Using the nut, install the purge control solenoid valve.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
2. Installation of engine cover SUB-ASSY NO.1 (with air conditioning) (Refer to )
)UNIT INSPECTION
1. Inspection of purge control solenoid valve
(1)
Resistance check

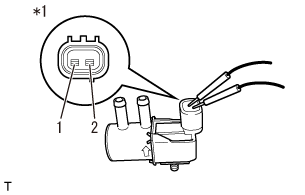

(a) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 1 - 2 |
20°C {68°F} |
21 to 27 Ω |
| 1 - chassis ground |
Always |
10 MΩ or more |
| 2 - chassis ground |
Always |
10 MΩ or more |
Captions in illustration
| *1 |
Connector not connected (purge control solenoid valve) |
NOTE:
If it is out of standard value, replace the purge control solenoid valve.
(2) Operation check

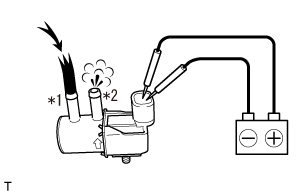

(a) Apply the battery voltage between the terminals of the purge control solenoid valve, and check if air flow is present between the ports E and F when the coil is energized or de-energized.
Captions in illustration
| *1 |
Port E |
| *2 |
Port F |
 |
Air |
NOTE:
If it is out of standard value, replace the purge control solenoid valve.
