PCV valve (FA20)
Components Inspection Removal / installation
EMISSION CONTROL
PCV VALVE (FA20)

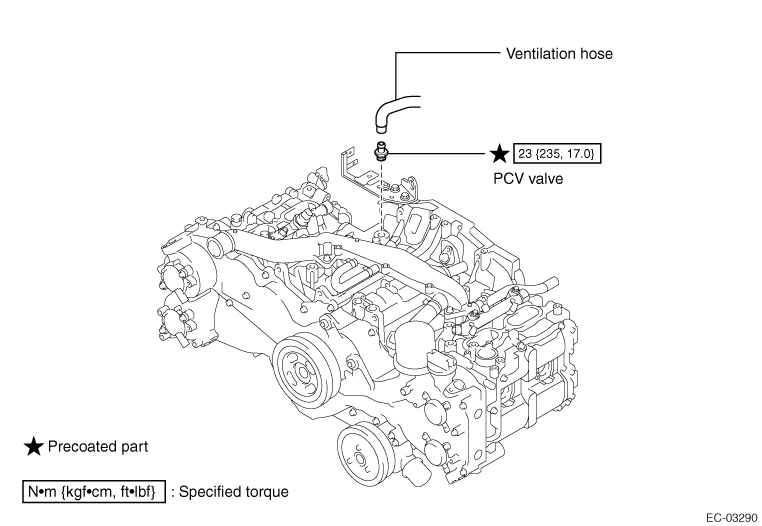

EXPLODED VIEW
REMOVAL
1. Removal of intake manifold (Refer to
)
)
2. Removal of PCV valve
(1) Remove the ventilation hose.

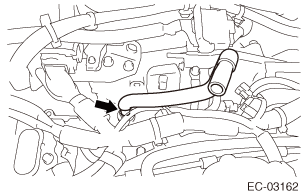

(2) Remove the PCV valve from the cylinder head RH.
INSTALLATION
1. Installation of PCV valve

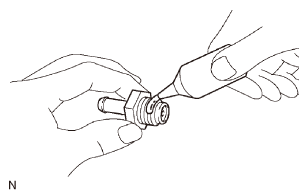

(1) Apply THREE BOND 1324 or equivalent to the PCV valve.

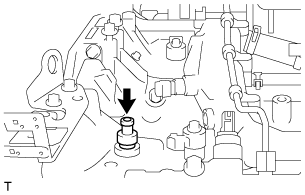

(2) Install the PCV valve to the cylinder head RH.
Standard value:
Standard value:
Tightening torque=23N·m
{
235kgf·cm}
{17.0 ft·lbf}
(3) Connect the ventilation hose to the PCV valve.
2. Installation of intake manifold (Refer to )
)UNIT INSPECTION
1. PCV valve inspection
(1) Operation check
(a) Install the hose to the PCV valve.
(b) Check that air comes out easily when air is blown into the hose from the cylinder head side.

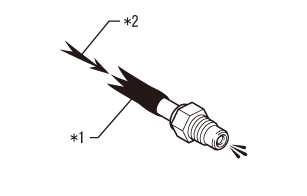

Captions in illustration
| *1 |
Hose |
| *2 |
Air |
(c) Check that air does not comes out easily when air is blown into the valve from the intake manifold side.

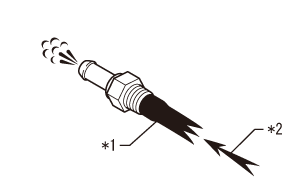

Captions in illustration
| *1 |
Hose |
| *2 |
Air |
(d) Remove the hose from the PCV valve.
