Intake system (FA20)
Parts location System information Inspection
INTAKE / EXHAUST
INTAKE SYSTEM (FA20)

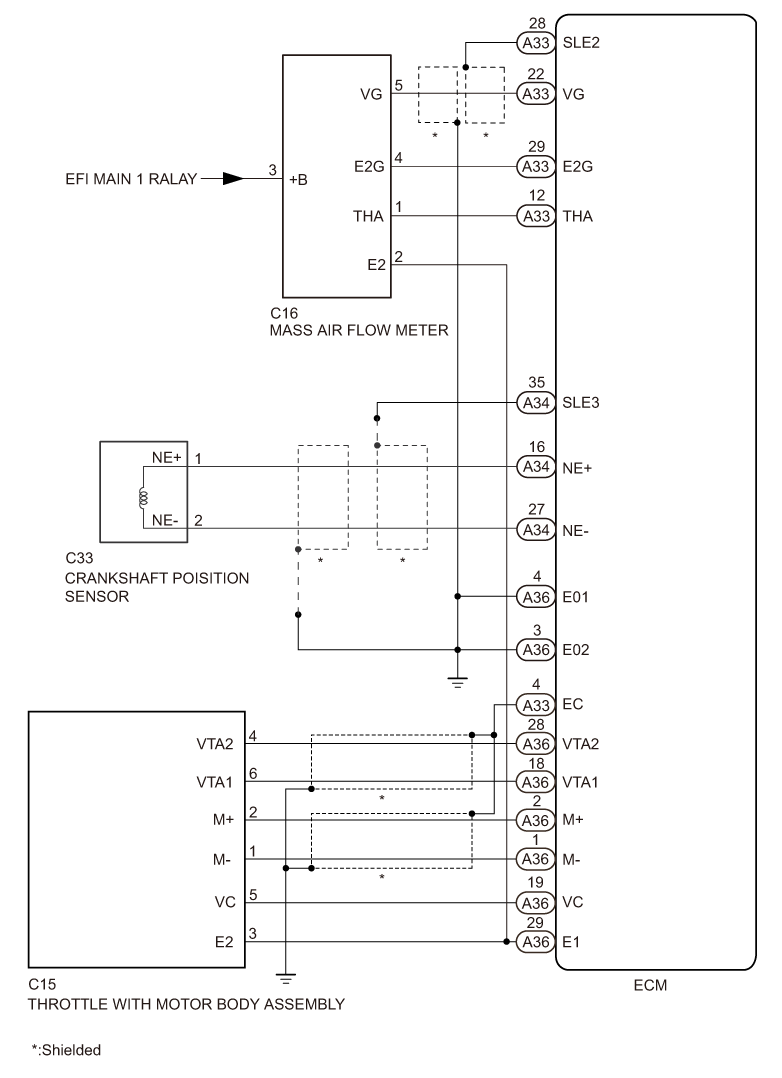

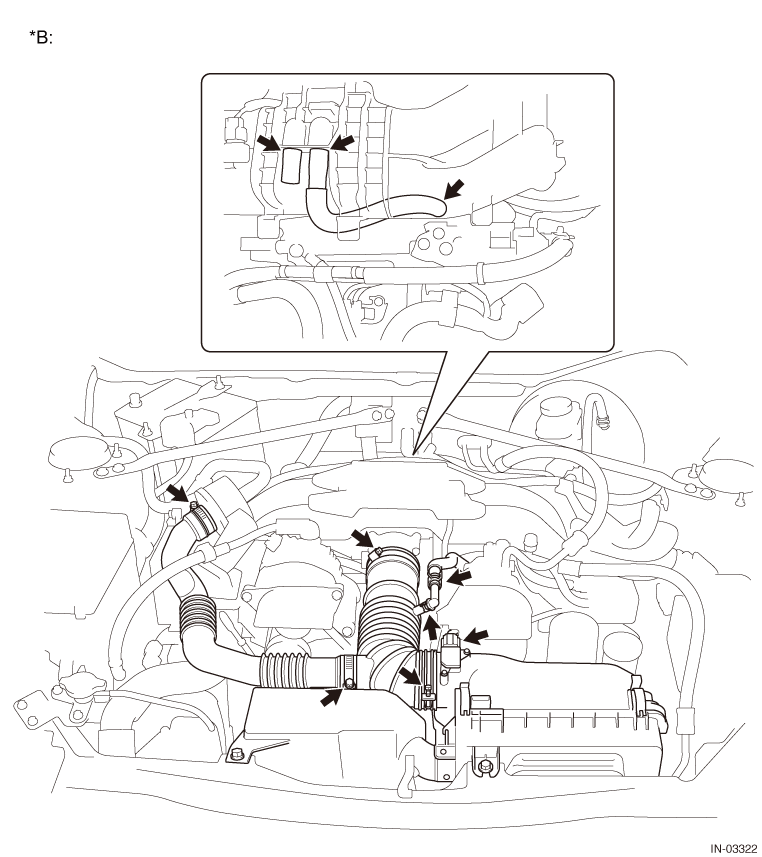

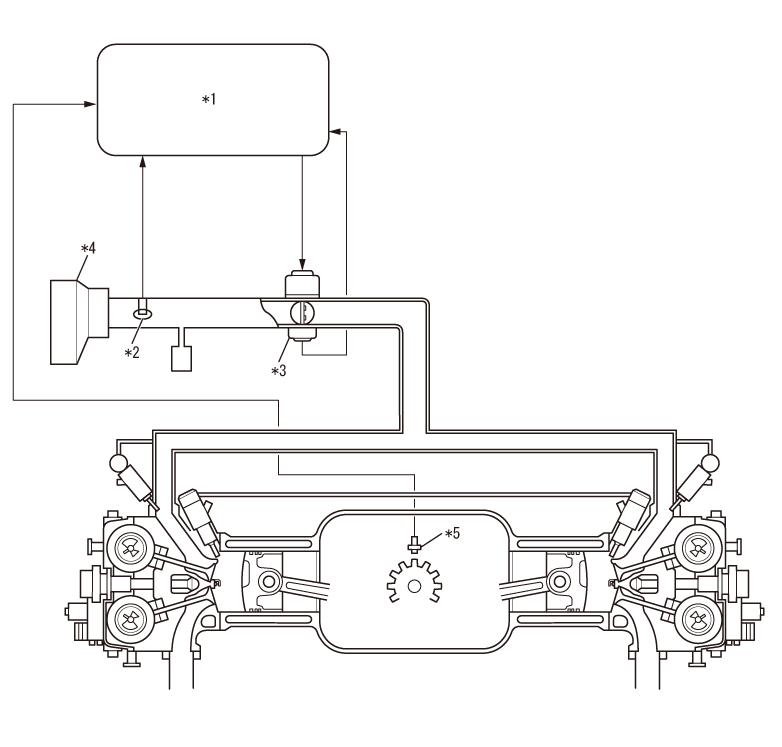

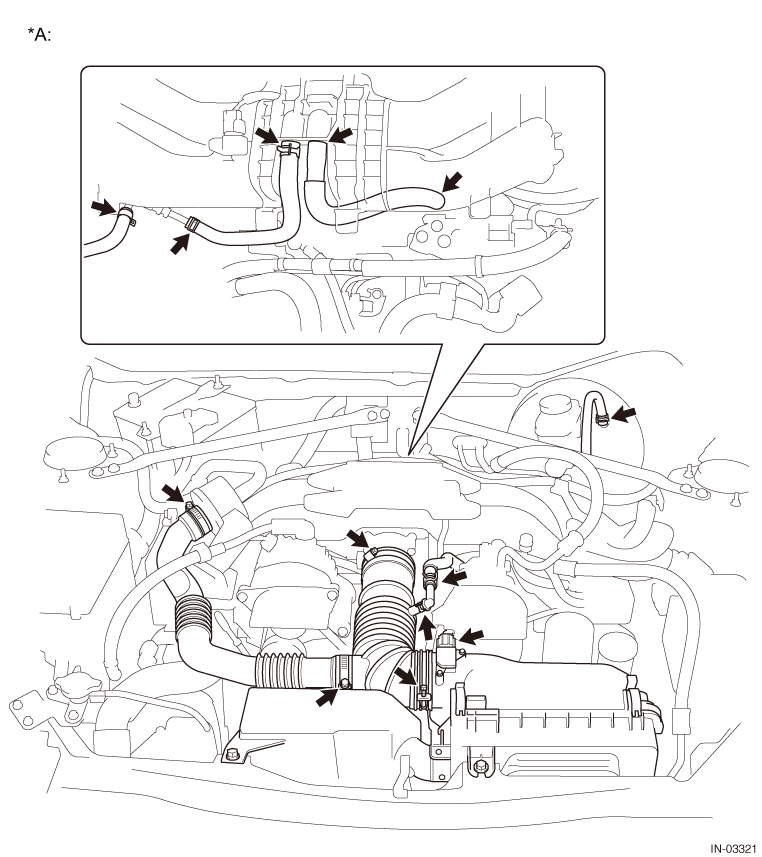

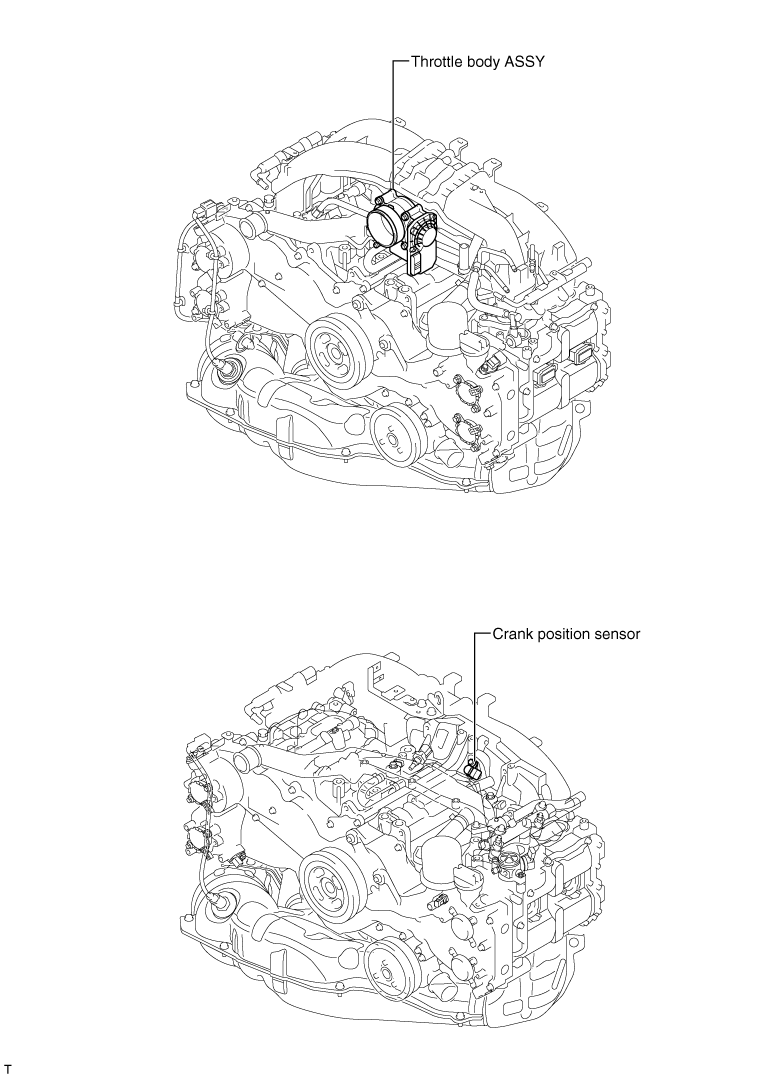

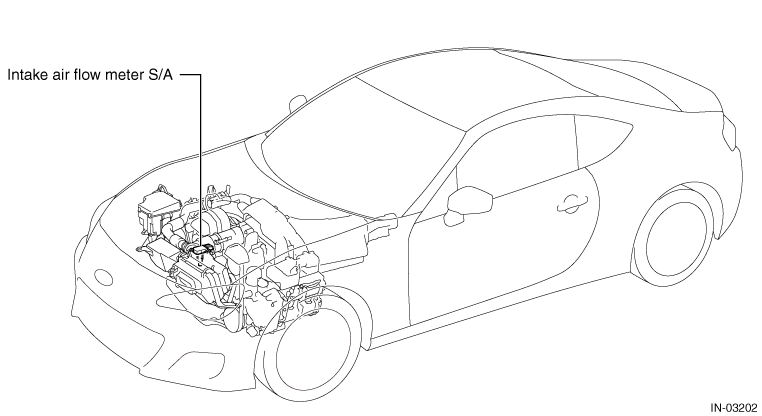

PARTS LOCATION
ON-VEHICLE INSPECTION
1. Visual inspection
2. Check of air cleaner filter element SUB-ASSY

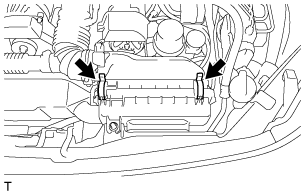

(1) Remove the two clips from the air cleaner case (rear).

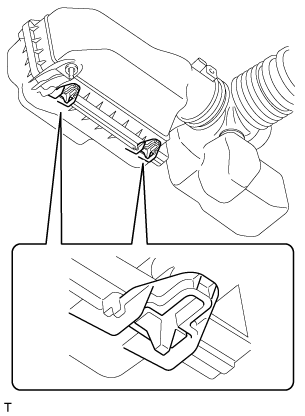

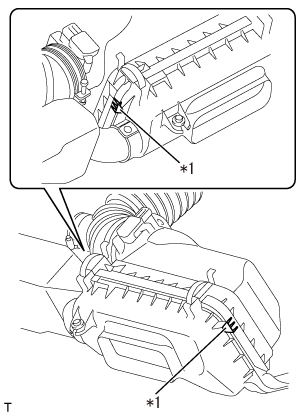

(2) Lift the air cleaner case (rear) and release the two claws which engage in the air cleaner case (front).

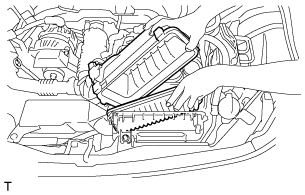

(3) Lift the air cleaner case (rear) at an angle as shown in the figure and remove the air cleaner filter element.
(4) Check the air cleaner filter element for excessive dirt.
Criteria
: Not excessively dirty
CAUTION:
If it is excessively dirty, replace the air cleaner filter element.
(5) When cleaning the air cleaner filter element, clean it by blowing air.
(6) Lift the air cleaner case (rear) at an angle and install the air cleaner filter element.
(7) Engage the two claws of air cleaner case (rear) to the air cleaner case (front).
