Chamber (FA20)
Components Inspection Removal / installation
INTAKE / EXHAUST

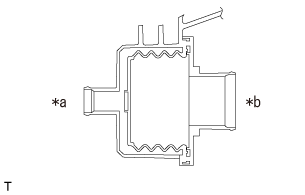

CHAMBER (FA20)

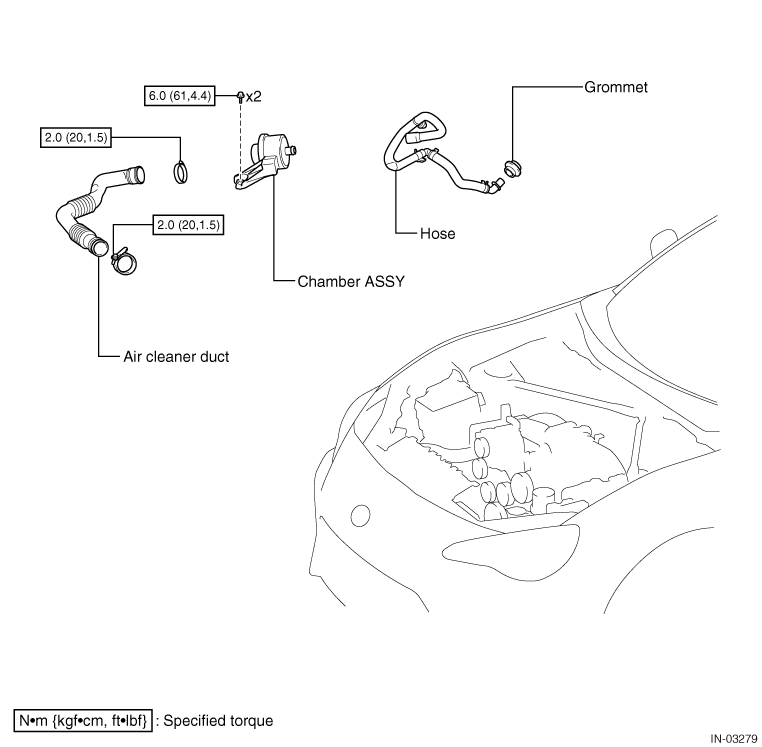

EXPLODED VIEW
REMOVAL

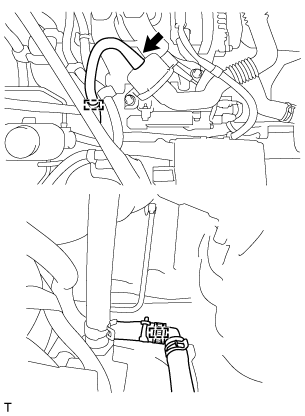

1. Hose removal
(1) Disconnect the hose.
(2) Release the two clamps and remove the hose from the grommet.

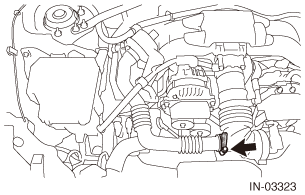

2. Duct removal
(1) Loosen the hose clamp.
(2) Remove the two bolts and remove the duct and chamber ASSY as a unit.

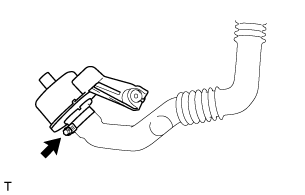

3. Chamber ASSY removal
(1) Loosen the hose clamp and remove the chamber ASSY.
INSTALLATION
1. Chamber ASSY installation
(1) Install the chamber ASSY with the hose clamp.
Standard value:
Standard value:
Tightening torque=2.0N·m
{
20kgf·cm}
{1.5ft·lbf}
2. Duct installation

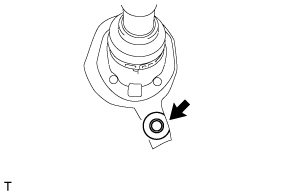

(1) Install the duct and chamber ASSY as a unit with the two bolts.
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
(2) Install the duct with the hose clamp.
Standard value:
Standard value:
Tightening torque=2.0N·m
{
20kgf·cm}
{1.5ft·lbf}
3. Hose installation
(1) Engage the two clamps and install the hose.

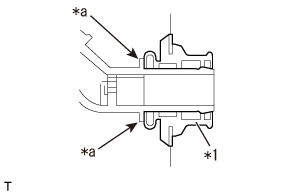

(2) Insert the hose until the flange at the hose end contacts the grommet.
Captions in illustration
| *1 |
Grommet |
| *a |
Flange |
CAUTION:
When inserting the hose end, insert the hose so that the grommet rubber is not engulfed to avoid water leakage.
(3) Make sure from the passenger room side that the hose end is inserted properly.
(4) Connect the hose and install the hose.
