Oil & oil filter (FA20)
Components Removal / installation
LUBRICATION
OIL & OIL FILTER (FA20)

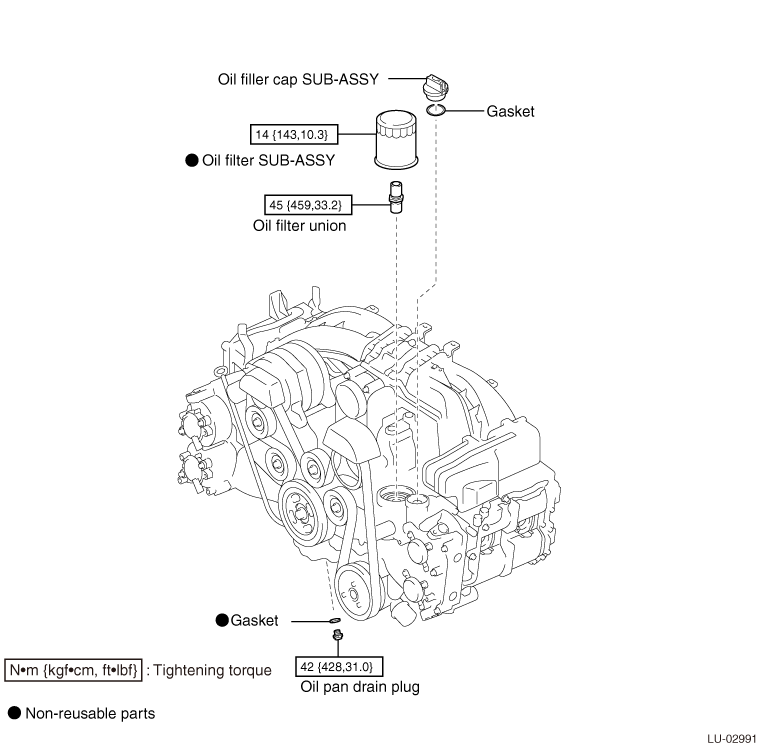

EXPLODED VIEW
REPLACEMENT

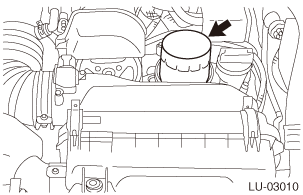

1. Oil filter SUB-ASSY removal
(1) Remove the dirt and foreign matters on the engine side installing surface.
(2) Remove the oil filter SUB-ASSY using the SST.
SST
18332AA020

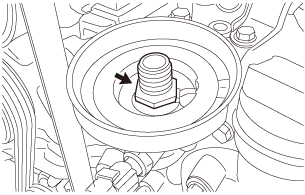

2. Oil filter union removal
(1) Remove the oil filter union.
NOTE:
Perform this operation as necessary.
3. Oil filter union installation
(1) Install the oil filter union.
Standard value:
Standard value:
Tightening torque=45N·m
{
459kgf·cm}
{33.2ft·lbf}
NOTE:
Perform this operation as necessary.
4. Oil filter SUB-ASSY installation
(1) Remove the dirt and foreign matters on the engine side installing surface and inner side.
(2) Apply a coat of engine oil to the seal rubber of a new oil filter SUB-ASSY.
(3) Tighten the oil filter SUB-ASSY by hand.
CAUTION:
Be careful not to damage the seal rubber of oil filter SUB-ASSY.
(4) Tighten the oil filter SUB-ASSY using the SST.
Standard value:
SST
18332AA020
Standard value:
Specified tightening torque
Tightening torque=14N·m { 143kgf·cm} {10.3ft·lbf}
When using the SST, calculate the torque using the following formula.
Tightening torque=14N·m { 143kgf·cm} {10.3ft·lbf}
When using the SST, calculate the torque using the following formula.
Formula: T2 = L2/(L1 + L2) × T1
| T1 |
14 N·m {143 kgf·cm, 10.3 ft·lbf} |
| T2 |
Tightening torque |
| L1 |
Length of SST (0.080 m {3.150 in}) |
| L2 |
Torque wrench length (m {ft}) |
NOTE:
·This torque value is valid when the SST and torque wrench are aligned on a line.
·Attach the SST and torque wrench so that they are aligned on a line.
·Attach the SST and torque wrench so that they are aligned on a line.
5. Engine oil refill
(1) Fill the engine oil.
(2) Install the oil filler cap SUB-ASSY.
6. Engine oil level check (Refer to
)
)7. Engine oil leakage check
(1) Start the engine and make sure that there is no oil leakage at the connected and tightened portions where the work has done.
