Engine oil pressure switch ASSY (FA20)
Components Removal / installation
LUBRICATION
ENGINE OIL PRESSURE SWITCH ASSY (FA20)

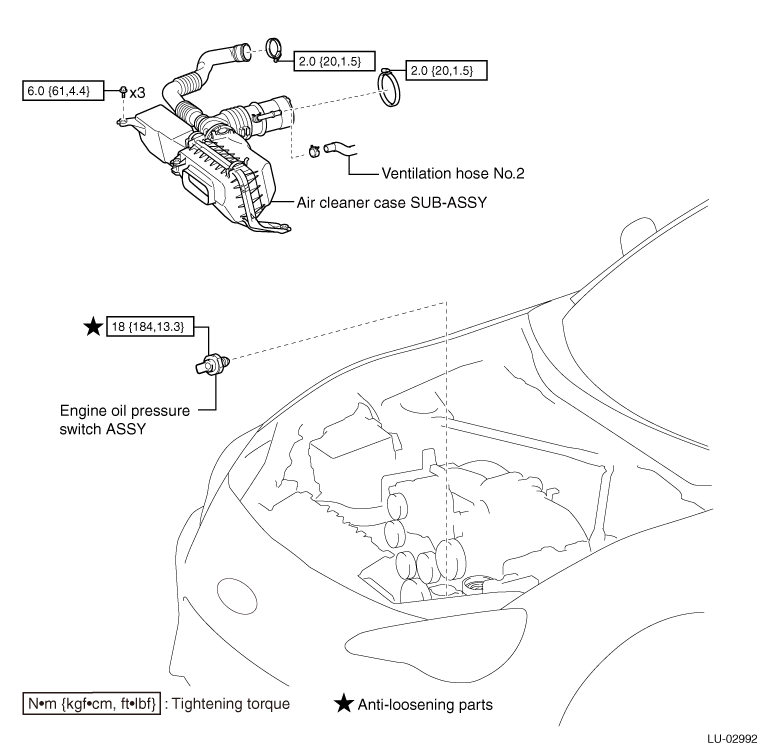

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of air cleaner case SUB-ASSY (Refer to )
)
INSTALLATION
1. Engine oil pressure switch ASSY installation
(1) Degrease the threaded portion of engine oil pressure switch ASSY.
(2) Apply THREE BOND 1324 or equivalent to the threaded portion.
CAUTION:
Do not apply liquid gasket to the oil hole.

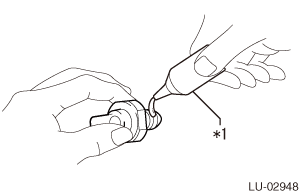

Captions in illustration
| *1 |
THREE BOND 1324 or equivalent |

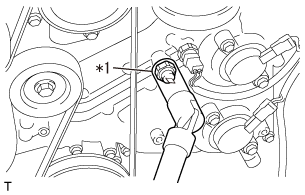

(3) Install the engine oil pressure switch ASSY.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13.3ft·lbf}
CAUTION:
Do not start the engine within 1 hour after the assembly.
(4) Connect the connector of oil pressure switch.
2. Installation of air cleaner case SUB-ASSY (Refer to )
)3. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
4. Engine oil leakage check (Refer to )
)
