STARTING
ENGINE SWITCH

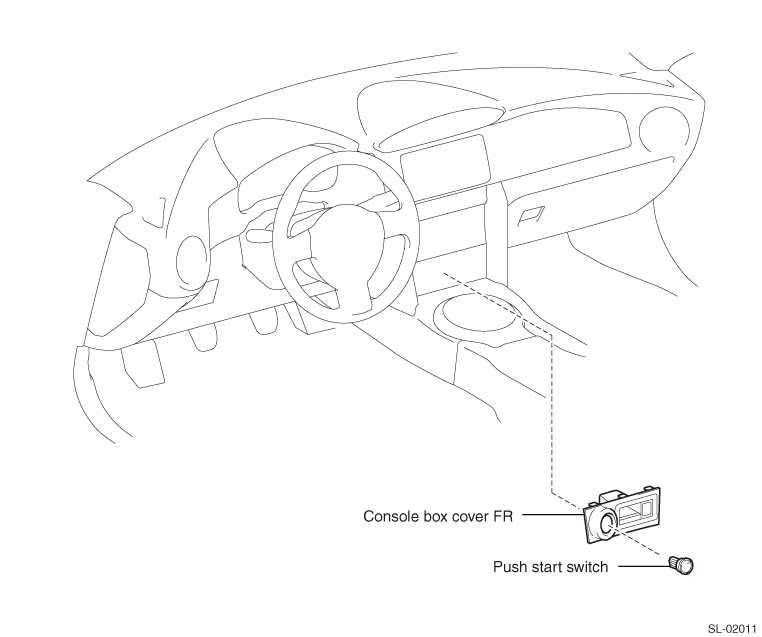

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Console box cover FR removal (Refer to )
)
3. Push button start switch removal

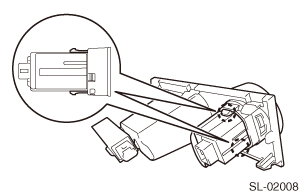

(1) Release the two claws from the back side of console box cover FR and remove the push button start switch.
INSTALLATION
1. Push button start switch installation
(1) Install the push button start switch to the console box cover FR.
NOTE:
Make sure that the claws are engaged completely.
2. Console box cover FR installation (Refer to )
)3. Battery ground terminal connection (Refer to )
)4. Setting procedures when installing/removing the battery terminal (Refer to )
)UNIT INSPECTION
1. Push button start switch check
(1) Resistance check
(a) Measure the resistance between connector terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 5 (SSW1) - 6 (AGND) |
When the switch is not pressed |
10 k Ω or more |
| 1 (SSW2) - 6 (AGND) |
When the switch is not pressed |
10 k Ω or more |
| 5 (SSW1) - 6 (AGND) |
When the switch is pressed |
Less than 1 Ω |
| 1 (SSW2) - 6 (AGND) |
When the switch is pressed |
Less than 1 Ω |
NOTE:
If the resistance is not within the standard value, replace the push button start switch.
(2) LED illumination check
(a) Connect the battery positive and negative to the connector terminals and check the LED illumination condition.
Criteria
| Terminal No. (Battery positive - battery negative) |
Criteria |
|---|---|
| 9 (SWIL) - 6 (GND) |
Character illumination lights up |
NOTE:
If the resistance is not within the standard value, replace the push button start switch.

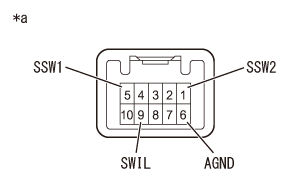

Captions in illustration
| *a |
Connector not connected (Push button start switch) |
