KEY INTERLOCK SYSTEM
FUNCTION INSPECTION
1. Key interlock function check
(1) Turn the ignition switch to ON.
(2) Depress the brake pedal and place the shift lever in a position other than the P position.
(3) Check that the ignition key cannot be turned to the LOCK position.
(4) Place the shift lever in the P position and turn the ignition key to the LOCK position to check that the ignition key can be pull out.

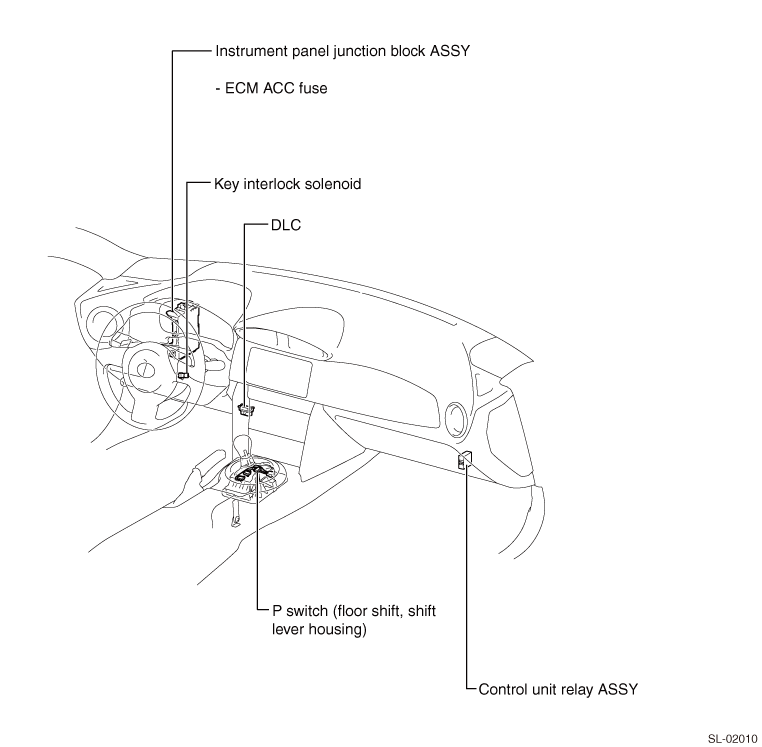

PARTS LOCATION
SYMPTOM TABLE
CIRCUIT FIGURE
| Cannot remove or insert the key |
|---|
Circuit description
The control unit relay ASSY outputs a signal to the key interlock solenoid when the ACC signal and P signal are input.

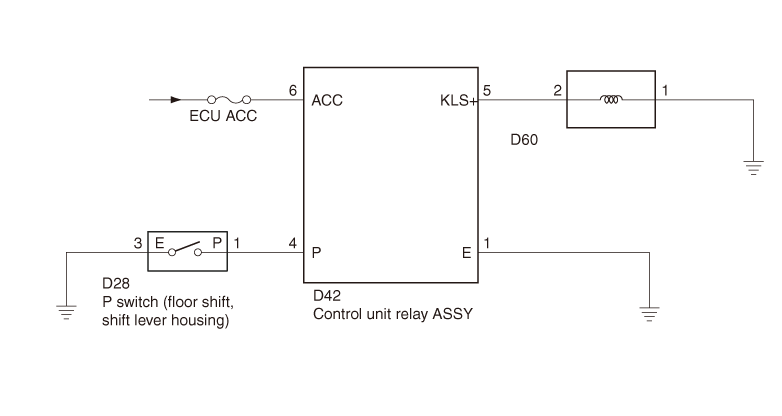

Circuit figure
For a circuit figure, refer to
.
.Inspection steps
CAUTION:
Before performing troubleshooting, check the fuse for this circuit.
1.
Check wiring harness and connector (ACC voltage)
NOTE:
Refer to for the inspection procedure and precautions.
for the inspection procedure and precautions.

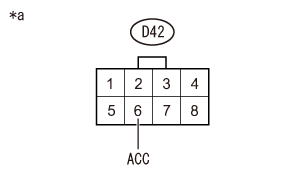

(1) Disconnect the connector D42 of control unit relay ASSY.
NG
>Repair or replacement of wiring harness or connector
OK▼
2.
Check wiring harness and connector (control unit relay ASSY - chassis ground)
NOTE:
Refer to for the inspection procedure and precautions.
for the inspection procedure and precautions.(1) Disconnect the connector D42 of control unit relay ASSY.
NG
>Repair or replacement of wiring harness or connector
OK▼
3.
P switch (floor shift, shift lever housing) unit inspection
(1) Perform the P switch (floor shift, shift lever housing) unit inspection. (Refer to )
)
NG
>P switch (floor shift, shift lever housing) replacement (Refer to )
)OK▼
4.
Check wiring harness and connector (control unit relay ASSY - P switch (floor shift, shift lever housing))
NOTE:
Refer to for the inspection procedure and precautions.
for the inspection procedure and precautions.(1) Disconnect the connector D42 of control unit relay ASSY.
(2) Disconnect the connector D28 of P switch (floor shift, shift lever housing).
NG
>Repair or replacement of wiring harness or connector
OK▼
5.
Check wiring harness and connector (P switch (floor shift, shift lever housing) - chassis ground)
NOTE:
Refer to for the inspection procedure and precautions.
for the inspection procedure and precautions.(1) Disconnect the connector D28 of P switch (floor shift, shift lever housing).
NG
>Repair or replacement of wiring harness or connector
OK▼
6.
Key interlock solenoid check

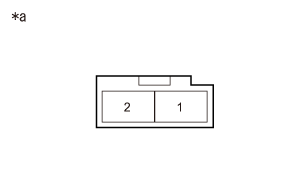

(1) Disconnect the connector D60 of key interlock solenoid.
NG
>Key interlock solenoid replacement (Refer to )
)OK▼
7.
Check wiring harness and connector (control unit relay ASSY - key interlock solenoid)
NOTE:
Refer to for the inspection procedure and precautions.
for the inspection procedure and precautions.(1) Disconnect the connector D42 of control unit relay ASSY.
(2) Disconnect the connector D60 of key interlock solenoid.
NG
>Repair or replacement of wiring harness or connector
OK▼
8.
Check wiring harness and connector (key interlock solenoid - chassis ground)
NOTE:
Refer to for the inspection procedure and precautions.
for the inspection procedure and precautions.(1) Disconnect the connector D60 of key interlock solenoid.
NG
>Repair or replacement of wiring harness or connector
OK▼
Control unit relay ASSY replacement (Refer to )
)
