Key lock unit
Components Removal / installation
STARTING
KEY LOCK UNIT

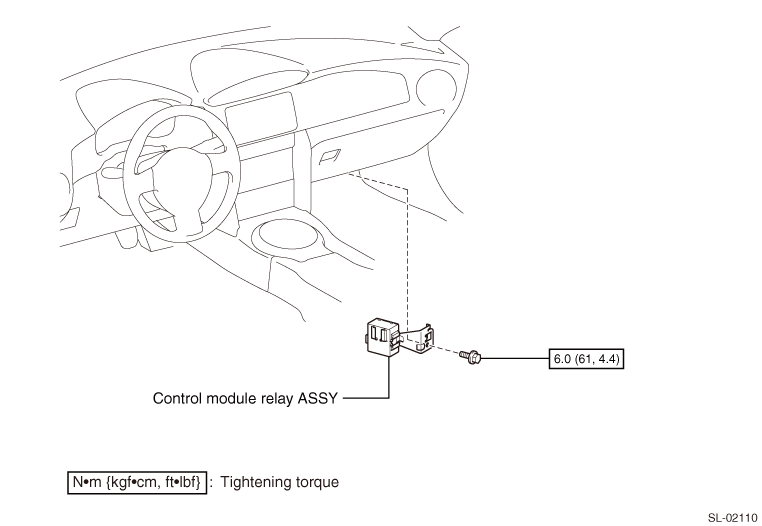

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Instrument side panel RH removal (Refer to )
)3. Removal of glove compartment door ASSY (Refer to )
)
4. Control unit relay ASSY removal

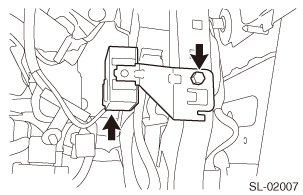

(1) Disconnect the connector of control unit relay ASSY.
(2) Remove the bolt and remove the control unit relay ASSY.
INSTALLATION
1. Control unit relay ASSY installation
(1) Install the control unit relay ASSY with the bolt.
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
(2) Connect the connector of control unit relay ASSY.
2. Installation of glove compartment door ASSY (Refer to )
)3. Installation of instrument side panel RH (Refer to )
)4. Battery ground terminal connection (Refer to )
)5. Setting procedures when installing/removing the battery terminal (Refer to )
)6. Customize setting procedures (Refer to )
)
