Speed sensor
Components Inspection Removal / installation
AUTOMATIC TRANSMISSION / TRANSAXLE
SPEED SENSOR

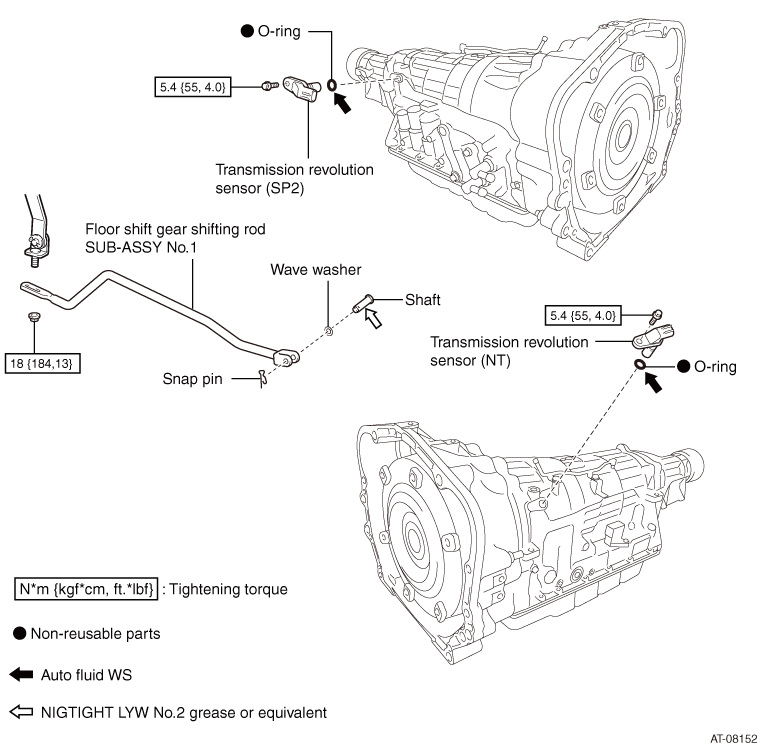

EXPLODED VIEW
REMOVAL
1. Removal of under cover front AL (refer to
)
)2. Removal of under cover COMPL T/M (refer to )
)

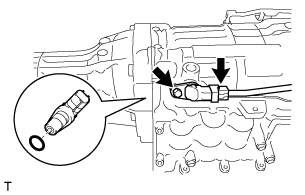

3. Removal of transmission revolution sensor (NT)
(1) Disconnect the connector.
(2) Remove the bolt, and then remove the transmission revolution sensor (NT) and the O-ring.

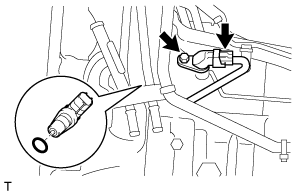

4. Removal of transmission revolution sensor (SP2)
(1) Remove the automatic transmission ASSY. (Refer to )
)(2) Disconnect the connector.
(3) Remove the bolt, and then remove the transmission revolution sensor (SP2) and the O-ring.
INSTALLATION
1. Installation of transmission revolution sensor (SP2)
(1) Apply auto fluid WS to a new O-ring and install it to the transmission revolution sensor (SP2).
(2) Install the transmission revolution sensor (SP2) with the bolt.
Standard value:
Standard value:
Tightening torque=5.4 N·m
{
55 kgf·cm}
{4.0 ft·lbf}
(3) Connect the connector.
(4) Install the automatic transmission ASSY. (Refer to )
)2. Installation of transmission revolution sensor (NT)
(1) Apply auto fluid WS to a new O-ring and install it to the transmission revolution sensor (NT).
(2) Install the transmission revolution sensor (NT) with the bolt.
Standard value:
Standard value:
Tightening torque=5.4 N·m
{
55 kgf·cm}
{4.0 ft·lbf}
(3) Connect the connector.
3. Installation of under cover COMPL T/M (refer to )
)4. Installation of under cover front AL (refer to )
)5. Data monitor check
(Refer to )
)UNIT INSPECTION

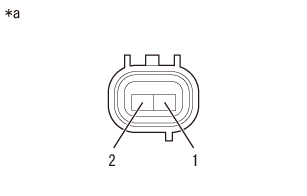

1. Transmission revolution sensor (SP2) check
2. Check of transmission revolution sensor (NT)
