Transmission wire
Components Inspection Removal / installation
AUTOMATIC TRANSMISSION / TRANSAXLE
TRANSMISSION WIRE

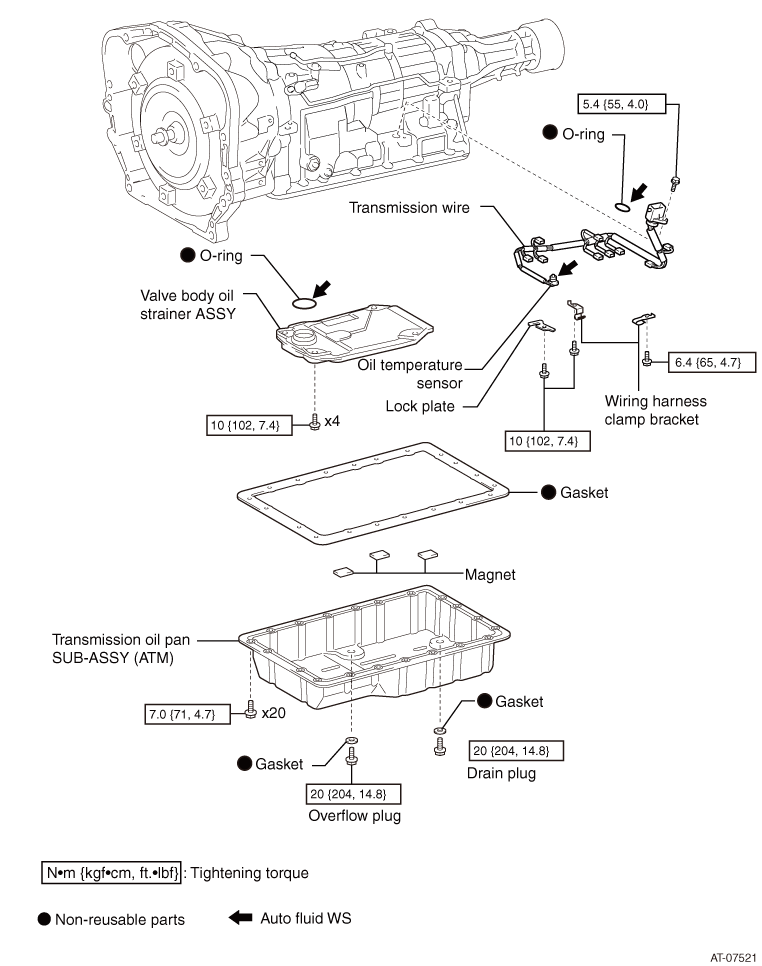

EXPLODED VIEW
REMOVAL
1. Removal of automatic transmission ASSY
(Refer to
)
)
2. Removal of transmission oil pan SUB-ASSY (ATM)
(1) Remove 20 bolts to remove the transmission oil pan SUB-ASSY (ATM).
(2) Remove the gasket.
3. Removal of valve body oil strainer ASSY
4. Disconnection of transmission wire

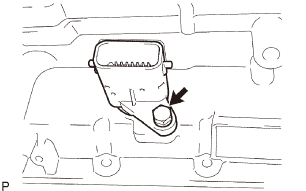

(1) Remove the bolt and lock plate, and then disconnect the oil temperature sensor from the transmission valve body ASSY.
(2) Remove the bolt to remove the clamp from the valve body ASSY.
(3) Disconnect the wiring harness from the clamp.
(4) Disconnect 9 connectors from each solenoid valve and disconnect the transmission wire from the transmission valve body ASSY.
NOTE:
Use a thin-tipped flat tip screwdriver for the connector indicated by the white arrow to disconnect the control solenoid connector.
5. Removal of transmission wire
(1) Disconnect the transmission wire connector.
NOTE:

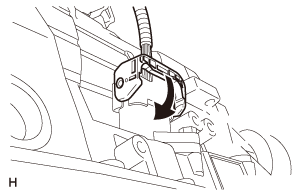

Release the claw and tilt the lever downward to disconnect the connector of the transmission wire.
(2) Remove the bolt and pull out the transmission wire from the transmission valve body ASSY.
INSTALLATION
1. Installation of transmission wire
(1) Apply auto fluid WS to a new O-ring and install it to the oil temperature sensor.

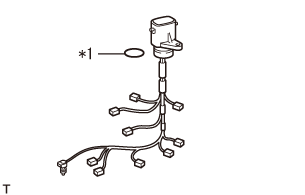

(2) Apply auto fluid WS to a new O-ring and install it to the transmission wire connector.
(3) Draw the transmission wire through the transmission wire connector mounting slot of the transmission valve body ASSY.
(4) Install the transmission wire connector with the bolt.
Standard value:
Standard value:
Tightening torque=5.4N·m
{
55kgf·cm}
{4.0ft·lbf}
(5) Connect the connector of the transmission wire.
NOTE:

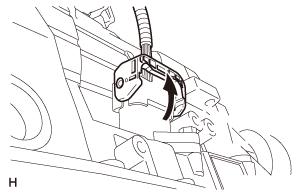

For the transmission wire connector, push up the lever until a sound indicating the claw is hooked is heard.
2. Connection of transmission wire
(1) Connect the 9 connectors to each solenoid valve.
(2) Install the wiring harness clamp bracket with the bolt.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
(3) Install the wiring harness to the clamp.
(4) Connect the oil temperature sensor to the transmission valve body ASSY with the lock plate and bolt.
Standard value:
Standard value:
Tightening torque=10N·m
{
102kgf·cm}
{7.4ft·lbf}
3. Installation of valve body oil strainer ASSY

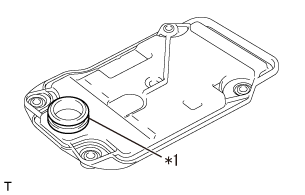

(1) Apply auto fluid WS to the entire circumference of a new O-ring and install it to the valve body oil strainer ASSY.
(2) Install the valve body oil strainer ASSY to the transmission valve body ASSY with 4 bolts.
Standard value:
Standard value:
Tightening torque=6.4N·m
{
65kgf·cm}
{4.7ft·lbf}
4. Installation of transmission oil pan SUB-ASSY (ATM)

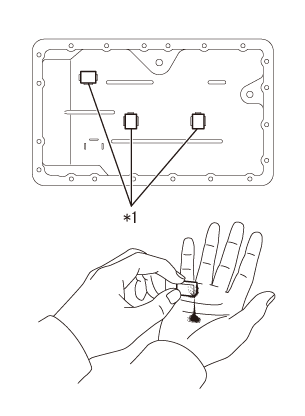

(1) Install 3 magnets on the transmission oil pan SUB-ASSY (ATM).
Captions in illustration
| *1 |
Magnet |
(2) Install a new gasket on the transmission oil pan SUB-ASSY (ATM).
(3) Install the transmission oil pan SUB-ASSY (ATM) to the transmission case with 20 bolts.
Standard value:
Standard value:
Tightening torque=7.0N·m
{
71kgf·cm}
{5.2ft·lbf}
5. Installation of automatic transmission ASSY
(Refer to )
)UNIT INSPECTION
1. Transmission wire (oil temperature sensor) check
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 9(OIL) - 1(E2) |
Always |
79Ω to 156kΩ |
| 9 (OIL) - chassis ground |
Always |
10 k Ω or more |
| 1 (E2) - chassis ground |
Always |
10 k Ω or more |

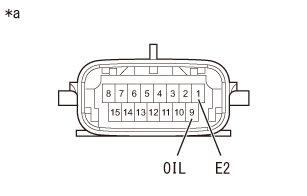

Captions in illustration
| *a |
Connector not connected (Transmission wire (oil temperature sensor)) |
NOTE:
If the resistance is out of the oil temperature range in the table below, the handling performance of the vehicle may be degraded.
