Oil cooler ASSY
Components Removal / installation
AUTOMATIC TRANSMISSION / TRANSAXLE
OIL COOLER ASSY

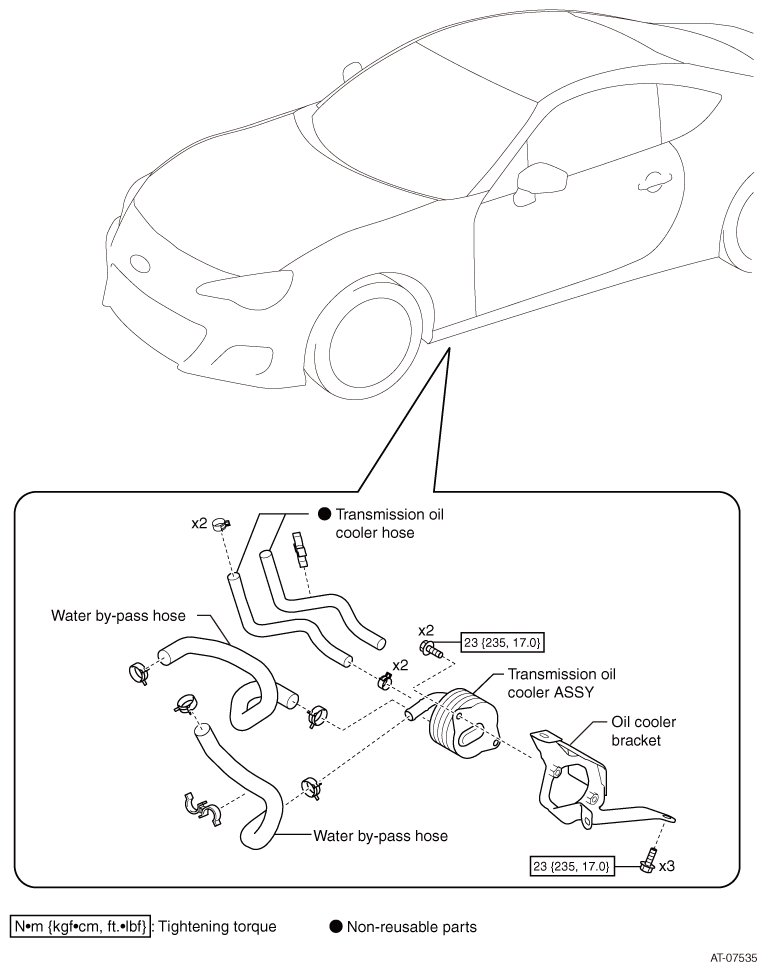

EXPLODED VIEW
REMOVAL
1. Removal of under cover front AL (refer to
)
)2. Removal of under cover COMPL T/M (refer to )
)3. Drain of coolant (SUBARU genuine Super Coolant) (refer to )
)
4. Disconnection of transmission oil cooler hose

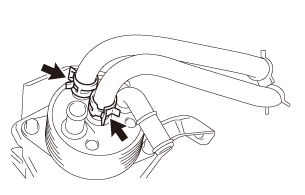

(1) Move 2 clamps and disconnect the 2 oil cooler hoses.
CAUTION:
Have a container ready for catching ATF remaining in the transmission oil cooler hoses.
5. Disconnection of water by-pass hose

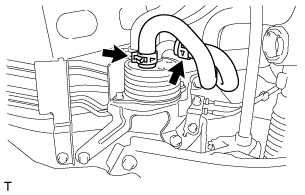

(1) Move 2 clamps and disconnect the 2 water by-pass hoses from the transmission oil cooler ASSY.
CAUTION:
Have a container ready for catching coolant remaining in the water by-pass hoses.
6. Removal of transmission oil cooler ASSY
(1) Remove 3 bolts to remove the transmission oil cooler ASSY.
(2) Move 2 clamps and remove the 2 transmission oil cooler hoses.

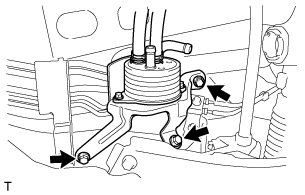

(3) Remove 2 bolts to remove the transmission oil cooler from the oil cooler bracket.
INSTALLATION
1. Installation of transmission oil cooler ASSY.

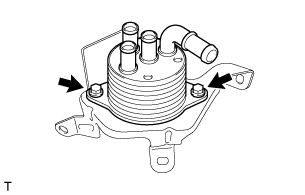

(1) Install the transmission oil cooler ASSY to the oil cooler bracket with 2 bolts.
Standard value:
Standard value:
Tightening torque=23N·m
{
235kgf·cm}
{17ft·lbf}
(2) Connect 2 new transmission oil cooler hoses to the transmission oil cooler ASSY with 2 clamps.

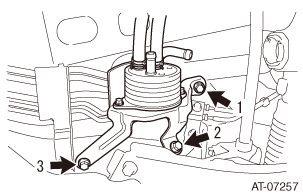

(3) Temporarily tighten bolt 1 .
(4) Install 2 bolts and tighten them in the order of 2 to 3, with the oil cooler bracket fitted to the vehicle by hand.
Standard value:
Standard value:
Tightening torque=23N·m
{
235kgf·cm}
{17ft·lbf}
(5) Tighten bolt 1.
Standard value:
Standard value:
Tightening torque=23N·m
{
235kgf·cm}
{17ft·lbf}
2. Connection of water by-pass hose
(1) Connect 2 water by-pass hoses to the transmission oil cooler ASSY with 2 clamps.

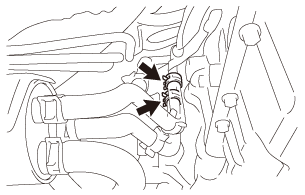

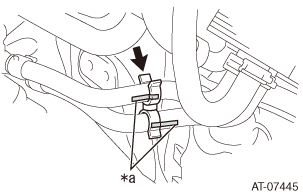

(2) Install a clamp to the both water bypass hoses.
3. Connection of transmission oil cooler hose

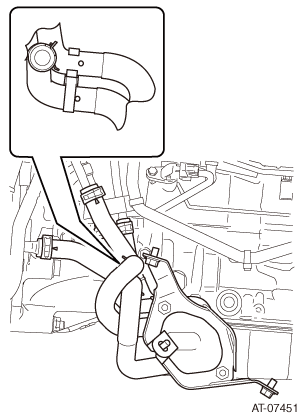

(1) Connect 2 transmission oil cooler hoses to the transmission oil cooler ASSY with 2 clamps.
CAUTION:
·Prevent the clamp claws from interfering with the hoses.
·Align the painted position of the oil cooler hose until it comes to the center of the hose when viewed vertically from the bracket surface of the oil cooler tube.
·Prevent the oil cooler hoses and the water bypass hose from interfering with each other or with other parts.
·Align the painted position of the oil cooler hose until it comes to the center of the hose when viewed vertically from the bracket surface of the oil cooler tube.
·Prevent the oil cooler hoses and the water bypass hose from interfering with each other or with other parts.
4. Fill of coolant (SUBARU genuine Super Coolant) (refer to )
)5. Leakage check of coolant (SUBARU genuine Super Coolant) (refer to )
)6. Installation of under cover COMPL T/M (refer to )
)7. Installation of under cover front AL (refer to )
)
