AUTOMATIC TRANSMISSION / TRANSAXLE
SELECT LEVER

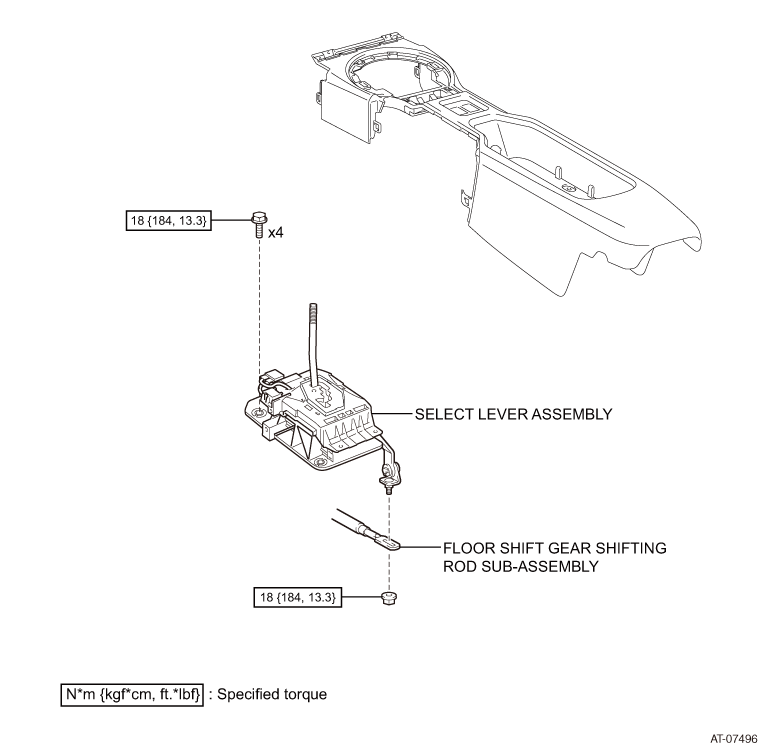

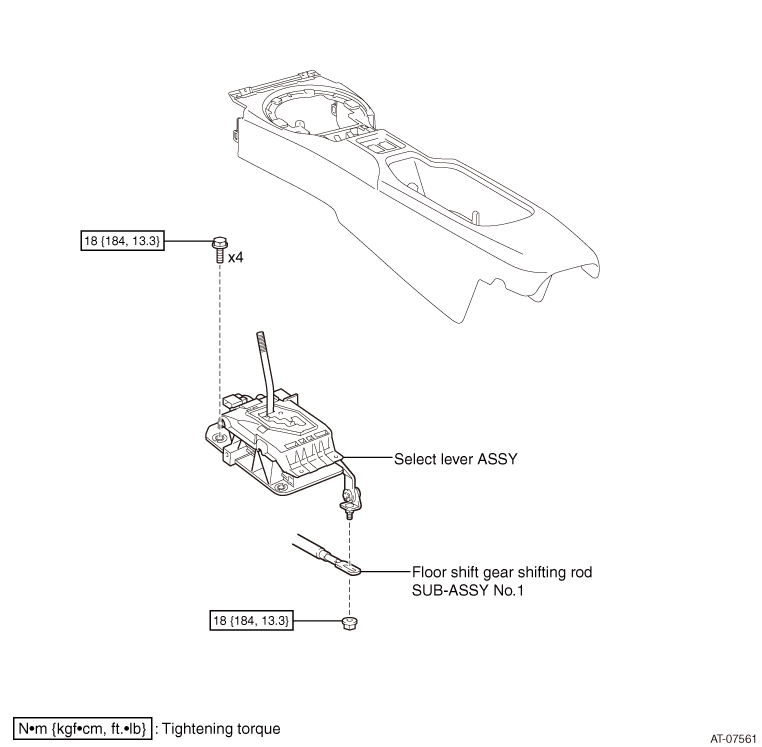

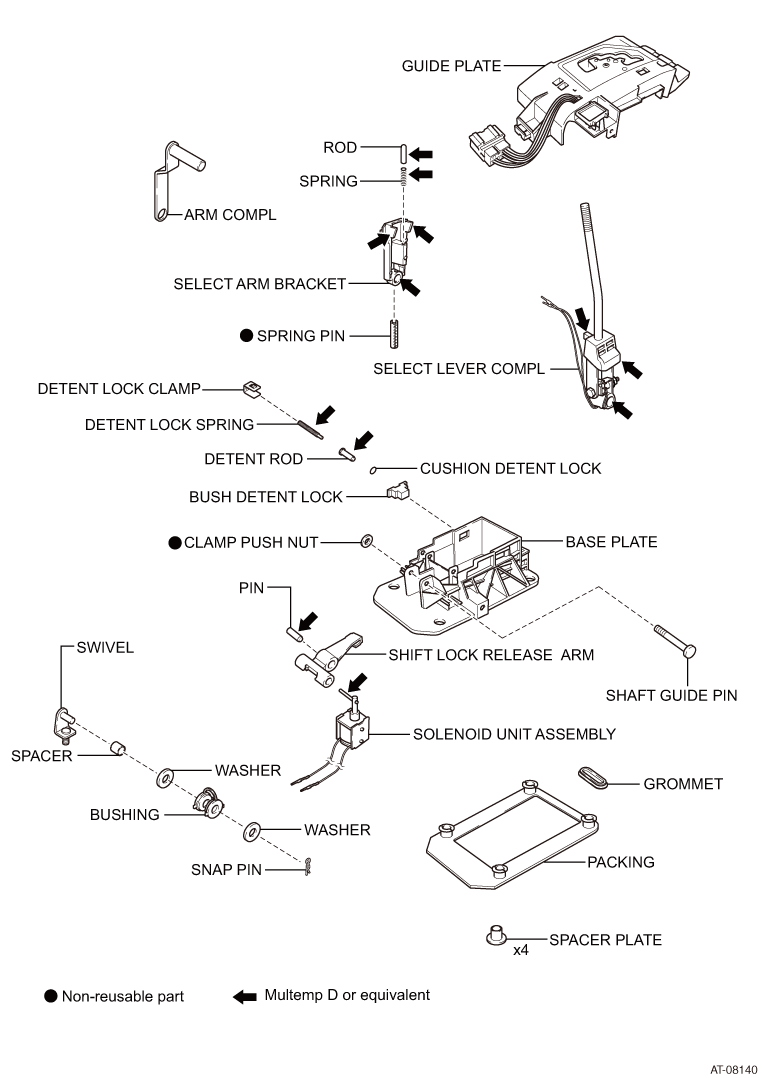

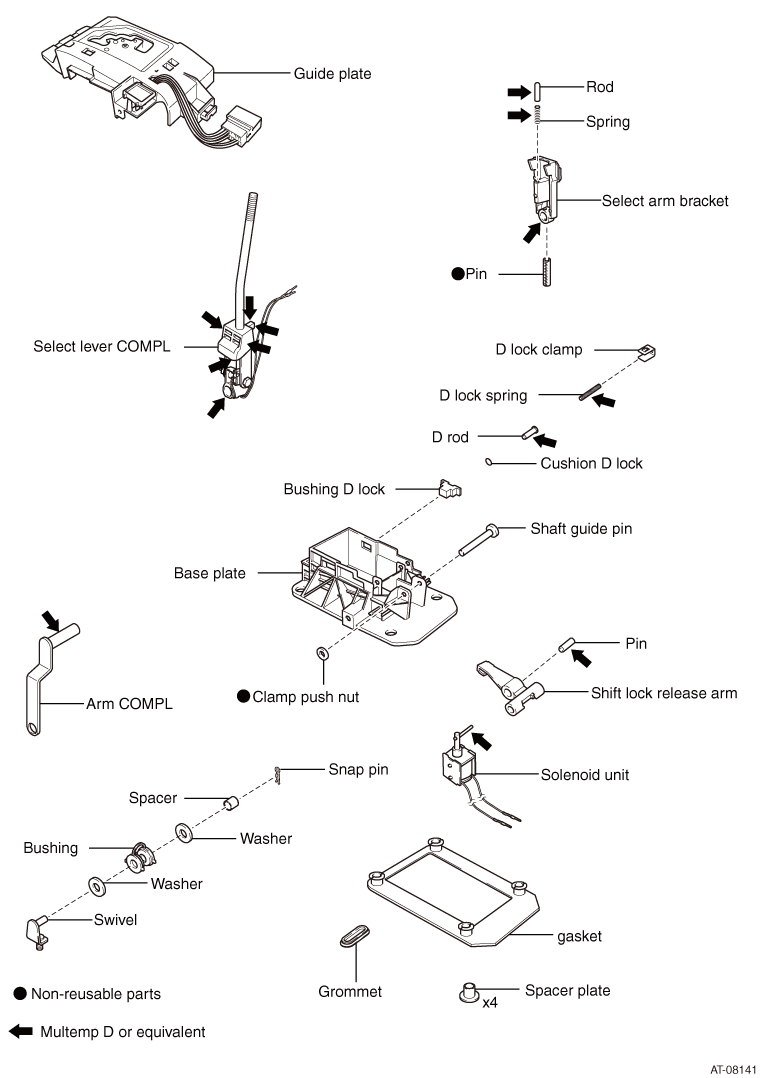

EXPLODED VIEW
LHD model
RHD model
LHD model
RHD model
REMOVAL
1. Removal of console box ASSY
(Refer to )
2. Removal of under cover front AL (refer to )
3. Removal of under cover COMPL T/M (refer to )
4. Disconnection of floor shift gear shifting rod SUB-ASSY No.1
(1) While pressing the shift lock release button, set the select lever to N position.

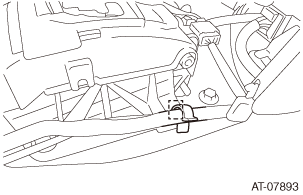

(2) Remove the nut and disconnect the floor shift gear shifting rod SUB-ASSY No.1 from the connecting rod swivel.
5. Removal of select lever ASSY

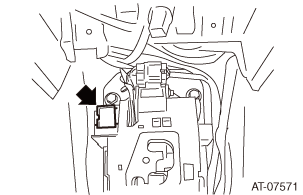

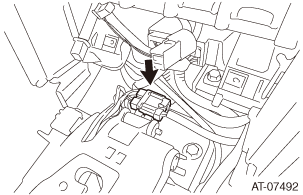

(1) Disconnect the connector.
(2) Release the wiring harness clamp, and disconnect the wiring harness.

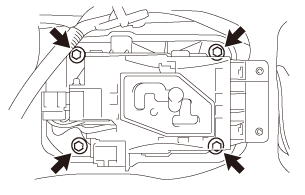

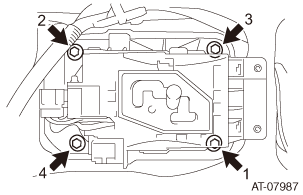

(3) Remove 4 bolts to remove the select lever ASSY.
DISASSEMBLY
1. Removal of guide plate

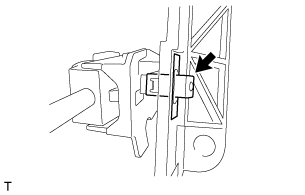

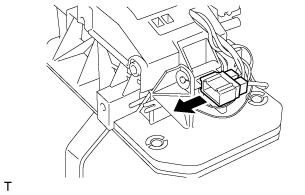

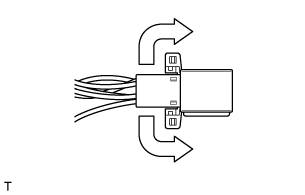

(1) Use a flat tip screwdriver to release the claws, and disconnect the connector.
(2) Use a precision screwdriver (flat tip) to release the connector lock.

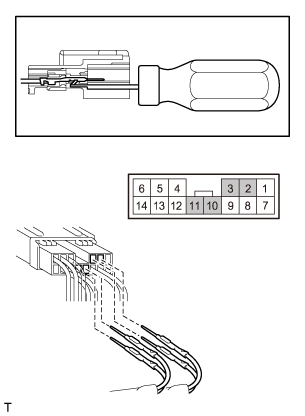

(3) Use a precision screwdriver (flat tip) to pull out the connectors No.2 and No.3 of the shift lock solenoid connector and the connectors No.10 and No.11 of the manual mode switch connector.

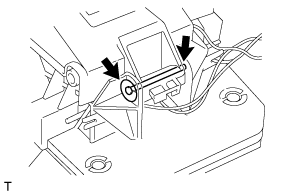

(4) Remove the clamp push nut and the shaft guide pin.

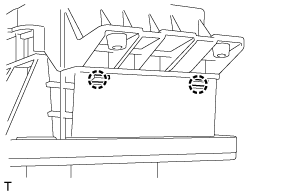

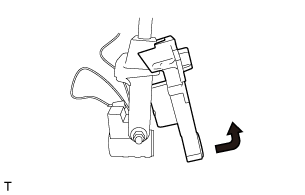

(5) Release the 2 claws to remove the guide plate from the base plate.
2. Removal of solenoid unit

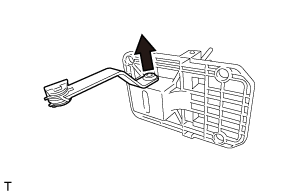

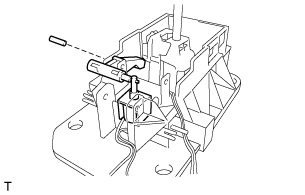

(1) Pull out the pin and remove the solenoid unit together with the shift lock release arm as a unit.
(2) Remove the shift lock release arm from the solenoid unit.
3. Removal of D rod

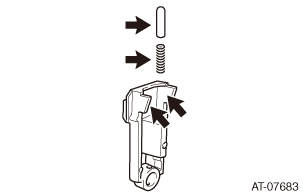

(1) Remove the D lock clamp.
(2) Remove the D lock spring and the D rod.
(3) Remove the cushion D lock from the D rod.
(4) Remove the bushing D lock.
4. Removal of grommet

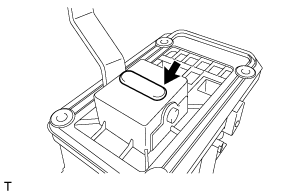

(1) Remove the grommet from the base plate.
5. Removal of arm COMPL

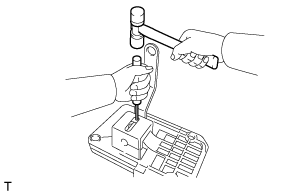

(1) Use a pin punch 3 and hammer to drive out a pin.
(2) Pull out the arm COMPL from the base plate.
6. Removal of select lever COMPL
(1) Remove the select lever COMPL together with the select arm bracket as a single unit.
7. Removal of select lever arm bracket
(1) Remove the select lever COMPL from the select arm bracket.
(2) Remove the rod and the spring from the select arm bracket.
8. Removal of gasket
(1) Remove 4 spacer plates to remove the gasket.
9. Removal of swivel

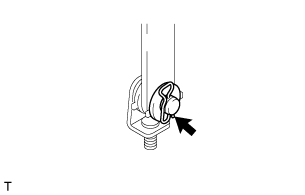

(1) Remove the snap pin, then remove the 2 washers, bushing, spacer, and swivel.
ASSEMBLY
1. Installation of swivel
(1) Install the 2 washers, spacer, bushing, and swivel with a snap pin.
2. Installation of gasket

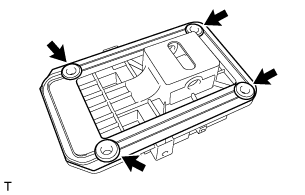

(1) Install 4 spacer plates and the gasket.
3. Installation of select arm bracket
(1) Apply Multemp D to the spring and the rod.

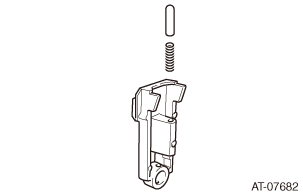

(2) Install the spring and the rod to the select arm bracket.
(3) Apply Multemp D to the select lever COMPL and the select arm bracket.

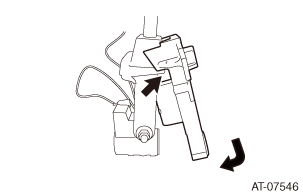

(4) Apply Multemp D to the sliding surface of the rod and install the select arm bracket to the select lever COMPL.
4. Installation of select lever COMPL
(1) Set the select arm bracket together with the select lever COMPL as a single unit to the base plate.
5. Installation of arm COMPL
(1) Insert the arm COMPL to the base plate.
(2) Use a pin punch 3 and hammer to drive in a new pin.
6. Installation of grommet
(1) Install the grommet.
7. Installation of D rod
(1) Install the bushing D lock.
(2) Install the cushion detent lock to the D rod.
(3) Apply Multemp D to the D lock spring and the D rod.
(4) Install the D lock spring and the D rod.
(5) Install the D lock clamp.
8. Installation of solenoid unit
(1) Apply Multemp D to the solenoid unit and the pin.

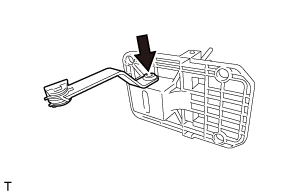

(2) Set the solenoid unit together with the shift lock release arm as a unit to the base plate and insert the pin.
9. Installation of guide plate
(1) Engage the 2 claws and install the guide plate to the base plate.
(2) Install the shaft guide pin and a new clamp push nut.

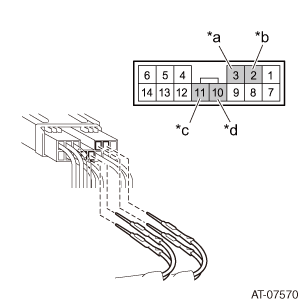

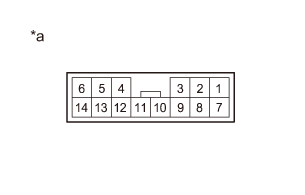

(3) Connect the connectors No.2 and No.3 of the shift lock solenoid connector and the connectors No.10 and No.11 of the manual mode switch connector.
Captions in illustration
*a
 Blue
*b
 Black
*c
 White or black
*d
 Black or white
(4) Lock the terminal of the harness connector.

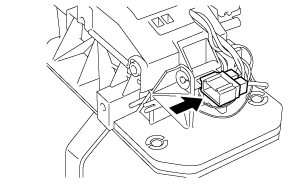

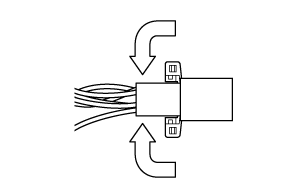

(5) Engage the claw and install the connector.
INSTALLATION
2. Connection of floor shift gear shifting rod SUB-ASSY No.1
(1) Pull the floor shift gear shifting rod SUB-ASSY No.1 toward the rear of the vehicle until it stops, then put it back 2 steps (to N position).

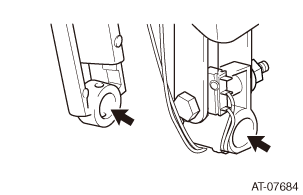

(2) Temporarily install the floor shift gear shifting rod SUB-ASSY No.1 with a nut while seating it on the flat surface of the swivel.
CAUTION:
Be sure to seat it by hand and temporarily tighten the nut.

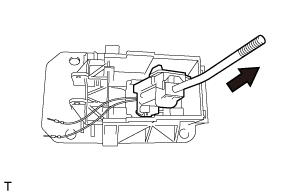

(3) Tighten the nut with the arm COMPL lightly pressed toward the rear of the vehicle.

Standard value:
Tightening torque=18N·m { 184kgf·cm} {13ft·lbf}
CAUTION:
·Do not press the arm COMPL excessively.
·Check that the floor shift gear shifting rod SUB-ASSY No.1 remains seated on the flat surface of the swivel.
4. Installation of under cover COMPL T/M (refer to )
5. Installation of under cover front AL (refer to )
6. Check of select lever position (refer to )
ADJUSTMENT
1. Removal of under cover COMPL T/M (refer to )
2. Removal of under cover front AL (refer to )
4. Select lever position check
(1) Depress the brake pedal with IG ON.
(2) Shift the select lever to each position. At this time, check that the select lever moves smoothly to each position without interference, and that the position indicator displays correctly.
(3) Start the engine, and check that the vehicle moves forward when shifted from N to D position and backward when shifted to R position.
6. Installation of under cover front AL (refer to )
ON-VEHICLE INSPECTION
1. Select lever position check
(1) Shift the select lever to each position. At this time, check that the select lever moves smoothly to each position without interference, and that the position indicator displays correctly.
(2) Check that the select lever does not stop while shifting from R to P position and does not get caught during select operation from D to M position.
NOTE:
Perform with the parking brake released and the parking cam applied.
(3) Start the engine, and check that the vehicle moves forward when shifted from N to D position and backward when shifted to R position.
2. Check of shift lock device operation
(1) Shift the select lever to the P position.
(2) Turn the ignition switch to OFF.
(3) Check that the select lever cannot be shifted to positions other than P when it is operated.
(4) Check that the shift lever can be shifted to ranges other than P position with IG ON and the brake pedal depressed.

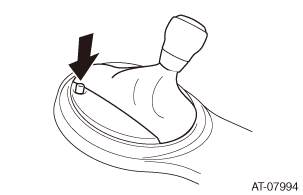

3. Check of shift lock release button operation
(1) Check that the select lever can be shifted to ranges other than P position when it is operated with the shift lock release button pressed.
