Transmission shift switch
Components Inspection Removal / installation
AUTOMATIC TRANSMISSION / TRANSAXLE
TRANSMISSION SHIFT SWITCH

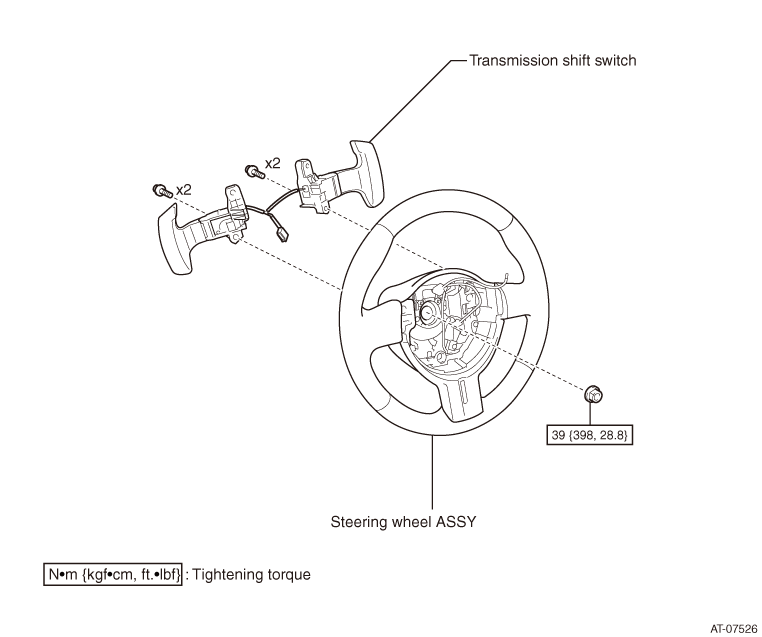

EXPLODED VIEW
REMOVAL
1. Removal of horn button ASSY
(Refer to
)
)2. Removal of steering wheel ASSY (refer to )
)3. Removal of transmission shift switch

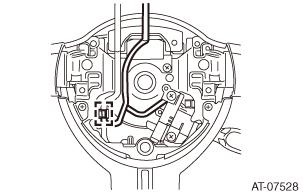

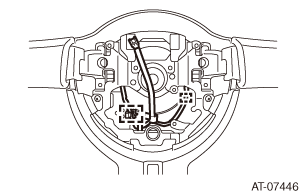

(1) Disconnect the connector clamps from the steering wheel ASSY.
·Model with cruise control switch
·Model without cruise control switch
·Model with cruise control switch
·Model without cruise control switch

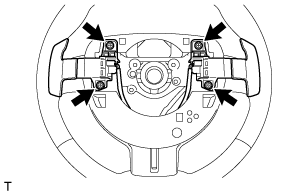

(2) Remove 4 screws to remove the transmission shift switch from the steering wheel ASSY.
INSTALLATION
1. Installation of transmission shift switch
(1) Install the transmission shift switch to the steering wheel ASSY with 4 screws.
(2) Install the connector clamp to the steering wheel ASSY.
2. Installation of steering wheel ASSY (refer to )
)3. Installation of horn button ASSY
(Refer to )
)UNIT INSPECTION
1. Check of transmission shift switch
(1) Resistance inspection

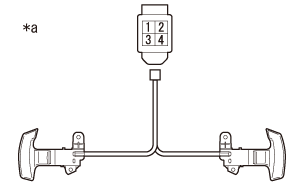

(a) Measure the resistance between the terminals.
