Pattern select switch ASSY
Components Inspection Removal / installation
AUTOMATIC TRANSMISSION / TRANSAXLE
PATTERN SELECT SWITCH ASSY

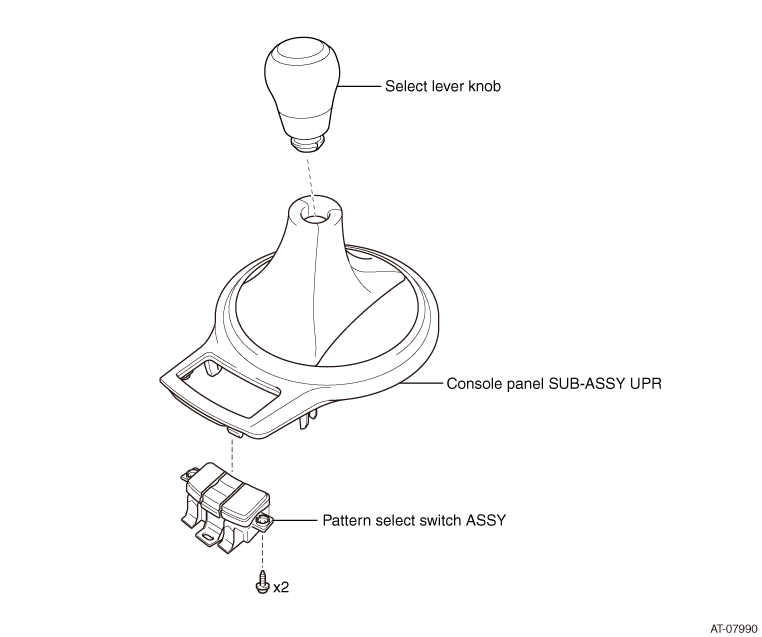

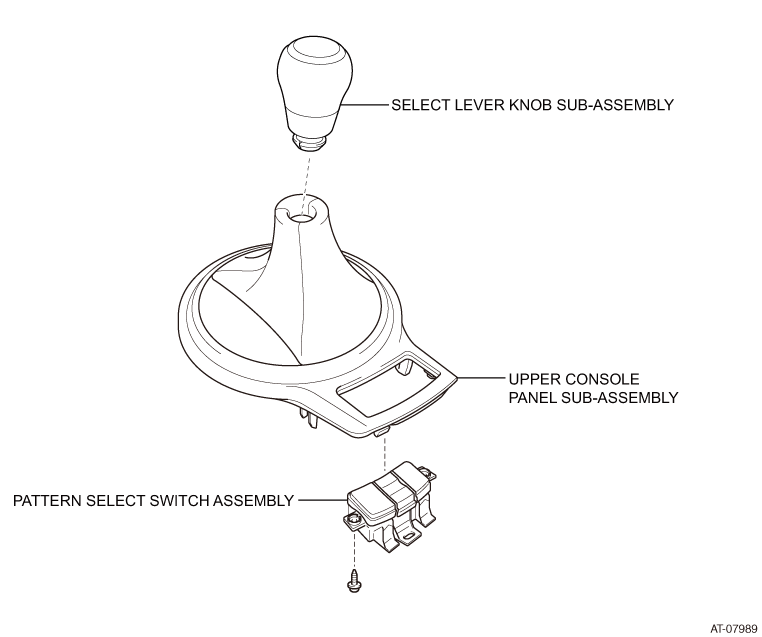

EXPLODED VIEW
LHD model
RHD model
REMOVAL
1. Removal of select lever knob (refer to
)
)2. Removal of console panel SUB-ASSY UPR (refer to )
)
3. Removal of pattern select switch ASSY

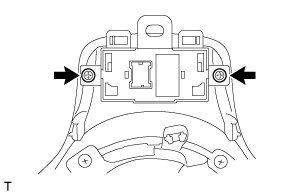

(1) Remove 2 screws to remove the pattern select switch ASSY.
INSTALLATION
1. Installation of pattern select switch ASSY
(1) Install the pattern select switch ASSY with 2 screws.
2. Installation of console panel SUB-ASSY UPR (refer to )
)3. Installation of select lever knob (refer to )
)UNIT INSPECTION
1. Check of pattern select switch ASSY
(1) Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 4 - 8 |
Pattern select (SPORT) switch ON |
Less than 1 Ω |
| 4 - 8 |
Pattern select (SPORT) switch OFF |
10 k Ω or more |
| 6 - 8 |
Pattern select (SNOW) switch ON |
Less than 1 Ω |
| 6 - 8 |
Pattern select (SNOW) switch OFF |
10 k Ω or more |
Captions in illustration

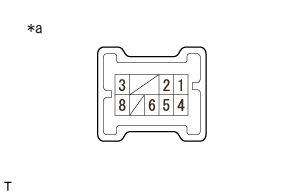

| *a |
Connector not connected (Pattern select switch ASSY) |
