Extension housing rear oil seal
Components Removal / installation
AUTOMATIC TRANSMISSION / TRANSAXLE
EXTENSION HOUSING REAR OIL SEAL

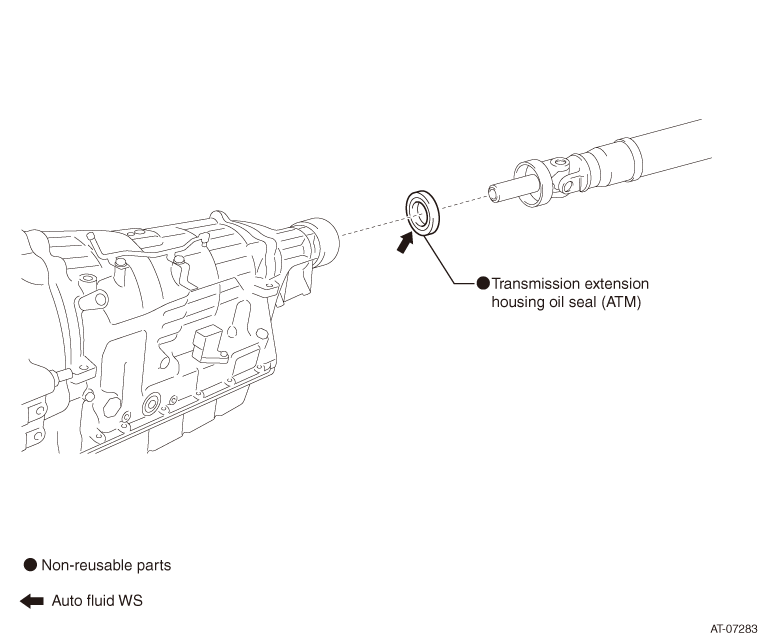

EXPLODED VIEW
REPLACEMENT
1. Removal of propeller shaft W/ center bearing ASSY
(Refer to
)
)
2. Removal of transmission extension housing oil seal (ATM).

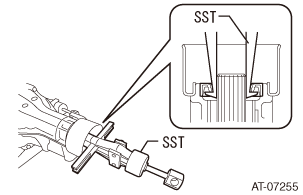

(1) Use SST to remove the transmission extension housing oil seal (ATM).
SST
398527700
3. Installation of transmission extension housing oil seal (ATM)
(1) Apply a small amount of auto fluid WS to the lip of a new transmission extension housing oil seal (ATM).

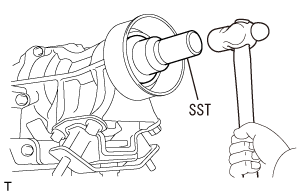

(2) Use SST and a hammer to drive in the transmission extension housing oil seal (ATM) in the extension housing.
SST
09325-40010
Drive-in depth
: 5.4 to 5.8 mm {0.213 to 0.228 in} (from end face of extension housing)
CAUTION:
·Keep the lip from foreign substances such as dirt.
·Be careful not to mistake the installing direction of the transmission extension housing oil seal (ATM).
·Be careful not to mistake the installing direction of the transmission extension housing oil seal (ATM).
4. Installation of propeller shaft W/ center bearing ASSY
(Refer to )
)
