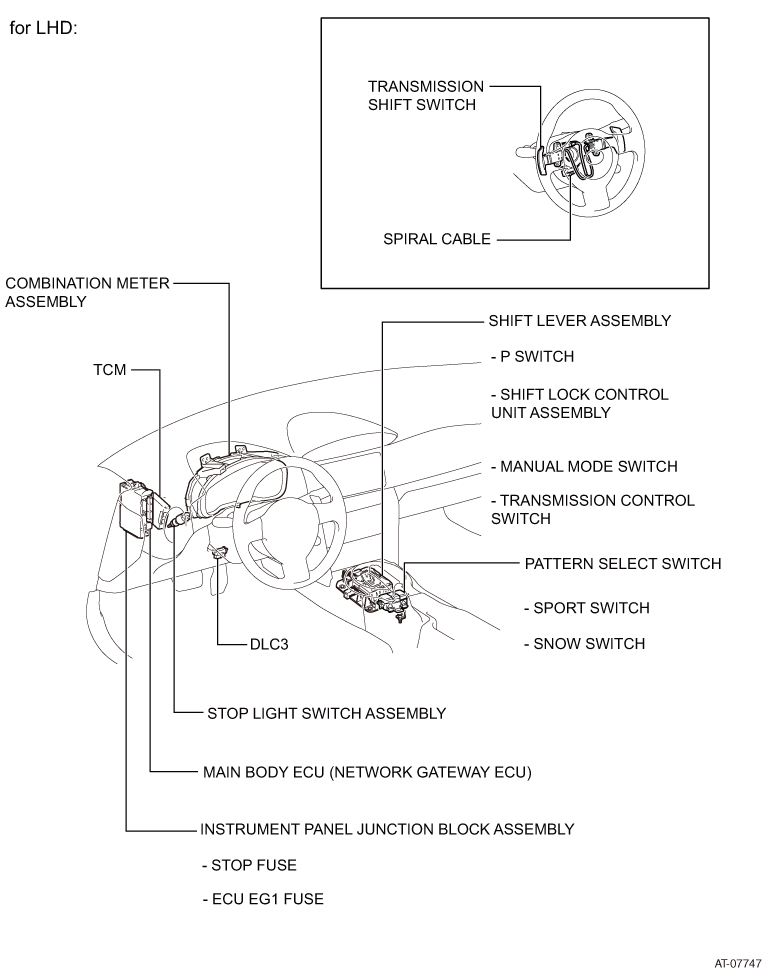

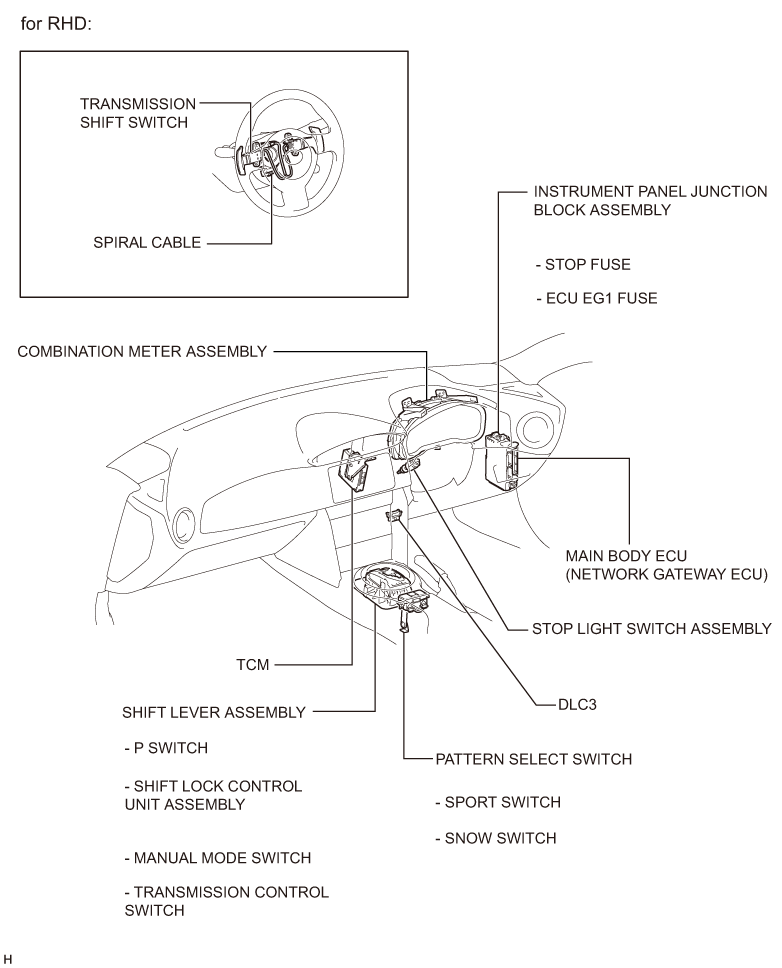

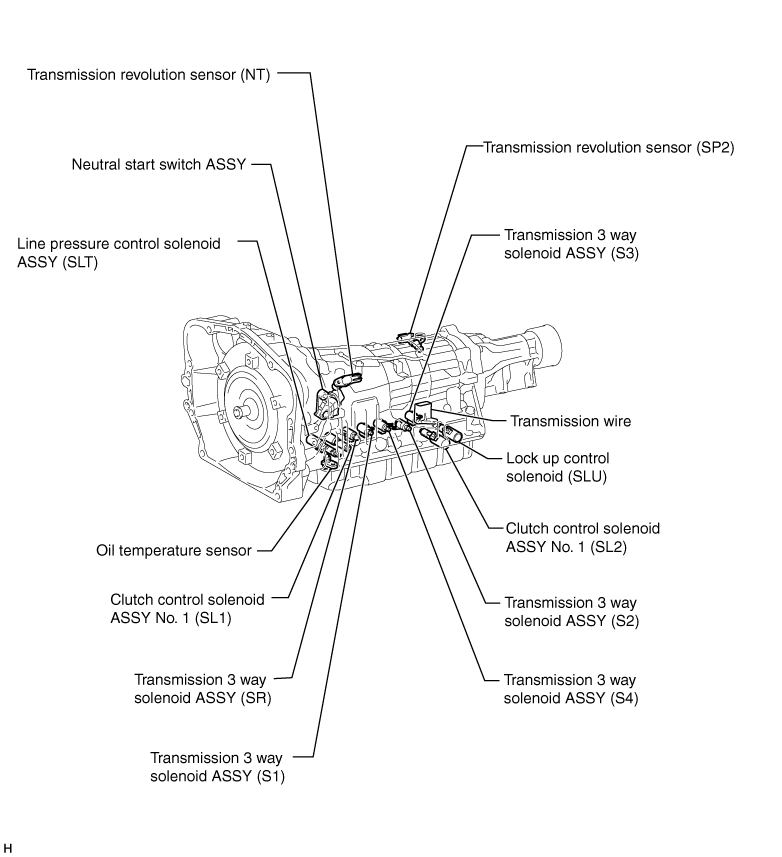

Precautions Parts location System information Troubleshooting Diagnostic trouble codes Circuit diagnosis Removal / installation

AUTOMATIC TRANSMISSION / TRANSAXLE
AUTOMATIC TRANSMISSION SYSTEM
PRECAUTIONS
CAUTION:
Execute reset memory operation (AT initialization) when replacing the automatic transmission ASSY, engine ASSY, valve body ASSY, transmission wire, or TCM. (Refer to )
NOTE:
Reset memory operation is not completed just by disconnecting the battery cable.
1. Precautions for removal and installation procedures
(1) Since the automatic transmission consists of parts with a very precise finish, careful inspection is required before assembling these parts. Even a small scratch may cause liquid leakage or affect the performance. Instructions in this chapter are organized so that the work for only 1 component group is performed at a time. This is to avoid confusion which can occur when parts having similar appearance but for different SUB-ASSY exist in the same workbench at the same time. Inspect and repair the component group from the converter housing side. Try to complete the inspection, repair, or assembly work before proceeding to the next component group. If any defect is found in a specific component group during assembly, immediately check and repair the group. When a component group cannot be assembled due to the parts order, be sure to store all parts of the group in another container while another component group is being disassembled, checked, and assembled. The auto fluid (ATF) WS is recommended.
(2) Wash all of the removed parts and blow through all of the liquid passages and holes with compressed air.
(3) Dry all parts with compressed air. Never dry the parts using rugs and cloths in the work area.
(4) When using compressed air, do not point the air outlet toward you to prevent auto fluid and detergent from being blown to your face by mistake.
(5) Use only the recommended automatic transmission fluid or appropriate detergent for cleaning.
(6) After washing, arrange the parts in the correct order for efficient inspection, repair, and assembly.
(7) When removing the valve body, be sure to keep each valve with the corresponding spring.
(8) Soak new discs (for replacement) of the brake and clutch in ATF for at least 15 minutes before the assembly.
(9) Before the assembly, apply ATF to all of the oil seal rings, clutch discs, clutch plates, rotating parts, and sliding surfaces.
(10) Replace all gaskets and rubber O-rings with new parts.
(11) Do not apply adhesive cement to gaskets and similar parts.
(12) Check that the both ends of the snap ring do not overlap the notch and the snap ring is installed in the groove correctly.
(13) When replacing a worn bushing, be sure to replace the SUB-ASSY including the bushing.
(14) Check for wear and damage of the thrust bearing and race. Replace them as required.
(15) Observe the following precautions when handling FIPG material.
·Completely remove the old sealant (FIPG) material from the gasket surface using a razor or gasket scraper.
·Carefully clean all the components and remove materials that are coming off.
·Clean the both surfaces of the seal with appropriate detergent.
·The parts must be assembled within 10 minutes after sealant (FIPG) is applied. If it is impossible, remove the sealant (FIPG) material and apply it again.
DEFINITIONS OF TERMS
Term
 Definition
Monitor description
 Description of what TCM monitor is and the failure detection method (purpose and detail of observation)
Applicable diagnostic codes
 Diagnostic codes
Standard enabling condition
 Conditions required so that TCM can detect failures.
When all of the required conditions are satisfied, TCM sets diagnostic codes if the observation value exceeds the failure threshold.
Operation order
 Priority order applied to observation when multiple sensors and components are used for failure detection.
When a sensor is observed, the next sensor or component is not observed until the observation is completed.
Requirement sensor/component
 The sensor and component used by TCM for failure detection
Operation frequency
 The number of times that TCM checks failure per driving cycle
“Once per driving cycle” means that TCM detects failure only 1 time during a single driving cycle.
“Consecutive” means that TCM detects failure each time the enabling condition is satisfied.
Period
 The minimum time period in which consecutive deviation of the observation value must be detected before TCM sets diagnostic codes. The time measurement starts after “standard enabling condition” is satisfied.
Failure threshold
 If the value is exceeded, TCM concludes that a failure is found and sets diagnostic codes.
MIL operation
 The timing of MIL illumination after a defect is detected.
“Immediate” means that MIL illuminates at the moment when TCM judges that a failure is found.
“2nd driving cycle” means that MIL illuminates when TCM detects the same failure in the 2nd driving cycle.
Component operation range
 Normal operation range of the sensor and solenoid under the normal driving condition
Use these ranges as reference.
Do not use them to judge whether the sensor or solenoid has a defect or not.
FUNCTION INSPECTION

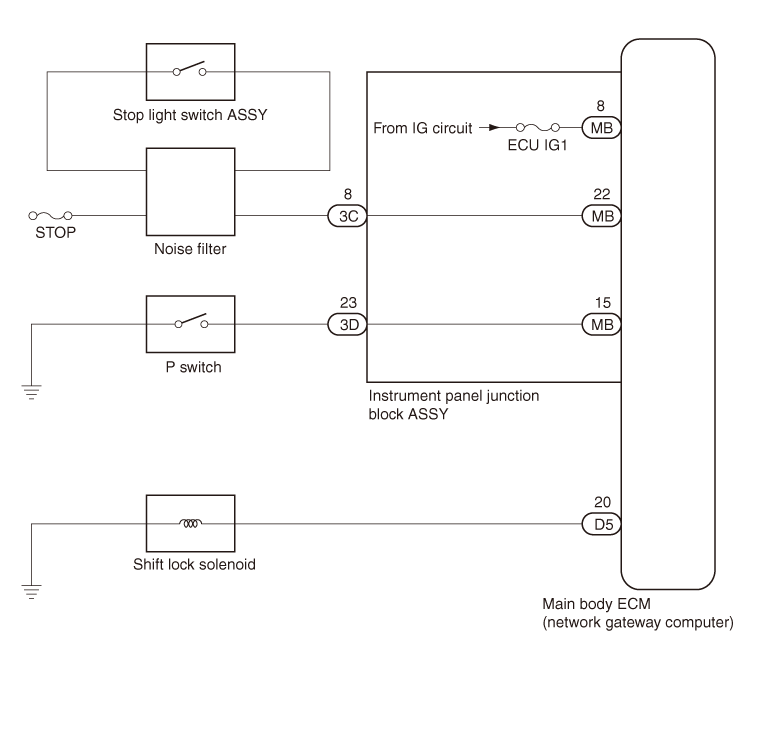

1. Check of shift lock operation
(1) Shift the select lever to the P position.
(2) Check that the select lever cannot be shifted to ranges other than P position when it is operated.
(3) Check that the select lever can be shifted to ranges other than P position with IG ON and the brake pedal depressed.
2. Check of shift lock release button operation
(1) Check that the select lever can be shifted to ranges other than P position when it is operated with the shift lock release button pressed.
3. Time lag check
CAUTION:
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (60 to 90°C {140 to 194°F}) in normal driving temperature.
·Perform the inspection with the A/C OFF.
(1) Apply the parking brake and set the wheel stoppers.
(2) Start the engine.
(3) Shift from N position to D or R position with idling while depressing the brake pedal, and measure the time until a small shock is felt.
Standard value :  N→D position 1.2 seconds or less :  N→R position 1.5 seconds or less
CAUTION:
·Make measurements 3 times and take the average value.
·Allow 1 minute interval when performing consecutive measurements.
5. Line pressure check
CAUTION:
·Wash the equipment and hoses with appropriate detergent before and after measurement.
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (60 to 90°C {140 to 194°F}) in normal driving temperature.
·Perform the inspection with the A/C OFF.
·Do not perform the inspection continuously for 5 seconds or more at stall. (Working time for the sequence from the accelerator full close, full open, stall speed reading, to the accelerator full close) Ignoring this instruction causes engine oil and ATF deterioration which has adverse effect on the clutch and brake.
·After performing the stall test, be sure to cool down the engine for at least 1 minute with the select lever set in P or N position, and at an idle speed of 1200 r/min or less.
·If the stall speed is higher than the specified range, finish the stall test in as short a time as possible, in order to prevent the automatic transmission from being damaged.
·Perform the stall test in normal mode.
(1) Remove the under cover front AL.
(2) Remove the under cover COMPL T/M.
(3) Remove the exhaust pipe ASSY FR.

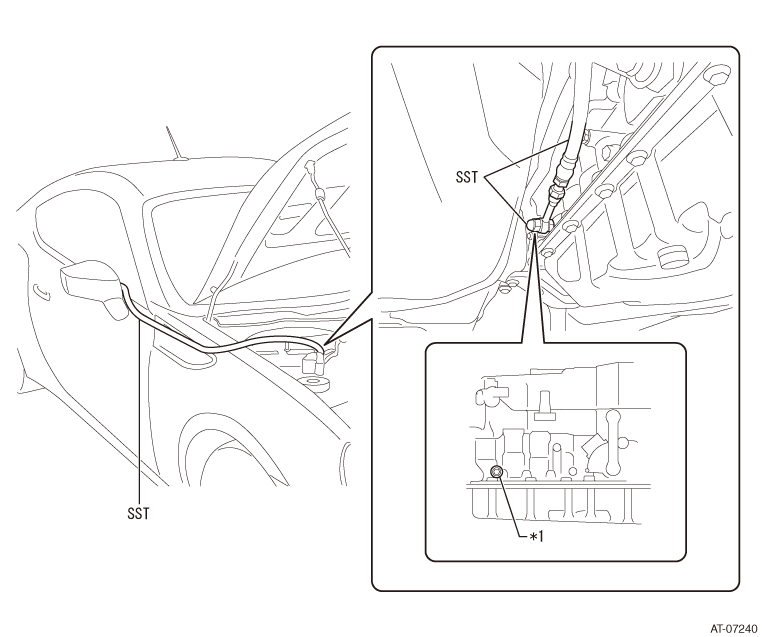

(4) Attach the SST on the transmission.
SST     18681AA040  498897700  498575400
CAUTION:
·Use 18681AA040 with genuine O-ring (17006AA000) attached.
·Route the hose so that it does not contact the exhaust pipe.
Captions in illustration
*1
 Test plug
(5) Install the exhaust pipe ASSY FR.
(6) Firmly apply the parking brake and set the wheel stoppers.
(7) Start the engine.
(8) Firmly depress the brake pedal with left foot and shift to D or R position, then check the hydraulic pressure at idling and stalling.
Standard value
Shift position
 While idling
[MPa {kgf/cm2}]
 While stalling
[MPa {kgf/cm2}]
D position
 0.35 to 0.43
{3.6 to 4.4}
 1.20 to 1.38
{12.2 to 14.0}
R position
 0.76 to 0.95
{7.7 to 9.7}
 1.41 to 1.63
{14.4 to 16.6}
NOTE:
When there is an open or short circuit in the line pressure control solenoid ASSY (SLT) system, the line pressure reaches the maximum.
6. Shift table
WARNING:
Observe the legal speed limit and confirm the safety on the road.
CAUTION:
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (40 to 110°C {104 to 230°F}) in normal driving temperature.
·Perform the inspection at an engine coolant temperature of 60 to 90°C {140 to 194°F}.
·Turn the A/C and the cruise control OFF.
NOTE:
·The values equal to or higher than the maximum speed are for reference because they cannot be achieved.
·Do not shift to 6th gear when the AT oil temperature is less than 20°C {68°F}.
·Lockup is prohibited when the AT oil temperature is less than 20°C {68°F}.
·Lockup does not occur at 1st gear of manual mode.
·Acceleration slipping lock-up is prohibited when the AT oil temperature is less than 40°C {104°F} or 110°C {230°F} or more.
·Reduction slipping lock-up is prohibited when the AT oil temperature is less than 20°C {68°F} or 110°C {230°F} or more.
(1) Shift table
(a) Use SSM3 to select [Current Data Display & Save]→[Normal sampling], and then select [AT Speed], [Control the Shift Position], [Accel. Opening Angle], [A/T Oil Temperature], and [Coolant Temp].
(b) Confirm [AT Speed] when [Control the Shift Position] is up-shifted.
Throttle opening angle
 100 %
 5 to 10 %
Shift point
 1→2
 2→3
 3→4
 4→5
 5→6
 1→2
 2→3
 3→4
 4→5
 5→6
D position
(km/h {MPH})
 47 to 53
{29 to 33}
 96 {60}
 142 {88}
 201 {125}
 282 {175}
 12 {7}
 20 {12}
 30 {19}
 48 {30}
 59 {37}
(2) Lock-up
(a) Use SSM3 to select [Current Data Display & Save]→[Normal sampling], and then select [AT Speed], [Control the Shift Position], [Accel. Opening Angle], [Engine Speed], [Turbine Revolution Speed], [Coolant Temp.], and [Lock up status].
(b) Confirm that the difference between [Engine Speed] and [Turbine Revolution Speed] is 50 r/min or less.
Throttle opening angle
 5 to 10 %
Lock-up
 ON
Gear position
 6th
D position
(km/h {MPH})
 57 {35} or more
(3) Manual downshift permission vehicle speed
Shift position
 M6→M5
 M5→M4
 M4→M3
 M3→M2
 M2→M1
Vehicle speed
(km/h {MPH})
 284 {176}
 201 {125}
 142 {88}
 95 {59}
 53 {33}
7. Driving test
WARNING:
Observe the legal speed limit and confirm the safety on the road.
CAUTION:
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (60 to 90°C {140 to 194°F}) in normal driving temperature.
·Turn the A/C and the cruise control OFF.
Driving test list
Check item
 Inspection and confirmation procedure
D position shift function
 Check shifting of 1st ←→ 2nd ←→ 3rd ←→ 4th ←→ 5th ←→ 6th during normal driving on city streets.
Shift shock level during D position driving
 Check the shock level at each up-shifting during normal driving.
Kick-down function
·Perform kick-down operation in each gear and check for the down-shifting.
·Check the shock level at kick down.
Engine brake operation
·Shift the select lever to “-” while driving in M position 6th gear (approx. 70 to 80 km/h {43 to 50 MPH}) and check the engine brake operation in 5th gear.
·Shift the select lever to “-” while driving in M position 5th gear (approx. 55 to 65 km/h {34 to 40 MPH}) and check the engine brake operation in 4th gear.
·Shift the select lever to “-” while driving in M position 4th gear (approx. 40 to 50 km/h {25 to 31 MPH}) and check the engine brake operation in 3rd gear.
·Shift the select lever to “-” while driving in M position 3rd gear (approx. 25 to 35 km/h {16 to 22 MPH}) and check the engine brake operation in 2nd gear.
·Shift the select lever to “-” while driving in M position 2nd gear (approx. 10 to 20 km/h {6 to 12 MPH}) and check the engine brake operation in 1st gear.
Shift point at accelerator pedal in full throttle
 Start in D position with the accelerator pedal in full throttle and check that the up-shifting speed of 1st → 2nd conforms to the shift point. (Refer to the shift table for shift point speeds)
Lock-up function
 When the accelerator is lightly depressed while driving on a flat road at a constant speed within the lock-up speed range, check that the engine speed does not change greatly.
P position operation
 Stop the vehicle on an uphill grade (approx. 5° or more) and shift to P position, then check that the vehicle does not move when the parking brake is released.
Noise and vibration
 Check for noise and vibration during driving and shifting.
Hill climb/down control function
·Check that up-shifting is performed at higher engine speed than driving on a level road when climbing a hill in D position.
·Check that down-shifting is performed at higher engine speed than driving on a level road when descending a hill in D position.
Oil leakage
 Check that there is no oil leakage after the driving test.

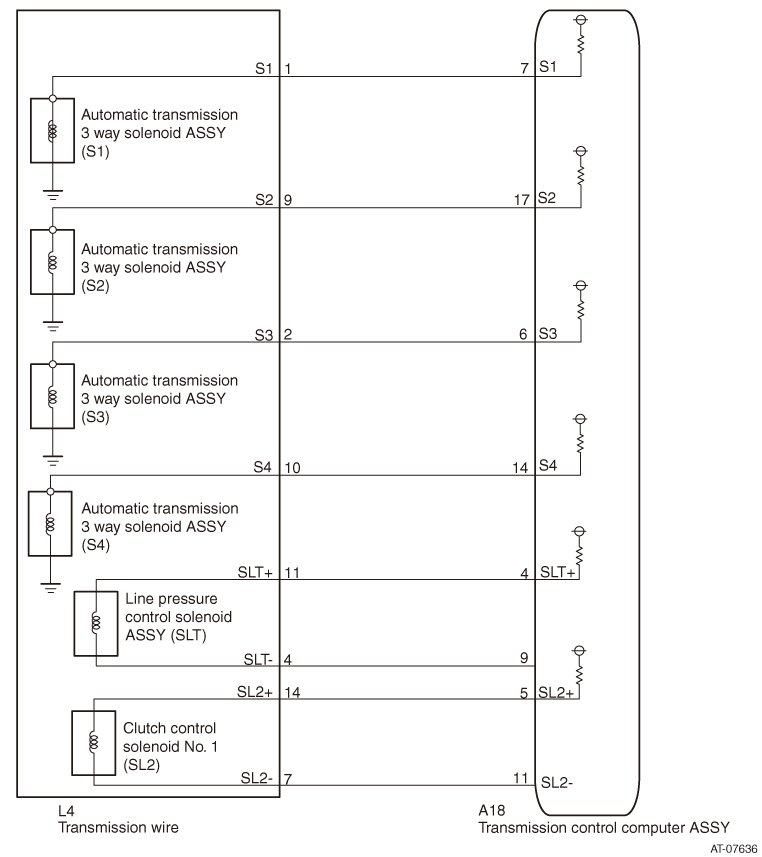

9. Check of solenoid operation
(1) SSM3-system operation check mode
(a) Turn the ignition switch to OFF.
(b) Connect SSM3 to the data link connector.
(c) Turn the ignition switch to ON with the engine stopped.
(d) Display the [System Operation Check Mode] screen according to the screen display.
(e) Perform the following active tests.
SSM3 screen: [Work Support] → [System Operation Check Mode]
Item name
 Description
 Restriction
[Activate the Solenoid(S1)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (S1) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(S2)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (S2) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(S3)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (S3) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min

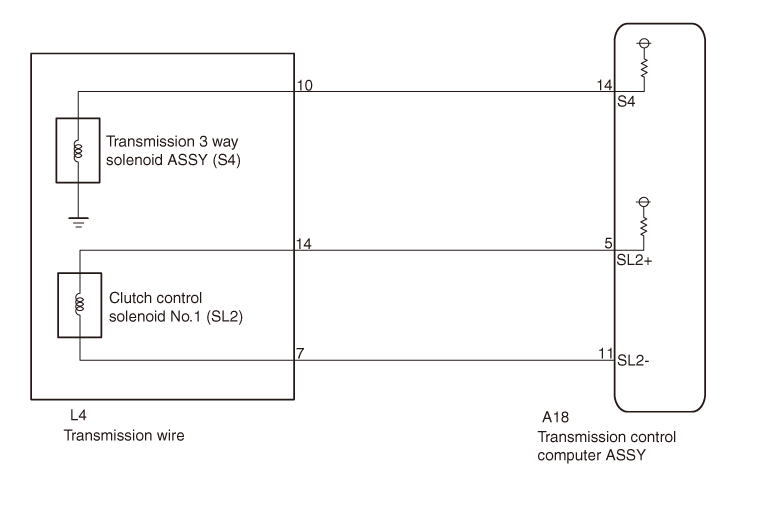

[Activate the Solenoid(S4)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (S4) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min

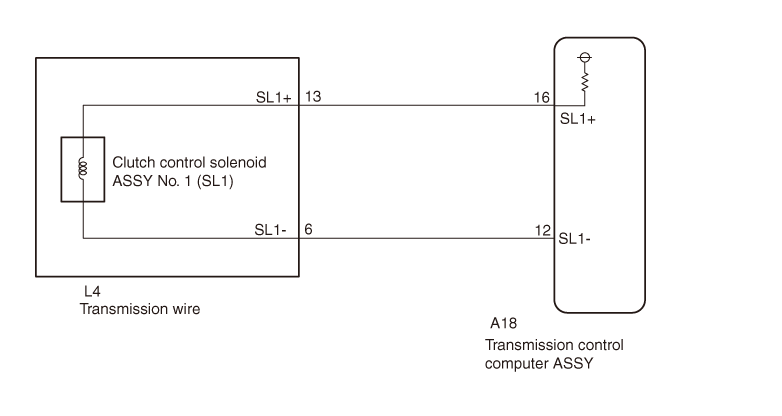

[Activate the Solenoid(SL1)]
 MIN current ←→ MAX current of clutch control solenoid No.1 (SL1) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min

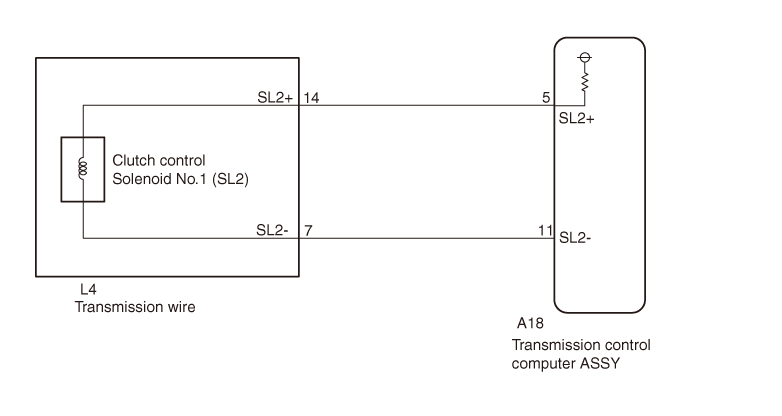

[Activate the Solenoid(SL2)]
 MIN current ←→ MAX current of clutch control solenoid No.1 (SL2) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min

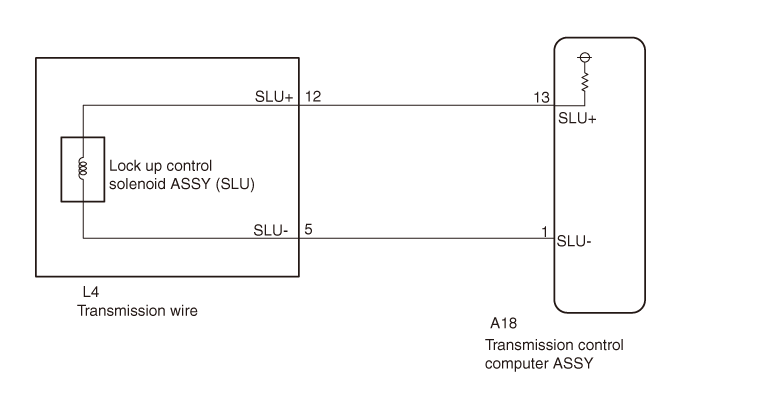

[Activate the Solenoid(SLU)]
 MIN current ←→ MAX current of lock-up control solenoid (SLU) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(SR)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (SR) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min

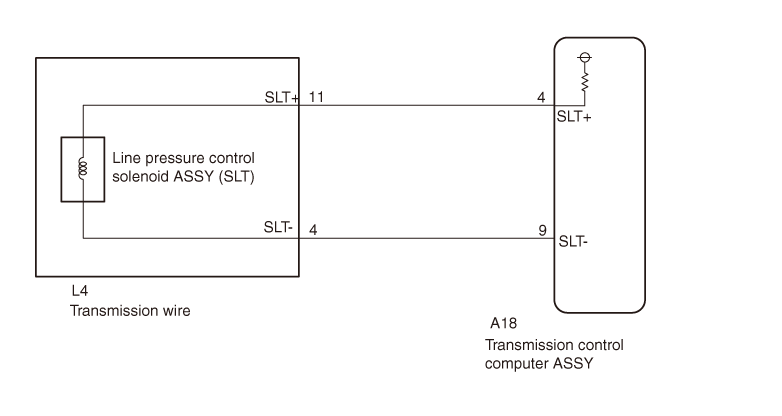

[Activate the Solenoid(SLT)]
 MIN current ←→ MAX current of line pressure control solenoid ASSY (SLT) is possible.
(MAX current → duty ratio 100% (line pressure at idling))
(MIN current → duty ratio 0% (line pressure at stall))
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
NOTE:
Solenoid condition at shifting
Symbol
 Operating condition
O
 Continuity status (ON)
×
 Non-continuity status (OFF)
At normal condition
Select lever position
 Gear position
 Transmission 3 way solenoid ASSY (S1)
 Transmission 3 way solenoid ASSY (S2)
 Transmission 3 way solenoid ASSY (S3)
 Transmission 3 way solenoid ASSY (S4)
 Transmission 3 way solenoid ASSY (SR)
 Clutch control solenoid No.1 (SL1)
 Clutch control solenoid No.1 (SL2)
D position
 1st
 ×
 O
 O
 ×
 O
 ×
 O
2nd
 O
 O
 O
 O
 O
 ×
 ×
3rd
 O
 ×
 O
 ×
 O
 ×
 ×
4th
 O
 ×
 ×
 ×
 O
 ×
 O
5th
 O
 ×
 ×
 O
 ×
 O
 ×
6th
 O
 O
 ×
 O
 ×
 O
 ×

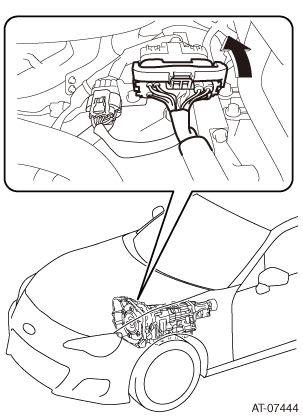

PARTS LOCATION
LIST OF DIAGNOSTIC CODES
Diagnostic codes
 Diagnostic items
 Light on
 Code record
 Reference pages
B1016
 [shift lock circuit Failure]
 O
 O

P0601
 [Internal Control Module Memory Check Sum Error]
 O
 O

P062F
 [EEPROM Error]
 O
 O

P0707
 [Transmission Range Sensor “A” Circuit Low]
 O
 O

P0708
 [Transmission Range Sensor Circuit High]
 O
 O

P0711
 [Transmission Fluid Temperature Sensor “A” Circuit Range/Performance]
 O
 O

P0712
 [Transmission Fluid Temperature Sensor “A” Circuit Low]
 O
 O

P0713
 [Transmission Fluid Temperature Sensor “A” Circuit High]
 O
 O

P0717
 [Input/Turbine Speed Sensor “A” Circuit No Signal]
 O
 O

P0722
 [Output Speed Sensor Circuit No Signal]
 O
 O

P0729
 [Gear 6 Incorrect Ratio]
 O
 O

P0751
 [Shift Solenoid “A” Performance/Stuck Off]
 O
 O

P0752
 [Shift Solenoid “A” Stuck On]
 O
 O

P0756
 [Shift Solenoid “B” Performance/Stuck Off]
 O
 O

P0757
 [Shift Solenoid “B” Stuck On]
 O
 O

P0761
 [Shift Solenoid “C” Performance/Stuck Off]
 O
 O

P0762
 [Shift Solenoid “C” Stuck On]
 O
 O

P0766
 [Shift Solenoid “D” Performance/Stuck Off]
 O
 O

P0767
 [Shift Solenoid “D” Stuck On]
 O
 O

P0776
 [Pressure Control Solenoid “B” Performance/Stuck Off]
 O
 O

P0781
 [1-2 Shift]
 O
 O

P0882
 [TCM Power Input Signal Low]
 ×
 O

P0894
 [Transmission Component Slipping]
 O
 O

P0961
 [Pressure Control Solenoid “A” Control Circuit Range/Performance]
 O
 O

P0962
 [Pressure Control Solenoid “A” Control Circuit Low]
 O
 O

P0963
 [Pressure Control Solenoid “A” Control Circuit High]
 O
 O

P0965
 [Pressure Control Solenoid “B” Control Circuit Range/Performance]
 O
 O

P0966
 [Pressure Control Solenoid “B” Control Circuit Low]
 O
 O

P0967
 [Pressure Control Solenoid “B” Control Circuit High]
 O
 O

P0973
 [Shift Solenoid “A” Control Circuit Low]
 O
 O

P0974
 [Shift Solenoid “A” Control Circuit High]
 O
 O

P0976
 [Shift Solenoid “B” Control Circuit Low]
 O
 O

P0977
 [Shift Solenoid “B” Control Circuit High]
 O
 O

P0979
 [Shift Solenoid “C” Control Circuit Low]
 O
 O

P0980
 [Shift Solenoid “C” Control Circuit High]
 O
 O

P0982
 [Shift Solenoid “D” Control Circuit Low]
 O
 O

P0983
 [Shift Solenoid “D” Control Circuit High]
 O
 O

P0985
 [Shift Solenoid “E” Control Circuit Low]
 O
 O

P0986
 [Shift Solenoid “E” Control Circuit High]
 O
 O

P160A
 [Random Access Memory (RAM) Error]
 O
 O

P1817
 [Manual switch system (Low)]
 ×
 O

P2714
 [Pressure Control Solenoid “D” Performance/Stuck Off]
 O
 O

P2719
 [Pressure Control Solenoid “D” Control Circuit Range/Performance]
 O
 O

P2720
 [Pressure Control Solenoid “D” Control Circuit Low]
 O
 O

P2721
 [Pressure Control Solenoid “D” Control Circuit High]
 O
 O

P2757
 [Torque Converter Clutch Pressure Control Solenoid Control Circuit Performance/Stuck Off]
 O
 O

P2758
 [Torque Converter Clutch Pressure Control Solenoid Control Circuit Stuck On]
 O
 O

P2762
 [Torque Converter Clutch Pressure Control Solenoid Control Circuit Range/Performance]
 O
 O

P2763
 [Torque Converter Clutch Pressure Control Solenoid Control Circuit High]
 O
 O

P2764
 [Torque Converter Clutch Pressure Control Solenoid Control Circuit Low]
 O
 O

U0073
 [Control Module Communication Bus “A” Off]
 O
 O

U0100
 [Lost Communication With ECM/PCM “A”]
 O
 O

U0122
 [Lost Communication With Vehicle Dynamics Control Module]
 O
 O

U0140
 [Lost Communication With Body Control Module]
 ×
 O

U0155
 [Nonarrival of H-CAN data(METER)]
 ×
 O

U0401
 [Invalid Data Received From ECM/PCM “A”]
 O
 O

U0416
 [Invalid Data Received From Vehicle Dynamics Control Module]
 O
 O

U0422
 [Invalid Data Received From Body Control Module]
 ×
 O

U0423
 [Invalid Data Received From Instrument Panel Cluster Control Module]
 ×
 O

SYMPTOM TABLE
Symptoms
 Inspection items
 Reference pages
Does not up-shift (from 1st to 2nd).
 Transmission 3 way solenoid ASSY (S1)

Transmission control computer

Does not up-shift (from 2nd to 3rd).
 Transmission 3 way solenoid ASSY (S2)

Transmission control computer

Does not up-shift (from 3rd to 4th).
 Transmission 3 way solenoid ASSY (S3)

EFI water temperature system

Transmission control computer

Does not up-shift (from 4th to 5th).
 Clutch control solenoid No.1 (SL1)

Clutch control solenoid No.1 (SL2)

Transmission 3 way solenoid ASSY (S4)

Transmission 3 way solenoid ASSY (SR)

EFI water temperature system

Transmission control computer

Does not up-shift (from 5th to 6th).
 Transmission 3 way solenoid ASSY (S2)

Transmission control switch

EFI water temperature system

Transmission control computer

Does not down-shift (from 6th to 5th).
 Transmission 3 way solenoid ASSY (S2)

Transmission control switch

Transmission control computer

Does not down-shift (from 5th to 4th).
 Clutch control solenoid No.1 (SL1)

Clutch control solenoid No.1 (SL2)

Transmission 3 way solenoid ASSY (S4)

Transmission 3 way solenoid ASSY (SR)

Transmission control computer

Does not down-shift (from 4th to 3rd).
 Transmission 3 way solenoid ASSY (S3)

Transmission control computer

Does not down-shift (from 3rd to 2nd).
 Transmission 3 way solenoid ASSY (S2)

Transmission control computer

Does not down-shift (from 2nd to 1st).
 Transmission 3 way solenoid ASSY (S1)

Transmission control computer

Does not turn lock-up ON or OFF.
 Lock-up control solenoid (SLU)

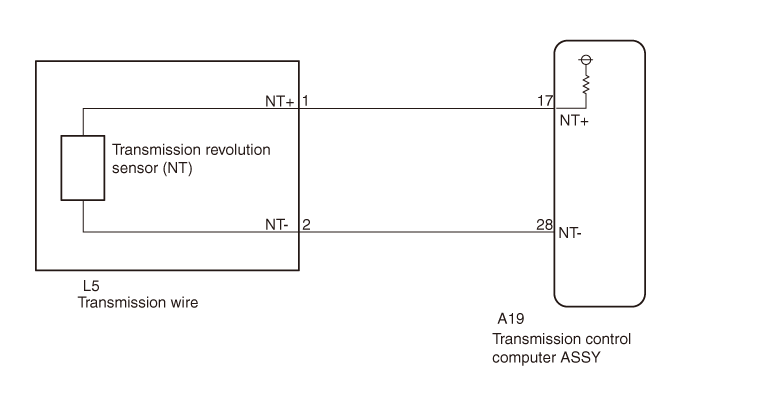

Transmission revolution sensor (NT) system

Stop light switch ASSY system

EFI water temperature system

Transmission control computer

Shift point is faulty.
 Throttle position sensor system

Line pressure control solenoid ASSY (SLT)

Transmission revolution sensor (NT) system

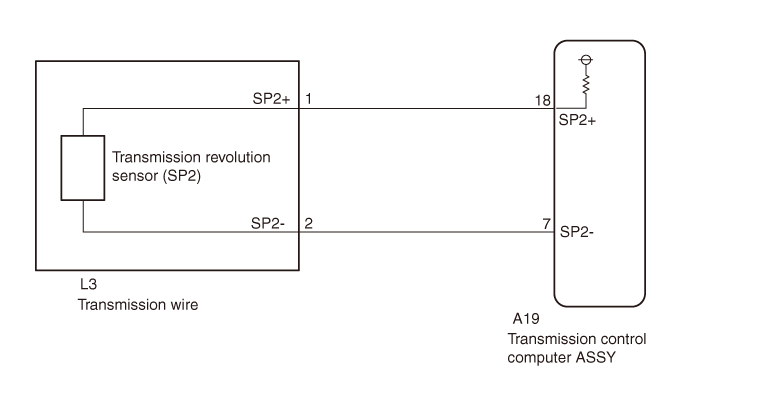

Transmission revolution sensor (SP2) system

Pattern select (SPORT) switch system

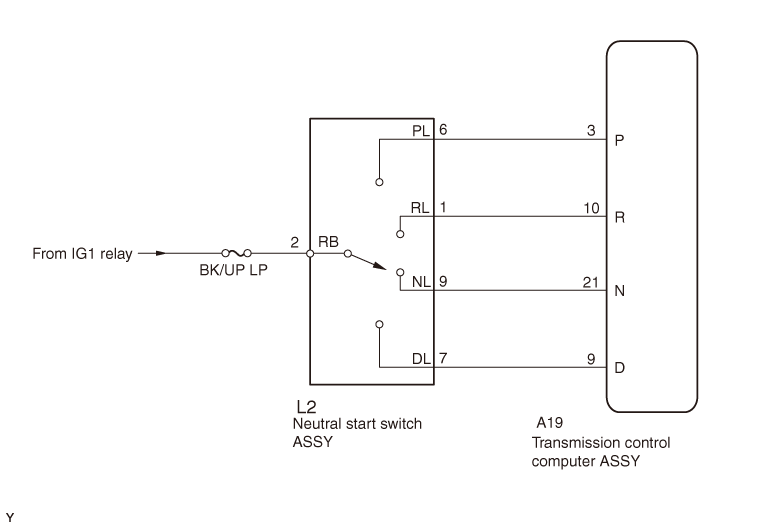

Neutral start switch ASSY system

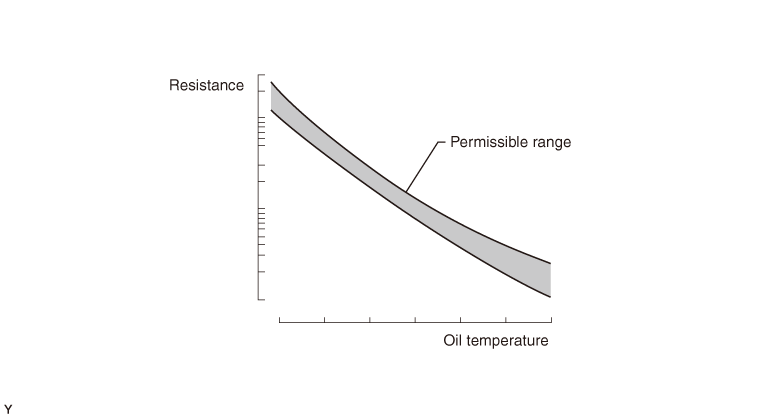

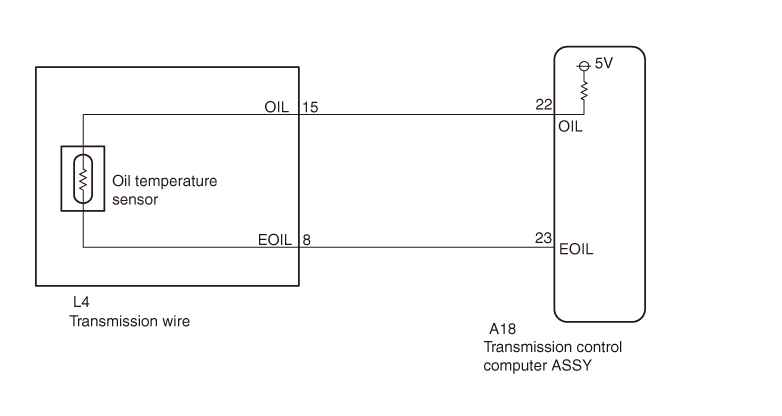

Oil temperature sensor system

Transmission control computer

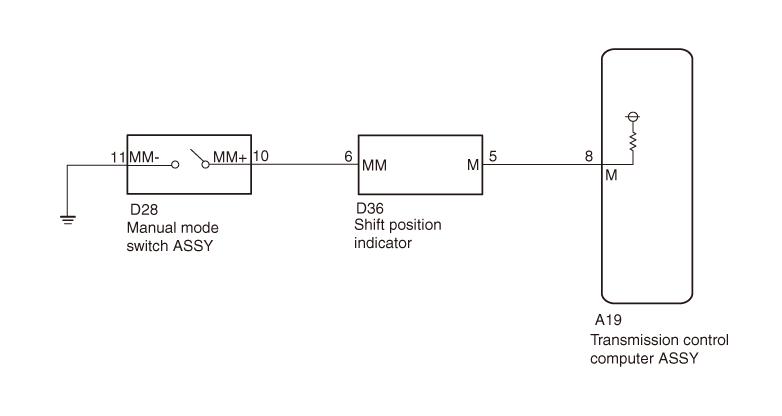

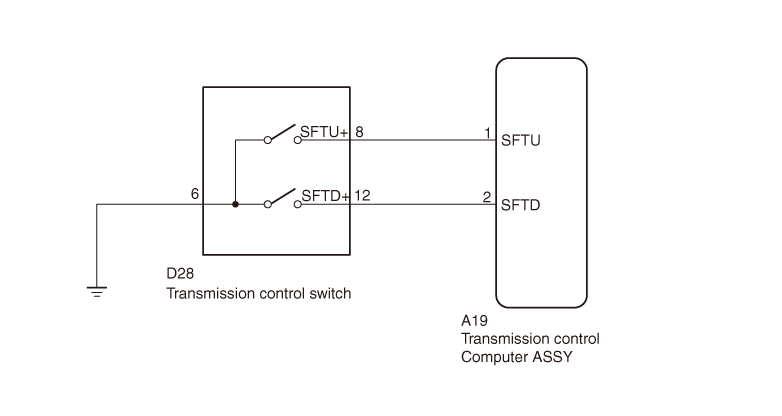

Does not change the range with “+”“-” shifts at M position.
 Transmission control switch

Transmission control computer

Does not change the range with the paddle shifter (transmission shift switch).

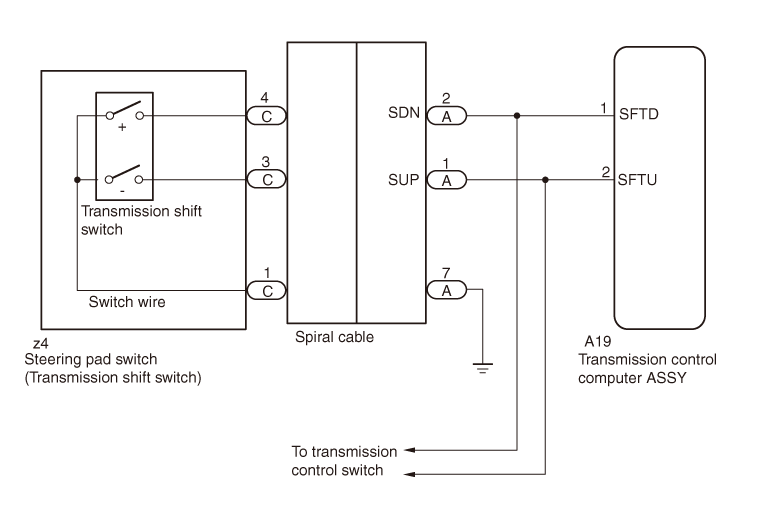

 Paddle shifter

Transmission control computer

Up-shifts to 6th when the engine is cold.
 EFI water temperature system

Transmission control computer

Excessive shift shock (N→D)
 Line pressure control solenoid ASSY (SLT)

Transmission control computer

Excessive shift shock (when any gear is shifted).
 Throttle position sensor system

Clutch control solenoid No.1 (SL1)

Clutch control solenoid No.1 (SL2)

Lock-up control solenoid (SLU)

Line pressure control solenoid ASSY (SLT)

Transmission revolution sensor (NT) system

Transmission control computer

Excessive shock at lock-up
 Lock-up control solenoid (SLU)

Transmission revolution sensor (NT) system

Transmission revolution sensor (SP2) system

Transmission control computer

Poor acceleration
 Line pressure control solenoid ASSY (SLT)

Pattern select (SNOW) switch system

Transmission control computer

Shifting requires a long period of time when up-shifting.
 Transmission 3 way solenoid ASSY (SR)

Line pressure control solenoid ASSY (SLT)

Shifting requires a long period of time when down-shifting.
 Transmission 3 way solenoid ASSY (SR)

Line pressure control solenoid ASSY (SLT)

Does not switch to the SNOW mode.
 Line pressure control solenoid ASSY (SLT)

Pattern select (SNOW) switch system

Transmission control computer

Does not switch to the SPORT mode.
 Line pressure control solenoid ASSY (SLT)

Pattern select (SPORT) switch system

Transmission control computer

AT slippage during 5th ←→ 6th shifting.
 Transmission 3 way solenoid ASSY (SR)

Line pressure control solenoid ASSY (SLT)

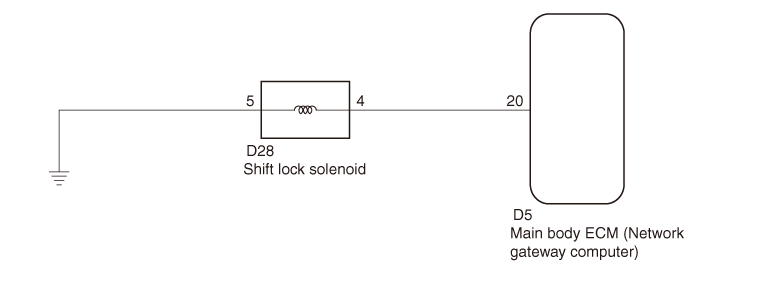

Shift lock is not released.
 IG circuit

Main body ECM (multiplex network computer)

Shift lock solenoid

P switch

Stop light switch

Vehicle wiring harness and connector

DESCRIPTION OF FUNCTIONS
1. Diagnosis function
(1) The check engine warning light illuminates when a malfunction occurs in the AT system.
CAUTION:
The light goes off if the malfunction item returns to the normal state. However, diagnostic codes are recorded.
(2) Diagnostic results of malfunction occurrence are recorded in the transmission control computer.
CAUTION:
Do not disconnect the MAIN fuse, AT+B fuse, and battery terminal until the check finishes.
2. Failsafe function
(1) When there is an open or short circuit in any solenoid valve system, only the mechanical hydraulic circuit operates and the manual shift control is initiated. (When open and short circuits occur, the transmission control computer stops continuity of all solenoid valves.)
HOW TO TROUBLESHOOT
1. Bring in the car


Next▼

2. Interview and phenomenon check (Refer to )


Next▼

3. Battery voltage check

(1) Check the battery voltage.
Voltage :  11 to 14 V
NG
>Battery charge or replacement

OK▼

4. CAN communication system communication function check

NOTE:
Refer to
(1) Check CAN communication system.
Result
Result
 Go to
Functioning properly
 A
Not functioning properly
 B
B
>To CAN communication section

A▼

5. DTC check

NOTE:
Refer to
(1) Check diagnostic codes and freeze frame data.
(a) Record diagnostic codes and freeze frame data.
(2) Clear diagnostic codes and freeze frame data.
(3) Recheck DTC.
(a) Reproduce the trouble phenomenon based on the recorded diagnostic codes and freeze frame data and check that the diagnostic codes are output again.
Result
Result
 Go to
The diagnostic codes are normal and the trouble phenomenon can be checked and reproduced.
 A
Abnormality codes are output.
 B
The diagnostic codes are normal and the trouble phenomenon cannot be checked and reproduced.
 C
B
>Refer to list of diagnostic codesto troubleshoot each code and jump to step 9.
C
>To trouble simulation .

A▼

6. Symptom table (refer to )

Result
Result
 Go to
Not applicable to the symptom table.
 A
Applicable to the symptom table.
 B
B
>Perform troubleshooting for relevant symptom and go to step 8.

A▼

7. Troubleshooting by the following methods based on trouble phenomenon

(1) Current Data Display & Save (refer to )
(2) System Operation Check Mode (refer to )
(3) Manual driving test (refer to )

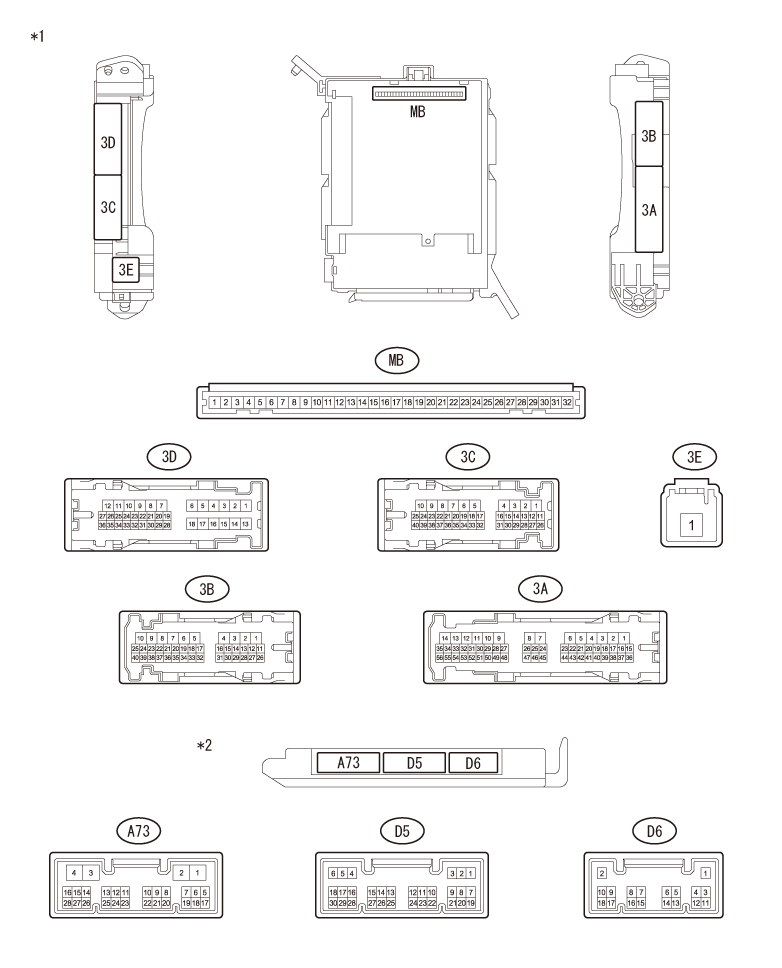

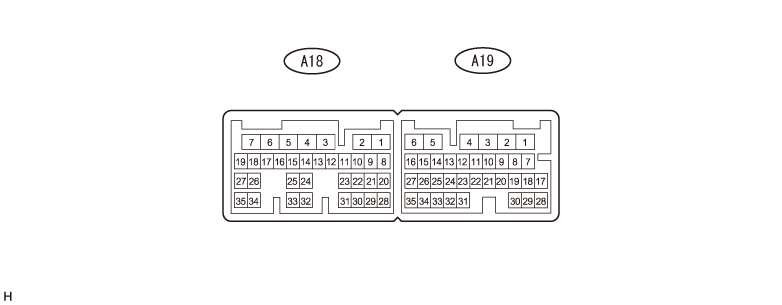

(4) ECM terminal arrangement (refer to ).

Next▼

8. Adjustment, repair, or replacement


Next▼

9. Confirmation test


Next▼
Complete

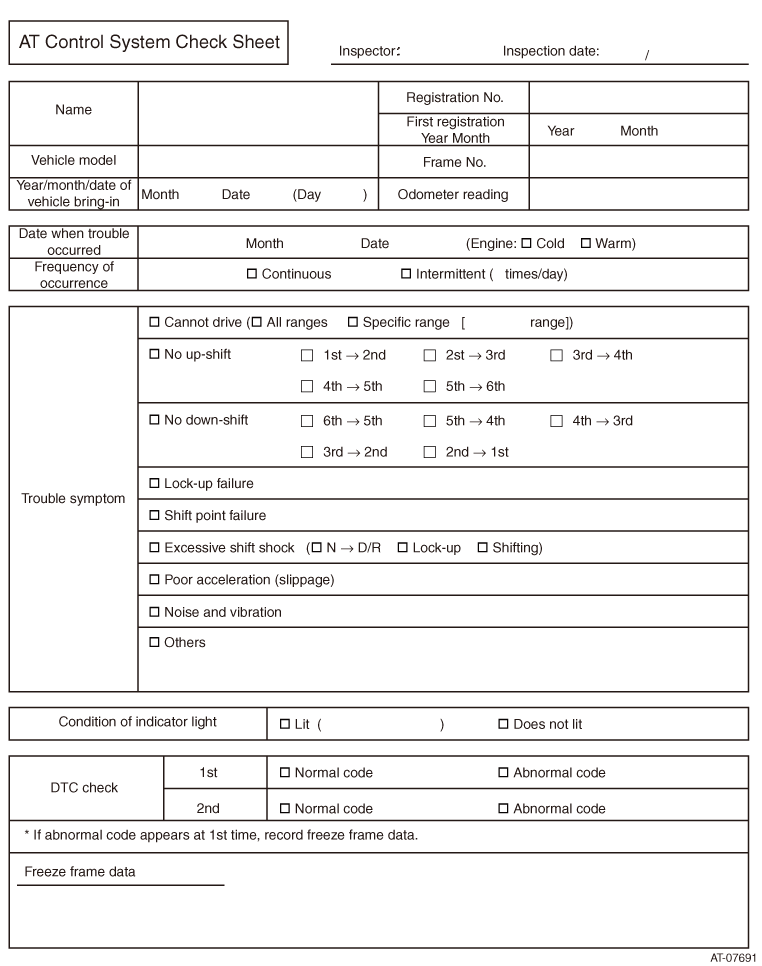

CHECK LIST FOR INTERVIEW
CHECKING / CLEARING DIAGNOSTIC CODES
1. DTC check (read by SSM3)
(1) Use SSM3 to display the [Transmission Control System] screen according to the screen display and select [Diagnostic Code(s) Display].
(2) Check the diagnostic codes.
2. Freeze frame data
(1) Use SSM3 to select [Freeze Frame Data Display] on the [Transmission Control System] screen according to the screen display.
NOTE:
·The transmission condition (TCM data) when a diagnostic code is detected and 2 seconds before a diagnostic code is detected can be checked at intervals of 0.5 seconds. (Refer to )
·Check the consistency of the interviewed trouble phenomenon and the list of diagnostic codes.
·After repair, perform a confirmation test by referring to the driving condition checked above.
3. Diagnostic codes memory clear (cleared by SSM3)
(1) Use SSM3 to display the [Transmission Control System] screen according to the screen display and select [Clear Memory].
(2) Select [Yes] displayed on the screen to clear the data.
CAUTION:
Diagnostic codes and freeze frame data are cleared at the same time.
FREEZE FRAME DATA
1. Freeze data table
(1) Use SSM3 to select [Freeze Frame Data Display] on the [Transmission Control System] screen according to the screen display.
NOTE:
·The transmission condition (TCM data) when a diagnostic code is detected and 2 seconds before a diagnostic code is detected can be checked at intervals of 0.5 seconds. (Refer to )
·Check the consistency of the interviewed trouble phenomenon and the list of diagnostic codes.
·After repair, perform a confirmation test by referring to the driving condition checked above.
Item name
[Coolant Temp.]
 [Shift SW Status History (P Range)]
[Engine Speed]
 [Shift SW Status History (R Range)]
[Vehicle Speed]
 [Shift SW Status History (N Range)]
[Time Since Engine Start]
 [Shift SW Status History (D Range)]
[Number of warm-ups]
 [Manual SW History]
[Meter since DTC cleared]
 [Up SW History]
[Time since DTC cleared]
 [Down SW History]
[Control module voltage]
 [Snow Mode History]
[Freeze frame data]
 [Snow SW History]
[Engine Speed]
 [Sport SW History]
[Coolant Temp.]
 [A/C Switch History]
[Accel. Opening Angle]
 [TC Terminal]
[Throttle Opening Angle]
 [Turbine Revolution Speed]
[Stop Light Switch]
 [AT Speed]
[Shift SW Status (P Range)]
 [ATF Temp.]
[Shift SW Status (R Range)]
 [Shift Indicator Lamp UP Shift]
[Shift SW Status (N Range)]
 [Shift Indicator Lamp Down Shift]
[Shift SW Status (D Range)]
 [Sport Mode]
[Manual SW]
 [Control the Shift Position]
[Up SW]
 [Lock up status]
[Down SW]
 [SLT Solenoid Status]
[Snow Mode]
 [Activate the Lock Up (SLT)]
[Snow SW]
 [# Codes(Include History)]
[Sport SW]
 [Number Of ALL DTCs]
[A/C Switch]
 [Trip Count]
[Stop Light Switch History]
 [Count]

 [Time Count]
INSPECTION FOR PROBLEMS THAT DO NOT NORMALLY OCCUR
1. Check mode (wiring harness and connector instantaneous interruption check)
NOTE:
When a defective system is found by diagnostic codes output in DTC (check mode) check, narrow down defective part by the following procedure.
(1) Use SSM3 to display the [Transmission Control System/Work Support] screen according to the screen display.
(2) Select [Test Mode Change] to switch to the check mode.
(3) After reading diagnostic codes in the check mode, clear the diagnostic codes memory.
(4) Select the check mode and start the engine.
(5) With the vehicle idling, swing the wiring harness and connector of the defective system which is output in DTC (check mode) check.
(6) When the check engine warning light is illuminated, the wiring harness or connector at the point may have poor contact.
(7) After check, be sure to select [Test Mode Change] to switch to the normal mode.
WORK SUPPORT
1. AT learning values initialization
CAUTION:
·Execute [Clear the AT learned information] when any of transmission ASSY, valve body ASSY, transmission wire, engine ASSY, transmission control computer is replaced.
·Wait for 1 minute or more after connecting the battery terminal when performing AT learning value initialization.
NOTE:
The learning value is not initialized (cleared) only by removing the ground terminal of the battery.
(1) Check that the shift is in P position and connect SSM3 to DLC3 to turn IG and the power of SSM3 ON.
CAUTION:
Do not start engine.
(2) Execute AT learning value initialization.
(a) Select [Transmission Control System/Work Support] → [Clear the AT learned information] from the main menu according to SSM3 screen display and execute them to initialize AT learning value.

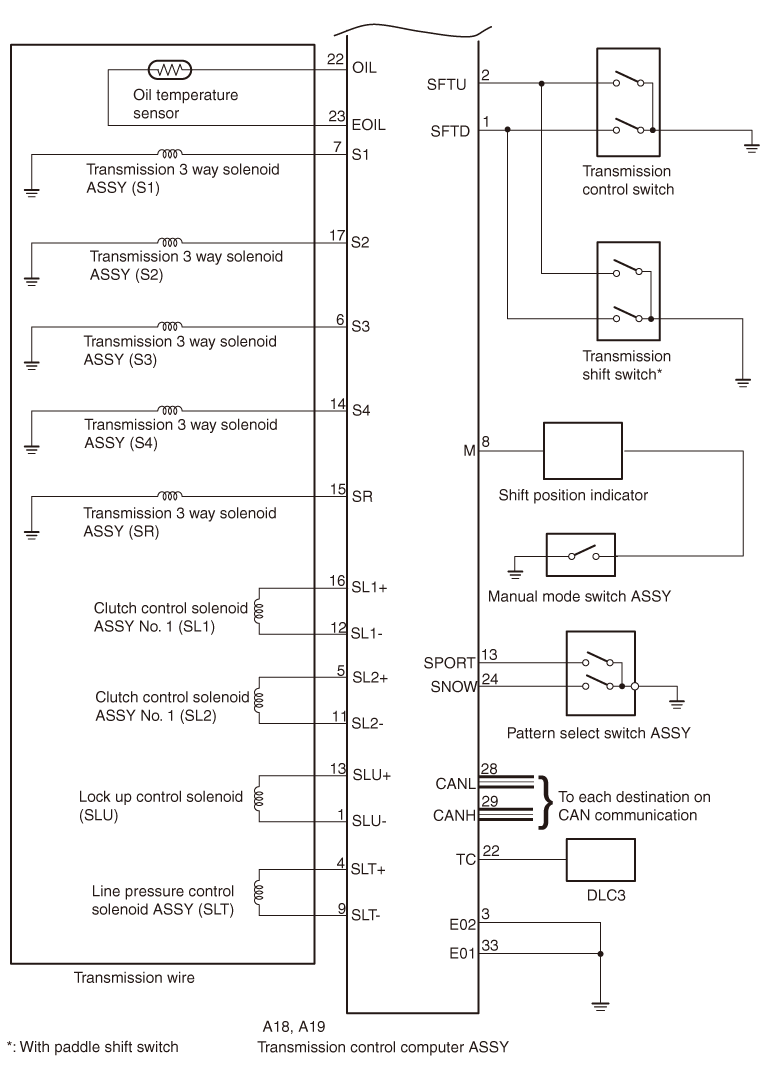

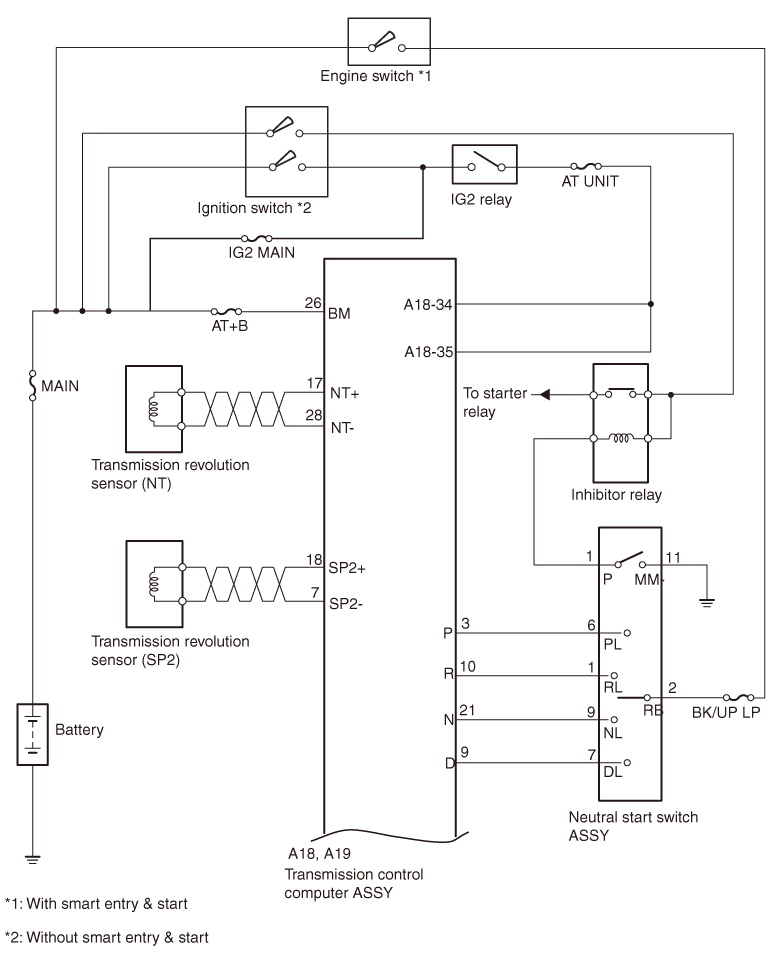

CIRCUIT FIGURE
ECM TERMINAL ARRANGEMENT
1. Transmission control computer
NOTE:
Check the voltage and continuity between terminals.
Terminal No.
(Terminal symbol)
 Input/output
 Item
 Measuring condition
 Criteria

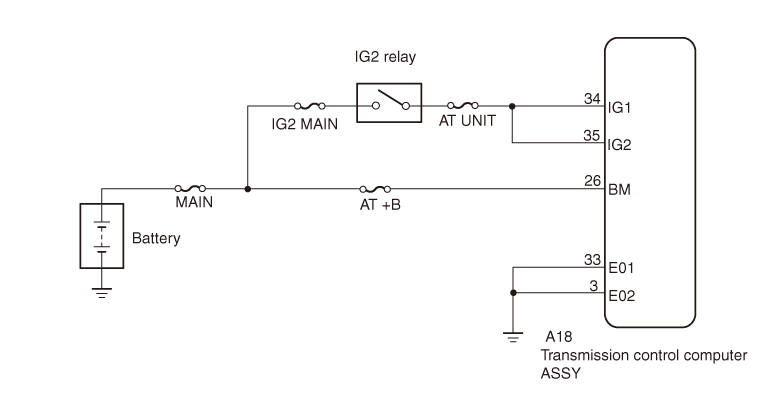

A18-34 (IG1) ←→ A18-33 (E01)
 Input
 Voltage
 IG ON
 11 to 14V
A18-35 (IG2) ←→ A18-33 (E01)
 Input
 Voltage
 IG ON
 11 to 14V
A18-26 (BM) ←→ A18-33 (E01)
 Input
 Voltage
 Always
 11 to 14V
A19-18 (SP2+) ←→ A19-7 (SP2-)
 Input
 Waveform
 When vehicle speed is approx. 20 km/h {12 MPH}.
 Waveform 1
A19-17 (NT+) ←→ A19-28 (NT-)
 Input
 Waveform
 When engine is idling (select lever in P or N position).
 Waveform 2
A19-3 (P) ←→ A18-33 (E01)
 Input
 Voltage
·IG ON
·Select lever in P position
 11 to 14V
Input
 Voltage
·IG ON
·Select lever in any other than P position
 Less than 1 V
A19-10 (R) ←→ A18-33 (E01)
 Input
 Voltage
·IG ON
·Select lever in R position
 11 to 14V
Input
 Voltage
·IG ON
·Select lever in any other than R position
 Less than 1 V
A19-21 (N) ←→ A18-33 (E01)
 Input
 Voltage
·IG ON
·Select lever in N position
 11 to 14V
Input
 Voltage
·IG ON
·Select lever in any other than N position
 Less than 1 V
A19-9 (D) ←→ A18-33 (E01)
 Input
 Voltage
·IG ON
·Select lever in D position
 11 to 14V
Input
 Voltage
·IG ON
·Select lever in any other than D position
 Less than 1 V
A19-8 (M) ←→ A18-33 (E01)
 Input
 Voltage
·IG ON
·Manual mode switch ON
 11 to 14V
Input
 Voltage
·IG ON
·Manual mode switch OFF
 Less than 1 V
A19-2 (SFTU) ←→ A18-33 (E01)
 Input
 Voltage
·IG ON
·Shift manual mode switch ON →“+”
 Less than 1 V
A19-1 (SFTD) ←→ A18-33 (E01)
 Input
 Voltage
·IG ON
·Shift manual mode switch ON →“-”
 Less than 1 V
A18-22 (OIL) ←→ A18-23 (EOIL)
 Input
 Voltage
 Transmission oil temperature 115°C or more
 Less than 1 V
A18-16 (SL1+) ←→ A18-12 (SL1-)
 Output
 Waveform
 5th or 6th gear
 Waveform 3
A18-5 (SL2+) ←→ A18-11 (SL2-)
 Output
 Waveform
 While engine idling
 Waveform 4
A18-4 (SLT+) ←→ A18-9 (SLT-)
 Output
 Waveform
 While engine idling
 Waveform 5
A18-13 (SLU+) ←→ A18-1 (SLU-)
 Output
 Waveform
 In M position 2nd to 6th gear (when lock-up is operating)
 Waveform 6
A18-7 (S1) ←→ A18-33 (E01)
 Output
 Voltage
 1st gear
 Less than 1 V
Output
 Voltage
 Any other than 1st gear
 11 to 14V
A18-17 (S2) ←→ A18-33 (E01)
 Output
 Voltage
 1st, 2nd or 6th gear
 11 to 14V
Output
 Voltage
 3rd, 4th or 5th gear
 Less than 1 V
A18-6 (S3) ←→ A18-33 (E01)
 Output
 Voltage
 1st, 2nd or 3rd gear
 11 to 14V
Output
 Voltage
 4th, 5th or 6th gear
 Less than 1 V

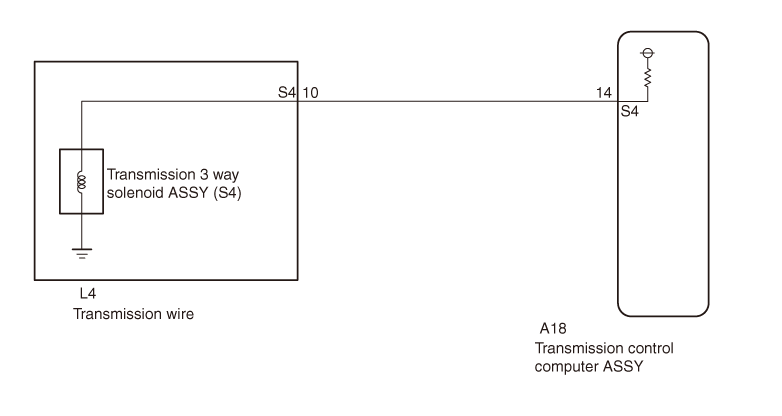

A18-14 (S4) ←→ A18-33 (E01)
 Output
 Voltage
 5th or 6th gear
 11 to 14V
Output
 Voltage
 1st, 2nd, 3rd or 4th gear
 Less than 1 V
A18-15 (SR) ←→ A18-33 (E01)
 Output
 Voltage
 1st, 2nd, 3rd or 4th gear
 11 to 14V
Output
 Voltage
 5th or 6th gear
 Less than 1 V
A18-29 (CANH) ←→ A18-33 (E01)
 -
 Waveform
·IG ON
·Engine stop
 Waveform 7
A18-28 (CANL) ←→ A18-33 (E01)
 -
 Waveform
·IG ON
·Engine stop
 Waveform 8
A18-33 (E01) ←→ chassis ground
 -
 Resistance
 Always
 Less than 1 Ω
A18-3 (E02) ←→ chassis ground
 -
 Resistance
 Always
 Less than 1 Ω
A19-13 (SPORT) ←→ chassis ground
 Input
 Voltage
·IG ON
·Pattern select switch “SPORT” ON
 Less than 1 V
Input
 Voltage
·IG ON
·Pattern select switch “SPORT” OFF
 11 to 14V
A19-24 (SNOW) ←→ chassis ground
 Input
 Voltage
·IG ON
·Pattern select switch “SNOW” ON
 Less than 1 V
Input
 Voltage
·IG ON
·Pattern select switch “SNOW” OFF
 11 to 14V

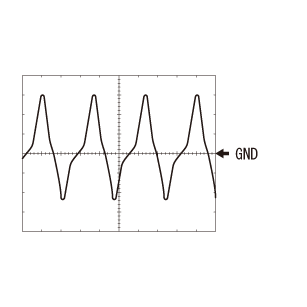

(1) Waveform 1
Item
 Contents
Measuring terminal
 A19-18 (SP2+) ←→ A19-7 (SP2-)
Equipment setting
 1 V/DIV, 2 ms/DIV
Measuring condition
 When vehicle speed is approx. 20 km/h {12 MPH}.
(2) Waveform 2
Item
 Contents
Measuring terminal
 A19-17 (NT+) ←→ A19-28 (NT-)
Equipment setting
 5 V/DIV, 2 msec./DIV
Measuring condition
 When engine is idling (select lever in P or N position).

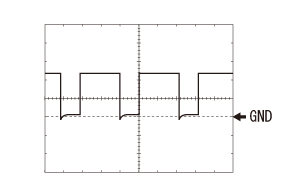

(3) Waveform 3
Item
 Contents
Measuring terminal
 A18-16 (SL1+) ←→ A18-12 (SL1-)
Equipment setting
 5 V/DIV, 1 ms/DIV
Measuring condition
 5th or 6th gear

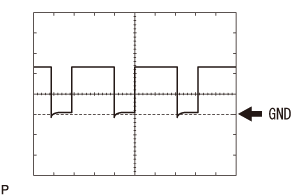

(4) Waveform 4
Item
 Contents
Measuring terminal
 A18-5 (SL2+) ←→ A18-11 (SL2-)
Equipment setting
 5 V/DIV, 1 msec./DIV
Measuring condition
 While engine running
(5) Waveform 5
Item
 Contents
Measuring terminal
 A18-4 (SLT+) ←→ A18-9 (SLT-)
Equipment setting
 5 V/DIV, 1 msec./DIV
Measuring condition
 While engine idling
(6) Waveform 6
Item
 Contents
Measuring terminal
 A18-13 (SLU+) ←→ A18-1 (SLU-)
Equipment setting
 5 V/DIV, 1 msec./DIV
Measuring condition
 M position: in 2nd to 6th gear
(when lock-up is operating)

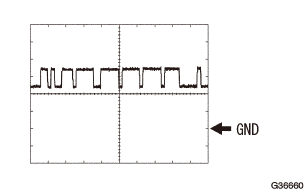

(7) Waveform 7
Item
 Contents
Measuring terminal
 A18-29 (CANH) ←→ A18-33 (E01)
Equipment setting
 1 V/DIV, 10 msec./DIV
Measuring condition
 Engine stop, IG ON

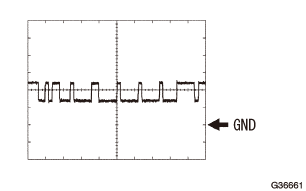

(8) Waveform 8
Item
 Contents
Measuring terminal
 A18-28 (CANL) ←→ A18-33 (E01)
Equipment setting
 1 V/DIV, 10 msec./DIV
Measuring condition
 Engine stop, IG ON
2. Instrument panel junction block ASSY, main body ECM (multiplex network body computer)
Captions in illustration
*1
 Instrument panel junction block ASSY
 *2
 Main body ECM (multiplex network body computer)
NOTE:
Measure the voltage between the terminals.
Terminal No.
(Terminal symbol)
 Input/output
 Item
 Measuring condition
 Criteria
D5-20 ←→ chassis ground
 Output
 Voltage
·IG ON
·Select lever in P position
·Stop light switch ON (brake pedal depressed)
 11 to 14V
·IG ON
·Select lever in P position
·Stop light switch OFF (brake pedal not depressed)
 Less than 1 V
3C-8 ←→ chassis ground
 Input
 Voltage
 Stop light switch ON (brake pedal depressed)
 11 to 14V
Stop light switch OFF (brake pedal not depressed)
 Less than 1 V
3D-23 ←→ chassis ground
 Input
 Voltage
 Select lever in any other than P position
 11 to 14V
Select lever in P position
 Less than 1 V
CURRENT DATA DISPLAY & SAVE / SYSTEM OPERATION CHECK MODE
1. Inspection with SSM3 (Current Data Display & Save)
CAUTION:
Subtle phenomena such as breathing and rough idling need to be totally judged based on all items in the computer data by using a method of comparing with an equivalent vehicle after collecting data under the same condition.
(1) Use SSM3 to display the [Current Data Display & Save] screen according to the screen display and check the computer data.
SSM3 screen: [Transmission Control System] → [Current Data Display & Save] → [Normal sampling]
Item name
[Symbol]
 Description/display range
 Normal value
 Remarks
[Coolant Temp.]
 Indicating engine coolant temperature/
Display range: -40 to 140°C
 Gradually increasing:
Cold start → warmed up
 When abnormal, the THW voltage may be abnormal.
80 to 105°C:
Warmed up
 When abnormal, the THW voltage may be abnormal.
215°C:
When sensor is disconnected
 When abnormal, the THW voltage may be abnormal.
215°C or more:
When sensor is shorted
 When abnormal, the THW voltage may be abnormal.
[Engine Speed]
 Indicating engine speed/
Display range: 0 to 16383.75 r/min
 0 r/min:
When engine is stopped (IG ON)
 When abnormal, there may be an NE signal malfunction.
No significant fluctuation:
When engine is running at a constant speed
 When abnormal, there may be an NE signal malfunction.
[Vehicle Speed]
 Indicating vehicle speed/
Display range: 0 to 255 km/h {158 MPH}
 0 km/h {0 MPH}:
When vehicle is parked
 When abnormal, there may be an SPD signal malfunction.
No significant fluctuation:
When driving at a constant speed
 When abnormal, there may be an SPD signal malfunction.
[Time Since Engine Start]
 Indicating time elapsed after engine start (engine start → IG OFF)/
Display range: 0 to 65535 sec
 -
 -
[Number of warm-ups]
 Indicating number of warming-ups after DG is cleared/
Display range: 0 to 255 times
 -
 -
[Meter since DTC cleared]
 Indicating travel distance after diagnostic codes cleared/
Display range: 0 to 65535km
 -
 -
[Time since DTC cleared]
 Indicating time elapsed after diagnostic codes are cleared/
Display range: 0 to 65535min
 -
 -
[Control module voltage]
 Indicating battery voltage/
Display range: 0 to 65.535V
 11 to 14 V:
During idling
 When abnormal, the BATT voltage may be abnormal.
[MI(MIL)]
 Indicating TCM side MIL illumination indication status/
Display range: OFF ←→ ON
 OFF → ON :
Normal → malfunction
 -
[Number of Diagnostic Code(s):]
 Indicating trouble codes stored in TCM/
Display range: 0 to 127
 -
 -
[Component monitoring(Supp)]
 Indicating component monitor test/
Display range: without support ←→ with support
 With support
 -
[Fuel system monitoring(Supp)]
 Indicating fuel system monitor test/
Display range: without support ←→ with support
 Without support
 -
[Misfire monitoring(Supp)]
 Indicating misfire monitor test/
Display range: without support ←→ with support
 Without support
 -
[EGR system(Supp)]
 Indicating EGR system test/
Display range: without support ←→ with support
 Without support
 -
[O2 Heater Diagnosis(Supp)]
 Indicating O2 sensor heater test/
Display range: without support ←→ with support
 Without support
 -
[Oxygen sensor(Supp)]
 Indicating O2 sensor test/
Display range: without support ←→ with support
 Without support
 -
[A/C system refrigerant(Supp)]
 Indicating refrigerant test on air conditioner system/
Display range: without support ←→ with support
 Without support
 -
[Secondary air system(Supp)]
 Indicating secondary air system test/
Display range: without support ←→ with support
 Without support
 -
[Evaporative purge system(Supp)]
 Indicating test on evaporative emission purge control system/
Display range: without support ←→ with support
 Without support
 -
[Heated catalyst(Supp)]
 Indicating test on heat type catalyst/
Display range: without support ←→ with support
 Without support
 -
[Catalyst Diagnosis(Supp)]
 Indicating catalyst test/
Display range: without support ←→ with support
 Without support
 -
[EGR system(Rdy)]
 Indicating EGR system test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[O2 Heater Diagnosis(Rdy)]
 Indicating O2 sensor heater test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Oxygen sensor(Rdy)]
 Indicating O2 sensor test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[A/C system refrigerant(Rdy)]
 Indicating refrigerant test on air conditioner system/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Secondary air system(Rdy)]
 Indicating secondary air system test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Evaporative purge system(Rdy)]
 Indicating test on evaporative emission purge control system/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Heated catalyst(Rdy)]
 Indicating test on heat type catalyst/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Catalyst Diagnosis(Rdy)]
 Indicating catalyst test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[OBD System]
 Indicating OBD applicable law
 EOBD / OBD2
 -
[Lighted MI lamp history]
 Indicating distance record from MIL illumination/
Display range: 0 to 65535km
 -
 -
[Component monitoring(Comp)]
 Indicating component monitor test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Fuel system monitoring(Comp)]
 Indicating fuel system monitor test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Misfire monitoring(Comp)]
 Indicating misfire monitor test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Component monitoring(Enable)]
 Indicating component monitor test/
Display range: NO / N/A ←→ YES
 YES
 -
[Fuel system monitoring(Enable)]
 Indicating fuel system monitor test/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[Misfire monitoring(Enable)]
 Indicating misfire monitor test/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[EGR system(Enable)]
 Indicating EGR system test/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[O2 Heater Diagnosis(Enable)]
 Indicating O2 sensor heater test/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[Oxygen sensor(Enable)]
 Indicating O2 sensor test/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[A/C system refrigerant(Enable)]
 Indicating refrigerant test on air conditioner system/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[Secondary air system(Comp)]
 Indicating secondary air system test/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[Evaporative purge system(Enable)]
 Indicating test on evaporative emission purge control system/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[Heated catalyst(Enable)]
 Indicating test on heat type catalyst/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[Catalyst Diagnosis(Enable)]
 Indicating catalyst test/
Display range: NO / N/A ←→ YES
 NO / N/A
 -
[EGR system(Comp)]
 Indicating EGR system test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[O2 Heater Diagnosis(Comp)]
 Indicating O2 sensor heater test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Oxygen sensor(Comp)]
 Indicating O2 sensor test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[A/C system refrigerant(Comp)]
 Indicating refrigerant test on air conditioner system/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Secondary air system(Comp)]
 Indicating secondary air system test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Evaporative purge system(Comp)]
 Indicating test on evaporative emission purge control system/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Heated catalyst(Comp)]
 Indicating test on heat type catalyst/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Catalyst Diagnosis(Comp)]
 Indicating catalyst test/
Display range: NO ←→ YES / N/A
 YES / N/A
 -
[Time while MIL lighted]
 Indicating engine operation time from MIL illumination/
Display range: 0 to 65535min
 -
 -
[Engine Speed]
 Indicating engine speed (CAN reception data)/
Display range: 0 to 51199.21875 r/min
 0 r/min:
When engine is stopped (IG ON)
 When abnormal, there may be a CAN communication malfunction.
[Coolant Temp.]
 Indicating coolant temperature (CAN reception data)/
Display range: -40 to 215°C
 Gradually increasing:
Cold start → warmed up
 When abnormal, there may be a CAN communication malfunction.
[Accel. Opening Angle]
 Indicating acceleration opening angle (CAN reception data)/
Display range: 0 to 127.5%
 0 %:
Accelerator pedal not depressed
 When abnormal, there may be a CAN communication malfunction.
[Throttle Opening Angle]
 Indicating throttle opening angle (CAN reception data)/
Display range: 0 to 127.5%
 0 %:
When engine is stopped (IG ON)
 When abnormal, there may be a CAN communication malfunction.
[Stop Light Switch]
 Indicating that the brake pedal is depressed/
Display range: ON←→OFF
 OFF → ON :
With brake pedal released → depressed
 When abnormal, there may be a stop light switch ASSY signal malfunction.
[Shift SW Status (P Range)]
 Indicating select lever in P position/
Display range: ON←→OFF
 ON:
Select lever in P
 When abnormal, there may be a neutral start switch ASSY (P) signal malfunction.
[Shift SW Status (R Range)]
 Indicating select lever in R position/
Display range: ON←→OFF
 OFF → ON :
Select lever in N→R
 When abnormal, there may be a neutral start switch ASSY (R) signal malfunction.
[Shift SW Status (N Range)]
 Indicating select lever in N position/
Display range: ON←→OFF
 ON:
Select lever in N
 When abnormal, there may be a neutral start switch ASSY (N) signal malfunction.
[Shift SW Status (D Range)]
 Indicating select lever in D position/
Display range: ON←→OFF
 OFF → ON :
Select lever in N→D
 When abnormal, there may be a neutral start switch ASSY (D) signal malfunction.
[Manual SW]
 Indicating M position/
Display range: ON←→OFF
 OFF → ON :
Select lever in D→M
 When abnormal, there may be a transmission control switch (M) signal malfunction.
[Up SW]
 Indicating transmission control switch (+)/
Display range: ON←→OFF
 OFF → ON :
Select lever in M→“+”
 When abnormal, there may be a transmission control switch (SFTU) signal malfunction.
[Down SW]
 Indicating transmission control switch (-)/
Display range: ON←→OFF
 OFF → ON :
Select lever in M→“-”
 When abnormal, there may be a transmission control switch (SFTD) signal malfunction.
[Snow Mode]
 Indicating SNOW mode status/
Display range: ON←→OFF
 OFF → ON :
2nd start OFF → ON
 When abnormal, there may be a pattern select SW system malfunction.
[Snow SW]
 Indicating pattern select (SNOW) switch/
Display range: ON←→OFF
 OFF → ON :
Pattern select (SNOW) switch OFF→ON
 When abnormal, there may be a pattern select (SNOW) switch malfunction.
[Sport SW]
 Indicating pattern select (SPORT) switch/
Display range: ON←→OFF
 OFF → ON :
Pattern select (SPORT) switch OFF→ON
 When abnormal, there may be a pattern select (SPORT) switch malfunction.
[A/C Switch]
 Indicating A/C ON / OFF status/
Display range: ON←→OFF
 -
 -
[TC Terminal]
 Indicating shorted (ON) condition of TC terminal (DLC3)/
Display range: ON←→OFF
 ON:
TC terminal shorted
 -
[Turbine Revolution Speed]
 Indicating input revolution speed/
Display range: 0 to 12750 r/min
 Almost the same as engine idle speed
When the vehicle is parked with select lever in P or N position (when engine idling)
 When abnormal, there may be an NT signal malfunction.
0 r/min:
The vehicle is parked with select lever in D position
 When abnormal, there may be an NT signal malfunction.
Almost the same as engine speed
When driving at a constant speed
 When abnormal, there may be an NT signal malfunction.
[AT Speed]
 Indicating output revolution speed/
Display range: 0 to 255 km/h {158 MPH}
 0 km/h {0 MPH}:
When vehicle is parked
 When abnormal, there may be an SP2 signal malfunction.
No significant fluctuation:
When driving at a constant speed
 When abnormal, there may be an SP2 signal malfunction.
[ATF Temp.]
 Indicating transmission oil temperature/
Display range: -40 to 215°C
 Ambient air temperature :
IG ON when the engine is cold
 When abnormal, the THO1 voltage may be abnormal.
50 to 100°C :
After stall test
 When abnormal, the THO1 voltage may be abnormal.
-40°C:
When sensor is disconnected
 When abnormal, the THO1 voltage may be abnormal.
150°C or more:
When sensor is shorted
 When abnormal, the THO1 voltage may be abnormal.
[Shift Indicator Lamp UP Shift]
 Indicating illumination indication status on shift indicator lamp UP side/
Display range: ON←→OFF
 -
 -
[Shift Indicator Lamp Down Shift]
 Indicating illumination indication status on shift indicator lamp DOWN side/
Display range: ON←→OFF
 -
 -
[Sport Mode]
 Indicating SPORT mode status/
Display range: ON←→OFF
 OFF → ON :
SPORT mode OFF→ON
 When abnormal, there may be a pattern select SW system malfunction.
[Control the Shift Position]
 Indicating gear positions (ranges)/
Display range: 1st to 6th
 Shifted into each gear position:
Driving
·When abnormal, the VTA1 voltage may be abnormal.
·When abnormal, the VPA voltage may be abnormal.
·When abnormal, there may be an SPD signal malfunction.
·When abnormal, there may be a solenoid signal malfunction.
[Lock up status]
 Indicating that lock-up is operating/
Display range: ON←→OFF
 OFF → ON :
Lock-up OFF → ON
·When abnormal, the VTA1 voltage may be abnormal.
·When abnormal, the VPA voltage may be abnormal.
·When abnormal, there may be an NT signal malfunction.
·When abnormal, there may be an SP2 signal malfunction.
·When abnormal, there may be an SLU signal malfunction.
[SLT Solenoid Status]
 Indicating line pressure control solenoid ASSY (SLT) operating status/
Display range: ON←→OFF
 OFF → ON :
Acceleration fully opened → fully closed
 When abnormal, there may be a line pressure control solenoid ASSY (SLT) signal malfunction.
[Activate the Lock Up (SLU)]
 Indicating lock-up control solenoid (SLU) operating status/
Display range: ON←→OFF
 OFF → ON :
Lock-up OFF → ON
 When abnormal, there may be a lock-up control solenoid (SLU) signal malfunction.
[Last 5 Digits ECU Part Number]
 Indicating last 5 digits of ECM part number
 -
 -
[# Codes(Include History)]
 Indicating the number of trouble codes which have not experienced normal driving cycle in consecutive 40 warming up
 -
 -
[Number Of ALL DTCs]
 Indicating the number of all DTCs/
Display range: 0 to 255
 -
 -
[Trip Count]
 Indicating the number of all DTCs/
Display range: 0 to 65535 trip
 -
 -
[Count]
 Indicating the way to count time after IG ON
 Normal count
 When abnormal, there may be a CAN communication malfunction.
[Time Count]
 Indicating time elapsed after IG ON/
Display range: 0 to 53687091100 ms
 -
 -
SSM3 screen: [Integ. unit mode] → [Current Data Display & Save]
Item name
 Description/display range
 Normal value
 Remarks
[Stop Light Switch]
 Indicating that the brake pedal is depressed/
Display range: ON←→OFF
 OFF → ON :
With brake pedal released → depressed
 When abnormal, there may be a stop light switch ASSY signal malfunction.
[Shift P Signal]
 Indicating select lever in P position/
Display range: ON←→OFF
 ON:
Select lever in P
 When abnormal, there may be a select lever P switch malfunction.
[ABS_CM Power Voltage]
 Indicating IG power supply voltage/
Display range: 0 to 21.4 V
 11 to 14 V:
During idling
 When abnormal, the IG voltage may be abnormal.
[Shift Lock Solenoid]
 Indicating shift lock solenoid operation status/.
Display range: ON←→OFF
 OFF → ON :
Shift lock OFF → ON
 When abnormal, there may be a shift lock solenoid malfunction.
2. Inspection with SSM3 (System Operation Check Mode)
(1) Use SSM3 to display the [System Operation Check Mode] screen according to the screen display and perform the system operation check.
SSM3 screen: [Transmission Control System] → [Work Support] → [System Operation Check Mode]
Item name
 Description
 Restriction
[Control the Shift Position]
 Setting to any shift position is possible
·Vehicle speed is less than 50 km/h {31 MPH}
·Any of the following is established.
·Throttle idling status
·Gear range 4th or lower
[Activate the Solenoid(S1)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (S1) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(S2)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (S2) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(S3)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (S3) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(S4)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (S4) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(SL1)]
 MIN current ←→ MAX current of clutch control solenoid No.1 (SL1) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(SL2)]
 MIN current ←→ MAX current of clutch control solenoid No.1 (SL2) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Lock Up]
 Lock up ON←→OFF is possible.
·Throttle opening angle less than 35%
·Vehicle speed is 50 km/h {31 MPH} or more
·Gear range 5th or higher
[Activate the Solenoid(SLU)]
 MIN current ←→ MAX current of lock-up control solenoid (SLU) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(SR)]
 Turning ON←→OFF of transmission 3 way solenoid ASSY (SR) is possible.
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[Activate the Solenoid(SLT)]
 MIN current ←→ MAX current of line pressure control solenoid ASSY (SLT) is possible.
(MAX current → duty ratio 100% (line pressure at idling))
(MIN current → duty ratio 0% (line pressure at stall))
·Vehicle speed 0 km/h {0 MPH}
·P or N position
·Engine speed: 0 r/min
[TC and TE1]*
 Used when changing to the oil temperature detection mode
 -
*: Warning diagnoses are not displayed in a list.
SSM3 screen: [Integ. unit mode] → [Work Support] → [System Operation Check Mode]
Item name
 Description
 Restriction
[Shift Lock]
 Shift lock output ON←→OFF is possible.
 -
FAILSAFE LIST
When the following codes are recorded on the transmission control computer ASSY, the fail safe mode is initiated.
Diagnostic codes
 Fail safe status
 Fail safe mode cancel condition
P0601
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
P062F
 None
·None
P0707
 None
·None
P0708
 None
·None
P0711
 Prohibiting gear shift to 5th and 6th
·IG OFF/ON is performed.
·DTC clear is performed.
·After ATF temperature of 20°C or higher is detected, the vehicle speed of 0 km/h {0 MPH} is detected.
P0712
 Prohibiting gear shift to 5th and 6th
·IG OFF/ON is performed.
·DTC clear is performed.
·After ATF temperature of 0°C or higher to lower than 150°C is consecutively detected for 10 seconds, the vehicle speed of 0 km/h {0 MPH} is detected.
P0713
 Prohibiting gear shift to 5th and 6th
·IG OFF/ON is performed.
·DTC clear is performed.
·After ATF temperature of 0°C or higher to lower than 150°C is consecutively detected for 10 seconds, the vehicle speed of 0 km/h {0 MPH} is detected.
P0717
 Prohibiting gear shift to 5th and 6th
·IG OFF/ON is performed.
·DTC clear is performed.
·After the transmission revolution sensor (NT) pulse is received, the transmission revolution sensor (SP2) detects the vehicle speed of 0 km/h {0 MPH}.
P0722
 Prohibiting gear shift to 5th and 6th
·IG OFF/ON is performed.
·DTC clear is performed.
·After the transmission revolution sensor (SP2) pulse is received, the transmission revolution sensor (NT) detects the vehicle speed of 0 km/h {0 MPH}.
P0729
 Prohibiting gear shift to 6th
·DTC clear is performed.
P0751
 Prohibiting gear shift to 4th, 5th and 6th
Prohibiting gear shift to 1st and 2nd in M mode
·DTC clear is performed.
P0752
 None
 None
P0756
 None
 None
P0757
 None
 None
P0761
 Prohibiting start in 2nd gear
·DTC clear is performed.
P0762
 Prohibiting gear shift to 4th, 5th and 6th
·DTC clear is performed.
P0766
 Prohibiting gear shift to 4th, 5th and 6th
·DTC clear is performed.
P0767
 None
 None
P0776
 Prohibiting gear shift to 4th, 5th and 6th
·DTC clear is performed.
P0781
 Prohibiting gear shift to 4th, 5th and 6th
Prohibiting gear shift to 1st and 2nd in M mode
·DTC clear is performed.
P0882
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0894
 Torque limitation at error detection in 1st trip
Torque limitation and prohibiting gear shift to 5th and 6th at error detection in 2nd trip or later
·DTC clear is performed.
P0961
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0962
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0963
 Prohibiting gear shift to 5th and 6th
After shifting down from 5th or 6th, locked to 4th
·IG OFF/ON is performed.
·DTC clear is performed.
P0965
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0966
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0967
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0973
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0974
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0976
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0977
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0979
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0980
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0982
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0983
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0985
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P0986
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P160A
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
P1817
 None
 None
P2714
 Torque limitation at error detection in 1st trip
Torque limitation and prohibiting gear shift to 5th and 6th at error detection in 2nd trip or later
·DTC clear is performed.
P2719
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P2720
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P2721
 Locked to 4th gear (all solenoids are OFF)
·IG OFF/ON is performed.
·DTC clear is performed.
P2757
 None
 None
P2758
 Prohibiting 2nd start
·Lock-up control solenoid (SLU) ON/OFF normal detection
·DTC clear is performed.
P2762
 Prohibiting 2nd start
·IG OFF/ON is performed.
·DTC clear is performed.
P2763
 Prohibiting 2nd start
·IG OFF/ON is performed.
·DTC clear is performed.
P2764
 Prohibiting 2nd start
·IG OFF/ON is performed.
·DTC clear is performed.
U0073
 Prohibiting gear shift to 5th and 6th
Prohibiting gear shift to 1st
·IG OFF/ON is performed.
·DTC clear is performed.
U0100
 Prohibiting gear shift to 5th and 6th
·IG OFF/ON is performed.
·DTC clear is performed.
·After communication is properly performed 2 times consecutively, the vehicle speed of 0 km/h {0 MPH} is detected.
U0122
 Prohibiting gear shift to 1st
·IG OFF/ON is performed.
·DTC clear is performed.
·After communication is properly performed 2 times consecutively, the vehicle speed of 0 km/h {0 MPH} is detected.
U0140
 None
 None
U0155
 None
 None
U0401
 Prohibiting gear shift to 5th and 6th
·IG OFF/ON is performed.
·DTC clear is performed.
·After ECM properly calculates data for a certain period of time consecutively, the vehicle speed of 0 km/h {0 MPH} is detected.
U0416
 Prohibiting gear shift to 1st
·IG OFF/ON is performed.
·DTC clear is performed.
·After AVS ECM properly calculates data for a certain period of time consecutively, the vehicle speed of 0 km/h {0 MPH} is detected.
U0422
 None
 None
U0423
 None
 None
Table of solenoid continuity status at normal condition
Shifting gear range
 1st
 2nd
 3rd
 4th
 5th
 6th
S1
 OFF
 ON
 ON
 ON
 ON
 ON
S2
 ON
 ON
 OFF
 OFF
 OFF
 ON
S3
 ON
 ON
 ON
 OFF
 OFF
 OFF
S4
 OFF
 ON
 OFF
 OFF
 ON
 ON
SL1
 OFF
 OFF
 OFF
 OFF
 ON
 ON
SL2
 ON
 OFF
 OFF
 ON
 OFF
 OFF
SR
 ON
 ON
 ON
 ON
 OFF
 OFF
NOTE:
ON: continuity status OFF: non-continuity status
Table of gear range when shift solenoid is abnormal (at D position)
Shift direction range
 1st
 2nd
 3rd
 4th
 5th
 6th
S1 ON malfunction
 2nd
 2nd
 3rd
 4th
 5th
 6th
S1 OFF malfunction
 1st
 2nd
 3rd
 4th
 5th
 N
S2 ON malfunction
 1st
 2nd
 2nd
 4th
 6th
 6th
S2 OFF malfunction
 3rd
 3rd
 3rd
 4th
 5th
 5th
S3 ON malfunction
 1st
 2nd
 3rd
 3rd
 N
 N
S3 OFF malfunction
 3rd
 6th
 4th
 4th
 5th
 6th
S4 ON malfunction
 1st
 2nd
 3rd
 4th
 5th
 6th
S4 OFF malfunction
 1st
 2nd
 3rd
 4th
 4th
 4th
Table of gear range when shift solenoid is abnormal (in manual mode)
Shift direction range
 1st
 2nd
 3rd
 4th
 5th
 6th
S1 ON malfunction
 2nd
 2nd
 3rd
 4th
 5th
 6th
S1 OFF malfunction
 1st
 2nd
 3rd
 4th
 5th
 N
S2 ON malfunction
 1st
 2nd
 2nd
 4th
 6th
 6th
S2 OFF malfunction
 3rd
 3rd
 3rd
 4th
 5th
 5th
S3 ON malfunction
 1st
 2nd
 3rd
 3rd
 N
 N
S3 OFF malfunction
 1st
 6th
 4th
 4th
 5th
 6th
S4 ON malfunction
 2nd
 2nd
 3rd
 4th
 5th
 6th
S4 OFF malfunction
 1st
 2nd
 3rd
 4th
 4th
 4th
DTCB1016 Shift lock circuit Failure
Circuit description
When IGN signal, P switch signal, and STP signal is input, the main body ECM (network gateway computer) outputs signals to the shift lock solenoid.
DTC No.
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
B1016
1. IG ON
2. Open, power supply-output short, or GND-output short in shift lock circuit
3. 3 second or more
4. 1 trips
·Main body ECM (network gateway computer)
·Shift lock solenoid
·Wiring harness or connector
Circuit figure
Inspection steps
1. Check of shift lock solenoid unit

(1) Check the shift lock solenoid unit. (Refer to )
NG
>Replacement of shift lock solenoid (refer to )

OK▼

2. Check wiring harness and connector (main body ECM (network gateway computer) - shift lock solenoid)

NOTE:
Refer to for checking procedure and precautions
(1) Disconnect the connector D5 of the main body ECM (network gateway computer).
(2) Disconnect the connector D28 of shift lock solenoid.
(3) Measure the resistance between the terminals.
Specified resistance (disconnection check)
Inspection terminals
 Inspection conditions
 Standard value
D5-20 - D28-4
 Always
 Less than 1 Ω
Specified resistance (short check)
Inspection terminals
 Inspection conditions
 Standard value
D5-20 and D28-4 - chassis ground
 Always
 10 k Ω or more
(4) Connect the connector D5 of the main body ECM (network gateway computer).
(5) Connect the connector D28 of the shift lock solenoid.
NG
>Repair or replacement of wiring harness or connector

OK▼

DTCP0601 Internal Control Module Memory Check Sum Error
Circuit description
The value calculated by the transmission control computer is compared with the data stored in the transmission control computer ASSY when IG is ON, and when they do not match 2 times consecutively, DTC is detected and the learning is prohibited.
If the problem persists, cut continuity to all the solenoid (lock at 4th gear).
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0601
1. IG ON
When DTC clear required
2. Transmission control computer ASSY, internal error
3. -
4. 1 trips
·Transmission control computer ASSY
DTCP062F EEPROM Error
Circuit description
The transmission control computer calculates the integration value in the transmission control computer ASSY when IG OFF turns to ON, and when the value does not match the value stored in the transmission control computer, DTC is output.
However, calculation is not performed when switching by consecutive operation of the ignition switch is executed.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P062F
1. IG ON
2. Transmission control computer ASSY inside malfunction
3. -
4. 1 trips
·Transmission control computer ASSY
DTCP0707 Transmission Range Sensor “A” Circuit Low
DTCP0708 Transmission Range Sensor “A” Circuit High
Circuit description
Shift position is detected by inputting the signal from the neutral start switch ASSY to the transmission control computer ASSY. Engine can start only when the select lever is in P or N position.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0707
1. Transmission revolution sensor (SP2) in normal condition and vehicle speed 30 km/h {19 MPH} or more
Learning control is not prohibited.
2. All contacts of shift positions P, R, N, and D turned to OFF
3. Continuing 30 seconds
4. 2 trips
·Neutral start switch ASSY
·Wiring harness and connector
·Transmission control computer ASSY
P0708
1. Learning control is not prohibited.
2. 2 or more shift position switches turned to ON
3. Continuing 10 seconds
4. 1 trips
·Neutral start switch ASSY
·Wiring harness and connector
·Transmission control computer ASSY
Monitor description
These diagnostic codes indicate problems of the wiring harness in the neutral start switch ASSY and neutral start switch ASSY circuit.
The neutral start switch ASSY detects the select lever position and sends signals to TCM.
For safety, the neutral start switch ASSY detects the select lever position. It is to allow the engine to start only when the select lever is in P or N position.
The neutral start switch ASSY sends signals corresponding to shift positions (P, R, N, D, or M) to TCM. When receiving 2 or more position signals at one time, TCM determines that the switch or related parts have a problem. TCM turns on MIL and records the diagnostic codes.
If open or short circuit is detected, all contacts of shift positions are turned to OFF.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0707: Transmission Range Sensor “A” Circuit Low
P0708: Transmission Range Sensor “A” Circuit High
Required sensor / component
 Neutral start switch ASSY
Operation frequency
 Consecutive
Period
 P0707: 2 seconds × 15 times
P0708: 2 seconds × 5 times
MIL operation
 P0707: 2nd driving cycle
P0708: Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
P0707: Transmission Range Sensor “A” Circuit Low
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (SP2) (P0722)
 No defect
P0708: Transmission Range Sensor “A” Circuit High
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
·TYPICAL MALFUNCTION THRESHOLDS
P0707: Transmission Range Sensor “A” Circuit Low
The number of neutral start switch ASSY input
 0
Vehicle speed
18.6 MPH or more
P0708: Transmission Range Sensor “A” Circuit High
The number of neutral start switch ASSY signal input
 2 or more
Circuit figure
Inspection steps
CAUTION:
Before performing troubleshooting, check the fuse for this circuit.
4. Check wiring harness and connector (neutral start switch ASSY - transmission control computer)

NOTE:
Refer to for checking procedure and precautions of wiring harness and connector
(1) Disconnect the connector A19 of the transmission control computer ASSY.
(2) Disconnect the connector L2 of the neutral start switch ASSY.
(3) Measure the resistance between the terminals. (Refer to for terminal arrangement of transmission control computer ASSY)
Resistance
Terminal No. (terminal symbol)
 Inspection conditions
 Standard value
A19-3 (P) - L2-6 (PL)
 Always
 Less than 1 Ω
A19-10 (R) - L2-1 (RL)
 Always
 Less than 1 Ω
A19-21 (N) - L2-9 (NL)
 Always
 Less than 1 Ω
A19-9 (D) - L2-7 (DL)
 Always
 Less than 1 Ω
A19-3 (P) - chassis ground
 Always
 10 k Ω or more
A19-10 (R) - chassis ground
 Always
 10 k Ω or more
A19-21 (N) - chassis ground
 Always
 10 k Ω or more
A19-9 (D) - chassis ground
 Always
 10 k Ω or more
(4) Measure the voltage between the terminals. (Refer to for terminal arrangement of transmission control computer ASSY)
Voltage
Terminal No. (terminal symbol)
 Inspection conditions
 Standard value
A19-3 (P) - chassis ground
 IG ON
 1 V or less
A19-10 (R) - chassis ground
 IG ON
 1 V or less
A19-21 (N) - chassis ground
 IG ON
 1 V or less
A19-9 (D) - chassis ground
 IG ON
 1 V or less
(5) Connect the connector A19 of the transmission control computer ASSY.
(6) Connect the connector L2 of the neutral start switch ASSY.
NG
>Repair or replacement of wiring harness or connector

OK▼
Replacement of neutral start switch ASSY (refer to )

DTCP0711 Transmission Fluid Temperature Sensor “A” Circuit Range/Performance
Circuit description
The oil temperature sensor installed in the valve body detects the oil temperature in the transmission hydraulic control circuit and inputs signals corresponding to the oil temperature to the transmission control computer ASSY.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0711
1. Detecting that neutral start switch ASSY is normal, shift position sensor is in D position, ATF temperature when IG ON is less than 20°C, current ATF temperature is less than 20°C, and vehicle speed is 40 km/h {25 MPH} or more
2. Any of the following conditions is established.
·After IG is turned ON, oil temperature sensor input voltage fluctuation while diagnosis conditions are met is 0.05 V or less
·Oil temperature sensor input voltage fluctuation while diagnosis conditions are met is 0.05 V or less.
3. Continuing 600 seconds
4. 2 trips
·Transmission wire (oil temperature sensor)
·Wiring harness or connector
Monitor description
This diagnostic code indicates that the automatic transmission fluid (ATF) temperature sensor output is abnormal and the sensor itself is defective. The ATF temperature sensor converts ATF temperature into electric resistance. TCM specifies ATF temperature based on the resistance and detects open or short circuit in the ATF temperature circuit or defects of the ATF temperature sensor.
If the vehicle drives for a certain period of time, the ATF temperature should rise. If the ATF temperature is less than 20°C and the input voltage fluctuation is 0.05 V or less after the vehicle drives for a certain period of time, TCM recognizes the defect and turns on MIL.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0711: Transmission Fluid Temperature Sensor “A” Circuit Range/Performance
Required sensor / component
 Oil temperature sensor
Operation frequency
 Consecutive
Period
 10 minutes
MIL operation
 2nd driving cycle
Operation order
 None
·TYPICAL ENABLING CONDITIONS
All:
Battery voltage
 10.2 V or more
Engine speed
 400 r/min or more
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
Above condition is established
 2 second or more
ATF temperature sensor output voltage
 From 0.049 V or above to 4.932 V or less
Neutral start switch ASSY (P0707, P0708)
 No defect
Fail safe mode (solenoid power supply shut down)
 Non-active
Range position
 D
(If the range position changes to P, R, or N, the timer is set to on hold status.)
Transmission oil temperature
 Less than 20°C
Vehicle speed
(Once the vehicle speed condition is satisfied, it is valid even while defective standards are satisfied.)
 24.9 MPH or more
·TYPICAL MALFUNCTION THRESHOLDS
Absolute change of output voltage
 0.048V or less
DTCP0712 Transmission Fluid Temperature Sensor “A” Circuit Low
DTCP0713 Transmission Fluid Temperature Sensor “A” Circuit High
Monitor description
These diagnostic codes indicate that there is an open or short circuit in the automatic transmission fluid (ATF) temperature sensor circuit. The automatic transmission fluid (ATF) temperature sensor converts ATF temperature into electric resistance. TCM specifies ATF temperature based on the resistance and detects open or short circuit in the ATF temperature circuit. If the ATF temperature resistance is less than 0.049 V or more than 4.932 V, TCM recognizes it as a defect in the ATF sensor or wiring. TCM turns on MIL and records the diagnostic codes.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0712: Transmission Fluid Temperature Sensor “A” Circuit Low
P0713: Transmission Fluid Temperature Sensor “A” Circuit High
Required sensor / component
 Oil temperature sensor
Operation frequency
 Consecutive
Period
 P0712: 10 seconds × 6 times
P0713: 1 second × 12 times
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
P0712: Transmission Fluid Temperature Sensor “A” Circuit Low
Battery voltage
 10.2 V or more
Engine speed
 400 r/min or more
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
P0713: Transmission Fluid Temperature Sensor “A” Circuit High
Battery voltage
 10.2 V or more
Engine speed
 400 r/min or more
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
All of the following conditions are established.
After IG SW is turned ON, the following conditions are established.
 1 minute or more
Range position
 D or R
Neutral switch ASSY (P0707, P0708)
 No defect
·TYPICAL MALFUNCTION THRESHOLDS
P0712: Transmission Fluid Temperature Sensor “A” Circuit Low
Output voltage
 0.049V or more
P0713: Transmission Fluid Temperature Sensor “A” Circuit High
Output voltage
 4.932V or more
Circuit figure
Inspection steps
NOTE:
Read the freeze frame data using the SSM3. A part of the engine running conditions under which the engine trouble occurred is recorded in the freeze frame data, which is useful for troubleshooting.
3. Check wiring harness and connector (transmission wire - transmission control computer ASSY)

NOTE:
Refer to for checking procedure and precautions of wiring harness and connector
(1) Disconnect the connector L4 of the transmission wire.
(2) Disconnect the connector A18 of the transmission control computer ASSY.
(3) Measure the voltage between the terminals. (Refer to for terminal arrangement of transmission control computer ASSY)
Voltage
Inspection terminals
 Inspection conditions
 Standard value
L4-8 (EOIL) - chassis ground
 IG ON
 1 V or less
L4-15 (OIL) - chassis ground
 IG ON
 1 V or less
(4) Measure the resistance between the terminals. (Refer to for terminal arrangement of transmission control computer ASSY)
Resistance
Inspection terminals
 Inspection conditions
 Standard value
A18-22 (OIL) - L4-15
 Always
 1 Ω or less
A18-23 (EOIL) - L4-8
 Always
 1 Ω or less
L4-8 (EOIL) - chassis ground
 Always
 10 k Ω or more
L4-15 (OIL) - chassis ground
 Always
 10 k Ω or more
(5) Connect the connector L4 of the transmission wire.
(6) Connect the connector A18 of the transmission control computer ASSY.
NG
>Repair or replacement of wiring harness or connector

OK▼
Repair or replacement of transmission wire (refer to )

DTCP0717 Input/Turbine Speed Sensor “A” Circuit No Signal
Circuit description
The transmission revolution sensor (NT) inputs the input shaft revolution speed to the transmission control computer ASSY as a signal.
The transmission control computer ASSY performs shift timing control based on signals from transmission revolution sensor (NT) and transmission revolution sensor (SP2).
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0717
1. Transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), transmission revolution sensor (SP2), shift position sensor, clutch control solenoid No.1 (SL1, SL2), and line pressure control solenoid ASSY (SLT) are normal.
When driving in D position, the revolution speed of the transmission revolution sensor (NT) calculated from the transmission revolution sensor (SP2) is 550 r/min or more. (2.5 seconds or more passed after shifting to D position. However, when the oil temperature sensor is faulty and the oil temperature is 20°C or lower, 10 seconds or more passed after shifting to D position).
2. When the transmission revolution sensor (SP2) outputs 12 pulses, the transmission revolution sensor (NT) does not detect even 1 pulse.
3. Detected 500 times consecutively
4. 1 trips
·Transmission revolution sensor (NT)
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
This diagnostic code indicates whether pulse is not output from the transmission revolution sensor (NT) or the output is very small. The TCM transmission revolution sensor (NT) terminal detects revolution speed signals from the transmission revolution sensor (NT) (input r/min). TCM compares the transmission revolution sensor (NT) and transmission revolution sensor (SP2) and outputs shift signals.
If the output shaft speed is 550 r/min or more* while the vehicle is driving in D position, TCM detects a defect, turns on MIL, and records the diagnostic code.
*: Engine speed is 400 r/min or more.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0717: Input/Turbine Speed Sensor “A” Circuit No Signal
Required sensor / component
 Transmission revolution sensor (NT)
Operation frequency
 Consecutive
Period
 500 count
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
Battery voltage
 10.2 V or more
Engine speed
 400 r/min or more
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (SP2) (P0722)
 No defect
Neutral start switch ASSY (P0707, P0708)
 No defect
Range position
 D
Turbine speed calculated from vehicle speed
 550 r/min or more
The transmission is out of shift control.
 Yes
The transmission is out of gear shift control.
 Yes
The transmission is out of diagnosis service control.
 Yes
Clutch control solenoid No.1 (SL1) (P0961, P0962, P0963)
 No defect
Clutch control solenoid No.1 (SL2) (P0965, P0966, P0967)
 No defect
Line pressure control solenoid ASSY (SLT) (P2720, P2721, P2719)
 No defect
Transmission 3 way solenoid ASSY (S1) (P0973, P0974)
 No defect
Transmission 3 way solenoid ASSY (S2) (P0976, P0977)
 No defect
Transmission 3 way solenoid ASSY (S3) (P0979, P0980)
 No defect
Transmission 3 way solenoid ASSY (S4) (P0982, P0983)
 No defect
Transmission 3 way solenoid ASSY (SR) (P0985, P0986)
 No defect
Engine torque signal
 No defect
Time elapsed after D range selection
 10 second or more
(When ATF temperature is 20 °C or more, and the ATF temperature sensor has no defects.)
2.5 second or more
(When ATF temperature is 20 °C or more, and the ATF temperature sensor has no defects.)
·TYPICAL MALFUNCTION THRESHOLDS
Turbine shaft speed sensor pulse which is detecting vehicle speed sensor signal 12 pulses
 0 pulses
Circuit figure
Inspection steps
NOTE:
Read the freeze frame data using the SSM3. A part of the engine running conditions under which the engine trouble occurred is recorded in the freeze frame data, which is useful for troubleshooting.
2. Check of transmission revolution sensor (NT) unit

(1) Disconnect the connector L5 of the transmission revolution sensor (NT).
(2) Check the transmission revolution sensor (NT) unit. (Refer to )
(3) Connect the connector L5 of the transmission revolution sensor (NT).
NG
>Replacement of transmission revolution sensor (NT) (refer to )

OK▼

3. Check wiring harness and connector (transmission control computer - transmission revolution sensor)

NOTE:
Refer to for checking procedure and precautions of wiring harness and connector
(1) Disconnect the connector A19 of the transmission control computer ASSY.
(2) Disconnect the connector L5 of the transmission revolution sensor (NT).
(3) Measure the resistance between the terminals. (Refer to for terminal arrangement of transmission control computer ASSY)
Resistance
Inspection terminals
 Inspection conditions
 Standard value
L5-1 (NT+) - A19-17 (NT+)
 Always
 Less than 1 Ω
L5-2 (NT-) - A19-28 (NT-)
 Always
 Less than 1 Ω
L5-1 (NT+) - chassis ground
 Always
 10 k Ω or more
L5-2 (NT-) - chassis ground
 Always
 10 k Ω or more
(4) Connect the connector A19 of the transmission control computer ASSY.
(5) Connect the connector L5 of the transmission revolution sensor (NT).
NG
>Repair or replacement of wiring harness or connector

OK▼

DTCP0722 Output Speed Sensor Circuit No Signal
Circuit description
The transmission revolution sensor (SP2) inputs the output shaft revolution speed to the transmission control computer ASSY as a signal.
The transmission control computer ASSY performs shift timing control based on transmission revolution sensor (SP2) signal and transmission revolution sensor (NT) signal.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0722
1. Transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), transmission revolution sensor (NT), shift position sensor, clutch control solenoid No.1 (SL1, SL2), and line pressure control solenoid ASSY (SLT) are normal.
Driving at 6 km/h {4 MPH} or more in D position 1st gear, 9 km/h {6 MPH} or more in 2nd gear, 13 km/h {9 MPH} or more in 3rd gear, 18 km/h {12 MPH} or more in 4th gear, 25 km/h {16 MPH} or more in 5th gear, 30 km/h {19 MPH} or more in 6th gear (2.5 seconds or more passed after shifting to D position. However, when the oil temperature sensor is faulty and the oil temperature is 20°C or lower, 10 seconds or more passed after shifting to D position).
2. When the transmission revolution sensor (NT) outputs 12 pulses, the transmission revolution sensor (SP2) does not detect even 1 pulse.
3. Detected 500 times consecutively
4. 1 trips
·Transmission revolution sensor (SP2)
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
This diagnostic code indicates whether pulse is not output from the transmission revolution sensor (SP2) or the output is very small. The TCM transmission revolution sensor (SP2) terminal detects revolution speed signals from the transmission revolution sensor (SP2). TCM compares the transmission revolution sensor (NT) and transmission revolution sensor (SP2) and outputs shift signals.
If the output shaft speed calculated from the transmission revolution sensor (NT) is 300 r/min or more* while the vehicle is driving in D position, TCM detects a defect, turns on MIL, and records the diagnostic code.
*: Engine speed is 400 r/min or more.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0722: Output Speed Sensor Circuit No Signal
Required sensor / component
 Transmission revolution sensor (SP2)
Operation frequency
 Consecutive
Period
 500 count
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
Battery voltage
 10.2 V or more
Engine speed
 400 r/min or more
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (NT) (P0717)
 No defect
Transmission revolution calculated from turbine shaft speed
 300 r/min or more
Neutral start switch ASSY (P0707, P0708)
 No defect
Range position
 D
The transmission is out of shift control.
 No
The transmission is out of gear shift control.
 No
The transmission is out of diagnosis service control.
 No
Clutch control solenoid No.1 (SL1) (P0961, P0962, P0963)
 No defect
Clutch control solenoid No.1 (SL2) (P0965, P0966, P0967)
 No defect
Line pressure control solenoid ASSY (SLT) (P2719, P2720, P2721)
 No defect
Transmission 3 way solenoid ASSY (S1) (P0973, P0974)
 No defect
Transmission 3 way solenoid ASSY (S2) (P0976, P0977)
 No defect
Transmission 3 way solenoid ASSY (S3) (P0979, P0980)
 No defect
Transmission 3 way solenoid ASSY (S4) (P0982, P0983)
 No defect
Transmission 3 way solenoid ASSY (SR) (P0985, P0986)
 No defect
Engine torque signal
 No defect
Time elapsed after D range selection
 10 second or more
(When ATF temperature is 20 °C or less, and the ATF temperature sensor has a defect.)
2.5 second or more
(When ATF temperature is 20 °C or more, and the ATF temperature sensor has no defects.)
·TYPICAL MALFUNCTION THRESHOLDS
Vehicle speed sensor pulse which is detecting turbine shaft speed sensor signal 12 pulses
 0 pulses
Circuit figure
Inspection steps
NOTE:
Read the freeze frame data using the SSM3. A part of the engine running conditions under which the engine trouble occurred is recorded in the freeze frame data, which is useful for troubleshooting.
2. Check of transmission revolution sensor (SP2) unit

(1) Disconnect the connector L3 of the transmission revolution sensor (SP2).
(2) Check the transmission revolution sensor (SP2) unit. (Refer to )
(3) Connect the connector L3 of the transmission revolution sensor (SP2).
NG
>Replacement (SP2)of transmission revolution sensor (SP2) (refer to )

OK▼

3. Check wiring harness and connector (transmission control computer ASSY - transmission revolution sensor (SP2))

NOTE:
Refer to for checking procedure and precautions of wiring harness and connector
(1) Disconnect the connector A19 of the transmission control computer ASSY.
(2) Disconnect the connector L3 of the transmission revolution sensor (SP2).
(3) Measure the resistance between the terminals. (Refer to for terminal arrangement of transmission control computer ASSY)
Resistance
Inspection terminals
 Inspection conditions
 Standard value
A19-18 (SP2+) - L3-1 (SP2+)
 Always
 Less than 1 Ω
A19-7 (SP2-) - L3-2 (SP2-)
 Always
 Less than 1 Ω
A19-18 (SP2+) - chassis ground
 Always
 10 k Ω or more
A19-7 (SP2-) - chassis ground
 Always
 10 k Ω or more
(4) Connect the connector L3 of the transmission revolution sensor (SP2).
(5) Connect the connector A19 of the transmission control computer ASSY.
NG
>Repair or replacement of wiring harness or connector (transmission control computer ASSY - transmission revolution sensor)

OK▼

DTCP0729 Gear 6 Incorrect Ratio
Circuit description
The transmission control computer ASSY detects the gear position based on signals from the transmission revolution sensor (NT) and the transmission revolution sensor (SP2). Then, the transmission control computer ASSY detects mechanical problems of related solenoid valve, valve body, or automatic transmission when the detected gear position differs from the commanded position.
Shift to 6th gear is prohibited as fail safe.
DTC NO.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0729
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. All of the following conditions are established.
When the transmission control computer ASSY commands 5th gear, the actual gear is also shifted to 5th position.
When the transmission control computer ASSY commands 6th gear, the actual gear is shifted to 4th position.
3. -
4. 2 trips
·Line pressure control solenoid ASSY (SLT)
·Transmission valve body ASSY
Monitor description
TCM switches ON/OFF of the shift solenoid valve and transmits oil pressure to the valve body to command gear shift. This diagnostic code indicates that the sequence valve is locked in the direction the spring extends and shift to 6th gear is impossible.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0729: Gear 6 Incorrect Ratio
Required sensor / component
 Sequence valve
Operation frequency
 Consecutive
Period
 1 count
MIL operation
 2nd driving cycle
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·The following items are common to the all conditions below.
Battery voltage
 10.5V or more
Engine speed
 400 r/min or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (NT) (P0717)
 No defect
Transmission revolution sensor (SP2) (P0722)
 No defect
Transmission 3 way solenoid ASSY (S1) (P0973, P0974)
 No defect
Transmission 3 way solenoid ASSY (S2) (P0976, P0977)
 No defect
Transmission 3 way solenoid ASSY (S3) (P0979, P0980)
 No defect
Transmission 3 way solenoid ASSY (S4) (P0982, P0983)
 No defect
Transmission 3 way solenoid ASSY (SR) (P0985, P0986)
 No defect
Clutch control solenoid No.1 (SL1) (P0961, P0962, P0963)
 No defect
Clutch control solenoid No.1 (SL2) (P0965, P0966, P0967)
 No defect
Line pressure control solenoid ASSY (SLT) (P2720, P2721, P2719)
 No defect
Oil temperature sensor (P0711, P0712, P0713)
 No defect
Neutral start switch ASSY (P0707, P0708)
 No defect
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Coolant temperature sensor
 No defect
Engine torque signal
 No defect
Throttle opening angle sensor
 No defect
Accelerator pedal opening angle sensor
 No defect
Range position
 D
Time elapsed after D range selection
 4 second or more
Engine coolant temperature
 40°C or more
ATF temperature
 20°C or more
·TYPICAL MALFUNCTION THRESHOLDS
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 5th stage
Condition (B)
Shift position
 D position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
·When both of the following conditions are established: condition (C) and (D)
Condition (C)
Shift position
 M position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 5th stage
Condition (D)
Shift position
 M position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
Gear positions when mechanical problems occur in reverse sequence valve
TCM shift command stage
 1st
 2nd
 3rd
 4th
 5th
 6th
Reverse sequence valve is stuck on the extended side.
 1st
 2nd
 3rd
 4th
 5th
 4th
Inspection steps
2. Shift position check

CAUTION:
·Perform the inspection at an oil temperature (60-90°C) in normal driving condition.
·Turn the A/C and the cruise control OFF.
(1) Drive in manual mode and check the shift position.
WARNING:
Confirm the safety on the road.
Gear position of transmission control computer ASSY
 1st
 2nd
 3rd
 4th
 5th
 6th
Gear positions when problems occur
 1st
 2nd
 3rd
 4th
 5th
 4th
Criteria :  Shift position changes.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼

3. Line pressure check

CAUTION:
·Wash the equipment and hoses with appropriate detergent before and after measurement.
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (60 to 90°C) in normal driving condition.
·Perform the inspection with the A/C OFF.
·Do not perform the inspection continuously for 5 seconds or more at stall. (Time from the accelerator full close to full open, stall speed reading and the accelerator full close)
·After performing the stall test, be sure to cool down the engine for at least 1 minute with the select lever set in P or N position, and at an idle speed of 1200 r/min or less.
·If the stall speed is higher than the specified range, finish the stall test in as short a time as possible, in order to prevent the automatic transmission from being damaged.
·Perform the stall test in normal mode.
(1) Remove the under cover No.1.
(2) Remove the under cover No.2.
(3) Remove the exhaust pipe ASSY FR.
(4) Attach the SST on the transmission.
SST     18681AA040  498897700  498575400
CAUTION:
·Use 18681AA040 with genuine O-ring (17006AA000) attached.
·Route the hose so that it does not contact the exhaust pipe.
Captions in illustration
*1
 Test plug
(5) Install the center exhaust pipe.
(6) Firmly apply the parking brake and set the wheel stoppers.
(7) Remove the test plug, install the gauge and start the engine.
(8) Firmly depress the brake pedal with left foot and shift to D or R position, then check the hydraulic pressure at idling and stalling.
Standard value
Shift position
 While idling
[MPa {kgf/cm2}]
 While stalling
[MPa {kgf/cm2}]
D position
 0.35 to 0.43
{3.6 to 4.4}
 1.20 to 1.38
{12.2 to 14.0}
R position
 0.76 to 0.95
{7.7 to 9.7}
 1.41 to 1.63
{14.4 to 16.6}
NOTE:
When there is an open or short circuit in the line pressure control solenoid ASSY (SLT) system, the line pressure reaches the maximum.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼

4. Diagnostic codes clear and driving test

(1) Follow the SSM3 on-screen instructions to clear the diagnostic codes. (Refer to )
(2) Perform driving test.
WARNING:
Confirm the safety on the road.
(3) Follow the SSM3 on-screen instructions to check the diagnostic codes. (Refer to )
Criteria :  Diagnostic codes are not output.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼
Complete

DTCP0751 Shift Solenoid “A” Performance/Stuck Off
DTCP0752 Shift Solenoid “A” Stuck On
Circuit description
The transmission control computer ASSY detects the gear position based on signals from the transmission revolution sensor (NT) and the transmission revolution sensor (SP2). Then, the transmission control computer ASSY detects mechanical problems of related solenoid valve, valve body, or automatic transmission when the detected gear position differs from the commanded position.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0751
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. All of the following conditions are established.
When the transmission control computer ASSY commands 5th gear, the actual gear is also shifted to 5th position.
When the transmission control computer ASSY commands 6th gear, engine overruns (neutral status).
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S1)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0752
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. All of the following conditions are established.
When the transmission control computer ASSY commands 1st gear, the actual gear is shifted to 2nd position.
When the transmission control computer ASSY commands 5th gear, the actual gear is also shifted to 5th position.
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S1)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
This diagnostic code indicates “stuck ON” or “stuck OFF” of the transmission 3 way solenoid ASSY (S1).
TCM switches ON/OFF of the shift solenoid valve to command shifting. If the gear position commanded by TCM is different from the actual gear position, TCM turns on MIL and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0751: Shift Solenoid “A” Performance/Stuck Off
P0752: Shift Solenoid “A” Stuck On
Required sensor / component
 Transmission 3 way solenoid ASSY (S1)
Operation frequency
 Consecutive
Period
 1 count
MIL operation
 2nd driving cycle
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·The following items are common to the all conditions below.
Battery voltage
 10.5V or more
Engine speed
 400 r/min or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (NT) (P0717)
 No defect
Transmission revolution sensor (SP2) (P0722)
 No defect
Transmission 3 way solenoid ASSY (S1) (P0973, P0974)
 No defect
Transmission 3 way solenoid ASSY (S2) (P0976, P0977)
 No defect
Transmission 3 way solenoid ASSY (S3) (P0979, P0980)
 No defect
Transmission 3 way solenoid ASSY (S4) (P0982, P0983)
 No defect
Transmission 3 way solenoid ASSY (SR) (P0985, P0986)
 No defect
Clutch control solenoid No.1 (SL1) (P0961, P0962, P0963)
 No defect
Clutch control solenoid No.1 (SL2) (P0965, P0966, P0967)
 No defect
Line pressure control solenoid ASSY (SLT) (P2720, P2721, P2719)
 No defect
Oil temperature sensor (P0711, P0712, P0713)
 No defect
Neutral start switch ASSY (P0707, P0708)
 No defect
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Coolant temperature sensor
 No defect
Engine torque signal
 No defect
Throttle opening angle sensor
 No defect
Accelerator pedal opening angle sensor
 No defect
Range position
 D
Time elapsed after D range selection
 4 second or more
Engine coolant temperature
 40°C or more
ATF temperature
 20°C or more
·TYPICAL MALFUNCTION THRESHOLDS
·P0751: Shift Solenoid “A” Performance/Stuck Off
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 5th stage
Condition (B)
Shift position
 D position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 Neutral
·When both of the following conditions are established: condition (C) and (D)
Condition (C)
Shift position
 M position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 5th stage
Condition (D)
Shift position
 M position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 Neutral
·P0752: Shift Solenoid “A” Stuck On
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 1st stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 2nd stage
Condition (B)
Shift position
 D position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 5th stage
·When both of the following conditions are established: condition (C) and (D)
Condition (C)
Shift position
 M position
Target gear position
 1st stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 2nd stage
Condition (D)
Shift position
 M position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 5th stage
Circuit figure
Inspection steps
NOTE:
Gear position when the transmission 3 way solenoid ASSY (S1) is stuck OFF (Select lever in M position)
TCM shift command stage
 1st
 2nd
 3rd
 4th
 5th
 6th
Gear position
 1st
 2nd
 3rd
 4th
 5th
 Neutral
Gear position when the transmission 3 way solenoid ASSY (S1) is stuck ON (Select lever in M position)
TCM shift command stage
 1st
 2nd
 3rd
 4th
 5th
 6th
Gear position
 2nd
 2nd
 3rd
 4th
 5th
 6th
2. Line pressure check

CAUTION:
·Wash the equipment and hoses with appropriate detergent before and after measurement.
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (60 to 90°C) in normal driving condition.
·Perform the inspection with the A/C OFF.
·Do not perform the inspection continuously for 5 seconds or more at stall. (Time from the accelerator full close to full open, stall speed reading and the accelerator full close)
·After performing the stall test, be sure to cool down the engine for at least 1 minute with the select lever set in P or N position, and at an idle speed of 1200 r/min or less.
·If the stall speed is higher than the specified range, finish the stall test in as short a time as possible, in order to prevent the automatic transmission from being damaged.
·Perform the stall test in normal mode.
(1) Remove the under cover No.1.
(2) Remove the under cover No.2.
(3) Remove the exhaust pipe ASSY FR.
(4) Attach the SST on the transmission.
SST     18681AA040  498897700  498575400
CAUTION:
·Use 18681AA040 with genuine O-ring (17006AA000) attached.
·Route the hose so that it does not contact the exhaust pipe.
Captions in illustration
*1
 Test plug
(5) Install the center exhaust pipe.
(6) Firmly apply the parking brake and set the wheel stoppers.
(7) Remove the test plug, install the gauge and start the engine.
(8) Firmly depress the brake pedal with left foot and shift to D or R position, then check the hydraulic pressure at idling and stalling.
Standard value
Shift position
 While idling
[MPa {kgf/cm2}]
 While stalling
[MPa {kgf/cm2}]
D position
 0.35 to 0.43
{3.6 to 4.4}
 1.20 to 1.38
{12.2 to 14.0}
R position
 0.76 to 0.95
{7.7 to 9.7}
 1.41 to 1.63
{14.4 to 16.6}
NOTE:
When there is an open or short circuit in the line pressure control solenoid ASSY (SLT) system, the line pressure reaches the maximum.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼

3. Check of transmission 3 way solenoid ASSY (S1) unit

(1) Remove the transmission 3 way solenoid ASSY (S1). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S1) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S1) (Refer to )

OK▼

4. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼
Repair or replacement of automatic transmission ASSY (refer to )

DTCP0756 Shift Solenoid “B” Performance/Stuck Off
DTCP0757 Shift Solenoid “B” Stuck On
Circuit description
The transmission control computer ASSY detects the gear position based on signals from the transmission revolution sensor (NT) and the transmission revolution sensor (SP2). Then, the transmission control computer ASSY detects mechanical problems of related solenoid valve, valve body, or automatic transmission when the detected gear position differs from the commanded position.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0756
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. All of the following conditions are established.
When the transmission control computer ASSY commands 1st gear, the actual gear is shifted to 3rd position.
When the transmission control computer ASSY commands 6th gear, the actual gear is shifted to 5th position.
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0757
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. All of the following conditions are established.
When the transmission control computer ASSY commands 5th gear, the actual gear is shifted to 6th position.
When the transmission control computer ASSY commands 6th gear, the actual gear is shifted to 6th position.
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
This diagnostic code indicates “stuck ON” or “stuck OFF” of the transmission 3 way solenoid ASSY (S2).
TCM switches ON/OFF of the shift solenoid valve to command shifting. If the gear position commanded by TCM is different from the actual gear position, TCM turns on MIL and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0756: Shift Solenoid “B” Performance/Stuck Off
P0757: Shift Solenoid “B” Stuck On
Required sensor / component
 Transmission 3 way solenoid ASSY (S2)
Operation frequency
 Consecutive
Period
 1 count
MIL operation
 2nd driving cycle
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·The following items are common to the all conditions below.
Battery voltage
 10.5V or more
Engine speed
 400 r/min or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (NT) (P0717)
 No defect
Transmission revolution sensor (SP2) (P0722)
 No defect
Transmission 3 way solenoid ASSY (S1) (P0973, P0974)
 No defect
Transmission 3 way solenoid ASSY (S2) (P0976, P0977)
 No defect
Transmission 3 way solenoid ASSY (S3) (P0979, P0980)
 No defect
Transmission 3 way solenoid ASSY (S4) (P0982, P0983)
 No defect
Transmission 3 way solenoid ASSY (SR) (P0985, P0986)
 No defect
Clutch control solenoid No.1 (SL1) (P0961, P0962, P0963)
 No defect
Clutch control solenoid No.1 (SL2) (P0965, P0966, P0967)
 No defect
Line pressure control solenoid ASSY (SLT) (P2720, P2721, P2719)
 No defect
Oil temperature sensor (P0711, P0712, P0713)
 No defect
Neutral start switch ASSY (P0707, P0708)
 No defect
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Coolant temperature sensor
 No defect
Engine torque signal
 No defect
Throttle opening angle sensor
 No defect
Accelerator pedal opening angle sensor
 No defect
Range position
 D
Time elapsed after D range selection
 4 second or more
Engine coolant temperature
 40°C or more
ATF temperature
 20°C or more
·TYPICAL MALFUNCTION THRESHOLDS
·P0756: Shift Solenoid “B” Performance/Stuck Off
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 1st stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 3rd stage
Condition (B)
Shift position
 D position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 5th stage
·When both of the following conditions are established: condition (C) and (D)
Condition (C)
Shift position
 M position
Target gear position
 1st stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 3rd stage
Condition (D)
Shift position
 M position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 5th stage
·P0757: Shift Solenoid “B” Stuck On
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 6th stage
Condition (B)
Shift position
 D position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 6th stage
·When both of the following conditions are established: condition (C) and (D)
Condition (C)
Shift position
 M position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 6th stage
Condition (D)
Shift position
 M position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 6th stage
Circuit figure
Inspection steps
NOTE:
Gear position when the transmission 3 way solenoid ASSY (S2) is stuck OFF (Select lever in M position)
TCM shift command stage
 1st
 2nd
 3rd
 4th
 5th
 6th
Gear position
 3rd
 3rd
 3rd
 4th
 5th
 5th
Gear position when the transmission 3 way solenoid ASSY (S2) is stuck ON (Select lever in M position)
TCM shift command stage
 1st
 2nd
 3rd
 4th
 5th
 6th
Gear position
 1st
 2nd
 2nd
 4th
 6th
 6th
2. Line pressure check

CAUTION:
·Wash the equipment and hoses with appropriate detergent before and after measurement.
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (60 to 90°C) in normal driving condition.
·Perform the inspection with the A/C OFF.
·Do not perform the inspection continuously for 5 seconds or more at stall. (Time from the accelerator full close to full open, stall speed reading and the accelerator full close)
·After performing the stall test, be sure to cool down the engine for at least 1 minute with the select lever set in P or N position, and at an idle speed of 1200 r/min or less.
·If the stall speed is higher than the specified range, finish the stall test in as short a time as possible, in order to prevent the automatic transmission from being damaged.
·Perform the stall test in normal mode.
(1) Remove the under cover No.1.
(2) Remove the under cover No.2.
(3) Remove the exhaust pipe ASSY FR.
(4) Attach the SST on the transmission.
SST     18681AA040  498897700  498575400
CAUTION:
·Use 18681AA040 with genuine O-ring (17006AA000) attached.
·Route the hose so that it does not contact the exhaust pipe.
Captions in illustration
*1
 Test plug
(5) Install the center exhaust pipe.
(6) Firmly apply the parking brake and set the wheel stoppers.
(7) Remove the test plug, install the gauge and start the engine.
(8) Firmly depress the brake pedal with left foot and shift to D or R position, then check the hydraulic pressure at idling and stalling.
Standard value
Shift position
 While idling
[MPa {kgf/cm2}]
 While stalling
[MPa {kgf/cm2}]
D position
 0.35 to 0.43
{3.6 to 4.4}
 1.20 to 1.38
{12.2 to 14.0}
R position
 0.76 to 0.95
{7.7 to 9.7}
 1.41 to 1.63
{14.4 to 16.6}
NOTE:
When there is an open or short circuit in the line pressure control solenoid ASSY (SLT) system, the line pressure reaches the maximum.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼

3. Check of transmission 3 way solenoid ASSY (S2) unit

(1) Remove the transmission 3 way solenoid ASSY (S2). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S2) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S2) (Refer to )

OK▼

4. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼
Repair or replacement of automatic transmission ASSY (refer to )

DTCP0761 Shift Solenoid “C” Performance/Stuck Off
DTCP0762 Shift Solenoid “C” Stuck On
DTCP0781 1-2 Shift
Circuit description
The transmission control computer ASSY detects the gear position based on signals from the transmission revolution sensor (NT) and the transmission revolution sensor (SP2). Then, the transmission control computer ASSY detects mechanical problems of related solenoid valve, valve body, or automatic transmission when the detected gear position differs from the commanded position.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0761
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. Any of the following conditions is established.
·All of the following conditions are established.
When the transmission control computer ASSY commands 1st gear, the actual gear is shifted to 3rd position.
When the transmission control computer ASSY commands 6th gear, the actual gear is shifted to 6th position.
·All of the following conditions are established.
When the transmission control computer ASSY commands 2nd gear, the actual gear is shifted to 6th position.
When the transmission control computer ASSY commands 3rd gear, the actual gear is shifted to 4th position.
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S3)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0762
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. Any of the following conditions is established.
When the transmission control computer ASSY commands 4th gear, the actual gear is shifted to 3rd position.
When the transmission control computer ASSY commands 5th gear, the actual gear is shifted to neutral.
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S3)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0781
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. Any of the following conditions is established.
When the transmission control computer ASSY commands 4th gear, the actual gear is shifted to 3rd position.
When the transmission control computer ASSY commands 5th gear, the actual gear is shifted to neutral.
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S3)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
This diagnostic code indicates “stuck ON” or “stuck OFF” of the transmission 3 way solenoid ASSY (S3).
TCM switches ON/OFF of the shift solenoid valve to command shifting. If the gear position commanded by TCM is different from the actual gear position, TCM turns on MIL and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0761: Shift Solenoid “C” Performance/Stuck Off
P0762: Shift Solenoid “C” Stuck On
P0781: 1-2 Shift
Required sensor / component
 Transmission 3 way solenoid ASSY (S3)
Operation frequency
 Consecutive
Period
 1 count
MIL operation
 2nd driving cycle
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·
Battery voltage
 10.5V or more
Engine speed
 400 r/min or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (NT) (P0717)
 No defect
Transmission revolution sensor (SP2) (P0722)
 No defect
Transmission 3 way solenoid ASSY (S1) (P0973, P0974)
 No defect
Transmission 3 way solenoid ASSY (S2) (P0976, P0977)
 No defect
Transmission 3 way solenoid ASSY (S3) (P0979, P0980)
 No defect
Transmission 3 way solenoid ASSY (S4) (P0982, P0983)
 No defect
Transmission 3 way solenoid ASSY (SR) (P0985, P0986)
 No defect
Clutch control solenoid No.1 (SL1) (P0961, P0962, P0963)
 No defect
Clutch control solenoid No.1 (SL2) (P0965, P0966, P0967)
 No defect
Line pressure control solenoid ASSY (SLT) (P2720, P2721, P2719)
 No defect
Oil temperature sensor (P0711, P0712, P0713)
 No defect
Neutral start switch ASSY (P0707, P0708)
 No defect
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Coolant temperature sensor
 No defect
Engine torque signal
 No defect
Throttle opening angle sensor
 No defect
Accelerator pedal opening angle sensor
 No defect
Range position
 D
Time elapsed after D range selection
 4 second or more
Engine coolant temperature
 40°C or more
ATF temperature
 20°C or more
·TYPICAL MALFUNCTION THRESHOLDS
·P0761: Shift Solenoid “C” Performance/Stuck Off
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 1st stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 3rd stage
Condition (B)
Shift position
 D position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 6th stage
·When both of the following conditions are established: condition (C) and (D)
Condition (C)
Shift position
 D position
Target gear position
 2nd stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 6th stage
Condition (D)
Shift position
 D position
Target gear position
 3rd stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
·When both of the following conditions are established: condition (E) and (F)
Condition (E)
Shift position
 M position
Target gear position
 2nd stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 6th stage
Condition (F)
Shift position
 M position
Target gear position
 3rd stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
·P0762: Shift Solenoid “C” Stuck On
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 4th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 3rd stage
Condition (B)
Shift position
 D position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 Neutral
·When both of the following conditions are established: condition (C) or (D)
Condition (C)
Shift position
 M position
Target gear position
 4th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 3rd stage
Condition (D)
Shift position
 M position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 Neutral
·P0781: 1-2 Shift
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 4th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 3rd stage
Condition (B)
Shift position
 D position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 Neutral
·When both of the following conditions are established: condition (C) or (D)
Condition (C)
Shift position
 M position
Target gear position
 4th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 3rd stage
Condition (D)
Shift position
 M position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 Neutral
Circuit figure
Inspection steps
NOTE:
Gear position when the transmission 3 way solenoid ASSY (S3) is stuck OFF (Select lever in M position)
TCM shift command stage
 1st
 2nd
 3rd
 4th
 5th
 6th
Gear position
 3rd
 6th
 4th
 4th
 5th
 6th
Gear position when the transmission 3 way solenoid ASSY (S3) is stuck ON (Select lever in M position)
Gear position when the 1-2 shift valve spring is compressed (Select lever in M position)
TCM shift command stage
 1st
 2nd
 3rd
 4th
 5th
 6th
Gear position
 1st
 2nd
 3rd
 3rd
 Neutral
 Neutral
2. Line pressure check

CAUTION:
·Wash the equipment and hoses with appropriate detergent before and after measurement.
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (60 to 90°C) in normal driving condition.
·Perform the inspection with the A/C OFF.
·Do not perform the inspection continuously for 5 seconds or more at stall. (Time from the accelerator full close to full open, stall speed reading and the accelerator full close)
·After performing the stall test, be sure to cool down the engine for at least 1 minute with the select lever set in P or N position, and at an idle speed of 1200 r/min or less.
·If the stall speed is higher than the specified range, finish the stall test in as short a time as possible, in order to prevent the automatic transmission from being damaged.
·Perform the stall test in normal mode.
(1) Remove the under cover No.1.
(2) Remove the under cover No.2.
(3) Remove the exhaust pipe ASSY FR.
(4) Attach the SST on the transmission.
SST     18681AA040  498897700  498575400
CAUTION:
·Use 18681AA040 with genuine O-ring (17006AA000) attached.
·Route the hose so that it does not contact the exhaust pipe.
Captions in illustration
*1
 Test plug
(5) Install the center exhaust pipe.
(6) Firmly apply the parking brake and set the wheel stoppers.
(7) Remove the test plug, install the gauge and start the engine.
(8) Firmly depress the brake pedal with left foot and shift to D or R position, then check the hydraulic pressure at idling and stalling.
Standard value
Shift position
 While idling
[MPa {kgf/cm2}]
 While stalling
[MPa {kgf/cm2}]
D position
 0.35 to 0.43
{3.6 to 4.4}
 1.20 to 1.38
{12.2 to 14.0}
R position
 0.76 to 0.95
{7.7 to 9.7}
 1.41 to 1.63
{14.4 to 16.6}
NOTE:
When there is an open or short circuit in the line pressure control solenoid ASSY (SLT) system, the line pressure reaches the maximum.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼

3. Check of transmission 3 way solenoid ASSY (S3) unit

(1) Remove the transmission 3 way solenoid ASSY (S3). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S3) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S3) (Refer to )

OK▼

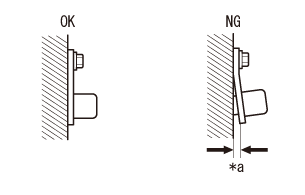

4. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼
Repair or replacement of automatic transmission ASSY (refer to )

DTCP0766 Shift Solenoid “D” Performance/Stuck Off
DTCP0767 Shift Solenoid “D” Stuck On
DTCP0776 Pressure Control Solenoid “B” Performance/Stuck Off
Circuit description
The transmission control computer ASSY detects the gear position based on signals from the transmission revolution sensor (NT) and the transmission revolution sensor (SP2). Then, the transmission control computer ASSY detects mechanical problems of related solenoid valve, valve body, or automatic transmission when the detected gear position differs from the commanded position.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0766
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. All of the following conditions are established.
When the transmission control computer ASSY commands 5th gear, the actual gear is shifted to 4th position.
When the transmission control computer ASSY commands 6th gear, the actual gear is shifted to 4th position.
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S4)
·Clutch control solenoid No.1 (SL2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0767
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. All of the following conditions are established.
When the transmission control computer ASSY commands 1st gear during driving in M mode, the actual gear is shifted to 2nd position.
When the transmission control computer ASSY commands 5th gear during driving in M mode, the actual gear is also shifted to 5th position.
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S4)
·Clutch control solenoid No.1 (SL2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0776
1. Driving in D position with ATF temperature at 20°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. All of the following conditions are established.
When the transmission control computer ASSY commands 5th gear, the actual gear is shifted to 4th position.
When the transmission control computer ASSY commands 6th gear, the actual gear is shifted to 4th position.
3. -
4. 2 trips
·Transmission 3 way solenoid ASSY (S4)
·Clutch control solenoid No.1 (SL2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
This diagnostic code indicates “stuck OFF” of the transmission 3 way solenoid ASSY (S4), “stuck ON” of the clutch control solenoid No.1 (SL2), or a defect of the brake control valve. TCM switches ON/OFF of the shift solenoid valve to command shifting. If the gear position commanded by TCM is different from the actual gear position, TCM turns on MIL and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0766: Shift Solenoid “D” Performance/Stuck Off
P0767: Shift Solenoid “D” Stuck On
P0776: Pressure Control Solenoid “B” Performance/Stuck Off
Required sensor / component
 Transmission 3 way solenoid ASSY (S4)
Clutch control solenoid No.1 (SL2)
Operation frequency
 Consecutive
Period
 1 count
MIL operation
 2nd driving cycle
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·The following items are common to the all conditions below.
Battery voltage
 10.5V or more
Engine speed
 400 r/min or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (NT) (P0717)
 No defect
Transmission revolution sensor (SP2) (P0722)
 No defect
Transmission 3 way solenoid ASSY (S1) (P0973, P0974)
 No defect
Transmission 3 way solenoid ASSY (S2) (P0976, P0977)
 No defect
Transmission 3 way solenoid ASSY (S3) (P0979, P0980)
 No defect
Transmission 3 way solenoid ASSY (S4) (P0982, P0983)
 No defect
Transmission 3 way solenoid ASSY (SR) (P0985, P0986)
 No defect
Clutch control solenoid No.1 (SL1) (P0961, P0962, P0963)
 No defect
Clutch control solenoid No.1 (SL2) (P0965, P0966, P0967)
 No defect
Line pressure control solenoid ASSY (SLT) (P2720, P2721, P2719)
 No defect
Oil temperature sensor (P0711, P0712, P0713)
 No defect
Neutral start switch ASSY (P0707, P0708)
 No defect
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Coolant temperature sensor
 No defect
Engine torque signal
 No defect
Throttle opening angle sensor
 No defect
Accelerator pedal opening angle sensor
 No defect
Range position
 D
Time elapsed after D range selection
 4 second or more
Engine coolant temperature
 40°C or more
ATF temperature
 20°C or more
·TYPICAL MALFUNCTION THRESHOLDS
·P0766: Shift Solenoid “D” Performance/Stuck Off
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
Condition (B)
Shift position
 D position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
·When both of the following conditions are established: condition (C) and (D)
Condition (C)
Shift position
 M position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
Condition (D)
Shift position
 M position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
·P0767: Shift Solenoid “D” Stuck On
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 M position
Target gear position
 1st stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 2nd stage
Condition (B)
Shift position
 M position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 5th stage
·P0776: Pressure Control Solenoid “B” Performance/Stuck Off
·Compare the target gear specified by TCM and the gear ratio calculated from turbine shaft speed and vehicle speed.
When both of the following conditions are established: condition (A) and (B)
Condition (A)
Shift position
 D position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
Condition (B)
Shift position
 D position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
·When both of the following conditions are established: condition (C) and (D)
Condition (C)
Shift position
 M position
Target gear position
 5th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
Condition (D)
Shift position
 M position
Target gear position
 6th stage
Gear ratio calculated from turbine shaft speed and vehicle speed
 4th stage
Circuit figure
Inspection steps
NOTE:
Gear position when the transmission 3 way solenoid ASSY (S4) is stuck OFF or the clutch control solenoid No.1 (SL2) function is faulty. (Select lever in M position)
TCM shift command stage
 1st
 2nd
 3rd
 4th
 5th
 6th
Gear position
 1st
 2nd
 3rd
 4th
 4th
 4th
Gear position when the transmission 3 way solenoid ASSY (S4) is stuck ON (Select lever in M position)
TCM shift command stage
 1st
 2nd
 3rd
 4th
 5th
 6th
Gear position
 2nd
 2nd
 3rd
 4th
 5th
 6th
2. Line pressure check

CAUTION:
·Wash the equipment and hoses with appropriate detergent before and after measurement.
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (60 to 90°C) in normal driving condition.
·Perform the inspection with the A/C OFF.
·Do not perform the inspection continuously for 5 seconds or more at stall. (Time from the accelerator full close to full open, stall speed reading and the accelerator full close)
·After performing the stall test, be sure to cool down the engine for at least 1 minute with the select lever set in P or N position, and at an idle speed of 1200 r/min or less.
·If the stall speed is higher than the specified range, finish the stall test in as short a time as possible, in order to prevent the automatic transmission from being damaged.
·Perform the stall test in normal mode.
(1) Remove the under cover No.1.
(2) Remove the under cover No.2.
(3) Remove the exhaust pipe ASSY FR.
(4) Attach the SST on the transmission.
SST     18681AA040  498897700  498575400
CAUTION:
·Use 18681AA040 with genuine O-ring (17006AA000) attached.
·Route the hose so that it does not contact the exhaust pipe.
Captions in illustration
*1
 Test plug
(5) Install the center exhaust pipe.
(6) Firmly apply the parking brake and set the wheel stoppers.
(7) Remove the test plug, install the gauge and start the engine.
(8) Firmly depress the brake pedal with left foot and shift to D or R position, then check the hydraulic pressure at idling and stalling.
Standard value
Shift position
 While idling
[MPa {kgf/cm2}]
 While stalling
[MPa {kgf/cm2}]
D position
 0.35 to 0.43
{3.6 to 4.4}
 1.20 to 1.38
{12.2 to 14.0}
R position
 0.76 to 0.95
{7.7 to 9.7}
 1.41 to 1.63
{14.4 to 16.6}
NOTE:
When there is an open or short circuit in the line pressure control solenoid ASSY (SLT) system, the line pressure reaches the maximum.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼

3. Check of transmission 3 way solenoid ASSY (S4) system unit

(1) Remove the transmission 3 way solenoid ASSY (S4). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S4) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S4) (Refer to )

OK▼

4. Check of clutch control solenoid No.1 (SL2) unit

(1) Check the clutch control solenoid No.1 (SL2) unit. (Refer to )
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼

5. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼
Repair or replacement of automatic transmission ASSY (refer to )

DTCP0882 TCM Power Input Signal Low
Circuit description
The transmission control computer ASSY detects power supply voltage drop and performs the following fail safe items according to the circumstances.
·Prohibiting learning control (when detecting condition (1) or (2) is established)
·Slippage control, lock-up control, manual mode, prohibiting paddle operation, prohibiting torque up, and prohibiting shift to 5th and 6th gear.
If the problem persists, cut continuity to all the solenoid (lock at 4th gear).
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0882
1. When engine speed and transmission revolution sensor (NT) is 400 r/min or more, and CAN and transmission revolution sensor (NT) are normal.
2. IG voltage is 9.0 V or less.
3. Continuing 20 seconds
4. 1 trips
·IG voltage circuit
·Wiring harness or connector
·Transmission control computer ASSY
DTCP0961 Pressure Control Solenoid “A” Control Circuit Range/Performance
DTCP0962 Pressure Control Solenoid “A” Control Circuit Low
DTCP0963 Pressure Control Solenoid “A” Control Circuit High
Circuit description
Signals from the transmission control computer ASSY change the vehicle speed from 1st to 6th gear according to the combination of the transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR) and the clutch control solenoid No.1 (SL1, SL2). When there is an open or short circuit in the solenoid valve system, the transmission control computer ASSY stops continuity to all solenoids as the fail safe function. As a result, only the mechanical hydraulic circuit is available and the manual shift control is initiated.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal status
3. Abnormal period
4. Others
 Inspection parts
P0961
1. Learning control is not prohibited.
SL1 solenoid system (Low/High) is not malfunctioning.
2. The cumulative difference between clutch control solenoid No.1 (SL1) operation set current and operation feedback current is 12 A or more.
3. Abnormal status of item 2 is detected 2 times consecutively.
4. 1 trips
·Clutch control solenoid No.1 (SL1)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0962
1. Learning control is not prohibited.
1 second or more passed after clutch control solenoid No.1 (SL1) is turned OFF.
2. Clutch control solenoid No.1 (SL1) operation feedback voltage is less than 0.018 V.
3. 100 ms or more durations are detected 5 times consecutively.
4. 1 trips
·Clutch control solenoid No.1 (SL1)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0963
1. Learning control is not prohibited.
1 second or more passed after clutch control solenoid No.1 (SL1) is turned ON.
2. Clutch control solenoid No.1 (SL1) operation feedback voltage is 0.257 V or more.
3. 100 ms or more durations are detected 5 times consecutively.
4. 1 trips
·Clutch control solenoid No.1 (SL1)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
This diagnostic code indicates open or short circuit in the clutch control solenoid No.1 (SL1). TCM switches ON/OFF of the shift solenoid valve to command shifting. If there is open or short circuit in any of the shift solenoid valve circuits, TCM detects the defect, turns on MIL, and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0961: Pressure Control Solenoid “A” Control Circuit Range/Performance
P0962: Pressure Control Solenoid “A” Control Circuit Low
P0963: Pressure Control Solenoid “A” Control Circuit High
Required sensor / component
 Clutch control solenoid No.1 (SL1)
Operation frequency
 Consecutive
Period
 P0961: 2 counts
P0962: 0.1 seconds × 5 times
P0963: 0.1 seconds × 5 times
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·P0961: Pressure Control Solenoid “A” Control Circuit Range/Performance
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Clutch control solenoid No.1 (SL1) (P0962, P0963)
 No defect
Check the feedback terminal voltage.
 0.257V or less
Battery voltage
 10.5V or more
Above condition (battery voltage) is established
 0.5 second or more
·P0962: Pressure Control Solenoid “A” Control Circuit Low
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Clutch control solenoid No.1 (SL1) (P0961)
 No defect
·P0963: Pressure Control Solenoid “A” Control Circuit High
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Clutch control solenoid No.1 (SL1) (P0961)
 No defect
·TYPICAL MALFUNCTION THRESHOLDS
·P0961: Pressure Control Solenoid “A” Control Circuit Range/Performance
Cumulative total of differences between target current and feedback current (Sum_ie)
 12 A or more
When 1 or more conditions below are established, Sum_ie is deleted.
1. The permission condition is not established.
2. When the current difference (ie) between target and feedback is -50 mA to 50 mA
3. Positive and negative of ie are reversed.
·P0962: Pressure Control Solenoid “A” Control Circuit Low
Check the feedback terminal voltage.
 0.018V or less
Time elapsed after recovery from battery short circuit
 1 second or more
·P0963: Pressure Control Solenoid “A” Control Circuit High
Check the feedback terminal voltage.
 0.257V or more
Time elapsed after recovery from short circuit to ground/open circuit
 1 second or more
Circuit figure
Inspection steps
NOTE:
ON/OFF status when clutch control solenoid No.1 (SL1) is normal (Select lever in D position)
Gear position
 1st
 2nd
 3rd
 4th
 5th
 6th
Clutch control solenoid No.1 (SL1)
 OFF
 OFF
 OFF
 OFF
 ON
 ON
4. Check of clutch control solenoid No.1(SL1) unit

(1) Check the clutch control solenoid No.1 (SL1) unit. (Refer to )
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼
Repair or replacement of transmission wire (refer to )

DTCP0965 Pressure Control Solenoid “B” Control Circuit Range/Performance
DTCP0966 Pressure Control Solenoid “B” Control Circuit Low
DTCP0967 Pressure Control Solenoid “B” Control Circuit High
Circuit description
Signals from the transmission control computer ASSY change the vehicle speed from 1st to 6th gear according to the combination of the transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR) and the clutch control solenoid No.1 (SL1, SL2). When there is an open or short circuit in the solenoid valve system, the transmission control computer ASSY stops continuity to all solenoids as the fail safe function. As a result, only the mechanical hydraulic circuit is available and the manual shift control is initiated.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal status
3. Abnormal period
4. Others
 Inspection parts
P0965
1. Learning control is not prohibited.
2. The cumulative difference between clutch control solenoid No.1 (SL2) operation set current and operation feedback current is 12 A or more.
3. Abnormal status of item 2 is detected 2 times consecutively.
4. 1 trips
·Clutch control solenoid No.1 (SL2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0966
1. Learning control is not prohibited.
1 second or more passed after clutch control solenoid No.1 (SL2) is turned OFF.
2. Clutch control solenoid No.1 (SL2) operation feedback voltage is less than 0.018 V.
3. 100 ms or more durations are detected 5 times consecutively.
4. 1 trips
·Clutch control solenoid No.1 (SL2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0967
1. Learning control is not prohibited.
1 second or more passed after clutch control solenoid No.1 (SL2) is turned ON.
2. Clutch control solenoid No.1 (SL2) operation feedback voltage is 0.257 V or more.
3. 100 ms or more durations are detected 5 times consecutively.
4. 1 trips
·Clutch control solenoid No.1 (SL2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
This diagnostic code indicates open or short circuit in the clutch control solenoid No.1 (SL2). TCM switches ON/OFF of the shift solenoid valve to command shifting. If there is open or short circuit in any of the shift solenoid valve circuits, TCM detects the defect, turns on MIL, and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0965: Pressure Control Solenoid “B” Control Circuit Range/Performance
P0966: Pressure Control Solenoid “A” Control Circuit Low
P0967: Pressure Control Solenoid “A” Control Circuit High
Required sensor / component
 Clutch control solenoid No.1 (SL2)
Operation frequency
 Consecutive
Period
 P0965: 2 counts
P0966: 0.1 seconds × 5 times
P0967: 0.1 seconds × 5 times
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·P0965: Pressure Control Solenoid “B” Control Circuit Range/Performance
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Clutch control solenoid No.1 (SL2) (P0965, P0966)
 No defect
Check the feedback terminal voltage.
 0.257V or less
Battery voltage
 10.5V or more
Above condition (battery voltage) is established
 0.5 second or more
·P0966: Pressure Control Solenoid “B” Control Circuit Low
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Clutch control solenoid No.1 (SL2) (P0965)
 No defect
·P0967: Pressure Control Solenoid “B” Control Circuit High
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Clutch control solenoid No.1 (SL2) (P0965)
 No defect
·TYPICAL MALFUNCTION THRESHOLDS
·P0965: Pressure Control Solenoid “B” Control Circuit Range/Performance
Cumulative total of differences between target current and feedback current (Sum_ie)
 12 A or more
Sum_ie is updated every 25 milliseconds.
When 1 or more conditions below are established, Sum_ie is deleted.
1. The permission condition is not established.
2. When the current difference (ie) between target and feedback is -50 mA to 50 mA
3. Positive and negative of ie are reversed.
·P0966: Pressure Control Solenoid “B” Control Circuit Low
Check the feedback terminal voltage.
 0.018V or less
Time elapsed after recovery from battery short circuit
 1 second or more
·P0967: Pressure Control Solenoid “B” Control Circuit High
Check the feedback terminal voltage.
 0.257V or more
Time elapsed after recovery from short circuit to ground/open circuit
 1 second or more
Circuit figure
Inspection steps
NOTE:
ON/OFF status when clutch control solenoid No.1 (SL2) is normal (Select lever in D position)
Gear position
 1st
 2nd
 3rd
 4th
 5th
 6th
Clutch control solenoid No.1 (SL2)
 ON
 OFF
 OFF
 ON
 OFF
 OFF
4. Check of clutch control solenoid No.1 (SL2) unit

(1) Check the clutch control solenoid No.1 (SL2) unit. (Refer to )
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼
Repair or replacement of transmission wire (refer to )

DTCP0973 Shift Solenoid “A” Control Circuit Low
DTCP0974 Shift Solenoid “A” Control Circuit High
Circuit description
Signals from the transmission control computer ASSY change the vehicle speed from 1st to 6th gear according to the combination of the transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR) and the clutch control solenoid No.1 (SL1, SL2). When there is an open or short circuit in the solenoid valve system, the transmission control computer ASSY stops continuity to all solenoids as the fail safe function. As a result, only the mechanical hydraulic circuit is available and the manual shift control is initiated.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0973
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (S1) ON is output, transmission control computer ASSY S1 output monitor value is OFF.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (S1)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0974
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (S1) OFF is output, transmission control computer ASSY S1 output monitor value is ON.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (S1)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
These diagnostic codes indicate open or short circuit in the transmission 3 way solenoid ASSY (S1) circuit. If there is open or short circuit in any of the shift solenoid valve circuits, TCM detects the defect, turns on MIL, and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0973: Shift Solenoid “A” Control Circuit Low
P0974: Shift Solenoid “A” Control Circuit High
Required sensor / component
 Transmission 3 way solenoid ASSY (S1)
Operation frequency
 Consecutive
Period
 0.5 seconds
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
·TYPICAL MALFUNCTION THRESHOLDS
·P0973: Shift Solenoid “A” Control Circuit Low
Output monitor status when TCM outputs ON signal
 OFF
·P0974: Shift Solenoid “A” Control Circuit High
Output monitor status when TCM outputs OFF signal
ON
Circuit figure
Inspection steps
NOTE:
ON/OFF status when transmission 3 way solenoid ASSY (S1) is normal (Select lever in D position)
Gear position
 1st
 2nd
 3rd
 4th
 5th
 6th
Transmission 3 way solenoid ASSY (S1)
 OFF
 ON
 ON
 ON
 ON
 ON
4. Check of transmission 3 way solenoid ASSY (S1) unit

(1) Remove the transmission 3 way solenoid ASSY (S1). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S1) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S1) (Refer to )

OK▼
Repair or replacement of transmission wire (refer to )

DTCP0976 Shift Solenoid “B” Control Circuit Low
DTCP0977 Shift Solenoid “B” Control Circuit High
Circuit description
Signals from the transmission control computer ASSY change the vehicle speed from 1st to 6th gear according to the combination of the transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR) and the clutch control solenoid No.1 (SL1, SL2). When there is an open or short circuit in the solenoid valve system, the transmission control computer ASSY stops continuity to all solenoids as the fail safe function. As a result, only the mechanical hydraulic circuit is available and the manual shift control is initiated.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0976
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (S2) ON is output, S2 output monitor value is OFF.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (S2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0977
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (S2) OFF is output, S2 output monitor value is ON.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (S2)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
These diagnostic codes indicate open or short circuit in the transmission 3 way solenoid ASSY (S2) circuit. If there is open or short circuit in any of the shift solenoid valve circuits, TCM detects the defect, turns on MIL, and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0976: Shift Solenoid “B” Control Circuit Low
P0977: Shift Solenoid “B” Control Circuit High
Required sensor / component
 Transmission 3 way solenoid ASSY (S2)
Operation frequency
 Consecutive
Period
 0.5 seconds
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
·TYPICAL MALFUNCTION THRESHOLDS
·P0976: Shift Solenoid “B” Control Circuit Low
Output monitor status when TCM outputs ON signal
 OFF
·P0977: Shift Solenoid “B” Control Circuit High
Output monitor status when TCM outputs OFF signal
ON
Circuit figure
Inspection steps
NOTE:
ON/OFF status when transmission 3 way solenoid ASSY (S2) is normal (Select lever in D position)
Gear position
 1st
 2nd
 3rd
 4th
 5th
 6th
Transmission 3 way solenoid ASSY (S2)
 ON
 ON
 OFF
 OFF
 OFF
 ON
4. Check of transmission 3 way solenoid ASSY (S2) unit

(1) Remove the transmission 3 way solenoid ASSY (S2). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S2) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S2) (Refer to )

OK▼
Repair or replacement of transmission wire (refer to )

DTCP0979 Shift Solenoid “C” Control Circuit Low
DTCP0980 Shift Solenoid “C” Control Circuit High
Circuit description
Signals from the transmission control computer ASSY change the vehicle speed from 1st to 6th gear according to the combination of the transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR) and the clutch control solenoid No.1 (SL1, SL2). When there is an open or short circuit in the solenoid valve system, the transmission control computer ASSY stops continuity to all solenoids as the fail safe function. As a result, only the mechanical hydraulic circuit is available and the manual shift control is initiated.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0979
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (S3) ON is output, S3 output monitor value is OFF.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (S3)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0980
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (S3) OFF is output, S3 output monitor value is ON.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (S3)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
These diagnostic codes indicate open or short circuit in the transmission 3 way solenoid ASSY (S3) circuit. If there is open or short circuit in any of the shift solenoid valve circuits, TCM detects the defect, turns on MIL, and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0979: Shift Solenoid “C” Control Circuit Low
P0980: Shift Solenoid “C” Control Circuit High
Required sensor / component
 Transmission 3 way solenoid ASSY (S3)
Operation frequency
 Consecutive
Period
 0.5 seconds
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
·TYPICAL MALFUNCTION THRESHOLDS
·P0979: Shift Solenoid “C” Control Circuit Low
Output monitor status when TCM outputs ON signal
 OFF
·P0980: Shift Solenoid “C” Control Circuit High
Output monitor status when TCM outputs OFF signal
ON
Circuit figure
Inspection steps
NOTE:
ON/OFF status when transmission 3 way solenoid ASSY (S3) is normal (Select lever in D position)
Gear position
 1st
 2nd
 3rd
 4th
 5th
 6th
Transmission 3 way solenoid ASSY (S3)
 ON
 ON
 ON
 OFF
 OFF
 OFF
4. Check of transmission 3 way solenoid ASSY (S3) unit

(1) Remove the transmission 3 way solenoid ASSY (S3). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S3) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S3) (Refer to )

OK▼
Repair or replacement of transmission wire (refer to )

DTCP0982 Shift Solenoid “D” Control Circuit Low
DTCP0983 Shift Solenoid “D” Control Circuit High
Circuit description
Signals from the transmission control computer ASSY change the vehicle speed from 1st to 6th gear according to the combination of the transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR) and the clutch control solenoid No.1 (SL1, SL2). When there is an open or short circuit in the solenoid valve system, the transmission control computer ASSY stops continuity to all solenoids as the fail safe function. As a result, only the mechanical hydraulic circuit is available and the manual shift control is initiated.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0982
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (S4) ON is output, S4 output monitor value is OFF.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (S4)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0983
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (S4) OFF is output, S4 output monitor value is ON.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (S4)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
These diagnostic codes indicate open or short circuit in the transmission 3 way solenoid ASSY (S4) circuit. If there is open or short circuit in any of the shift solenoid valve circuits, TCM detects the defect, turns on MIL, and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0982: Shift Solenoid “D” Control Circuit Low
P0983: Shift Solenoid “D” Control Circuit High
Required sensor / component
 Transmission 3 way solenoid ASSY (S4)
Operation frequency
 Consecutive
Period
 0.5 seconds
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
·TYPICAL MALFUNCTION THRESHOLDS
·P0982: Shift Solenoid “D” Control Circuit Low
Output monitor status when TCM outputs ON signal
 OFF
·P0983: Shift Solenoid “D” Control Circuit High
Output monitor status when TCM outputs OFF signal
ON
Circuit figure
Inspection steps
NOTE:
ON/OFF status when transmission 3 way solenoid ASSY (S4) is normal (Select lever in D position)
Gear position
 1st
 2nd
 3rd
 4th
 5th
 6th
Transmission 3 way solenoid ASSY (S4)
 OFF
 ON
 OFF
 OFF
 ON
 ON
4. Check of transmission 3 way solenoid ASSY (S4) unit

(1) Remove the transmission 3 way solenoid ASSY (S4). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S4) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S4) (Refer to )

OK▼
Repair or replacement of transmission wire (refer to )

DTCP0985 Shift Solenoid “E” Control Circuit Low
DTCP0986 Shift Solenoid “E” Control Circuit High
Circuit description
Signals from the transmission control computer ASSY change the vehicle speed from 1st to 6th gear according to the combination of the transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR) and the clutch control solenoid No.1 (SL1, SL2). When there is an open or short circuit in the solenoid valve system, the transmission control computer ASSY stops continuity to all solenoids as the fail safe function. As a result, only the mechanical hydraulic circuit is available and the manual shift control is initiated.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P0985
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (SR) ON is output, SR output monitor value is OFF.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (SR)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P0986
1. Learning control is not prohibited.
2. When transmission 3 way solenoid ASSY (SR) OFF is output, SR output monitor value is ON.
3. 500 ms or more durations
4. 1 trips
·Transmission 3 way solenoid ASSY (SR)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
These diagnostic codes indicate open or short circuit in the transmission 3 way solenoid ASSY (SR) circuit. If there is open or short circuit in any of the shift solenoid valve circuits, TCM detects the defect, turns on MIL, and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P0985: Shift Solenoid “E” Control Circuit Low
P0986: Shift Solenoid “E” Control Circuit High
Required sensor / component
 Transmission 3 way solenoid ASSY (SR)
Operation frequency
 Consecutive
Period
 0.5 seconds
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
·TYPICAL MALFUNCTION THRESHOLDS
·P0985: Shift Solenoid “E” Control Circuit Low
Output monitor status when TCM outputs ON signal
 OFF
·P0986: Shift Solenoid “E” Control Circuit High
Output monitor status when TCM outputs OFF signal
ON
Circuit figure
Inspection steps
NOTE:
ON/OFF status when transmission 3 way solenoid ASSY (SR) is normal (Select lever in D position)
Gear position
 1st
 2nd
 3rd
 4th
 5th
 6th
Transmission 3 way solenoid ASSY (SR)
 ON
 ON
 ON
 ON
 OFF
 OFF
4. Check of transmission 3 way solenoid ASSY (SR) unit

(1) Remove the transmission 3 way solenoid ASSY (SR). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (SR) unit. (Refer to )
NG
>Replacement of the automatic transmission 3 way solenoid ASSY (SR) (Refer to )

OK▼
Repair or replacement of transmission wire (refer to )

DTCP160A RAM error
Circuit description
The value calculated by the transmission control computer ASSY is compared with the data recorded after the calculation when IG is ON, and when they do not match, DTC is detected and continuity to all solenoids is stopped (locked to 4th gear).
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P160A
1. IG ON
2. Transmission control computer ASSY inside malfunction
When information recorded in transmission control computer ASSY varies in the same IG ON
3. -
4. 1 trips
·Transmission control computer ASSY
DTCP1817 Manual switch system (Low)
Circuit description
The transmission control computer ASSY detects M position based on signals from the manual mode switch ASSY.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P1817
1. Shift position sensor is normal and learning control is not prohibited.
2. M switch is ON when select lever is in P, N, or R position
3. Continuing 2 seconds
4. 1 trips
·Manual mode switch ASSY
·Wiring harness and connector
·Transmission control computer ASSY
Circuit figure
Inspection steps
NOTE:
Read the freeze frame data using the SSM3. A part of the engine running conditions under which the engine trouble occurred is recorded in the freeze frame data, which is useful for troubleshooting.
5. Check wiring harness and connector (transmission control computer ASSY - shift position indicator)

(1) Disconnect the connector A19 of the transmission control computer ASSY.
(2) Disconnect the connector D36 of the shift position indicator.
(3) Measure the resistance between the terminals.
Resistance
Inspection terminals
 Inspection conditions
 Standard value
D36-5 (M) - A19-8 (M)
 Always
 Less than 1 Ω
D36-5 (M) - chassis ground
 Always
 10 k Ω or more
A19-8 (M) - chassis ground
 Always
 10 k Ω or more
(4) Connect the connector D36 of the shift position indicator.
(5) Connect the connector A19 of the transmission control computer ASSY.
NG
>Repair or replacement of wiring harness or connector

OK▼
Replacement of shift position indicator (refer to )

DTCP2714 Pressure Control Solenoid “D” Performance/Stuck Off
DTCP0894 Transmission Component Slipping
Description of functions
The line pressure control solenoid ASSY (SLT) is controlled according to duty ratio which is predetermined by the transmission control computer ASSY based on signals from the accelerator position sensor and the transmission revolution sensor (NT, SP2). This adjusts line pressure to meet the throttle opening angle and engine output. The transmission control computer ASSY detects slippage of clutch, etc. based on the revolution speed of the transmission revolution sensor (NT, SP2).
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal status
3. Abnormal period
4. Others
 Inspection parts
P2714
1. Driving in D position with ATF temperature at 10°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. Cumulative heating value of C1 clutch is the predetermined value or larger.
3. -
4. 2 trips
·Line pressure control solenoid ASSY (SLT)
·Transmission valve body ASSY
·Torque converter ASSY
·Automatic transmission ASSY
P0894
1. Driving in D position with ATF temperature at 10°C or higher and the coolant temperature at 40°C or higher (however, no malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch, CAN bus, engine ECM communication, engine coolant temperature sensor, air flow sensor, electronic throttle control, and accelerator pedal sensor).
2. Any of the following conditions is established.
Cumulative heating value of C1 clutch is the predetermined value or larger.
Cumulative heating value of C2 clutch is the predetermined value or larger.
3. -
4. 2 trips
·Line pressure control solenoid ASSY (SLT)
·Transmission 3 way solenoid ASSY (S1)
·Transmission 3 way solenoid ASSY (S2)
·Transmission 3 way solenoid ASSY (S3)
·Transmission 3 way solenoid ASSY (S4)
·Transmission valve body ASSY
·Torque converter ASSY
·Automatic transmission ASSY
Monitor description
TCM calculates the heat amount absorbed by friction material based on the difference between turbine speed and output shaft speed (slipping clutch). When the amount of heat absorption exceeds a certain value, TCM turns on MIL and outputs diagnostic codes.
CAUTION:
If the vehicle continues driving in such a condition, the clutch burns out and the vehicle cannot be driven.
·MONITOR STRATEGY
Applicable diagnostic codes
 P2714: Pressure Control Solenoid “D” Performance/Stuck Off
P0894: Transmission Component Slipping
Required sensor / component
 Line pressure control solenoid ASSY (SLT)
Operation frequency
 Consecutive
Period
 1 count
MIL operation
 2nd driving cycle
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·The following items are common to the all conditions below.
Battery voltage
 10.5V or more
Engine speed
 400 r/min or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (NT) (P0717)
 No defect
Transmission revolution sensor (SP2) (P0722)
 No defect
Transmission 3 way solenoid ASSY (S1) (P0973, P0974)
 No defect
Transmission 3 way solenoid ASSY (S2) (P0976, P0977)
 No defect
Transmission 3 way solenoid ASSY (S3) (P0979, P0980)
 No defect
Transmission 3 way solenoid ASSY (S4) (P0982, P0983)
 No defect
Transmission 3 way solenoid ASSY (SR) (P0985, P0986)
 No defect
Clutch control solenoid No.1 (SL1) (P0961, P0962, P0963)
 No defect
Clutch control solenoid No.1 (SL2) (P0965, P0966, P0967)
 No defect
Line pressure control solenoid ASSY (SLT) (P2720, P2721, P2719)
 No defect
Oil temperature sensor (P0711, P0712, P0713)
 No defect
Neutral start switch ASSY (P0707, P0708)
 No defect
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Coolant temperature sensor
 No defect
Engine torque signal
 No defect
Throttle opening angle sensor
 No defect
Accelerator pedal opening angle sensor
 No defect
Range position
 D
Time elapsed after D range selection
 4 second or more
Engine coolant temperature
 40°C or more
·TYPICAL MALFUNCTION THRESHOLDS
·P2714: Pressure Control Solenoid “D” Performance/Stuck Off
·Either of the following conditions must be satisfied: ON malfunction (A), (B), (C), (D), (E), (F), (G), (H) or (I)
ON malfunction (A)
C1 clutch heat generation total
 Standard value
ON malfunction (B)
6th error
 Detected
ON malfunction (C)
Transmission 3 way solenoid ASSY (S1) (stuck OFF)
 Detected
ON malfunction (D)
Transmission 3 way solenoid ASSY (S2) (stuck OFF)
 Detected
ON malfunction (E)
Transmission 3 way solenoid ASSY (S3) (stuck ON)
 Detected
ON malfunction (F)
Transmission 3 way solenoid ASSY (S4) (stuck OFF)
 Detected
ON malfunction (G)
1-2 shift valve (spring compression)
 Detected
ON malfunction (H)
Line pressure control solenoid ASSY (SLT) (AT slip)
 Detected
ON malfunction (I)
Clutch control solenoid No.1 (SL2) (stuck ON)
 Detected
·P0894: Transmission Component Slipping
·When both of the following conditions are established: AT slip (A) or (B)
AT slip (A)
C1 clutch heat generation total
 Standard value
AT slip (B)
C2 clutch heat generation total
 Standard value
Actual gear when judged as SLT malfunction
 Unidentified
Circuit figure
Inspection steps
2. Line pressure check

CAUTION:
·Wash the equipment and hoses with appropriate detergent before and after measurement.
·Always perform the inspection after the engine check and adjustment.
·Perform the inspection at an oil temperature (60 to 90°C) in normal driving condition.
·Perform the inspection with the A/C OFF.
·Do not perform the inspection continuously for 5 seconds or more at stall. (Time from the accelerator full close to full open, stall speed reading and the accelerator full close)
·After performing the stall test, be sure to cool down the engine for at least 1 minute with the select lever set in P or N position, and at an idle speed of 1200 r/min or less.
·If the stall speed is higher than the specified range, finish the stall test in as short a time as possible, in order to prevent the automatic transmission from being damaged.
·Perform the stall test in normal mode.
(1) Remove the under cover No.1.
(2) Remove the under cover No.2.
(3) Remove the exhaust pipe ASSY FR.
(4) Attach the SST on the transmission.
SST     18681AA040  498897700  498575400
CAUTION:
·Use 18681AA040 with genuine O-ring (17006AA000) attached.
·Route the hose so that it does not contact the exhaust pipe.
Captions in illustration
*1
 Test plug
(5) Install the center exhaust pipe.
(6) Firmly apply the parking brake and set the wheel stoppers.
(7) Remove the test plug, install the gauge and start the engine.
(8) Firmly depress the brake pedal with left foot and shift to D or R position, then check the hydraulic pressure at idling and stalling.
Standard value
Shift position
 While idling
[MPa {kgf/cm2}]
 While stalling
[MPa {kgf/cm2}]
D position
 0.35 to 0.43
{3.6 to 4.4}
 1.20 to 1.38
{12.2 to 14.0}
R position
 0.76 to 0.95
{7.7 to 9.7}
 1.41 to 1.63
{14.4 to 16.6}
NOTE:
When there is an open or short circuit in the line pressure control solenoid ASSY (SLT) system, the line pressure reaches the maximum.
NG
> Step 16

OK▼

4. Check of transmission 3 way solenoid ASSY (S1) unit

(1) Remove the transmission 3 way solenoid ASSY (S1). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S1) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S1) (Refer to )

OK▼

5. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Replacement of transmission valve body ASSY (refer to )

OK▼

6. Check of torque converter ASSY unit

(1) Check the torque converter ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Replacement of torque converter ASSY (refer to )

OK▼
Replacement of automatic transmission ASSY (refer to )

7. Check of transmission 3 way solenoid ASSY (S2) unit

(1) Remove the transmission 3 way solenoid ASSY (S2). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S2) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S2) (Refer to )

OK▼

8. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Replacement of transmission valve body ASSY (refer to )

OK▼

9. Check of torque converter ASSY unit

(1) Check the torque converter ASSY. (Refer to )
Criteria :  Torque converter ASSY is normal.
NG
>Replacement of torque converter ASSY (refer to )

OK▼
Replacement of automatic transmission ASSY (refer to )

10. Check of transmission 3 way solenoid ASSY (S3) unit

(1) Remove the transmission 3 way solenoid ASSY (S3). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S3) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S3) (Refer to )

OK▼

11. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Replacement of transmission valve body ASSY (refer to )

OK▼

12. Check of torque converter ASSY unit

(1) Check the torque converter ASSY. (Refer to )
Criteria :  Torque converter ASSY is normal.
NG
>Replacement of torque converter ASSY (refer to )

OK▼
Replacement of automatic transmission ASSY (refer to )

13. Check of transmission 3 way solenoid ASSY (S4) unit

(1) Remove the transmission 3 way solenoid ASSY (S4). (Refer to )
(2) Check the transmission 3 way solenoid ASSY (S4) unit. (Refer to )
NG
>Replacement of the transmission 3 way solenoid ASSY (S4) (Refer to )

OK▼

14. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Replacement of transmission valve body ASSY (refer to )

OK▼

15. Check of torque converter ASSY unit

(1) Check the torque converter ASSY. (Refer to )
Criteria :  Torque converter ASSY is normal.
NG
>Replacement of torque converter ASSY (refer to )

OK▼
Replacement of automatic transmission ASSY (refer to )

16. Check of line pressure control solenoid ASSY (SLT) unit

(1) Check the line pressure control solenoid ASSY (SLT) unit. (Refer to )
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼

17. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Replacement of transmission valve body ASSY (refer to )

OK▼

18. Check of torque converter ASSY unit

(1) Check the torque converter ASSY. (Refer to )
Criteria :  Torque converter ASSY is normal.
NG
>Replacement of torque converter ASSY (refer to )

OK▼
Replacement of automatic transmission ASSY (refer to )

DTCP2719 Pressure Control Solenoid “D” Control Circuit Range/Performance
DTCP2720 Pressure Control Solenoid “D” Control Circuit Low
DTCP2721 Pressure Control Solenoid “D” Control Circuit High
Circuit description
The line pressure control solenoid ASSY (SLT) is controlled according to the duty signal which is predetermined by the transmission control computer ASSY based on signals from the accelerator position sensor and the transmission revolution sensor (SP2, NT). This adjusts line pressure to meet the throttle opening angle and engine output. The transmission control computer ASSY detects slippage of clutch, etc. based on the revolution speed of the transmission revolution sensor (SP2, NT).
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal status
3. Abnormal period
4. Others
 Inspection parts
P2719
1. Learning control is not prohibited.
2. The cumulative difference between line pressure control solenoid ASSY (SLT) operation set current and operation feedback current is 12 A or more.
3. Abnormal status of No.2 is detected 2 times consecutively.
4. 1 trips
·Line pressure control solenoid ASSY (SLT)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P2720
1. Learning control is not prohibited.
2. Operation feedback voltage is less than 0.018 V after line pressure control solenoid ASSY is turned OFF and 1 second or more has passed.
3. 100 ms or more durations are detected 5 times consecutively.
4. 1 trips
·Wiring harness and connector
·Transmission wire
·Line pressure control solenoid ASSY (SLT)
·Transmission control computer ASSY
P2721
1. Learning control is not prohibited.
2. Operation feedback voltage is more than 0.257 V after line pressure control solenoid ASSY is turned ON and 1 second or more has passed.
3. 100 ms or more durations are detected 5 times consecutively.
4. 1 trips
·Wiring harness and connector
·Transmission wire
·Line pressure control solenoid ASSY (SLT)
·Transmission control computer ASSY
Monitor description
If open or short circuit is detected in the circuit, TCM recognizes it as a malfunction.
TCM turns on MIL and records the diagnostic codes.
·MONITOR STRATEGY
Applicable diagnostic codes
 P2719: Pressure Control Solenoid “D” Control Circuit Range/Performance
P2720: Pressure Control Solenoid “D” Control Circuit Low
P2721: Pressure Control Solenoid “D” Control Circuit High
Required sensor / component
 Line pressure control solenoid ASSY (SLT)
Operation frequency
 Consecutive
Period
 P2719: 2 counts
P2720: 0.1 seconds × 5 times
P2721: 0.1 seconds × 5 times
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·P2719: Pressure Control Solenoid “D” Control Circuit Range/Performance
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Line pressure control solenoid ASSY (SLT) (P2720, P2721)
 No defect
Check the feedback terminal voltage.
 0.257V or less
Battery voltage
 10.5V or more
Above condition (battery voltage) is established
 0.5 second or more
·P2720: Pressure Control Solenoid “D” Control Circuit Low
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Line pressure control solenoid ASSY (SLT) (P2719)
 No defect
·P2721: Pressure Control Solenoid “D” Control Circuit High
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Line pressure control solenoid ASSY (SLT) (P2719)
 No defect
·TYPICAL MALFUNCTION THRESHOLDS
·P2719: Pressure Control Solenoid “D” Control Circuit Range/Performance
Cumulative total of differences between target current and feedback current (Sum_ie)
 12 A or more
Sum_ie is updated every 25 milliseconds.
When 1 or more conditions below are established, Sum_ie is deleted.
1. The permission condition is not established.
2. When the current difference (ie) between target and feedback is -50 mA to 50 mA
3. Positive and negative of ie are reversed.
·P2720: Pressure Control Solenoid “D” Control Circuit Low
Check the feedback terminal voltage.
 0.018V or less
Time elapsed after recovery from battery short circuit
 1 second or more
·P2721: Pressure Control Solenoid “D” Control Circuit High
Check the feedback terminal voltage.
 0.257V or more
Time elapsed after recovery from short circuit to ground/open circuit
 1 second or more
Circuit figure
Inspection steps
4. Check of line pressure control solenoid ASSY (SLT) unit

(1) Check the line pressure control solenoid ASSY (SLT) unit. (Refer to )
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼
Repair or replacement of transmission wire (refer to )

DTCP2757 Torque Converter Clutch Pressure Control Solenoid Control Circuit Performance/Stuck Off
DTCP2758 Torque Converter Clutch Pressure Control Solenoid Control Circuit Stuck On
Circuit description
The lock-up control solenoid (SLU) is controlled by the duty signal which is predetermined by the transmission control computer ASSY. Then, lock-up and flex lock-up control is performed.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal condition
3. Abnormal period
4. Other
 Inspection parts
P2757
1. All of the following conditions are established.
Learning control is not prohibited.
4 seconds or more passed after shifting to D position.
Engine coolant temperature is 40°C or more.
ATF temperature is 20°C or more.
Gear range is 4th or higher.
No malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), lock-up control solenoid (SLU), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch ASSY, CAN bus, engine ECM communication, engine coolant temperature, electronic throttle control, and accelerator pedal.
2. All of the following conditions are established.
3 seconds or more passed after hydraulic command value of lock-up control solenoid (SLU) exceeds the specified value.
Engine speed is higher than turbine revolution speed by 70 r/min or more.
Gear range is 4th or higher.
Throttle opening angle is the specification or more.
Vehicle speed is 22km/h {14 MPH} or more
3. 2 seconds or more passed for all conditions of item 2
4. 2 trips
·Transmission wire
·Lock-up control solenoid ASSY (SLU)
·Transmission control computer ASSY
·Torque converter ASSY
P2758
1. All of the following conditions are established.
Learning control is not prohibited.
4 seconds or more passed after shifting to D position.
Engine coolant temperature is 40°C or more.
ATF temperature is 20°C or more.
Gear range is 4th or higher.
No malfunction is detected in transmission 3 way solenoid ASSY (S1, S2, S3, S4, SR), clutch control solenoid No.1 (SL1, SL2), lock-up control solenoid (SLU), line pressure control solenoid ASSY (SLT), transmission revolution sensor (NT, SP2), neutral start switch ASSY, CAN bus, engine ECM communication, engine coolant temperature, electronic throttle control, and accelerator pedal.
2. All of the following conditions are established.
3 seconds or more passed after hydraulic command value of lock-up control solenoid (SLU) drops to less than the specified value.
Difference between engine speed and turbine revolution speed is less than 35 r/min.
Gear range is 4th or higher.
Throttle opening angle is the specification or more.
Vehicle speed is 22km/h {14 MPH} or more
3. After 2 or more seconds passed for all conditions of item 2, vehicle experiences the speed of less than 10 km/h {6 MPH}, then 2 or more seconds passed for all conditions of item 2 again.
4. 2 trips
·Transmission wire
·Lock-up control solenoid ASSY (SLU)
·Transmission control computer ASSY
·Torque converter ASSY
Monitor description
The torque converter lock-up is controlled by TCM based on the transmission revolution sensor (NT, SP2), engine r/min, engine load, engine temperature, vehicle speed, transmission temperature, and selected gear. TCM compares engine r/min (NE) with input turbine r/min (NT) to determine the lock-up status of the torque converter. TCM compares input turbine r/min (NT) and output shaft r/min (SP2) to calculate the actual transmission gear. If the condition is appropriate, TCM applies control voltage to the lock-up control solenoid (SLU) and requires “lock up”. When the lock-up control solenoid (SLU) turns to ON, it applies pressure to the lock up relay valve to lock the torque converter clutch.
If TCM does not detect lock up after the lock up is requested or detects lock up even though it is not requested, TCM recognizes it as a malfunction of the lock-up control solenoid (SLU) or lock up system performance. TCM turns on MIL and records the diagnostic codes.
·MONITOR STRATEGY
Applicable diagnostic codes
 P2757: Torque Converter Clutch Pressure Control Solenoid Control Circuit Performance/Stuck Off
P2758: Torque Converter Clutch Pressure Control Solenoid Control Circuit Stuck On
Required sensor / component
 Lock-up control solenoid ASSY (SLU)
Operation frequency
 Consecutive
Period
 P2757: 2 seconds
P2758: 1.8 seconds, 2 counts (detecting defects again after the vehicle speed becomes less than 10 km/h {6 MPH} after 1 count)
MIL operation
 2nd driving cycle
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·The following items are common to the all conditions below.
Battery voltage
 10.5V or more
Engine speed
 400 r/min or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Transmission revolution sensor (NT) (P0717)
 No defect
Transmission revolution sensor (SP2) (P0722)
 No defect
Transmission 3 way solenoid ASSY (S1) (P0973, P0974)
 No defect
Transmission 3 way solenoid ASSY (S2) (P0976, P0977)
 No defect
Transmission 3 way solenoid ASSY (S3) (P0979, P0980)
 No defect
Transmission 3 way solenoid ASSY (S4) (P0982, P0983)
 No defect
Transmission 3 way solenoid ASSY (SR) (P0985, P0986)
 No defect
Clutch control solenoid No.1 (SL1) (P0962, P0963, P0961)
 No defect
Clutch control solenoid No.1 (SL2) (P0966, P0967, P0965)
 No defect
Line pressure control solenoid ASSY (SLT) (P2720, P2721, P2719)
 No defect
Lock-up control solenoid (SLU) (P2762, P2763, P2764)
 No defect
Neutral start switch ASSY (P0707, P0708)
 No defect
Oil temperature sensor (P0711, P0712, P0713)
 No defect
CAN bus OFF (U0073)
 No defect
ECM without ID (U0100)
 No defect
ECM communication counter (U0401)
 No defect
Coolant temperature sensor
 No defect
Engine torque signal
 No defect
Throttle opening angle sensor
 No defect
Accelerator pedal opening angle sensor
 No defect
Range position
 D
Time elapsed after D range selection
 4 second or more
Engine coolant temperature
 40°C or more
Target gear position
 4th, 5th, 6th
ATF temperature
 20°C or more
·TYPICAL MALFUNCTION THRESHOLDS
·P2757: Torque Converter Clutch Pressure Control Solenoid Control Circuit Performance/Stuck Off
Lock-up control solenoid indication
513 kPa {5.2 kgf/c2, 74.4 psi} or more
Above condition is established
3 second or more
Engine speed - turbine shaft speed
70 r/min or more
Gear ratio calculated from turbine shaft speed and vehicle speed
4th, 5th, 6th
Throttle opening angle
Refer to MAP A
Vehicle speed
 22 km/h {14 MPH} or more
MAP A
Turbine shaft speed (r/min)
 1200
 1500
 3500
 5100
 5200
Throttle (%)
 12.9
 13.4
 26
 39.6
 100
·P2758: Torque Converter Clutch Pressure Control Solenoid Control Circuit Stuck On
Lock-up control solenoid indication
4 kPa {0.04 kgf/cm2, 0.58 psi} or less
Above condition is established
3 second or more
Engine speed - turbine shaft speed
Less than 35 r/min
Gear ratio calculated from turbine shaft speed and vehicle speed
4th, 5th, 6th
Throttle opening angle
Refer to MAP B
Vehicle speed
 22 km/h {14 MPH} or more
MAP B
Turbine shaft speed (r/min)
 1200
 1500
 2000
 5800
 5900
Throttle (%)
 8.1
 8.2
 10
 40
 100
Circuit figure
Inspection steps
2. Check of lock-up control solenoid (SLU) unit

(1) Check the lock-up control solenoid (SLU) unit. (Refer to )
NG
>Repair or replacement of transmission valve body ASSY (refer to )

OK▼

3. Check of transmission valve body ASSY unit

(1) Check the transmission valve body ASSY. (Refer to )
Criteria :  There is no malfunction and foreign objects on the solenoid installation portions.
NG
>Replacement of transmission valve body ASSY (refer to )

OK▼

4. Check of torque converter ASSY unit

(1) Check the torque converter ASSY. (Refer to )
Criteria :  Torque converter ASSY is normal.
NG
>Replacement of torque converter ASSY (refer to )

OK▼
Replacement of automatic transmission ASSY (refer to )

DTCP2762 Torque Converter Clutch Pressure Control Solenoid Control Circuit Range/Performance
DTCP2763 Torque Converter Clutch Pressure Control Solenoid Control Circuit High
DTCP2764 Torque Converter Clutch Pressure Control Solenoid Control Circuit Low
Circuit description
The lock-up control solenoid (SLU) is controlled by the duty signal which is predetermined by the transmission control computer ASSY. Then, lock-up and flex lock-up control is performed.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal status
3. Abnormal period
4. Others
 Inspection parts
P2762
1. Learning control is not prohibited.
Lock-up solenoid system circuit (Low/High) is not malfunctioning.
2. The cumulative difference between lock-up control solenoid (SLU) operation set current and operation feedback current is 12 A or more.
3. Abnormal status of No.2 is detected 2 times consecutively.
4. 1 trips
·Lock-up control solenoid (SLU)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P2763
1. Learning control is not prohibited.
Lock-up solenoid system circuit (performance) is not malfunctioning.
2. SLU operation feedback voltage is less than 0.018 V after lock-up control solenoid (SLU) is turned OFF and 1 second or more has passed.
3. 100 ms or more durations are detected 5 times consecutively.
4. 1 trips
·Lock-up control solenoid (SLU)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
P2764
1. Learning control is not prohibited.
Lock-up solenoid system circuit (performance) is not malfunctioning.
2. SLU operation feedback voltage is 0.257 V or more after lock-up control solenoid (SLU) is turned ON and 1 second or more has passed.
3. 100 ms or more durations are detected 5 times consecutively.
4. 1 trips
·Lock-up control solenoid (SLU)
·Transmission wire
·Wiring harness or connector
·Transmission control computer ASSY
Monitor description
If open or short circuit is detected in the lock-up control solenoid ASSY (SLU) circuit, TCM recognizes it as a defect. TCM turns on MIL and records the diagnostic code.
·MONITOR STRATEGY
Applicable diagnostic codes
 P2762: Torque Converter Clutch Pressure Control Solenoid Control Circuit Range/Performance
P2763: Torque Converter Clutch Pressure Control Solenoid Control Circuit High
P2764: Torque Converter Clutch Pressure Control Solenoid Control Circuit Low
Required sensor / component
 Lock-up control solenoid ASSY (SLU)
Operation frequency
 Consecutive
Period
 P2762: 2 counts
P2763: 0.1 seconds × 5 times
P2764: 0.1 seconds × 5 times
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·P2762: Torque Converter Clutch Pressure Control Solenoid Control Circuit Range/Performance
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Lock-up control solenoid (SLU) (P2764, P2763)
 No defect
Check the feedback terminal voltage.
 0.257V or less
Battery voltage
 10.5V or more
Above condition (battery voltage) is established
 0.5 second or more
·P2763: Torque Converter Clutch Pressure Control Solenoid Control Circuit High
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Lock-up control solenoid (SLU) (P2762)
 No defect
·P2764: Torque Converter Clutch Pressure Control Solenoid Control Circuit Low
Battery voltage
 10.2 V or more
Above condition is established
 2 second or more
Fail safe mode (solenoid power supply shut down)
 Non-active
Lock-up control solenoid (SLU) (P2762)
 No defect
·TYPICAL MALFUNCTION THRESHOLDS
·P2762: Torque Converter Clutch Pressure Control Solenoid Control Circuit Range/Performance
Cumulative total of differences between target current and feedback current (Sum_ie)
 12 A or more
Sum_ie is updated every 25 milliseconds.
When 1 or more conditions below are established, Sum_ie is deleted.
1. The permission condition is not established.
2. When the current difference (ie) between target and feedback is -50 mA to 50 mA
3. Positive and negative of ie are reversed.
·P2763: Torque Converter Clutch Pressure Control Solenoid Control Circuit High
Check the feedback terminal voltage.
 0.257V or more
Time elapsed after recovery from battery short circuit
 1 second or more
·P2764: Torque Converter Clutch Pressure Control Solenoid Control Circuit Low
Check the feedback terminal voltage.
 0.018V or less
Time elapsed after recovery from short circuit to ground/open circuit
 1 second or more
DTCU0073 Control Module Communication Bus “A” Off
DTCU0401 Invalid Data Received From ECM/PCM “A”
DTCU0416 Invalid Data Received From Vehicle Dynamics Control Module
DTCU0422 Invalid Data Received From Body Control Module
DTCU0423 Invalid Data Received From Instrument Panel Cluster Control Module
Circuit description
The transmission control computer ASSY sends/receives signals to/from ECMs via CAN communication.
NOTE:
·Problems on the CAN bus (communication line) can be checked from the DLC3 connector. (Except when a DLC3 branch line is disconnected.)
·Diagnostic codes related to CAN communication can be checked using SSM3.
·Although DLC3 is connected to the CAN communication line, CAN communication cannot detect problems on the DLC3 branch lines.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal status
3. Abnormal period
4. Others
 Inspection parts
U0073
1. IG voltage remains at 9 V or larger for 1 second or more.
2. Data cannot be sent/received.
3. 500 ms
4. 1 trips
·CAN system
U0401
1. CAN bus is normal.
2. Abnormal signal from engine control computer is received.
3. 50 time
4. 1 trips
·CAN system
U0416
1. CAN bus is normal.
2. Abnormal signal from skid control computer (brake actuator ASSY) is received.
3. 40 time
4. 1 trips
·CAN system
U0422
1. CAN bus is normal.
2. Abnormal signal from main body ECM (multiplex network body computer) is received.
3. 40 time
4. 1 trips
·CAN system
U0423
1. CAN bus is normal.
2. Abnormal signal from combination meter ASSY is received.
3. 40 time
4. 1 trips
·CAN system
·MONITOR STRATEGY
Applicable diagnostic codes
 U0073: Control Module Communication Bus “A” Off
U0401: Invalid Data Received From ECM/PCM “A”
U0416: Invalid Data Received From Vehicle Dynamics Control Module
Required sensor / component
 U0073: TCM
U0401: TCM
U0406: Skid control ECM
Operation frequency
 Consecutive
Period
 1 count
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
·U0073: Control Module Communication Bus “A” Off
Battery voltage
 9.0V or more
Above condition is established
 1 second or more
·U0401: Invalid Data Received From ECM/PCM “A”
Battery voltage
 9.0V or more
Above condition is established
 1 second or more
CAN bus OFF (U0073)
 No defect
·U0416: Invalid Data Received From Vehicle Dynamics Control Module
Battery voltage
 9.0V or more
Above condition is established
 1 second or more
CAN bus OFF (U0073)
 No defect
·TYPICAL MALFUNCTION THRESHOLDS
·U0073: Control Module Communication Bus “A” Off
CAN controller confirms the bus every 50 milliseconds, then the bus is turned OFF.
 1 count or more
·U0401: Invalid Data Received From ECM/PCM “A”
The communication counter does not count up.
(Check the communication counter value every 10 milliseconds.)
 50 count
·U0416: Invalid Data Received From Vehicle Dynamics Control Module
The communication counter does not count up.
(Check the communication counter value every 10 milliseconds.)
 40 count
DTCU0100 Lost Communication With ECM/PCM “A”
DTCU0122 Lost Communication With Vehicle Dynamics Control Module
DTCU0140 Lost Communication With Body Control Module
DTCU0155 Lost Communication With Instrument Panel Cluster (IPC) Control Module
Circuit description
The transmission control computer ASSY sends/receives signals to/from ECMs via CAN communication.
NOTE:
·Problems on the CAN bus (communication line) can be checked from the DLC3 connector. (Except when a DLC3 branch line is disconnected.)
·Diagnostic codes related to CAN communication can be checked using SSM3.
·Although DLC3 is connected to the CAN communication line, CAN communication cannot detect problems on the DLC3 branch lines.
DTC No.
SAE/TCCS
 DTC detecting condition
1. Diagnosis condition
2. Abnormal status
3. Abnormal period
4. Others
 Inspection parts
U0100
1. CAN bus is normal.
2. Signals from ECM No CAN are lost.
3. 500 ms, 800 ms, 2000 ms (differ depending on ID)
4. 1 trips
·CAN system
U0122
1. CAN bus is normal.
2. Signals from skid control computer (brake actuator ASSY) are lost.
3. 800 ms
4. 1 trips
·CAN system
U0140
1. CAN bus is normal.
2. Signals from main body ECM (multiplex network body computer) are lost.
3. 800 ms, 20000 ms (differ depending on ID)
4. 1 trips
·CAN system
U0155
1. CAN bus is normal.
2. Signals from combination meter ASSY are lost.
3. 2000 ms
4. 1 trips
·CAN system
·MONITOR STRATEGY
Applicable diagnostic codes
 U0100: Lost Communication With ECM/PCM “A”
U0122: Lost Communication With Vehicle Dynamics Control Module
Required sensor / component
 U0100: TCM
U0122: Skid control ECM
Operation frequency
 Consecutive
Period
 1 count
MIL operation
 Immediate
Operation order
 None
·TYPICAL ENABLING CONDITIONS
Battery voltage
 9.0V or more
Above condition is established
 1 second or more
CAN bus OFF (U0073)
 No defect
Inspection steps
2. Read the diagnostic code

(1) Connect the SSM3 to the DLC3.
(2) Turn the ignition switch to ON.
(3) Read diagnostic cords according to SSM3 display. (Refer to )

Next▼
CAN communication system (refer to )

Sports sequential shift switch system
Circuit description
When the shift is in M position, it can be changed to any gear using the sequential gate of the floor select lever ASSY.
Circuit figure
Inspection steps
1. Check of transmission control switch unit

(1) Disconnect the connector D28 of the transmission control switch.
(2) Check the transmission control switch unit. (Refer to )
NG
>Replacement of transmission control switch (refer to )

OK▼

Paddle shift switch system
Description of functions
When the shift is in M position, it can be changed to any gear using the transmission shift switch (paddle shifter) of the steering wheel ASSY.
Also, when operating the switch of the transmission shift of the steering wheel ASSY while driving in D position, gear selection in D position is initiated and any gear can be selected.
Circuit figure
Inspection steps
1. Reading of SSM3 data (UP SW/DOWN SW)

(1) Connect the SSM3 to the DLC3.
(2) Turn the ignition switch to ON.
(3) Use SSM3 to display the [Current Data Display & Save] screen according to the screen display and check the computer data recorded when the transmission shift switch of the steering wheel ASSY is operated to +/-.
SSM3 screen: [Transmission Control System] → [Current Data Display & Save] → [Normal sampling]
Item name
[Symbol]
 Item description
Display range
 Normal value
 Remarks
UP SW
 Indicating transmission control switch (+)
ON/OFF
 Release → pull the shift switch “+” lever.
OFF → ON
 -
DOWN SW
 Indicating transmission control switch (-)
ON/OFF
 Release → pull the shift switch “-” lever.
OFF → ON
 -
NG
> Step 2

OK▼
Inspection for problems that do not normally occur (Refer to )

2. Check wiring harness and connector (transmission shift switch - transmission control computer)

(1) Disconnect the connector A19 of the transmission control computer ASSY.
(2) Check the resistance of the terminals. (Refer to for terminal arrangement of transmission control computer ASSY)
Resistance
Inspection terminals
 Inspection conditions
 Standard value
A19-1 (SFTD) - chassis ground
 Shift switch
Pull the “+” lever.
 Less than 1 Ω
A19-1 (SFTD) - chassis ground
A19-2 (SFTU) - chassis ground
 Neutral position
 10 k Ω or more
A19-2 (SFTU) - chassis ground
 Shift switch
Pull the “-” lever.
 Less than 1 Ω
(3) Connect the connector A19 of the transmission control computer ASSY.
NG
> Step 4

OK▼

4. Check wiring harness and connector (spiral cable - chassis ground)

(1) Disconnect the spiral cable connector A from the spiral cable.
(2) Measure the resistance of the spiral cable vehicle side terminal.
Resistance
Terminal No. (terminal symbol)
 Inspection conditions
 Standard value
A-7 - chassis ground
 Always
 Less than 1 Ω
(3) Connect the spiral cable connector A to the spiral cable.
NG
>Check and replacement of wiring harness and connector

OK▼

7. Check of transmission shift switch unit

(1) Remove the transmission shift switch. (Refer to )
(2) Check the transmission shift switch unit. (Refer to )
NG
>Replacement of transmission shift switch (refer to )

OK▼
Check and replacement of switch wire (refer to )

Pattern select switch system
Circuit description
Drive mode can be switched by inputting signal of the pattern select switch ASSY to the transmission control computer.
Circuit figure
Inspection steps
1. SSM3 data reading

(1) Connect the SSM3 to the DLC3.
(2) Turn the ignition switch to ON.
(3) Use SSM3 to display the [Current Data Display & Save] screen according to the screen display and check the computer data recorded when the SPORT mode switch is operated.
SSM3 screen: [Transmission Control System] → [Current Data Display & Save] → [Normal sampling]
Item name
[Symbol]
 Item description
Display range
 Normal value
 Remarks
SPORT SW
 Indicating pattern select (SPORT) switch
ON←→OFF
 Pattern select (SPORT) switch OFF→ON
OFF → ON
 -
NG
> Step 3

OK▼

3. Check of pattern select switch ASSY unit

(1) Disconnect the connector D35 of pattern select switch ASSY.
(2) Check the pattern select switch ASSY (SPORT switch) unit. (Refer to )
NG
>Replacement of pattern select switch ASSY (refer to )

OK▼

4. Check wiring harness and connector (pattern select switch - transmission control computer - chassis ground)

(1) Disconnect the connector A19 of the transmission control computer.
(2) Disconnect the connector D35 of pattern select switch ASSY.
(3) Measure the resistance between the terminals.
Resistance
Inspection terminals
 Inspection conditions
 Standard value
A19-13 (SPORT) - D35-4 (SPORT)
 Always
 Less than 1 Ω
D35-8 - chassis ground
 Always
 Less than 1 Ω
A19-13 (SPORT) - chassis ground
 Always
 10 k Ω or more
(4) Connect the connector A19 of the transmission control computer.
(5) Connect the connector D35 of the pattern select switch ASSY.
NG
>Repair or replacement of wiring harness or connector

OK▼

6. Check of pattern select switch ASSY unit

(1) Disconnect the connector D35 of pattern select switch ASSY.
(2) Check the pattern select switch ASSY (SNOW switch) unit. (Refer to )
NG
>Replacement of pattern select switch ASSY (refer to )

OK▼

7. Wiring harness or connector check (pattern select switch - transmission control computer - chassis ground)

(1) Disconnect the connector A19 of the transmission control computer.
(2) Disconnect the connector D35 of pattern select switch ASSY.
(3) Measure the resistance between the terminals.
Resistance
Inspection terminals
 Inspection conditions
 Standard value
A19-24 (SNOW) - D35-6 (SNOW)
 Always
 Less than 1 Ω
D35-8 - chassis ground
 Always
 Less than 1 Ω
A19-24 (SNOW) - chassis ground
 Always
 10 k Ω or more
(4) Connect the connector A19 of the transmission control computer.
(5) Connect the connector D35 of the pattern select switch ASSY.
NG
>Repair or replacement of wiring harness or connector

OK▼
