TCM
Components Removal / installation
AUTOMATIC TRANSMISSION / TRANSAXLE
TCM

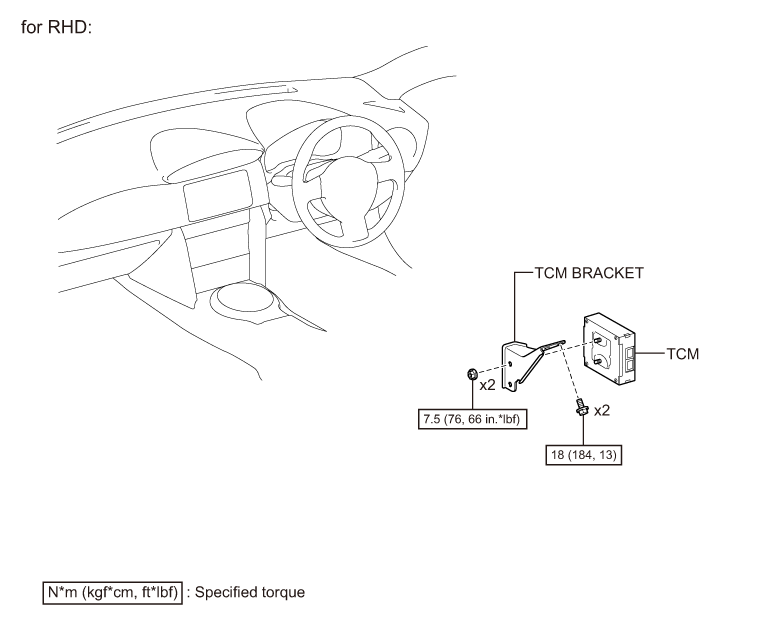

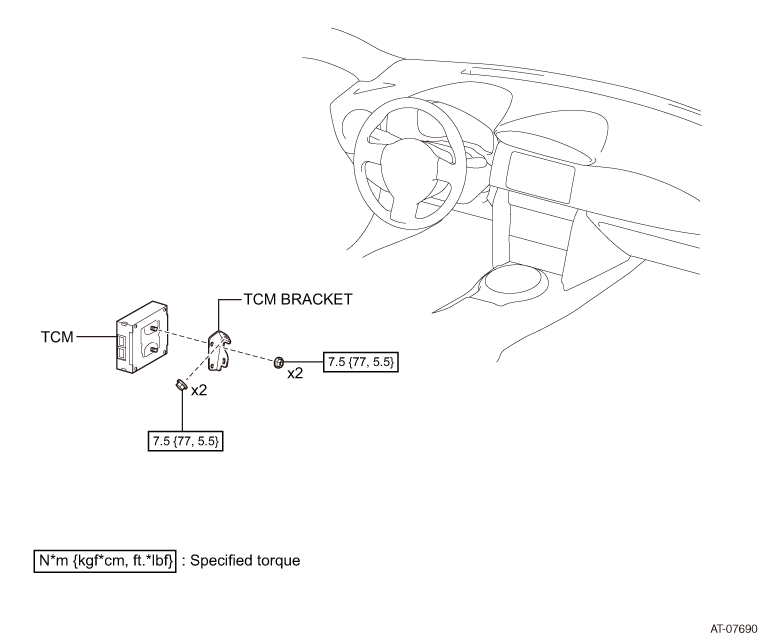

COMPONENTS
REMOVAL
1. Removal of instrument side panel (refer to
)
)2. Removal of instrument panel under cover SUB-ASSY No.1 (refer to )
)3. Removal of instrument panel under cover SUB-ASSY No.2 (refer to )
)4. Removal of knee airbag module (refer to )
)
5. REMOVE TCM

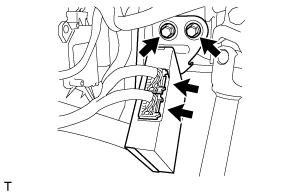

(1) for LHD:
(a) Disconnect the 2 connectors.
(b) Remove the 2 nuts and the TCM.

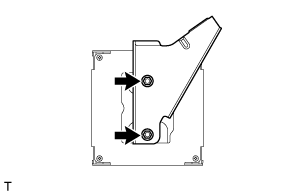

(c) Remove the 2 nuts and the TCM bracket.

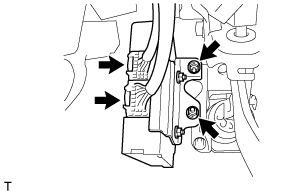

(2) for RHD:
(a) Disconnect the 2 connectors.
(b) Remove the 2 bolts and the TCM.

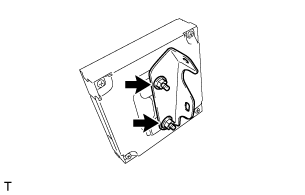

(c) Remove the 2 nuts and the TCM bracket.
INSTALLATION
1. INSTALL TCM
(1) for RHD:
(a) Install the TCM bracket to the TCM with the 2 nuts.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
76kgf·cm}
{5.5ft·lbf}
(b) Install the 2 bolts and the TCM.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13ft·lbf}
(c) Connect the 2 connectors.
(2) for LHD:
(a) Install the TCM bracket to the TCM with the 2 nuts.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
76kgf·cm}
{5.5ft·lbf}
(b) Install the 2 nuts and the TCM.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
76kgf·cm}
{5.5ft·lbf}
(c) Connect the 2 connectors.
2. Installation of knee airbag module (refer to )
)3. Installation of instrument under cover SUB-ASSY No.2 (refer to )
)4. Installation of instrument under cover SUB-ASSY No.1 (refer to )
)5. Installation of instrument side panel (refer to )
)6. Check of airbag warning light (refer to )
)7. RESET CHECK RESET MEMORY
(See page )
)NOTE:
When the automatic transmission assembly, transmission valve body assembly, and TCM are replaced, the TCM learning value must be cleared.
