Counter gear ASSY
Components Removal / installation
MANUAL TRANSMISSION / TRANSAXLE
COUNTER GEAR ASSY

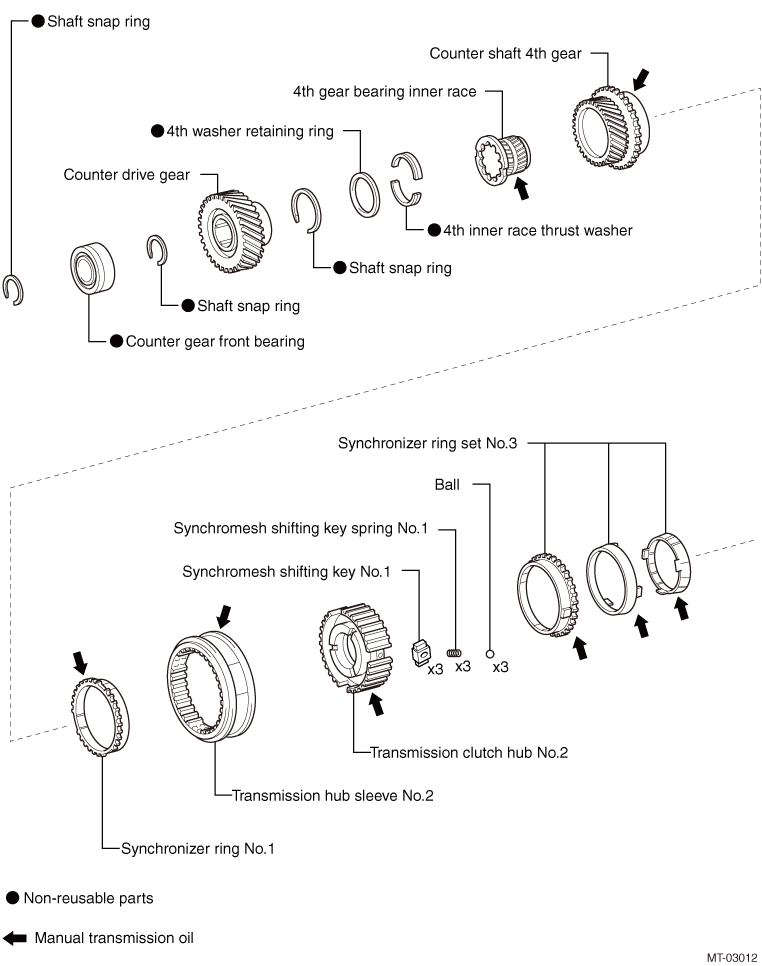

EXPLODED VIEW

DISASSEMBLY
1. Thrust clearance check
(1) Check the thrust clearances of the counter shaft 3rd gear and counter shaft 4th gear.

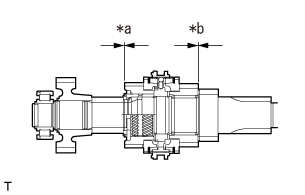

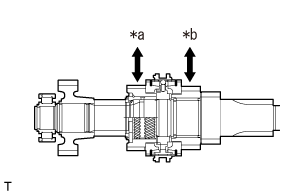

Captions in illustration
| *a |
Counter shaft 4th gear thrust clearance |
| *b |
Counter shaft 3rd gear thrust clearance |
Standard value
| Gear |
Standard value mm {in} |
Limit mm {in} |
|---|---|---|
| Counter shaft 3rd gear |
0.10 to 0.35 {0.00394 to 0.0138} |
0.35 {0.0138} |
| Counter shaft 4th gear |
0.10 to 0.35 {0.00394 to 0.0138} |
0.35 {0.0138} |
NOTE:
If the value exceeds the limit, adjust with the 4th inner race thrust washer.
2. Radial clearance check
(1) Check the radial clearances of the counter shaft 3rd gear and counter shaft 4th gear.
Captions in illustration
| *a |
Counter shaft 4th gear radial clearance |
| *b |
Counter shaft 3rd gear radial clearance |
Standard value
| Gear |
Standard value mm {in} |
Limit mm {in} |
|---|---|---|
| Counter shaft 3rd gear |
0.015 to 0.068 {0.000590 to 0.00268} |
0.068 {0.00268} |
| Counter shaft 4th gear |
0.065 to 0.115 {0.002559 to 0.00453} |
0.115 {0.00453} |
NOTE:
If the value exceeds the limit, replace the corresponding gear and needle roller bearing or 4th gear bearing inner race with new ones as a set.
3. Removal of counter gear front bearing

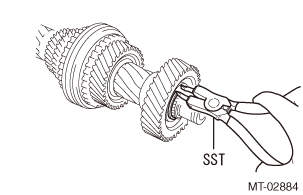

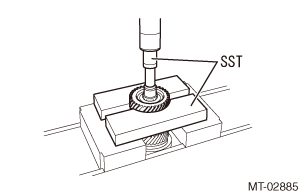

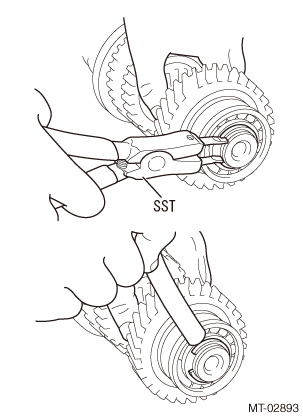

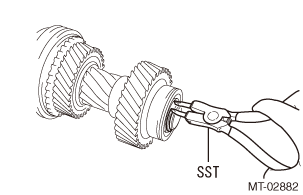

(1) Use the SST to remove the shaft snap ring.
SST
499895400
CAUTION:
Verify the direction of the parts.

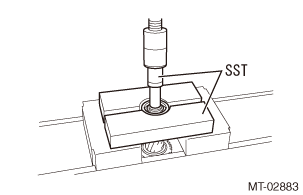

(2) Use the SST to remove the counter gear front bearing.
SST
899854100
899864100
4. Removal of counter drive gear

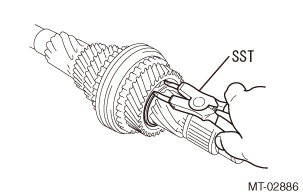

(1) Use the SST to remove the shaft snap ring.
SST
499895400

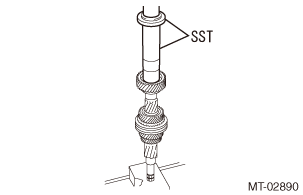

(2) Use the SST to remove the counter drive gear.
SST
899714110
899864100
5. Removal of counter shaft 4th gear

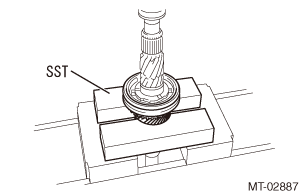

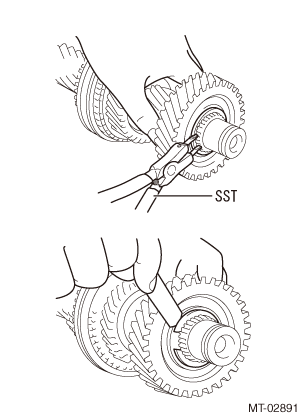

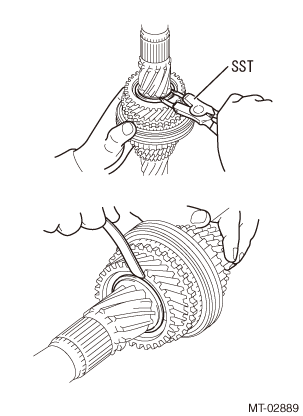

(1) Use the SST to remove the shaft snap ring, then remove the 4th inner race thrust washer after removing the 4th washer retaining ring.
SST
499895400
CAUTION:
Verify the direction of the parts.

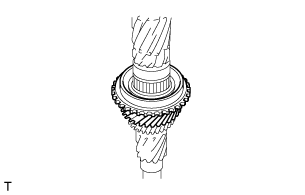

(2) Remove the 4th gear bearing inner race by turning it counterclockwise along the gear while prying with a flat tip screwdriver.
(3) Remove the counter shaft 4th gear and synchronizer ring No.1.
6. Removal of counter shaft 3rd gear

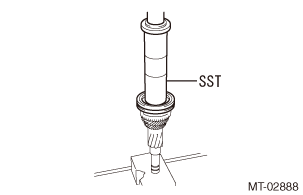

(1) Use the SST to remove the transmission clutch hub No.2, counter shaft 3rd gear, synchronizer ring set No.3, and needle roller bearing.
SST
899714110
CAUTION:
Verify the direction of the parts.
7. Removal of transmission hub sleeve No.2
(1) Remove the transmission hub sleeve No.2, then remove the 3 synchromesh shifting keys No.1, 3 synchromesh shifting key springs No.1, and 3 balls from the transmission clutch hub No.2.
CAUTION:
·Keep the synchromesh shifting keys No.1, synchromesh shifting key springs No.1, and balls from flying out using a cloth.
·Be careful not to deform the synchromesh shifting key springs No.1.
·Verify the direction of the parts.
·Be careful not to deform the synchromesh shifting key springs No.1.
·Verify the direction of the parts.
NOTE:
Perform the work without displacing the positions of the transmission clutch hub No.2 and synchromesh shifting keys No.1.
INSPECTION
1. Check of transmission hub sleeve No.2
(1) Check that the end of the spline gear of the transmission hub sleeve No.2 is not worn.
NOTE:
If it is worn, replace the transmission hub sleeve No.2 with a new one.

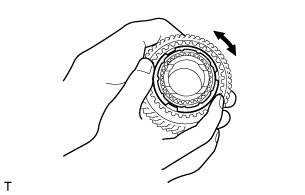

(2) Install the transmission hub sleeve No.2 to the transmission clutch hub No.2 and check that they slide smoothly.
NOTE:
If they do not slide smoothly, replace the transmission hub sleeve No.2 and the transmission clutch hub No.2 with new ones.
2. Check of transmission hub sleeve No.2 clearance
(1) Check the thickness of the gear shift fork No.2 claw.
Standard value
: 7.9 to 8.0mm {0.311 to 0.315in}
Limit
: 7.9mm {0.311in}
NOTE:
If the value is smaller than the limit, replace the gear shift fork No.2 with a new one.
(2) Measure the groove of the transmission hub sleeve No.2 and calculate the clearance between it and the gear shift fork No.2.
Standard value
: 0.15 to 0.35 mm {0.00590 to 0.0138in}
Limit
: 0.35mm {0.0138in}
NOTE:
If the value exceeds the limit, replace the gear shift fork No.2 and the transmission hub sleeve No.2 with new ones as a set.
3. Check of synchronizer ring No.1

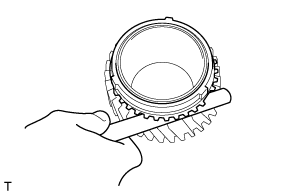

(1) Apply manual transmission oil to the tapered cone portion of the counter shaft 4th gear, and check the clearance between the synchronizer ring No.1 and the counter shaft 4th gear while pressing the synchronizer ring No.1 by hand.
Standard value
: 0.8 to 1.6mm {0.0314 to 0.0629in}
Limit
: 1.6mm {0.0629in}
CAUTION:
Check the entire circumference of the gear.
(2) Apply manual transmission oil to the tapered cone portion of the counter shaft 4th gear, and check that the synchronizer ring No.1 does not slip in the circumferential direction while pressing it by hand.
4. Check of synchronizer ring No.3
(1) Apply manual transmission oil to the tapered cone portion of the counter shaft 3rd gear and the synchronizer ring set No.3, and check the clearance between the synchronizer ring set No.3 and the counter shaft 3rd gear while pressing the synchronizer ring set No.3 by hand.

Captions in illustration
| *a |
Inner |
*b |
Middle |
| *c |
Outer |
- |
- |
Standard value
| Measured part |
Standard value mm {in} |
|---|---|
| Inner |
0.4 to 1.2 {0.0157 to 0.0472} |
| Middle |
0.3 to 1.3 {0.0118 to 0.0512} |
| Outer |
0.8 to 1.8 {0.0315 to 0.0709} |
CAUTION:
Check the entire circumference of the gear.
(2) Apply manual transmission oil to the tapered cone portion of the counter shaft 3rd gear, and check that the synchronizer ring set No.3 does not slip in the circumferential direction while pressing it by hand.
5. Counter shaft check

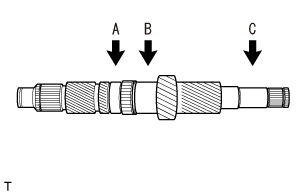

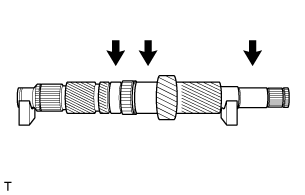

(1) Check the outer diameter of each part.
Standard value
| Inspection parts |
Standard value mm {in} |
Limit mm {in} |
|---|---|---|
| A |
39.284 to 39.300 {1.54661 to 1.54721} |
39.284 {1.54661} |
| B |
37.984 to 38.000 {1.49543 to 1.49606} |
37.984 {1.49543} |
| C |
24.987 to 25.000 {0.98374 to 0.98425} |
24.987 {0.98374} |
NOTE:
If the value is smaller than the limit, replace the counter shaft with a new one.
(2) Check the runout of the points shown in the figure.
Standard value
: 0.03 mm {0.00118 in} or less
NOTE:
If the value is not within the limit, replace the counter shaft with a new one.
6. Check of counter shaft 3rd gear

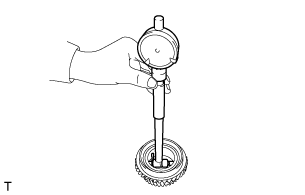

(1) Check the inner diameter of the counter shaft 3rd gear.
Standard value
: 43.015 to 43.040mm {1.69350 to 1.69448in}
Limit
: 43.040mm {1.69448in}
NOTE:
If the value exceeds the limit, replace the counter shaft 3rd gear with a new one.
7. Counter shaft 4th gear check
(1) Check the inner diameter of the counter shaft 4th gear.
Standard value
: 46.315 to 46.340mm {1.82425 to 1.82441in}
Limit
: 46.340mm {1.82441in}
NOTE:
If the value exceeds the limit, replace the counter shaft 4th gear with a new one.
8. Check of 4th gear bearing inner race

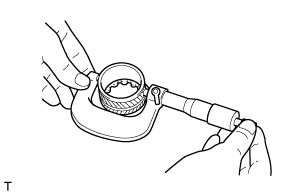

(1) Check the outer diameter of the 4th gear bearing inner race.
Standard value
: 46.225 to 46.25 mm {1.81988 to 1.82087 in}
Limit
: 46.225mm {1.81988in}
CAUTION:
Do not measure the oil groove.
NOTE:
If the value is smaller than the limit, replace the 4th gear bearing inner race with a new one.
ASSEMBLY
1. Installation of transmission hub sleeve No.2
(1) Apply manual transmission oil to the sliding area of the transmission clutch hub No.2.

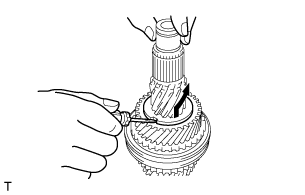

(2) Install the transmission hub sleeve No.2 to the transmission clutch hub No.2, and install the 3 balls after installing the 3 synchromesh shifting keys No.1 and the 3 synchromesh shifting key springs No.1 as a unit.
NOTE:
·Install the shifting key pole while pressing the shifting key spring. Install the balls while pressing the synchromesh shifting key spring No.1.
·After the installation, settle the synchromesh shifting key spring No.1.
2. Installation of counter shaft 3rd gear

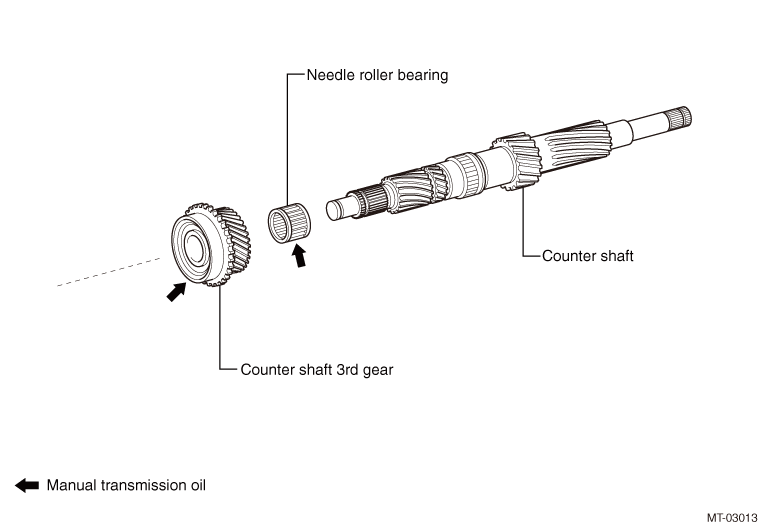

(1) Apply manual transmission oil to the counter shaft installation portion, the needle roller bearing, and the inner surface and the tapered cone portion of the counter shaft 3rd gear.
(2) Install the needle roller bearing and the counter shaft 3rd gear.
3. Installation of transmission clutch hub No.2
(1) Install the synchronizer ring set No.3 to the counter shaft 3rd gear.
·Align the middle ring claw with the gear groove.
·Align the inner ring claw with the outer ring claw groove.
·Align the inner ring claw with the outer ring claw groove.

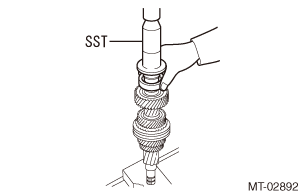

(2) Use the SST to install the transmission clutch hub No.2.
SST
18654AA000
398477703
CAUTION:
Check the position of the synchronizer ring set No.3.
NOTE:
·Press-fit the transmission clutch hub No.2 until it contacts the counter shaft.
·After the press-fitting, check that the synchronizer ring set No.3 moves in the thrust direction.
4. Installation of counter shaft 4th gear
(1) Install the synchronizer ring No.1 to the transmission clutch hub No.2.
(2) Apply manual transmission oil to the 4th gear bearing inner race, and the inner surface and the tapered cone portion of the counter shaft 4th gear.
(3) Install the counter shaft 4th gear and 4th gear bearing inner race.
NOTE:

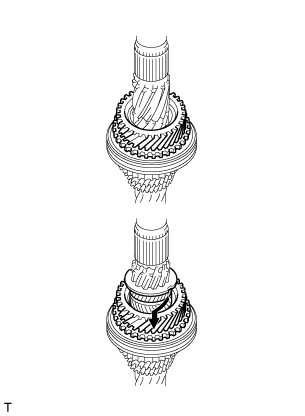

Install the 4th gear bearing inner race by turning it clockwise along the gear.
5. Installation of 4th inner race thrust washer
(1) Select a 4th inner race thrust washer so that the thrust clearance between the 4th gear bearing inner race and the 4th inner race thrust washer is within the standard value.
Standard value
: 0 to 0.1mm {0 to 0.00394in}
NOTE:
Select a 4th inner race thrust washer with the maximum thickness that can be installed.
Type of 4th inner race thrust washer
| Item number |
Thickness mm {in} |
Identification mark |
|---|---|---|
| 17002AA090 |
3.75 mm {0.14763} |
A |
| 17002AA100 |
3.80mm {0.14960} |
B |
| 17002AA110 |
3.85mm {0.15157} |
C |
| 17002AA120 |
3.90mm {0.15354} |
D |
| 17002AA130 |
3.95mm {0.15551} |
E |
| 17002AA140 |
4.00mm {0.15748} |
F |
| 17002AA150 |
4.05mm {0.15944} |
G |
| 17002AA160 |
4.10mm {0.16141} |
H |
(2) Use the SST to install a new 4th inner race thrust washer, a new 4th washer retaining ring, and a new shaft snap ring to the counter shaft.
SST
499895400
6. Installation of counter drive gear
(1) Use the SST to install the counter drive gear.
SST
499277000
398477703
7. Installation of shaft snap ring (transmission clutch hub No.3)
(1) Select a shaft snap ring so that the thrust clearance between the counter drive gear and the shaft snap ring is within the standard value.
Standard value
: 0 to 0.1mm {0 to 0.00394in}
NOTE:
Select a shaft snap ring with the maximum thickness that can be installed.
Shaft snap ring type
| Item number |
Thickness mm {in} |
Identification mark |
|---|---|---|
| 17005AA520 |
1.80mm {0.07086} |
A |
| 17005AA530 |
1.85mm {0.07283} |
B |
| 17005AA540 |
1.90mm {0.07480} |
C |
| 17005AA550 |
1.95mm {0.07677} |
D |
| 17005AA560 |
2.00mm {0.07874} |
E |
| 17005AA570 |
2.05mm {0.08070} |
F |
(2) Use the SST to install a new shaft snap ring to the counter shaft.
SST
499895400
8. Installation of counter gear front bearing

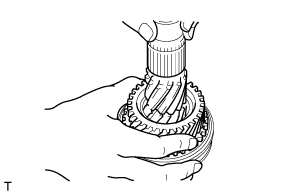

(1) Use the SST to install a new counter gear front bearing while holding it by hand.
SST
498057300
9. Installation of shaft snap ring (counter gear front bearing)
(1) Select a shaft snap ring so that the thrust clearance between the counter gear front bearing and the shaft snap ring is within the standard value.
Standard value
: 0 to 0.1mm {0 to 0.00394in}
NOTE:
Select a shaft snap ring with the maximum thickness that can be installed.
Shaft snap ring type
| Item number |
Thickness mm {in} |
Identification mark |
|---|---|---|
| 17005AA310 |
2.05 {0.08070} |
1 |
| 17005AA290 |
2.10 {0.08267} |
2 |
| 17005AA320 |
2.15 {0.08464} |
3 |
| 17005AA300 |
2.20 {0.08661} |
4 |
| 17005AA330 |
2.25 {0.08858} |
5 |
| 17005AA340 |
2.30 {0.09055} |
6 |
(2) Use the SST to install a new shaft snap ring to the counter shaft.
SST
499895400
