Manual transmission oil
Inspection Removal / installation
MANUAL TRANSMISSION / TRANSAXLE
MANUAL TRANSMISSION OIL
REPLACEMENT

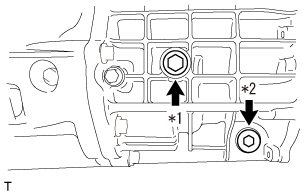

1. Drain of manual transmission oil
2. Fill of manual transmission oil
(1) Install the transmission drain plug via a new gasket.
Standard value:
Standard value:
Tightening torque=37N·m
{
377kgf·cm}
{27.3ft·lbf}
(2) Pour oil until it overflows from the filler plug hole.
Oil amount (reference)
: 2.2 L {0.6 US gal, 0.5 lmp gal}
Recommended product
: MG GEAR OIL SPECIAL-II (API GL-3, SAE 75W-90)
Substitute product
: GL-3 or later (75W-90)
CAUTION:
·When using the substitute product for transmission gear oil, the function and performance may be inferior.
·Do not mix different oils.
·Do not mix different oils.
3. Check of manual transmission oil

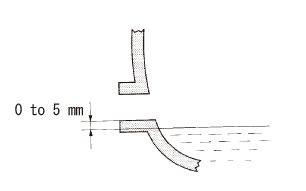

(1) Check that oil is filled to the level between 0 and 5 mm {0 to 0.197 in} from the bottom of the transmission filler plug hole.
CAUTION:
·Excess or shortage of oil may lead to trouble.
·Check the oil amount after driving.
·Check the oil amount after driving.
(2) Install the transmission filler plug via a new gasket.
Standard value:
Standard value:
Tightening torque=37N·m
{
377kgf·cm}
{27.3ft·lbf}
CAUTION:
Thoroughly wipe away the spilled oil.
4. Check of manual transmission oil leakage
ON-VEHICLE INSPECTION
1. Check of manual transmission oil
(1) Park the vehicle on a level road.
(2) Remove the transmission filler plug and the gasket.
(3) Check that oil is filled to the level between 0 and 5 mm {0 to 0.197 in} from the bottom of the transmission filler plug hole.
CAUTION:
·Excess or shortage of oil may lead to trouble.
·When replacing oil, check the oil amount after driving.
·When replacing oil, check the oil amount after driving.
(4) If the oil amount is insufficient, check for oil leaks.
(5) Install the transmission filler plug via a new gasket.
Standard value:
Standard value:
Tightening torque=37N·m
{
377kgf·cm}
{27.3ft·lbf}
