Floor shift, shift lever ASSY
Components Removal / installation
MANUAL TRANSMISSION / TRANSAXLE
FLOOR SHIFT, SHIFT LEVER ASSY

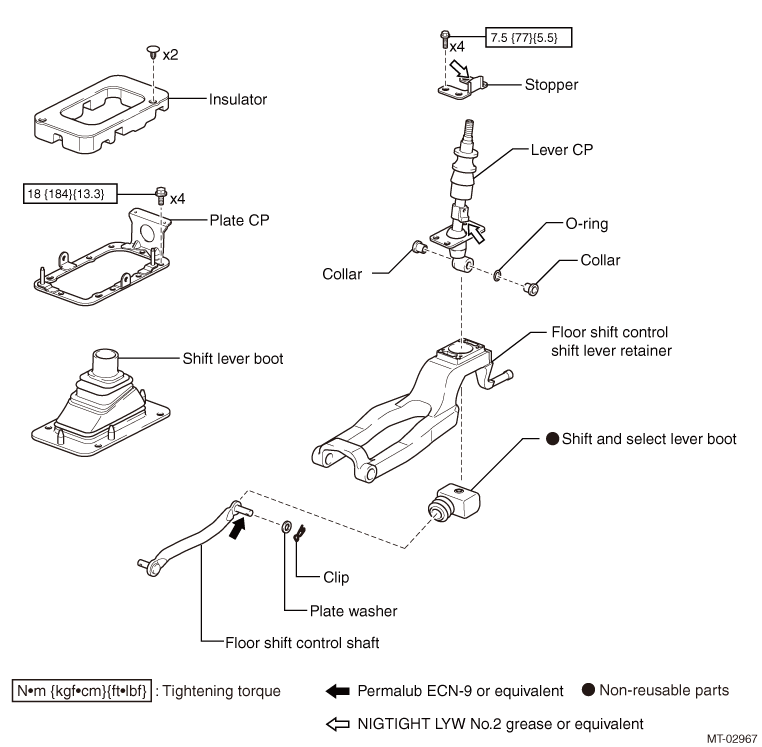

EXPLODED VIEW
REMOVAL
1. Removal of console box ASSY (refer to
)
)
2. Removal of shift lever boot

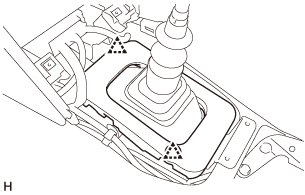

(1) Remove the 2 clips, then remove the insulator.
(2) Release the clamp and disconnect the wiring harness.

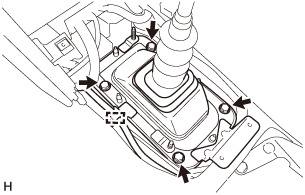

(3) Remove the 4 bolts, then remove the plate CP and the shift & select lever boot.
3. Disconnection of floor shift control shaft
(1) Turn up the shift & select lever boot and remove the clip and the plate washer.
(2) Disconnect the floor shift control shaft from the lever CP.
(3) Remove the shift & select lever boot.
4. Removal of lever CP

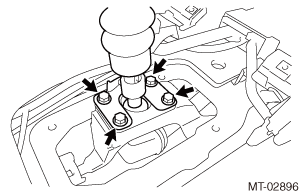

(1) Remove the 4 bolts, then remove the stopper.
(2) Remove the lever CP from the floor shift control shift lever retainer.
INSTALLATION
1. Installation of lever CP
(1) Install the lever CP to the floor shift control shift lever retainer.
(2) Install the stopper with the 4 bolts.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
2. Connection of floor shift control shaft
(1) Apply Permalub ECN-9 or equivalent to the tip of the floor shift control shaft.
Captions in illustration
 |
Permalub ECN-9 or equivalent |
(2) Temporarily install a new shift & select lever boot.
(3) Connect the tip of the floor shift control shaft to the lever CP and install the plate washer and the clip, then install the shift & select lever boot.
3. Reverse check adjustment (refer to )
)
4. Installation of shift lever boot
(1) Install the plate CP and the shift lever boot with the 4 bolts.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}

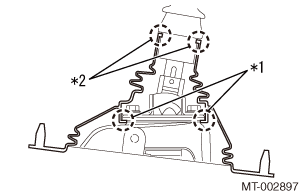

Captions in illustration
| *1 |
Bottom of stopper |
| *2 |
Groove on bottom of slider |
CAUTION:
Cover the lever CP with the shift lever boot, and install the inner sealing portion to the bottom of the stopper and the upper sealing portion to the groove on the bottom of the slider.
(2) Connect the harness.
(3) Install the insulator with the 2 clips.
5. Installation of console box (refer to )
)ADJUSTMENT
1. Reverse check adjustment
(1) Loosen the 4 flange bolts on the stopper.
(2) Shift the lever CP to the 2nd.
(3) Insert a shim that is 1.0 mm {0.0394 in} in thickness between the detent and the stopper, and push the stopper to the detent.

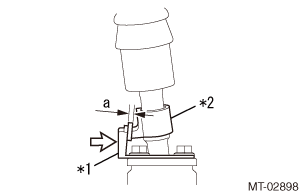

Captions in illustration
| *1 |
Stopper |
| *2 |
Detent |
 |
Push to |
(4) Tighten the 4 flange bolts on the stopper.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}

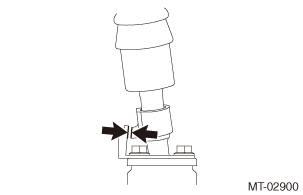

(5) Check that shift operation of 1st-2nd can be performed.
(6) If shift operation of 1st-2nd cannot be performed in the above check, perform the steps (1) to (4) with a shim that is 0.2 mm {0.0079 in} thinner.
(7) Check that shift operation of 1st-2nd can be performed.
