Neutral position switch
Components Inspection Removal / installation
MANUAL TRANSMISSION / TRANSAXLE
NEUTRAL POSITION SWITCH

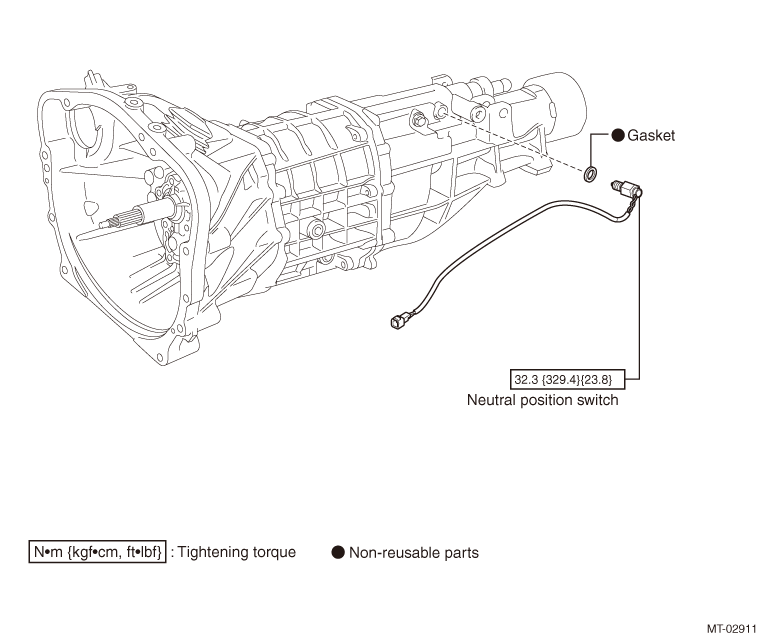

EXPLODED VIEW
REMOVAL
1. Removal of manual transmission ASSY
(Refer to
)
)
2. Removal of neutral position switch

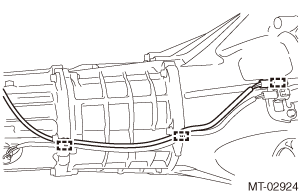

(1) Release the 3 clamps.
(2) Remove the neutral position switch and the gasket.
INSTALLATION
1. Installation of neutral position switch
(1) Install a new gasket to the neutral position switch.
(2) Install the neutral position switch.
Standard value:
Standard value:
Tightening torque=32.3N·m
{
329.4kgf·cm}
{23.8ft·lbf}
CAUTION:
When tightening by combining a torque wrench and union nut wrench to extend the whole length, the actual torque will be excessive if tightened until the reading of the torque wrench reaches the specified tightening torque. (Refer to )
)(3) Engage all of the 3 clamps from the rear side with a slack of the harness positioned only at the forward end, and connect the back-up light switch ASSY wire and the neutral position switch wire.
2. Installation of manual transmission ASSY
(Refer to )
)UNIT INSPECTION
1. Check of neutral position switch
(1) Measure the resistance between the terminals.
If the resistance is not at the standard value, replace the neutral position switch.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 1 - 2 |
When switch is pressed in |
Less than 1 Ω |
| When switch is not pressed in |
1 MΩ or more |
Captions in illustration
| *a |
Connector not connected (Neutral position switch) |
