Propeller shaft ASSY
Components Removal / installation
DRIVE SHAFT / PROPELLER SHAFT
PROPELLER SHAFT ASSY

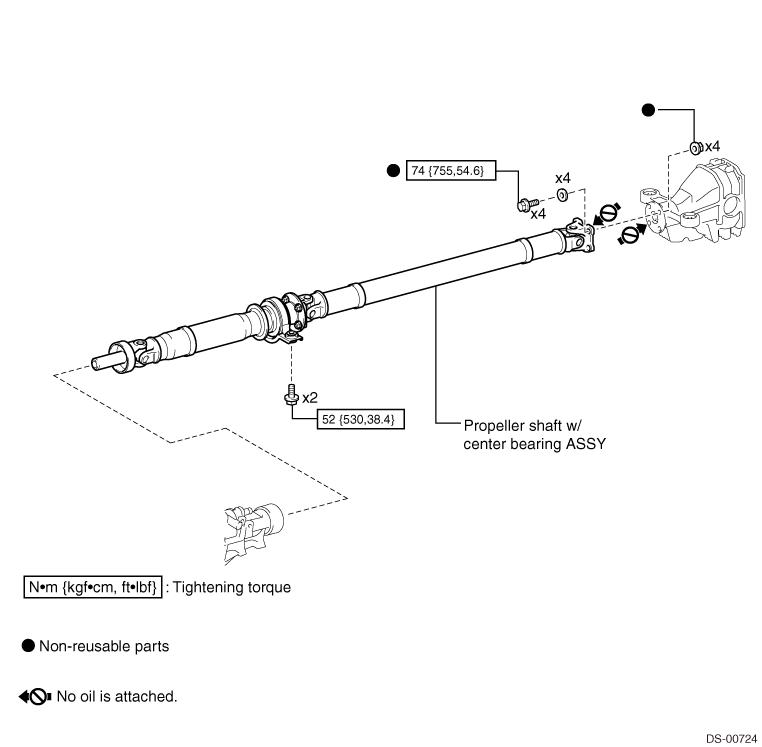

EXPLODED VIEW
REMOVAL
1. Draining of manual transmission oil (Transmission M/T) (Refer to
)
)2. Draining of automatic transmission fluid (Transmission A/T) (Refer to )
)3. Removal of exhaust pipe ASSY CTR (Refer to )
)
4. Removal of propeller shaft W/ center bearing ASSY

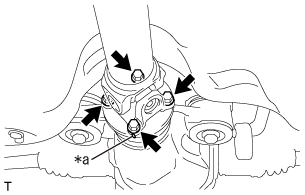

(1) Place alignment marks on the differential side companion flange and flexible coupling.
Captions in illustration
| *a |
Alignment marks |
(2) Remove 4 bolts, 4 washers and 4 nuts.

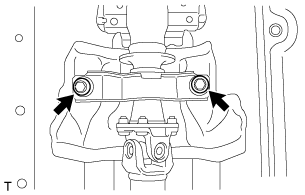

(3) Remove the 2 bolts.

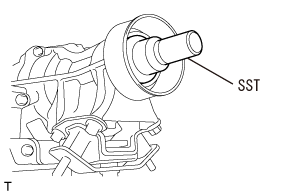

(4) Remove the propeller shaft W/ center bearing ASSY from the extension housing, and insert the SST into the extension housing to prevent oil leakage. (Transmission M/T)
SST
09325-20010
CAUTION:
·Do not apply excessive force to the parts such as the universal joint during removal.
·Do not damage the oil seal.
·Do not damage the oil seal.
(5) Remove the propeller shaft ASSY from the extension housing, insert the SST into the extension housing to prevent oil leakage. (Transmission A/T)
SST
09325-40010
CAUTION:
·Do not apply excessive force to the parts such as the universal joint during removal.
·Do not damage the oil seal.
·Do not damage the oil seal.
INSPECTION
1. Inspection of propeller shaft W/ center bearing ASSY

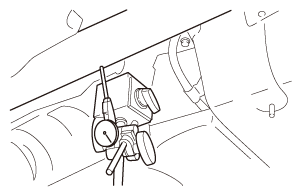

(1) Set the dial gauge with its gauge head at the center of the propeller shaft W/ center bearing ASSY.
(2) Turn the propeller shaft W/ center bearing ASSY slowly by hand to check for runout.
Limit
: 0.6mm {0.0236in}
CAUTION:
Attach the dial gauge at a right angle to the center of the propeller shaft W/ center bearing ASSY.

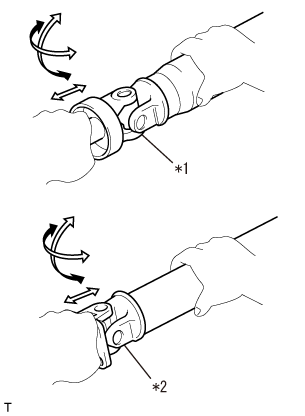

2. Inspection of universal joint spider ASSY
3. Inspection of center bearing ASSY
(1) Check there is no play and drag by rotating the bearing.
(2) Check the rubber part for damage or cracks and the spring for dislocation.

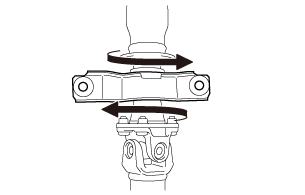

(3) Check the bracket part of the center bearing for cracks or deformation.
INSTALLATION
1. Installation of propeller shaft W/ center bearing ASSY
(1) Clean and remove oil, etc. completely from the joint of the rear differential flange.
(2) Remove the SST from the extension housing.
(3) Insert the propeller shaft W/ center bearing ASSY into the extension housing.
(4) Install the center support bearing bracket of the propeller shaft center bearing ASSY using 2 bolts.
Standard value:
Standard value:
Tightening torque=52N·m
{
530kgf·cm}
{38.4ft·lbf}
(5) Align the alignment marks on the differential side companion flange and flexible coupling.
Captions in illustration
| *a |
Alignment marks |
(6) Install with 4 bolts, 4 washers and 4 nuts.
Standard value:
CAUTION:
Secure the nut and turn the bolt.
Standard value:
Tightening torque=74N·m
{
755kgf·cm}
{54.6ft·lbf}
2. Filling of manual transmission oil (Transmission M/T) (Refer to )
)3. Inspection of manual transmission oil leakage (Transmission M/T) (Refer to )
)4. Filling of automatic transmission fluid (Transmission A/T) (Refer to )
)5. Adjustment of automatic transmission fluid level (Transmission A/T) (Refer to )
)6. Installation of exhaust pipe ASSY CTR (Refer to )
)
