Front axle hub bolt
Components Removal / installation
AXLE / DIFFERENTIAL
FRONT AXLE HUB BOLT

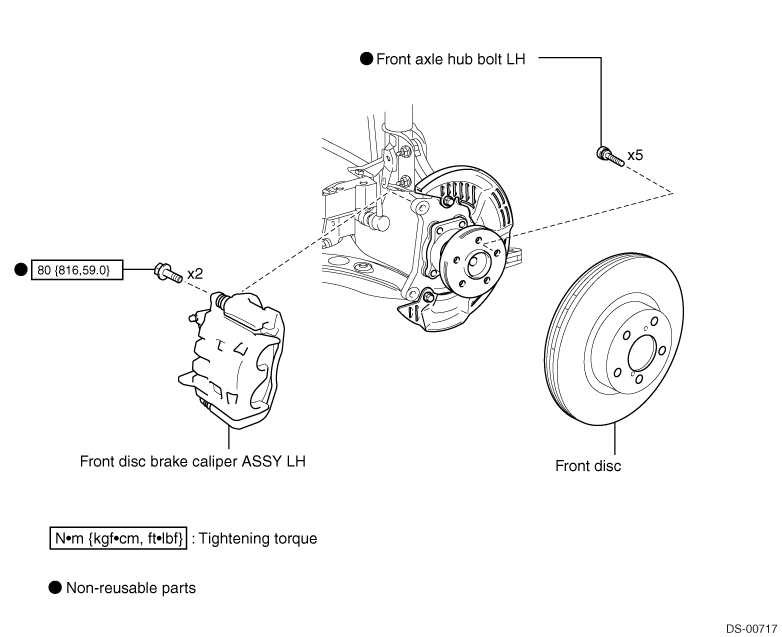

EXPLODED VIEW
REPLACEMENT
NOTE:
·The following procedure is for LH side.
·Perform the same procedures for the RH and LH side.
·Perform the same procedures for the RH and LH side.
1. Removal of front tire
2. Removal of front disc brake caliper ASSY LH
(1) Remove 2 bolts, and disconnect the disc brake caliper ASSY LH from the steering knuckle.
CAUTION:
Suspend the caliper using a wire, etc.
3. Removal of front disc (Refer to
)
)4. Removal of front axle hub & bearing ASSY LH

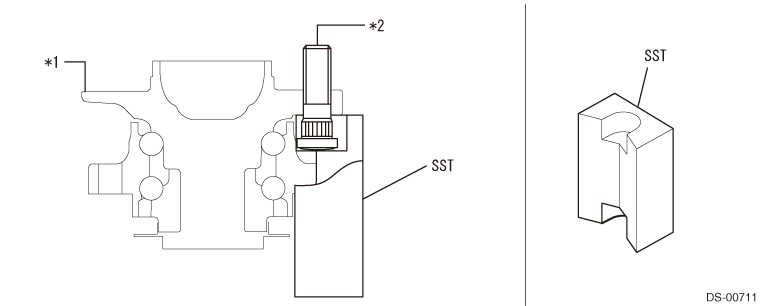

Using the SST and a hydraulic press, push out the hub bolt from the front axle hub & bearing ASSY.
CAUTION:
·Do not hammer the hub bolts. This may deform the front axle hub & bearing ASSY.
·Do not reuse the hub bolt.
·Do not reuse the hub bolt.
Captions in illustration
| *1 |
Front axle hub & bearing ASSY |
*2 |
Hub bolt |
SST
28399AG000
NOTE:
Because the front axle hub & bearing ASSY can not be disassembled, only hub bolts can be removed.
5. Installation of front axle hub & bearing ASSY LH

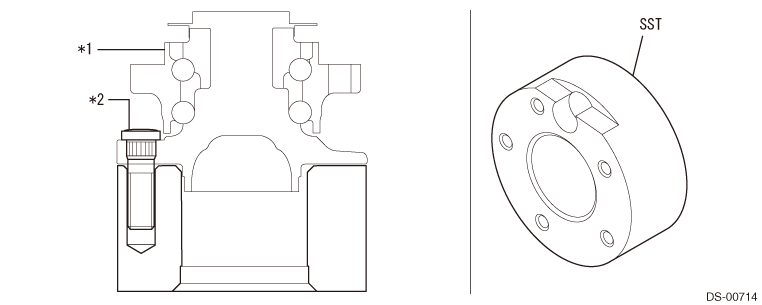

(1) Install the front axle hub & bearing ASSY to the SST securely.
(2) Using a press, press the new hub bolts until their seating surfaces come in contact snugly with the front axle hub & bearing ASSY.
Captions in illustration
| *1 |
Front axle hub & bearing ASSY |
*2 |
Hub bolt |
SST
927080000
NOTE:
Use the 12 mm (0.47 in) dia. holes in the SST to prevent bolts from tilting.
6. Installation of front disc (Refer to )
)7. Installation of front disc brake caliper ASSY LH
(1) Install the disc brake caliper ASSY LH to the steering knuckle with 2 bolts.
Standard value:
Standard value:
Tightening torque=80N·m
{
816kgf·cm}
{59.0ft·lbf}
8. Installation of front tire
Standard value:
Standard value:
Tightening torque=120N·m
{
1224kgf·cm}
{88.5ft·lbf}
