Rear axle hub bolt

Components Removal / installation

AXLE / DIFFERENTIAL

REAR AXLE HUB BOLT

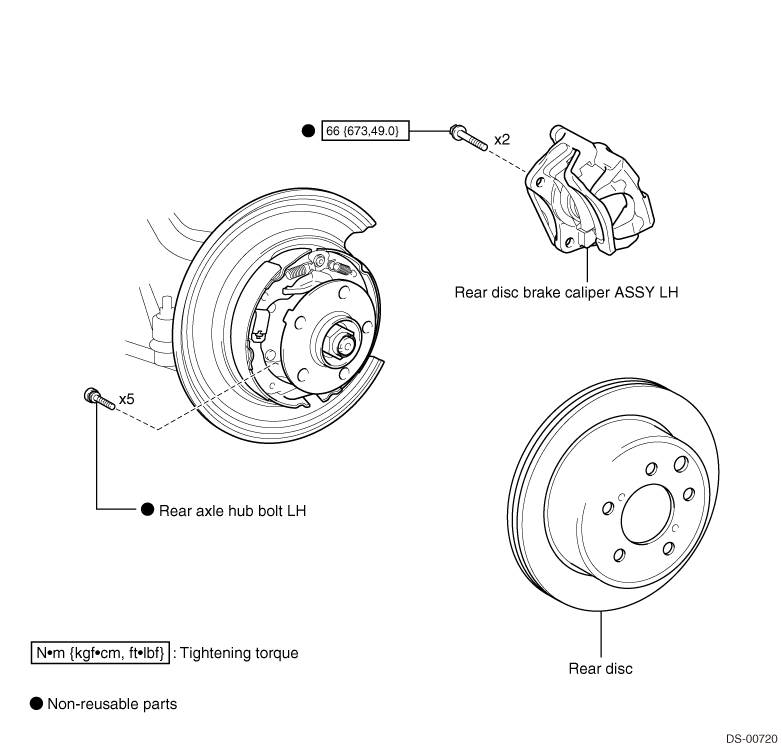

EXPLODED VIEW

REPLACEMENT

NOTE:

·The following procedure is for LH side.
·Perform the same procedures for the RH and LH side.

1. Removal of rear tire

2. Disconnection of rear disc brake caliper ASSY LH (Refer to

)

3. Removal of rear disc (Refer to

)

4. Removal of rear axle hub bolt & bearing ASSY LH

Using the SST and a hydraulic press, push out the hub bolt from the rear axle hub & bearing ASSY.

CAUTION:

·Do not hammer the hub bolts. This may deform the rear axle hub & bearing ASSY.
·Do not reuse the hub bolt.

)

7. Connection of rear disc brake caliper ASSY LH (Refer to

)

8. Installation of rear tire

Standard value:

Tightening torque=120N·m { 1224kgf·cm} {88.5ft·lbf}
