Differential oil
Removal / installation
AXLE / DIFFERENTIAL
DIFFERENTIAL OIL
ADJUSTMENT
1. Inspection of differential oil

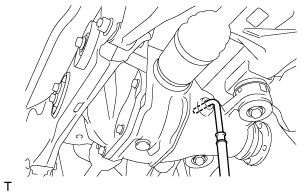

(1) Remove the filler plug and the gasket using a socket hexagon wrench (10 mm).
(2) Make sure that the oil level is within 0 to 5 mm {0 to 0.2 in} from the bottom of filler plug hole.
CAUTION:
·Excess or shortage of oil may lead to trouble.
·Park the vehicle on a level road.
·Park the vehicle on a level road.
(3) If the oil level is low, perform the inspection of oil leakage.
(4) Tighten the filler plug through a new gasket using a socket hexagon wrench (10 mm).
Standard value:
Standard value:
Tightening torque=49N·m
{
500kgf·cm}
{36.1ft·lbf}
CAUTION:
When oil is replaced, check the oil level again after driving.
2. Refilling of differential oil
CAUTION:
Do not mix different types of oil.
(1) Model with LSD
(a) Remove the filler plug and the gasket using a socket hexagon wrench (10 mm).
(b) Refill with differential oil.
Recommended product
: Differential gear oil LX (API GL-5, SAE 75W-85)
Substitute product
: GL-5 75W-85 or GL-5 75W-90
CAUTION:
When using the substitute product, the function and performance may be inferior.
NOTE:
Oil level: 1.15±0.05 L {1.22±0.05 US qt, 1.01±0.04 Imp qt}
(c) Check the oil level.
(d) Tighten the filler plug through a new gasket using a socket hexagon wrench (10 mm).
Standard value:
Standard value:
Tightening torque=49N·m
{
500kgf·cm}
{36.1ft·lbf}
CAUTION:
When oil is replaced, check the oil level again after driving.
(2) Model without LSD
(a) Remove the filler plug and the gasket using a socket hexagon wrench (10 mm).
(b) Refill with differential oil.
Recommended product
: Differential gear oil LT (API GL-5, SAE 75W-85)
: Differential gear oil LT (API GL-5, SAE 75W-85)
Substitute product
: GL-5 75W-85 or GL-5 75W-90
: GL-5 75W-85 or GL-5 75W-90
CAUTION:
When using the substitute product, the function and performance may be inferior.
NOTE:
Oil level: 1.15±0.05 L {1.22±0.05 US qt, 1.01±0.04 Imp qt}
(c) Check the oil level.
(d) Tighten the filler plug through a new gasket using a socket hexagon wrench (10 mm).
Standard value:
Standard value:
Tightening torque=49N·m
{
500kgf·cm}
{36.1ft·lbf}
CAUTION:
When oil is replaced, check the oil level again after driving.
