Rear differential carrier oil seal
Components Removal / installation
AXLE / DIFFERENTIAL
REAR DIFFERENTIAL CARRIER OIL SEAL

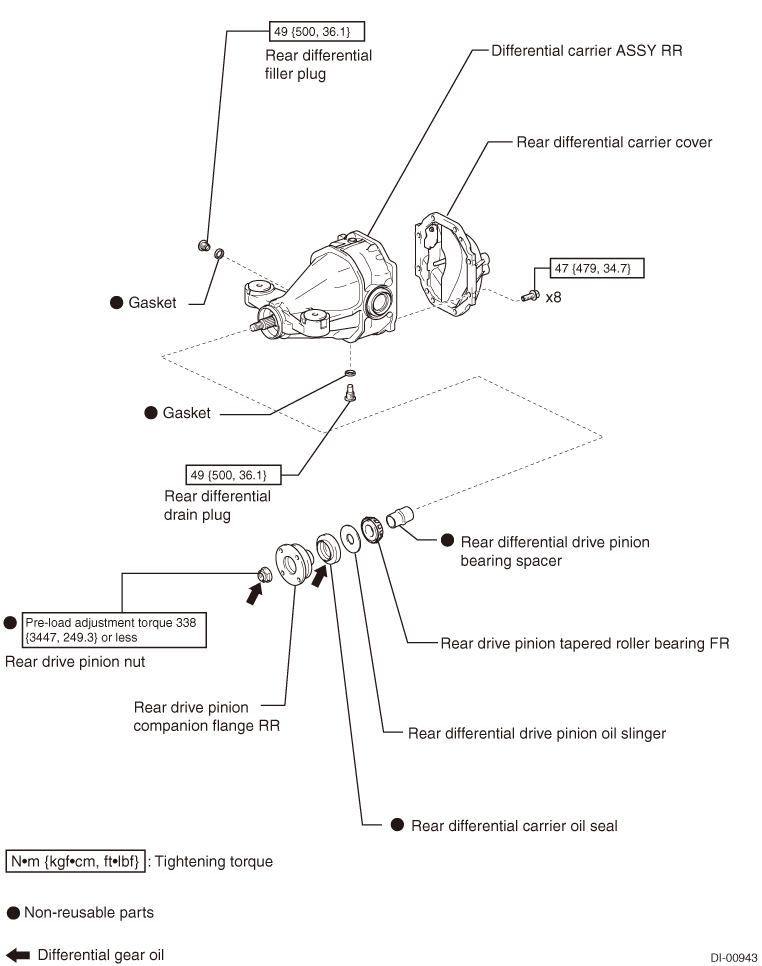

EXPLODED VIEW
REPLACEMENT
1. Removal of differential carrier ASSY RR
(Refer to
)
)2. Fixation of differential carrier ASSY RR (Refer to )
)3. Removal of rear drive pinion nut (Refer to )
)4. Removal of rear drive pinion companion flange RR (Refer to )
)
5. Removal of rear differential carrier oil seal

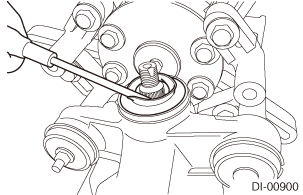

(1) Remove the oil seal from the differential carrier using a flat tip screwdriver.
NOTE:
When replacing the oil seal, replace the rear differential drive pinion bearing spacer and readjust the drive pinion preload.
6. Removal of rear differential drive pinion oil slinger (Refer to )
)7. Removal of rear drive pinion tapered roller bearing FR (Refer to )
)
8. Replacement of rear differential drive pinion bearing spacer
(1) Replace the bearing spacer with a new part.
9. Installation of rear drive pinion tapered roller bearing FR (Refer to )
)10. Installation of rear differential drive pinion oil slinger (Refer to )
)11. Installation of rear drive pinion companion flange RR (Refer to )
)12. Removal of rear drive pinion companion flange RR (Refer to )
)
13. Installation of rear differential carrier oil seal

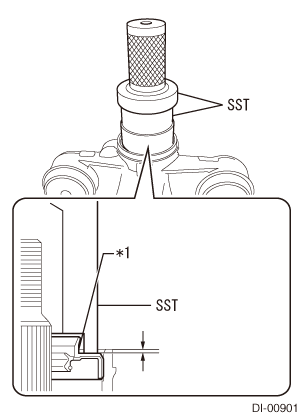

(1) Press-fit a new oil seal into the bottom position of the differential carrier taper portion using the SST and a hammer.
SST
498447120
499755502
Captions in illustration
| *1 |
Rear differential carrier oil seal |
CAUTION:
·Evenly tap and press-fit the oil seal in a straight forward direction.
·Do not press-fit the oil seal excessively.
·Do not press-fit the oil seal excessively.
(2) Measure the press-fitting amount of the oil seal using a caliper gauge.
Standard value
: 2±0.45 mm {0.08±0.018 in} (from the differential carrier end face)
CAUTION:
Perform the measurement at 3 points or more on the oil seal circumference, and the difference between the maximum and the minimum of the measured values must be 0.65 mm {0.026 in} or less.
(3) Apply a thin coat of differential gear oil to the lip of the oil seal.
14. Installation of rear drive pinion companion flange RR (Refer to )
)15. Adjustment of differential drive pinion preload (Refer to )
)16. Inspection of overall preload (Refer to )
)17. Fixation of rear drive pinion nut (Refer to )
)18. Removal of differential carrier ASSY RR (Refer to )
)19. Installation of differential carrier ASSY RR
(Refer to )
)
