Rear differential side gear shaft oil seal
Components Removal / installation
AXLE / DIFFERENTIAL
REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

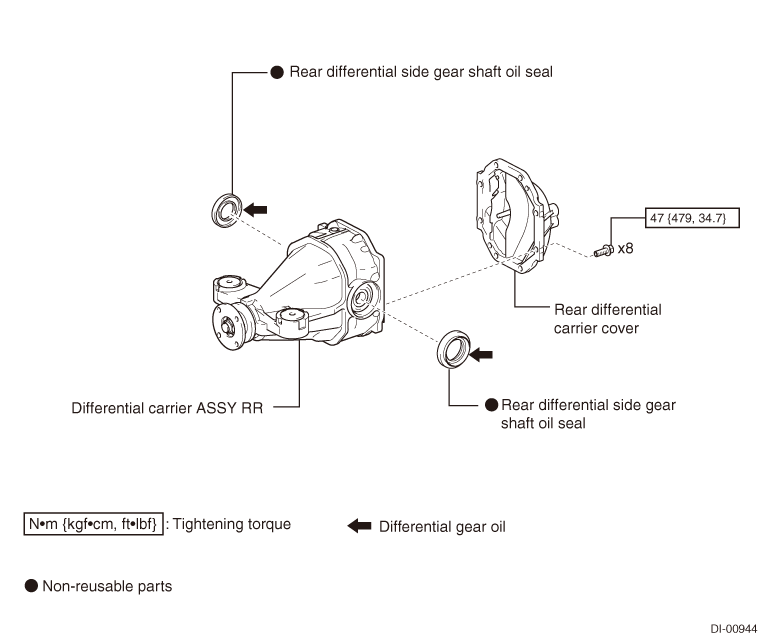

EXPLODED VIEW
REPLACEMENT
1. Removal of differential carrier ASSY RR
(Refer to
)
)2. Fixation of differential carrier ASSY RR (Refer to )
)
3. Removal of rear differential side gear shaft oil seal

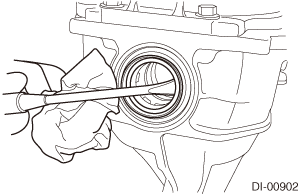

(1) Remove the right and left side oil seals using a flat tip screwdriver.
4. Installation of rear differential side gear shaft oil seal

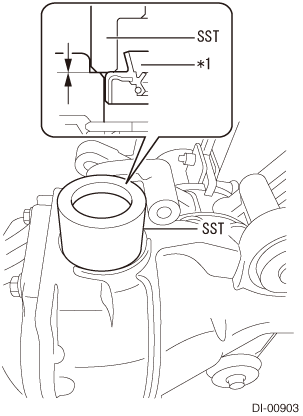

(1) Press-fit 2 new oil seals into the position shown in the figure using the SST and a hammer.
SST
20299AG010
Captions in illustration
| *1 |
Rear differential side gear shaft oil seal |
Standard value
: 0±0.5mm {0±0.02in} (from the differential carrier end face)
CAUTION:
Evenly tap and press-fit the oil seal in a straight forward direction.
(2) Apply a thin coat of differential gear oil to the lip of the oil seal.
5. Removal of differential carrier ASSY RR (Refer to )
)6. Installation of differential carrier ASSY RR
(Refer to )
)
