Rear differential mount cushion
Components Removal / installation
AXLE / DIFFERENTIAL
REAR DIFFERENTIAL MOUNT CUSHION

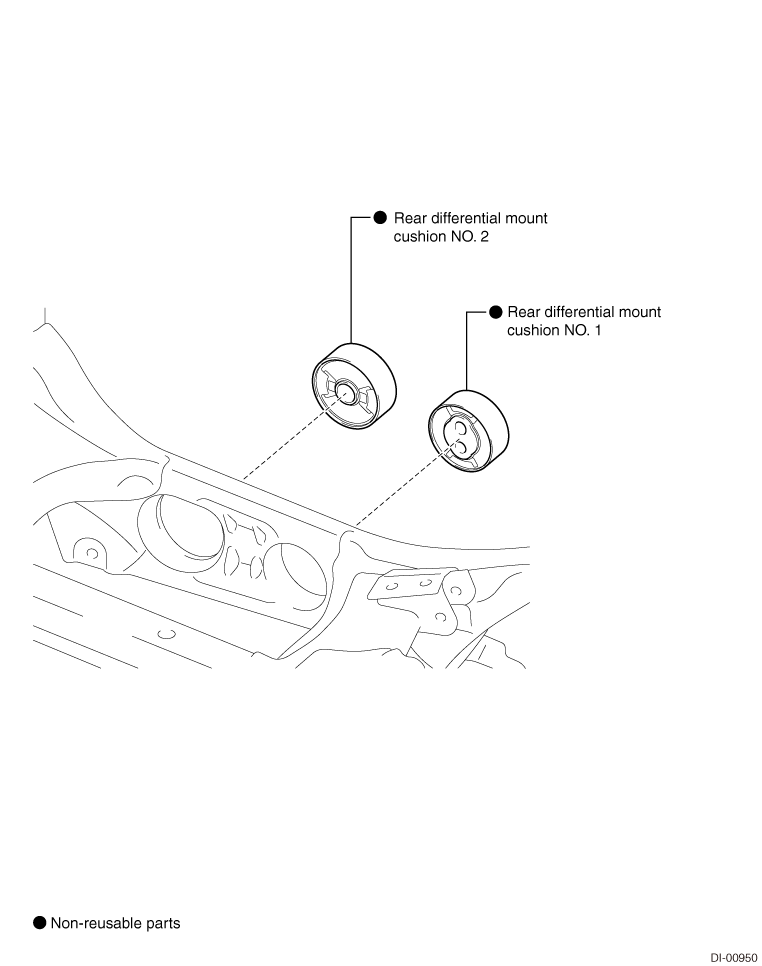

EXPLODED VIEW
REMOVAL
1. Removal of rear differential carrier ASSY (Refer to
)
)2. Removal of exhaust tail pipe ASSY (Refer to )
)3. Removal of stabilizer bar RR (Refer to )
)

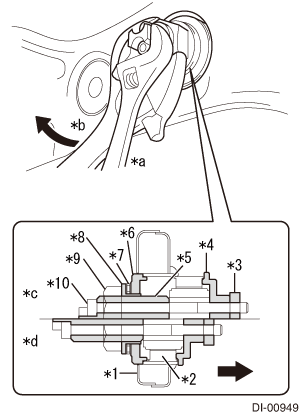

4. Removal of rear differential mount cushion NO. 1
(1) Using the SST, remove the rear differential mount cushion NO. 1.
SST
41399CA050
41399CA060,
41399CA070,
41399CA100,
41399CA110,
41399CA120,
41399CA130,
41399CA140,
41399CA150)
CAUTION:
·Always make sure that the SST fits the periphery of the rear suspension member cylinder and is not tilted.
·Do not allow the SST to ride on the weld beads on the cylinder’s outer periphery.
·Do not allow the SST to ride on the weld beads on the cylinder’s outer periphery.
Captions in illustration
| *1 |
Rear suspension member |
| *2 |
Rear differential mount cushion NO. 1 |
| *3 |
SST(41399CA140) |
| *4 |
SST(41399CA120) |
| *5 |
SST(41399CA100) |
| *6 |
SST(41399CA130) |
| *7 |
SST(41399CA150) |
| *8 |
SST(41399CA070) |
| *9 |
SST(41399CA060) |
| *10 |
SST(41399CA110) |
| *a |
Hold |
| *b |
Drive |
| *c |
Start. |
| *d |
Complete |
 |
Rear side of vehicle |

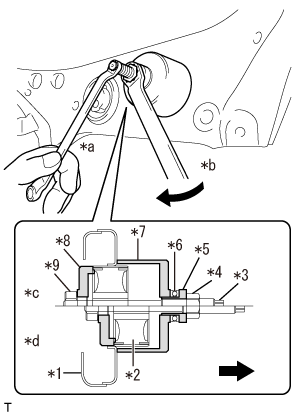

5. Removal of rear differential mount cushion NO. 2
(1) Using the SST, remove the rear differential mount cushion NO. 2.
SST
41399CA000
41399CA010,
41399CA020,
41399FG050,
41399FG061,
41399FG070,
41399FG080,
41399FG091)
Captions in illustration
| *1 |
Rear suspension member |
| *2 |
Rear differential mount cushion NO. 2 |
| *3 |
SST(41399FG091) |
| *4 |
SST(41399FG070) |
| *5 |
SST(41399FG050) |
| *6 |
SST(41399FG080) |
| *7 |
SST(41399CA020) |
| *8 |
SST(41399CA010) |
| *9 |
SST(41399FG061) |
| *a |
Hold |
| *b |
Drive |
| *c |
Start. |
| *d |
Complete |
|
|
Rear side of vehicle |
INSTALLATION
1. Installation of rear differential mount cushion NO. 2

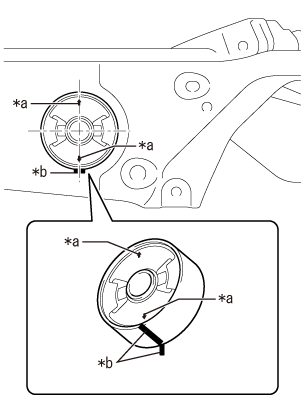

(1) Place alignment marks on the new rear differential mount cushion NO. 2 and the rear suspension member as shown in the figure.
CAUTION:
Install the rear differential mount cushion NO. 2 with the arrow marks facing upward and downward.
NOTE:
Before installation, place alignment marks on the rear suspension member and the rear differential mount cushion NO. 2.
Captions in illustration
| *a |
Arrow mark |
| *b |
Alignment marks |

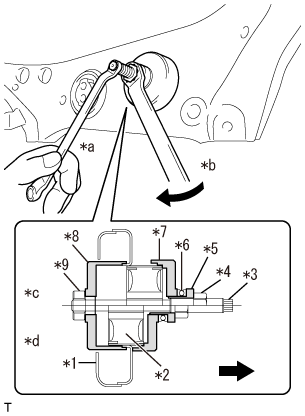

(2) Using the SST, install the rear differential mount cushion NO. 2.
SST
41399CA000
41399CA030,
41399CA040,
41399FG050,
41399FG061,
41399FG070,
41399FG080,
41399FG091)
Captions in illustration
| *1 |
Rear suspension member |
| *2 |
Rear differential mount cushion NO. 2 |
| *3 |
SST(41399FG091) |
| *4 |
SST(41399FG070) |
| *5 |
SST(41399FG050) |
| *6 |
SST(41399FG080) |
| *7 |
SST(41399CA040) |
| *8 |
SST(41399CA030) |
| *9 |
SST(41399FG061) |
| *a |
Hold |
| *b |
Drive |
| *c |
Start. |
| *d |
Complete |
|
|
Rear side of vehicle |
NOTE:
·Align the alignment marks on the rear differential mount cushion NO. 2 and the rear suspension member, and install it while checking how it is off-centered.

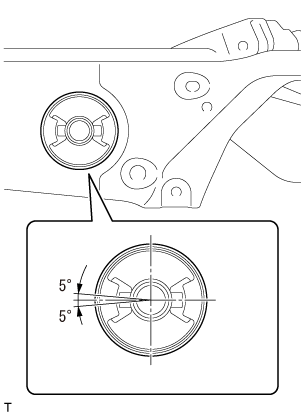

·The allowable range of the rear differential mount cushion NO. 2 installation angle should be within 5°.
·Insert the rear differential mount cushion NO. 2 until *7 (SST) contacts the rear suspension member.
·The allowable range of the rear differential mount cushion NO. 2 installation angle should be within 5°.
·Insert the rear differential mount cushion NO. 2 until *7 (SST) contacts the rear suspension member.
2. Installation of rear differential mount cushion NO. 1

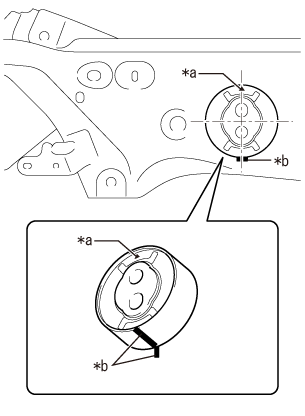

(1) Place alignment marks on the new rear differential mount cushion NO. 1 and the rear suspension member as shown in the figure.
CAUTION:
Install the rear differential mount cushion NO. 1 with the triangle mark facing upward.
NOTE:
Before installation, place alignment marks on the rear suspension member and the rear differential mount cushion NO. 1.
Captions in illustration
| *a |
Triangle mark |
| *b |
Alignment marks |

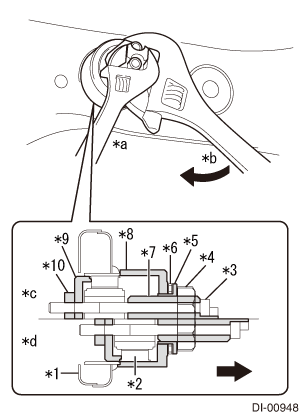

(2) Using the SST, install the rear differential mount cushion NO. 1.
SST
41399CA050
41399CA080,
41399CA090,
41399CA100,
41399CA110,
41399CA120,
41399CA130,
41399CA140,
41399CA150)
Captions in illustration
| *1 |
Rear suspension member |
| *2 |
Rear differential mount cushion NO. 1 |
| *3 |
SST(41399CA110) |
| *4 |
SST(41399CA090) |
| *5 |
SST(41399CA150) |
| *6 |
SST(41399CA080) |
| *7 |
SST(41399CA130) |
| *8 |
SST(41399CA100) |
| *9 |
SST(41399CA120) |
| *10 |
SST(41399CA140) |
| *a |
Hold |
| *b |
Drive |
| *c |
Start. |
| *d |
Complete |
|
|
Rear side of vehicle |
CAUTION:
·Perform installation while checking the SST and the rear differential mount cushion NO. 1 are not tilted.
·If the rear differential mount cushion NO. 1 is tilted, the operation becomes less efficient. When setting the rear differential mount cushion NO. 1 in the rear suspension member, make sure there are no gaps between the SST and the rear differential mount cushion NO. 1.
·If the rear differential mount cushion NO. 1 is tilted, the operation becomes less efficient. When setting the rear differential mount cushion NO. 1 in the rear suspension member, make sure there are no gaps between the SST and the rear differential mount cushion NO. 1.
NOTE:
·Align the alignment marks on the rear differential mount cushion NO. 1 and the rear suspension member, and install it while checking how it is off-centered.

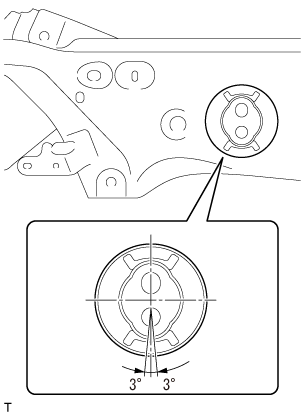

·The allowable range of the rear differential mount cushion NO. 1 installation angle should be within 3°.
·Insert the rear differential mount cushion until *4 (SST) contacts the rear suspension member.
·The allowable range of the rear differential mount cushion NO. 1 installation angle should be within 3°.
·Insert the rear differential mount cushion until *4 (SST) contacts the rear suspension member.3. Installation of stabilizer bar RR (Refer to )
)4. Installation of exhaust tail pipe ASSY (Refer to )
)5. Installation of rear differential carrier ASSY (Refer to )
)
