Front shock absorber

Components Removal / installation

FRONT SUSPENSION
FRONT SHOCK ABSORBER

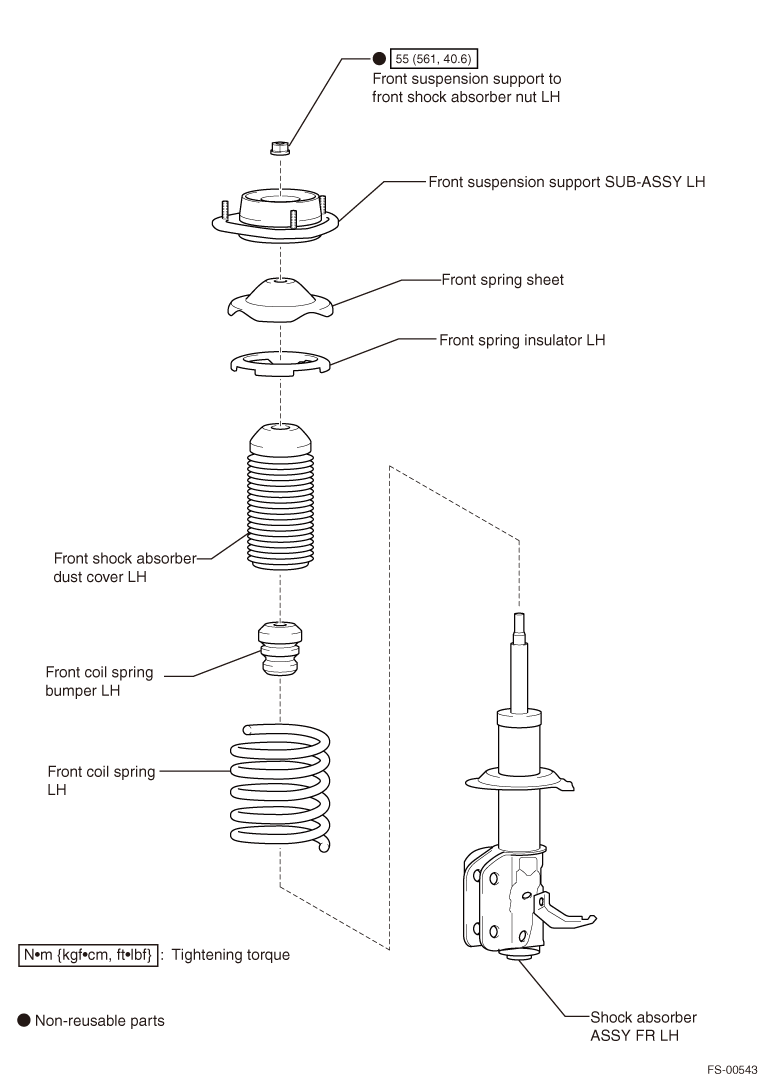

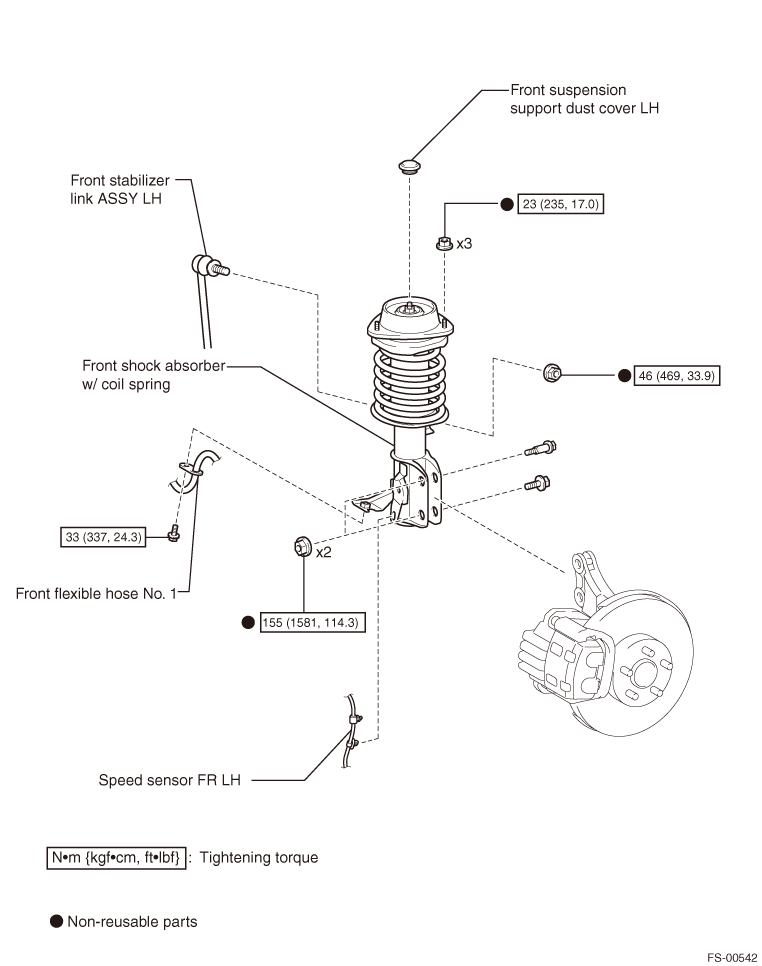

EXPLODED VIEW
REMOVAL
NOTE:
·The following servicing procedures are for the RH side.
·Service the LH side in the same procedure as the RH side.
1. Removal of front tire
2. Disconnection of speed sensor FR RH

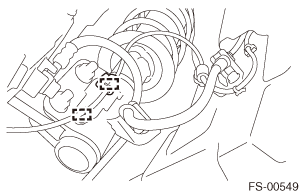

(1) Remove the two clamps, and remove the speed sensor FR RH.
3. Disconnection of front flexible hose No.1

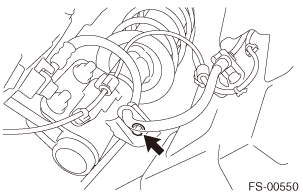

(1) Remove the bolt, and disconnect the front flexible hose No. 1 from the front shock absorber w/ coil spring.
4. Disconnection of front stabilizer link ASSY RH

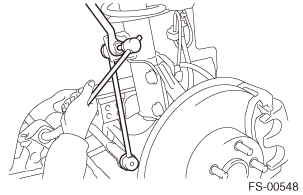

(1) Secure the stud bolt and remove the nut.
(2) Disconnect the front stabilizer link ASSY RH from the front shock absorber w/ coil spring.

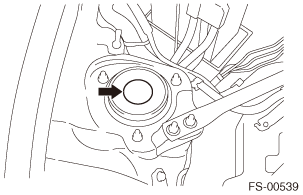

5. Removal of front suspension support dust cover RH
NOTE:
If the front shock absorber w/ coil spring must be disassembled, remove the front suspension support dust cover RH.
(1) Remove the front suspension support dust cover RH.
DISASSEMBLY
NOTE:
·The following procedure is for LH side.
·Service the LH side and the RH side using the same procedure.
1. Removal of front suspension support to front shock absorber nut LH

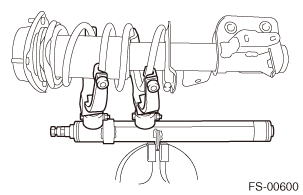

(1) Secure a spring compressor in a vise.
(2) Place the hooks of the spring compressor arms across the diameter of the front coil spring LH.
WARNING:
·Make sure that the upper and lower hooks of the spring compressor are placed as far from each other as possible on the front coil spring LH.
·Make sure that the claws of the hooks are securely in place.
(3) Using a spring compressor, compress the front coil spring LH.
WARNING:
·If the front coil spring LH becomes curved like a bow during the compression process, stop the procedure immediately, and remove and reconnect the spring compressor.
·Do not compress to the point where parts of the coil spring touch each other.
·Do not use an impact wrench.
(4) Prevent the piston rod from turning using a deep socket hexagon.

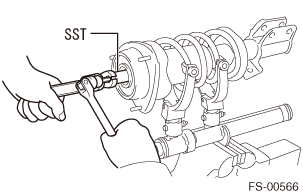

(5) After making sure that the front coil spring LH is free, remove the front suspension support to front shock absorber nut LH from the shock absorber ASSY FR LH using the SST.
SST     20399AG000
WARNING:
Do not remove the front suspension support to front shock absorber nut LH without the front coil spring LH being free.
CAUTION:
·Be careful not to damage or deform the threaded portion.
·Fully insert the deep socket hexagon.
2. Removal of front suspension support SUB-ASSY LH
(1) Remove the front suspension support SUB-ASSY LH.
3. Removal of front spring seat
(1) Remove the front spring seat.
4. Removal of front spring insulator LH
(1) Remove the front spring insulator LH.
5. Removal of front shock absorber dust cover LH
(1) Remove the front shock absorber dust cover LH.
6. Removal of front spring bumper LH
(1) Remove the front spring bumper LH.
7. Removal of front coil spring LH
(1) Release the spring compressor and remove the front coil spring LH.
INSPECTION
1. Inspection of shock absorber ASSY FR LH
(1) Operation inspection of shock absorber ASSY FR LH

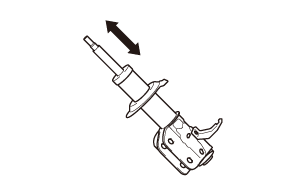

(a) Press the shock absorber ASSY FR LH to the lowest position while holding it up and let it extend on its own. Repeat the process four times or more.
(b) Inspect the shock absorber ASSY FR LH.
Criteria :  When it is compressed at a certain speed, the heaviness of each stroke is consistent, and it does not make any abnormal movement or sound. Also, when it extends, it returns to its original length at a consistent speed without any abnormal sound.
NOTE:
If defective, replace the shock absorber ASSY FR LH with a new part.
ASSEMBLY
NOTE:
·The following procedure is for LH side.
·Service the LH side and the RH side using the same procedure.
1. Installation of front spring bumper LH
(1) Install the front spring bumper LH on the shock absorber ASSY FR LH.
2. Installation of front shock absorber dust cover LH
(1) Install the front shock absorber dust cover LH on the shock absorber ASSY FR LH.

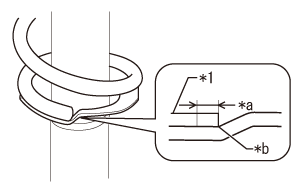

4. Installation of front spring insulator LH
(1) Install the front spring insulator LH on the shock absorber ASSY FR LH.
5. Installation of front spring seat
(1) Install the front spring seat on the shock absorber ASSY FR LH.
6. Installation of front suspension support SUB-ASSY LH
INSTALLATION
NOTE:
·The following procedure is for LH side.
·Service the LH side and the RH side using the same procedure.
1. Installation of front shock absorber w/ coil spring

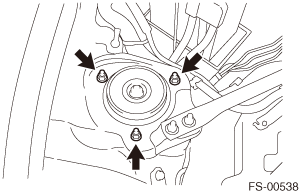

(1) Using three new nuts, install the front shock absorber w/ coil spring (upper side).

Standard value:
Tightening torque=23N·m { 235kgf·cm} {17.0ft·lbf}

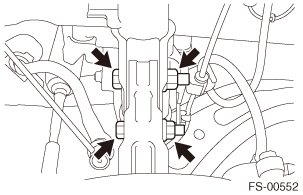

(2) Using the two bolts and two new nuts, install the shock absorber w/ coil spring to the steering knuckle LH.
CAUTION:
Insert the bolts from the rear of the vehicle.

Standard value:
Tightening torque=155N·m { 1581kgf·cm} {114.3ft·lbf}
2. Installation of front stabilizer link ASSY LH
(1) Install the front stabilizer link ASSY LH to the shock absorber w/ coil spring.
(2) Secure the stud bolt and install the part with a new nut.

Standard value:
Tightening torque=46N·m { 469kgf·cm} {33.9ft·lbf}
3. Installation of front flexible hose No.1
(1) Using a bolt, install the front flexible hose No. 1 to the shock absorber w/ coil spring.

Standard value:
Tightening torque=33N·m { 337kgf·cm} {24.3ft·lbf}
4. Installation of front suspension support dust cover LH
(1) Install the front suspension support dust cover LH on the shock absorber w/ coil spring.
5. Installation of speed sensor FR LH
(1) Install the two clamps of the wiring harness for the speed sensor FR LH on the shock absorber w/ coil spring.
6. Installation of front tire

Standard value:
Tightening torque=120N·m { 1224kgf·cm} {88.5ft·lbf}
7. Stabilization of vehicle

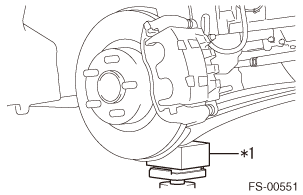

(1) Lower and remove the jack, and bounce the vehicle several times to stabilize the front suspension.
8. Inspection/adjustment of front wheel alignment (Refer to )
9. Initialization of headlight leveling computer (Refer to )
10. Headlight adjustment (Refer to )
11. Mid point setting of the VDC sensor (Refer to )
DISPOSAL

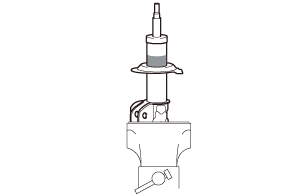

1. Disposal of shock absorber ASSY FR LH
(1) Secure the shock absorber ASSY FR LH in a vertical position.
(2) Press down on the piston rod with hands by approximately 70mm {2.756in}.
