Front suspension lower arm
Components Removal / installation
FRONT SUSPENSION
FRONT SUSPENSION LOWER ARM

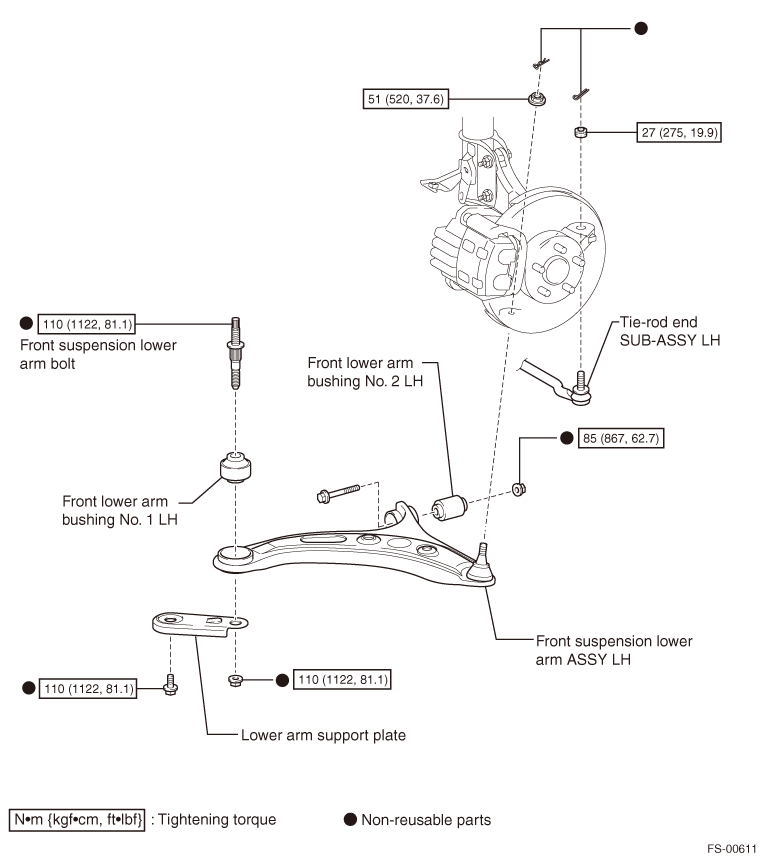

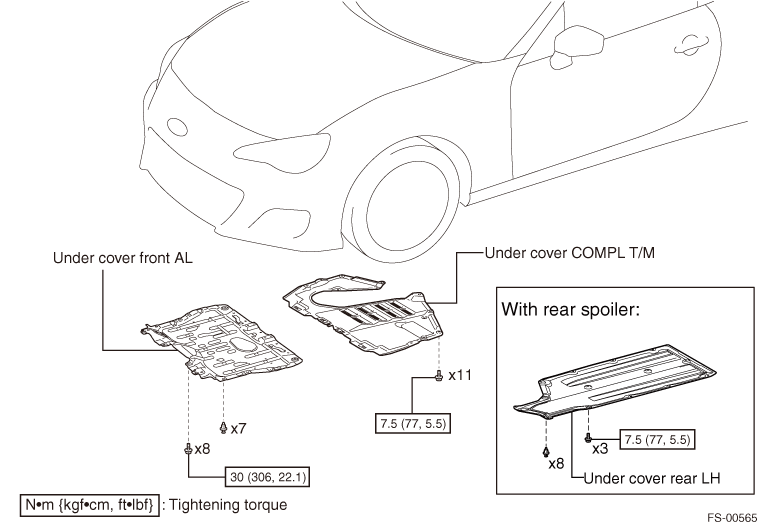

EXPLODED VIEW


REMOVAL
NOTE:
·The following procedure is for LH side.
·Service the RH side in the same procedure as the LH side.
·Service the RH side in the same procedure as the LH side.

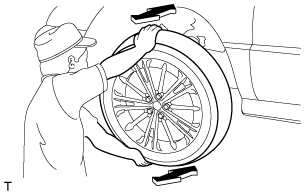

1. Removal of front tire

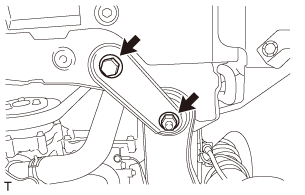

5. Removal of lower arm support plate
(1) Remove the bolt and nut, and remove the lower arm support plate.

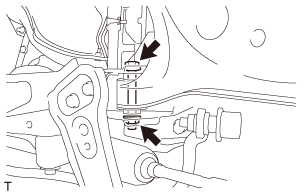

9. Removal of front suspension lower arm ASSY LH
(1) Remove the bolt and nut, and remove the front suspension lower arm ASSY LH.

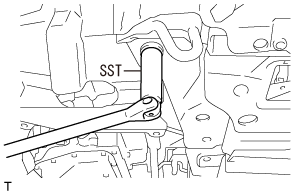

10. Removal of front suspension lower arm bolt

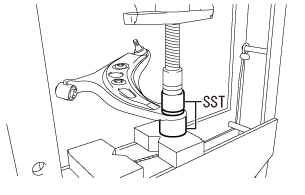

(1) Using the SST, remove the front suspension lower arm bolt.
SST
20299AG020
DISASSEMBLY

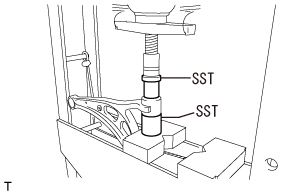

1. Removal of front lower arm bushing No. 1 LH
(1) Using the SST, remove the front lower arm bushing No. 1 LH.
SST
20299AG000
20299AG010
2. Removal of front lower arm bushing No. 2 LH
(1) Using the SST, remove the front lower arm bushing No. 2 LH.
SST
927680000
INSPECTION
1. Inspection of front suspension lower arm ASSY LH
(1) Rotation inspection of ball joint
(a) Check that there is no play by moving the upper and lower portions of front tire in an axial direction with the brake pedal depressed.
(b) If there is play, replace the front suspension lower arm ASSY LH.
(c) Check that there is no play by moving the upper and lower portions of front tire in an axial direction with the brake pedal released.
(d) If there is play, replace the front axle hub.

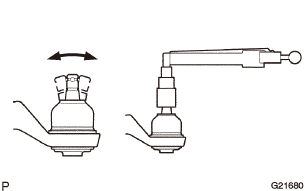

(e) Place the nut on the stud of the lower arm.
(f) Vibrate and turn the stud.
Criteria
: There is no abnormal interference or play during vibration and turning.
(g) If there is abnormal interference or play during vibration and turning, replace the front suspension lower arm ASSY LH.
(2) Dust cover inspection
(a) Check the dust cover for cracks or grease leakage.
(b) If there are cracks or grease leakage on the dust cover, replace the front suspension lower arm ASSY LH.
ASSEMBLY
1. Installation of front lower arm bushing No. 1 LH
(1) Using the SST, install the front lower arm bushing No. 1 LH in the front suspension lower arm ASSY LH so that the dimensions are within the range shown in the figure.
SST
20299AG000
20299AG010

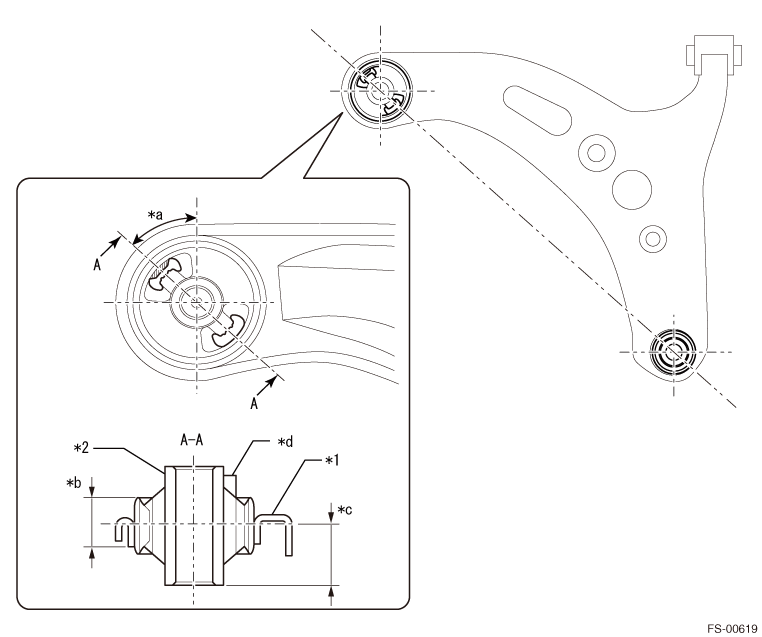

Captions in illustration
| *1 |
Front suspension lower arm ASSY LH |
*2 |
Front lower arm bushing No. 1 LH |
| *a |
44 to 50° |
*b |
25.0 to 26.0 mm {0.984 to 1.024 in} |
| *c |
26.5 to 27.5 mm {1.043 to 1.083 in} |
*d |
Rubber protrusion |
2. Installation of front lower arm bushing No. 2 LH
(1) Using the SST, install the front lower arm bushing No. 2 LH in the front suspension lower arm ASSY LH.
SST
927680000
INSTALLATION
NOTE:
·The following procedure is for LH side.
·Service the RH side in the same procedure as the LH side.
·Service the RH side in the same procedure as the LH side.
1. Installation of front suspension lower arm bolt
(1) Using the SST, install a new front suspension lower arm bolt.
Standard value:
SST
20299AG020
Standard value:
Tightening torque=110N·m
{
1122kgf·cm}
{81.1ft·lbf}
2. Temporary tightening of front suspension lower arm ASSY LH
(1) Temporarily tighten the part using the bolt and a new nut.
CAUTION:
Insert the bolt from the front of the vehicle.
3. Installation of steering knuckle LH
Standard value:
With a nut, install the front suspension lower arm ASSY LH to the steering knuckle LH.
Standard value:
Tightening torque=51N·m
{
520kgf·cm}
{37.6ft·lbf}
5. Temporary tightening of lower arm support plate
(1) Using a new bolt and nut, install the lower arm support plate.
Standard value:
Standard value:
Tightening torque=110N·m
{
1122kgf·cm}
{81.1ft·lbf}
7. Installation of front tire
Standard value:
Standard value:
Tightening torque=120N·m
{
1224kgf·cm}
{88.5ft·lbf}
9. Final tightening of front suspension lower arm ASSY LH
(1) Fully tighten the bolts and nuts.
Standard value:
Standard value:
Tightening torque=85N·m
{
867kgf·cm}
{62.7ft·lbf}
