Front suspension member
Components Removal / installation
FRONT SUSPENSION
FRONT SUSPENSION MEMBER

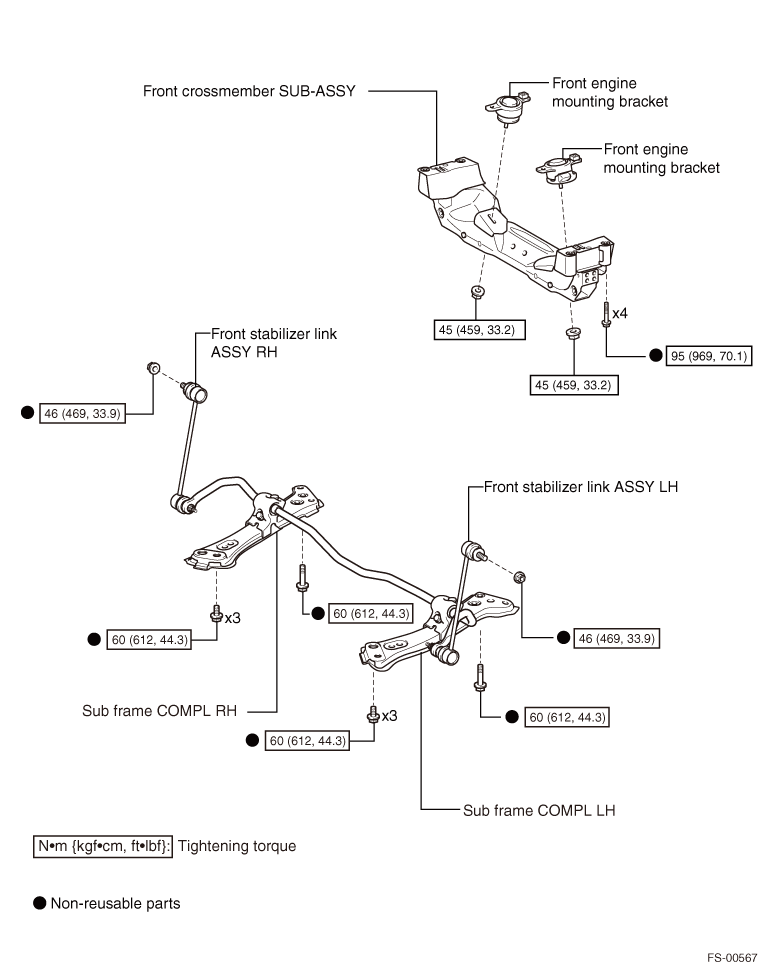

EXPLODED VIEW

REMOVAL
3. Removal of front suspension lower arm ASSY RH
NOTE:
Service the RH side in the same procedure as the LH side.
5. Disconnection of front stabilizer link ASSY RH
NOTE:
Service the RH side in the same procedure as the LH side.
7. Removal of sub frame COMPL RH
NOTE:
Service the RH side in the same procedure as the LH side.
INSTALLATION
1. Installation of front crossmember SUB-ASSY

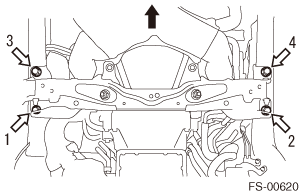

(1) Install four new bolts in the order shown in the figure to temporarily install the front crossmember SUB-ASSY.
Captions in illustration
![]() |
Front of vehicle |
![]() |
Bolt |

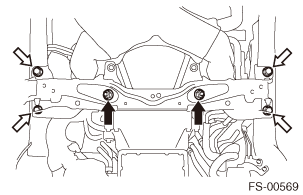

(2) Temporarily attach the 2 nuts to the front crossmember SUB-ASSY.
(3) Fully tighten the four bolts.
Standard value:
Standard value:
Tightening torque=95N·m
{
969kgf·cm}
{70.1 ft·lbf}
(4) Fully tighten the two nuts.
Standard value:
Standard value:
Tightening torque=45N·m
{
459kgf·cm}
{33.2ft·lbf}
2. Adjustment of select lever position (automatic transmission)
5. Installation of sub frame COMPL RH
NOTE:
Service the RH side in the same procedure as the LH side.
7. Installation of front stabilizer link ASSY RH
NOTE:
Service the RH side in the same procedure as the LH side.
9. Installation of front suspension lower arm ASSY RH
NOTE:
Service the RH side in the same procedure as the LH side.
