Subaru BRZ 2013 · Service Manual Suspension

Front strut tower bar

Components Removal / installation

FRONT SUSPENSION
FRONT STRUT TOWER BAR
EXPLODED VIEW
REMOVAL
1. Removal of front strut tower bar RH

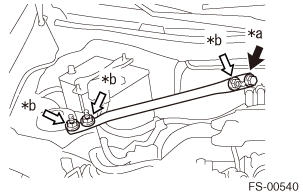

(1) Remove the bolt and three nuts, and remove the front strut tower bar RH.
Captions in illustration
*a
 Bolt
*b
 Nut
2. Removal of front strut tower bar LH
NOTE:
Service the LH side in the same procedure as the RH side.
INSTALLATION
1. Installation of front strut tower bar LH
(1) Using a new bolt and three new nuts, install the front strut tower bar LH.

Standard value:
Tightening torque=16N·m { 163kgf·cm} {11.8ft·lbf}
2. Installation of front strut tower bar RH
NOTE:
Service the RH side in the same procedure as the LH side.
