Front speed sensor
Components Removal / installation
BRAKE CONTROL
FRONT SPEED SENSOR

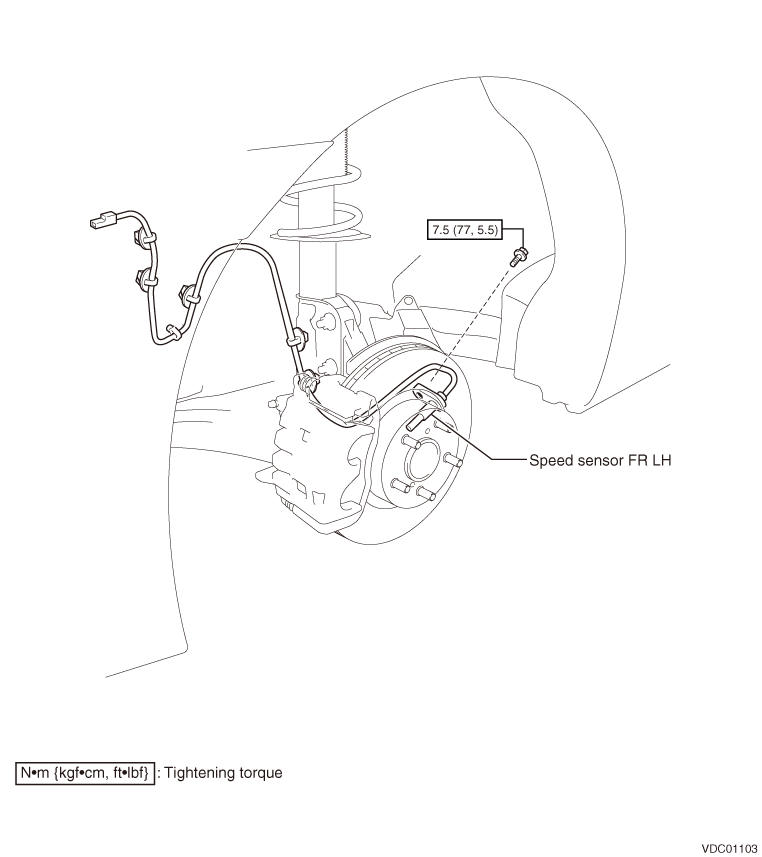

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures both for the LH side and RH side, unless otherwise specified.
1. Removal of front tire
2. Removal of front mud guard LH (Refer to
)
)
3. Removal of speed sensor FR LH

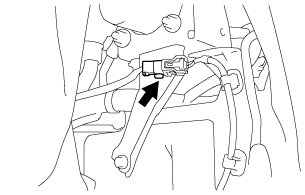

(1) Disconnect the connector.

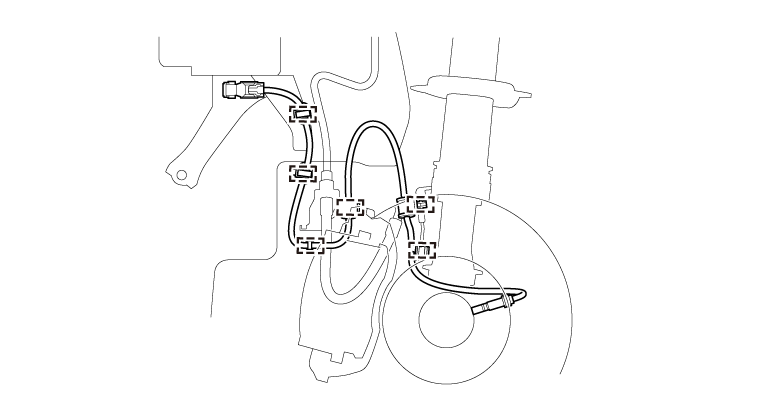

(2) Disconnect 6 clamps.
(3) Remove the bolt and the speed sensor FR LH.
CAUTION:
Do not let foreign matter stick to the installation part and the tip of the speed sensor FR LH.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures both for the LH side and RH side, unless otherwise specified.
1. Installation of speed sensor FR LH
(1) Install the speed sensor FR LH with bolt.
Standard value:
CAUTION:
Do not let foreign matter stick to the installation part and the tip of the speed sensor FR LH.
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
(2) Attach 6 clamps.
CAUTION:
Do not attach the speed sensor FR LH with the sensor twisted.
(3) Connect the connector for the speed sensor FR LH.
2. Installation of front mud guard LH (Refer to )
)3. Installation of front tire
Standard value:
Standard value:
Tightening torque=120N·m
{
1224kgf·cm}
{88.5ft·lbf}
