Rear speed sensor
Components Removal / installation
BRAKE CONTROL
REAR SPEED SENSOR

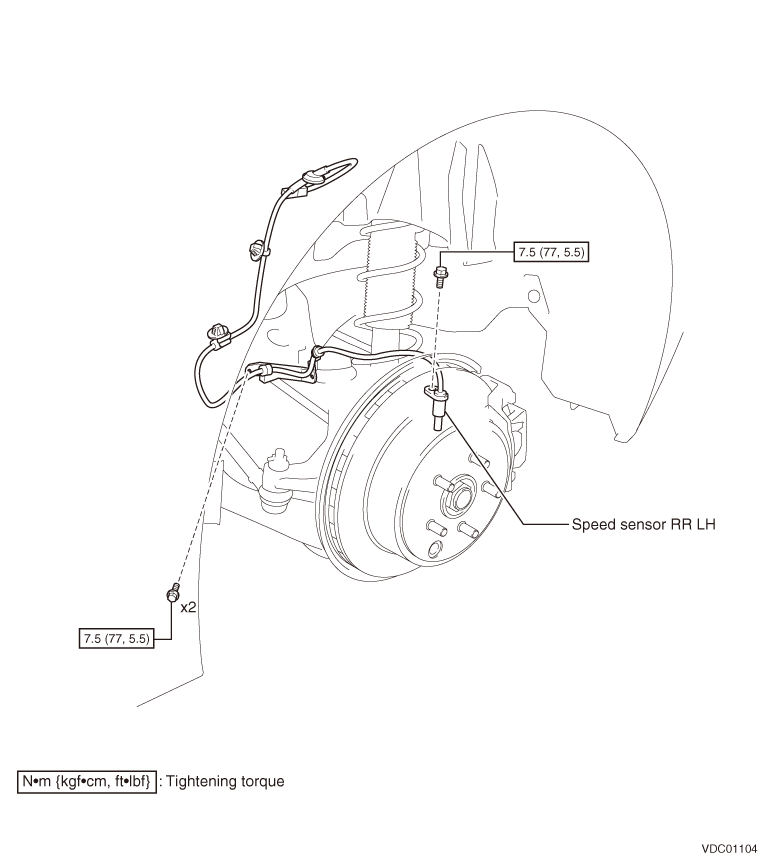

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Removal of rear tire
2. Removal of speed sensor RR LH
(1) Remove the luggage compartment floor mat.

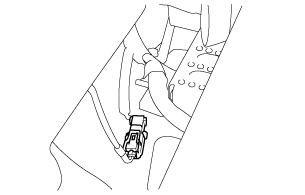

(2) Disconnect the speed sensor RR LH connectors in the vehicle.

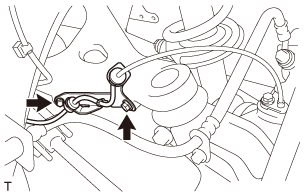

(4) Remove 2 bolts from the bracket.

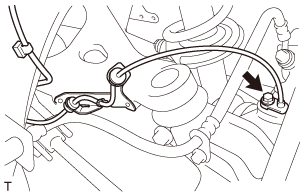

(5) Remove the bolts and the speed sensor RR LH.
CAUTION:
Do not let foreign matter stick to the installation part and the tip of the speed sensor RR LH.
INSTALLATION
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
1. Installation of speed sensor RR LH
(1) Install the speed sensor RR LH with 3 bolts.
Standard value:
Standard value:
Tightening torque=7.5N·m
{
77kgf·cm}
{5.5ft·lbf}
CAUTION:
Do not let foreign matter stick to the installation part and the tip of the speed sensor RR LH.

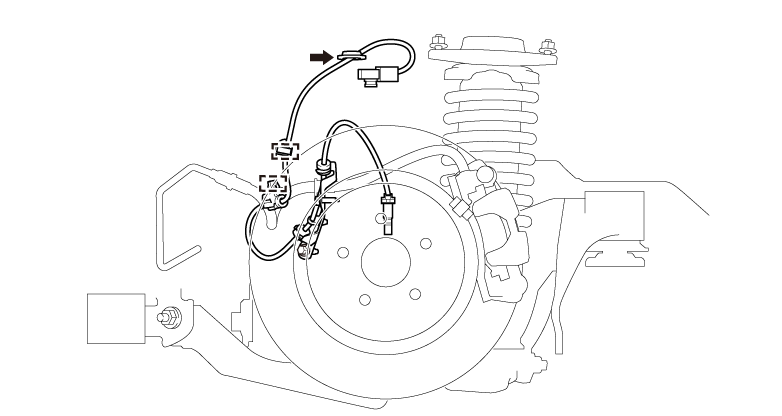

(2) Attach 2 harness clamps.
CAUTION:
Do not attach the harness clamps and the harness bracket with the speed sensor RR LH wire twisted.
(3) Pull the grommet from inside the vehicle and secure it.
CAUTION:
·Do not pull the wiring harness of the speed sensor RR LH.
·Do not secure the drilled grommet obliquely.
·Do not secure the drilled grommet obliquely.
(4) Connect the connector.
(5) Install the trunk floor mat.
2. Installation of rear tire
Standard value:
Standard value:
Tightening torque=120N·m
{
1224kgf·cm}
{88.5ft·lbf}
