Steering sensor
Components Removal / installation
BRAKE CONTROL
STEERING SENSOR

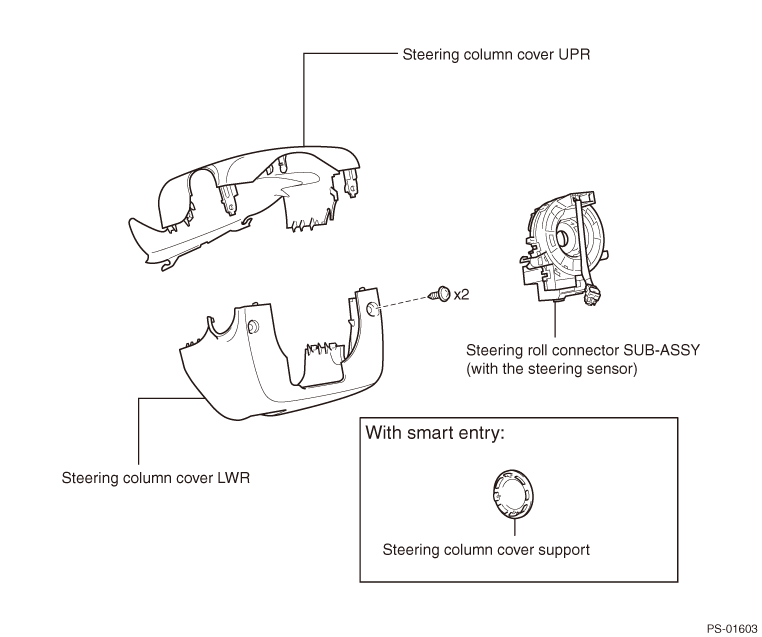

EXPLODED VIEW
REMOVAL
WARNING:
The following service operations include the works which may affect the SRS airbag system. Before starting work, always check the precautions for the SRS airbag system. (Refer to
)
)1. Confirmation of front tires in the straight-ahead position
2. Precautions
CAUTION:
After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to )
)3. Disconnection of the battery ground terminal
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and then wait for 60 seconds before starting the work.
WARNING:
The air bag and the pretensioner system have a back up power supply. If you start working within 60 seconds after disconnecting the battery ground terminal, the air bag may be activated.
CAUTION:
To avoid damage to the molding, be sure to fully open the door glasses on both driver’s and passenger’s sides.
4. Removal of steering wheel (Refer to )
)5. Removal of steering column cover support (with smart entry)
(1) Release 4 claws and remove the steering column cover support.
6. Removal of steering column cover LWR (Refer to )
)7. Removal of steering column cover UPR (Refer to )
)8. Removal of steering roll connector SUB-ASSY (with steering sensor) (Refer to )
)9. Removal of steering sensor
CAUTION:
·Only when repairing the steering roll connector or the steering sensor, remove it.
·Do not rotate the center part of the steering sensor because the centering point of the steering sensor may be shifted.
·Do not rotate the center part of the steering sensor because the centering point of the steering sensor may be shifted.
INSTALLATION
WARNING:
The following service operations include the works which may affect the SRS airbag system. Before starting work, always check the precautions for the SRS airbag system. (Refer to )
)1. Installation of steering sensor
(1) Align 2 pins and 2 guides.
(2) Engage 6 claws, and then attach the steering sensor to the steering roll connector.
CAUTION:
Do not rotate the steering sensor until the steering sensor is attached to the spiral cable.
2. Installation of steering roll connector SUB-ASSY (with steering sensor) (Refer to )
)3. Installation of steering column cover UPR (Refer to )
)4. Installation of steering column cover LWR (Refer to )
)5. Installation of steering column cover support (with smart entry)
6. Confirmation of front tires in the straight-ahead position
7. Steering roll connector centering (Refer to )
)8. Installation of steering wheel (Refer to )
)9. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4ft·lbf}
10. Settings when removing/installing battery terminals (Refer to )
)11. Centering of VSC (VDC) sensor (Refer to )
)12. Air bag warning light check (Refer to )
)
