VSC (VDC) OFF switch
Components Inspection Removal / installation
BRAKE CONTROL
VSC (VDC) OFF SWITCH

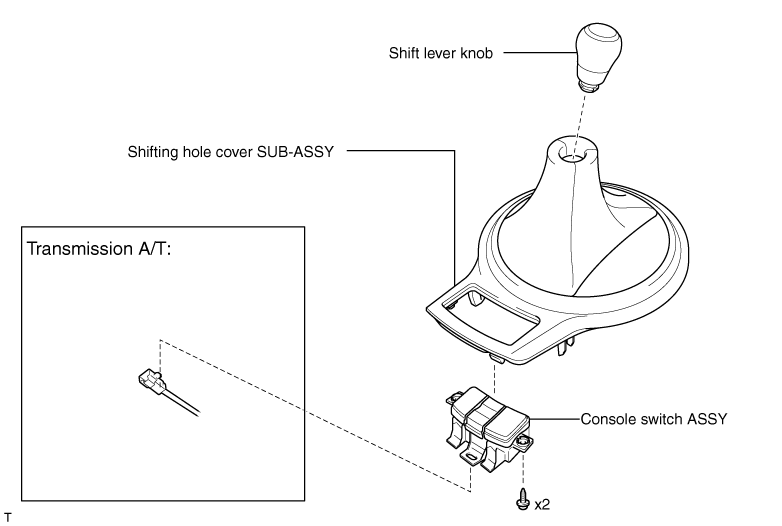

EXPLODED VIEW
REMOVAL
1. Removal of shift lever knob (transmission M/T) (Refer to
)
)2. Removal of shifting hole cover SUB-ASSY (transmission M/T) (Refer to )
)3. Removal of shift lever knob (transmission A/T) (Refer to )
)4. Removal of shifting hole cover SUB-ASSY (transmission A/T) (Refer to )
)5. Removal of console switch ASSY
(1) Disconnect the connector.
(2) Disconnect the connector clamp. (Transmission A/T)
(3) Remove 2 screws and remove the console switch ASSY from the shifting hole cover SUB-ASSY.
INSTALLATION
1. Installation of console switch ASSY
(1) With 2 screws, install the console switch ASSY to the shifting hole cover SUB-ASSY.
(2) Install the connector clamp. (Transmission A/T)
(3) Connect the connector.
2. Installation of shifting hole cover SUB-ASSY (transmission M/T) (Refer to )
)3. Installation of shift lever knob (transmission M/T) (Refer to )
)4. Installation of shifting hole cover SUB-ASSY (transmission A/T) (Refer to )
)5. Installation of shift lever knob (transmission A/T) (Refer to )
)UNIT INSPECTION
1. Console switch ASSY check
(1) Check that the VSC (VDC) OFF switch is not sticking.
(2) Check that the VSC (VDC) SPORT switch is not sticking.
(a) Measure the resistance between the VSC (VDC) SPORT switch terminals.
Standard value
| Inspection terminals |
Inspection conditions |
Standard value |
|---|---|---|
| 1 - 8 |
When the switch is not being operated |
10 k Ω or more |
| When the switch is being operated. |
Less than 1 Ω |

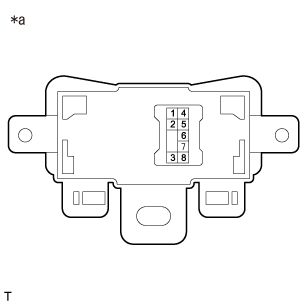

Captions in illustration
| *a |
Connector not connected (VSC (VDC) OFF switch) |
