Brake pedal (LHD MT model)
Components Removal / installation
BRAKE SYSTEM/PEDAL/BRAKE BOOSTER DEVICE
BRAKE PEDAL (LHD MT MODEL)

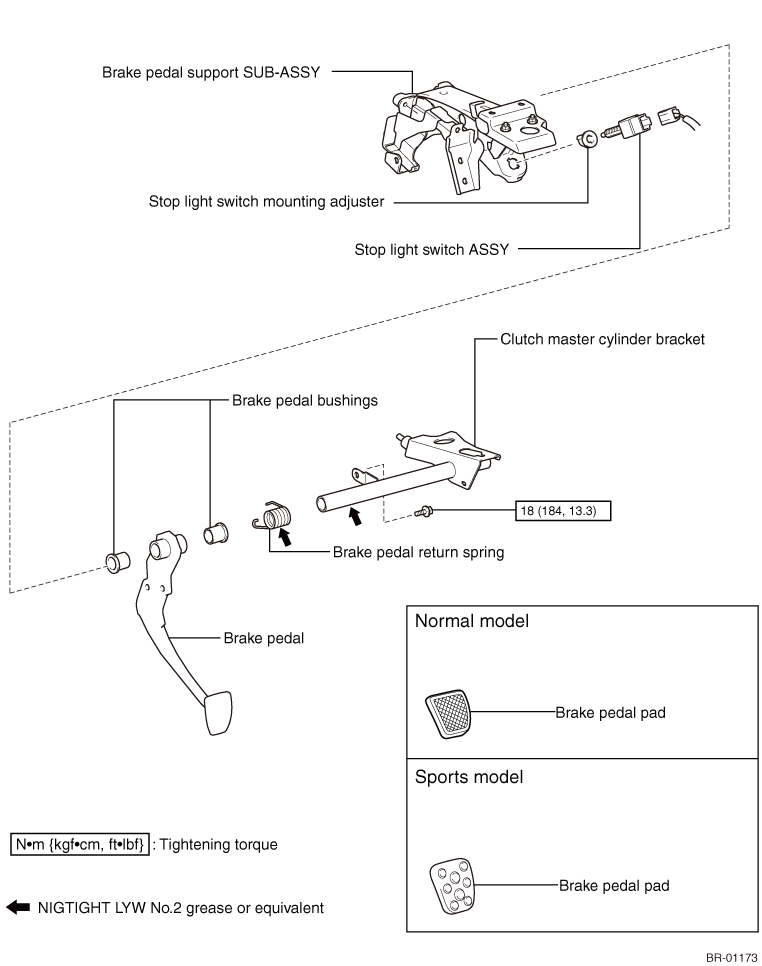

EXPLODED VIEW
REMOVAL
1. Removal of instrument side panel LH (Refer to
)
)2. Removal of instrument panel under cover SUB-ASSY No.1 (Refer to )
)3. Removal of instrument panel under cover SUB-ASSY No.2 (Refer to )
)4. Removal of knee air bag module (Refer to )
)5. Removal of clutch pedal support SUB-ASSY (Refer to )
)6. Removal of stop light switch ASSY (Refer to )
)
7. Removal of stop light switch mounting adjuster
(1) Release 2 claws and remove the stop light switch mounting adjuster.
DISASSEMBLY
1. Removal of brake pedal
2. Removal of brake pedal return spring
(1) Remove the brake pedal return spring from the clutch master cylinder bracket.
ASSEMBLY

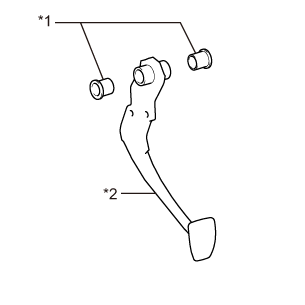

1. Installation of brake pedal bushings
2. Installation of brake pedal

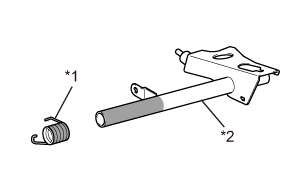

(1) Apply NIGTIGHT LYW No.2 or equivalent to the brake pedal return spring and clutch master cylinder bracket.
Captions in illustration
| *1 |
Brake pedal return spring |
| *2 |
Clutch master cylinder bracket |
 |
NIGTIGHT LYW No.2 or equivalent |

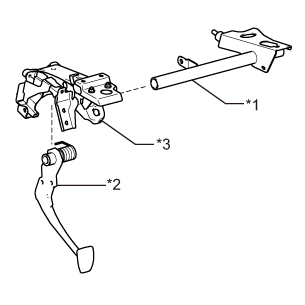

(2) Install the clutch master cylinder bracket and brake pedal to the brake pedal support SUB-ASSY.
Captions in illustration
| *1 |
Clutch master cylinder bracket |
| *2 |
Brake pedal |
| *3 |
Brake pedal support SUB-ASSY |

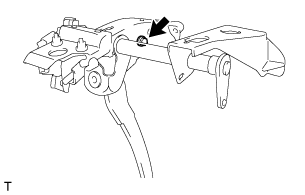

(3) Install the bolt.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13.3ft·lbf}
INSTALLATION
1. Installation of stop light switch mounting adjuster
(1) Engage 2 clamps, and install the stop light switch mounting adjuster.
2. Brake pedal height check/adjustment (Refer to )
)3. Brake pedal free play check (Refer to )
)4. Brake pedal clearance check (Refer to )
)5. Installation of stop light switch ASSY (Refer to )
)6. Installation of knee air bag module (Refer to )
)7. Installation of instrument panel under cover SUB-ASSY No.2 (Refer to )
)8. Installation of instrument panel under cover SUB-ASSY No.1 (Refer to )
)9. Installation of instrument side panel LH (Refer to )
)10. Installation of clutch pedal SUB-ASSY (Refer to )
)ADJUSTMENT
1. Brake pedal height check/adjustment (Refer to )
)2. Brake pedal free play check (Refer to )
)3. Brake pedal clearance check (Refer to )
)
