Rear brake flexible hose
Components Removal / installation
REAR BRAKE
REAR BRAKE FLEXIBLE HOSE

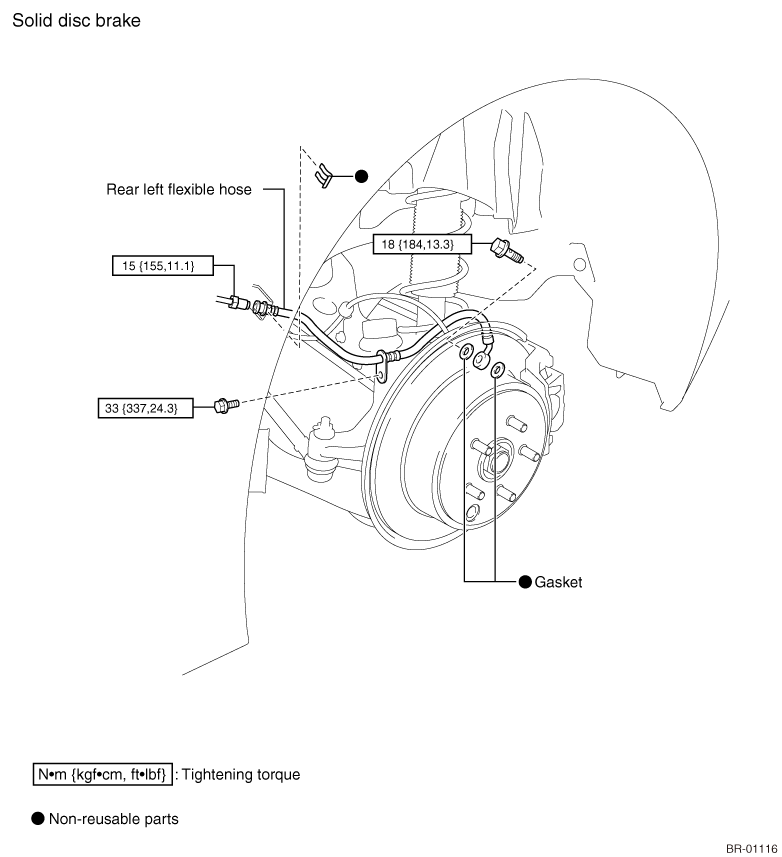

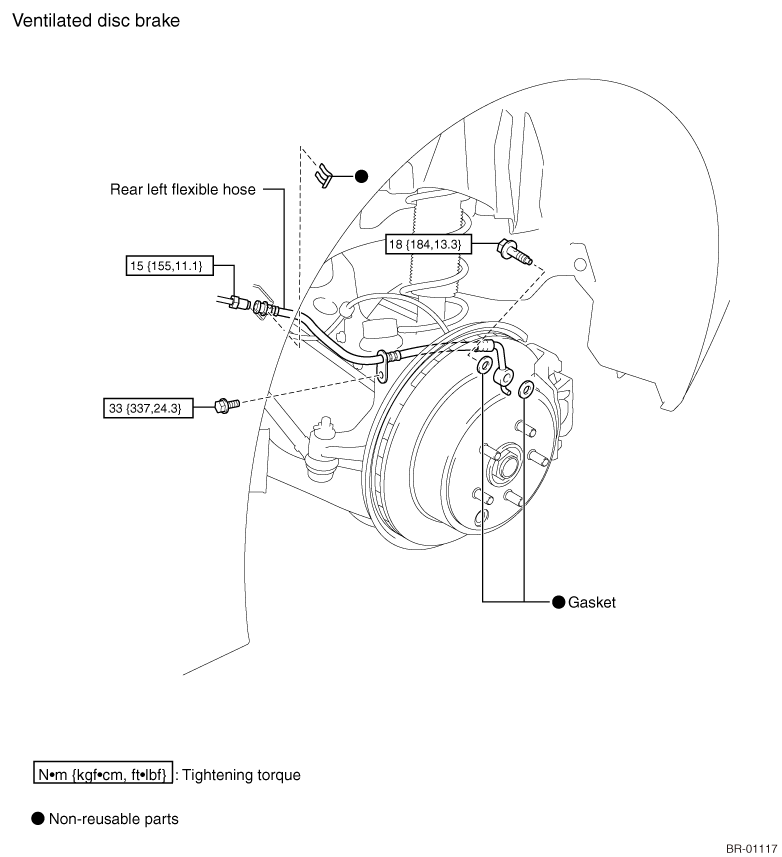

EXPLODED VIEW
REMOVAL
NOTE:
·The following procedure is for LH side.
·Service the LH side and the RH side using the same procedure.
·Service the LH side and the RH side using the same procedure.
1. Removal of rear tire
2. Draining of brake fluid (Refer to
)
)
3. Removal of rear left flexible hose
(1) Remove the union bolt and 2 gaskets to disconnect the rear left flexible hose from the disk brake cylinder ASSY RR LH.
Captions in illustration
| *A |
Solid disc brake |
| *B |
Ventilated disc brake |

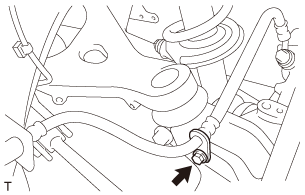

(2) Remove the bolt and disconnect the rear left flexible hose from the rear carrier LH.
(3) Secure the rear left flexible hose with a spanner, and disconnect the brake tube using a flare-nut wrench.
CAUTION:
·Do not bend or damage the brake tubes.
·Do not let foreign matter including dirt and dust enter the connection part of the brake tube.
·Do not let foreign matter including dirt and dust enter the connection part of the brake tube.

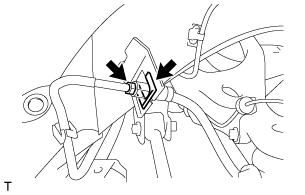

(4) Remove the clip.
(5) Remove the rear left flexible hose.
INSTALLATION
NOTE:
·The following procedure is for LH side.
·Perform the same procedures for the RH and LH side.
·Perform the same procedures for the RH and LH side.
1. Installation of rear left flexible hose
(1) With a new clip, install the rear left flexible hose.
CAUTION:
Securely attach the clip as far as it will go.
(2) Secure the rear left flexible hose with a spanner, and connect the brake tube to the rear left flexible hose using a flare-nut wrench.
Standard value:
Standard value:
Tightening torque=15N·m
{
155kgf·cm}
{11.1ft·lbf}
CAUTION:
·Do not bend or damage the brake tubes.
·Do not let foreign matter including dirt and dust enter the connection part of the brake tube.
·Do not let foreign matter including dirt and dust enter the connection part of the brake tube.
(3) With a bolt, connect the rear left flexible hose to the rear carrier LH.
Standard value:
Standard value:
Tightening torque=33N·m
{
337kgf·cm}
{17.7ft·lbf}
(4) Using a new union bolt, install the rear left flexible hose to the disc brake cylinder ASSY RR LH via new gasket.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13.3ft·lbf}
2. Brake fluid refill (Refer to )
)3. Air bleeding of brake system (Refer to )
)4. Brake fluid leak check
5. Brake fluid level check (Refer to )
)6. Installation of rear tire
Standard value:
Standard value:
Tightening torque=120N·m
{
1224kgf·cm}
{88.5ft·lbf}
