Parking brake cable ASSY
Components Removal / installation
PARKING BRAKE
PARKING BRAKE CABLE ASSY

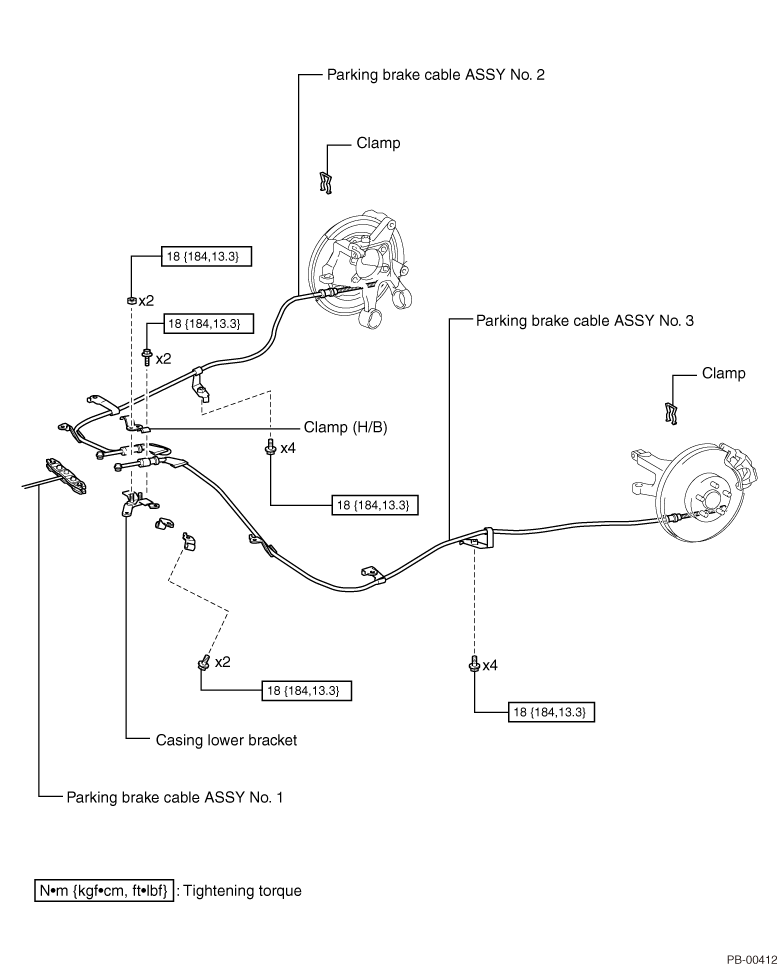

EXPLODED VIEW
REMOVAL
1. Removal of console box ASSY (Refer to
)
)2. Removal of parking brake cable ASSY No.1 (Refer to )
)3. Disconnection of parking brake ASSY (Refer to )
)

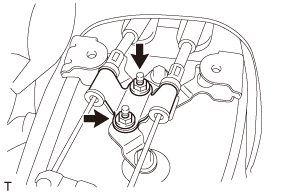

4. Removal of clamp (H/B)
(1) Remove 2 nuts and then the clamp (H/B).

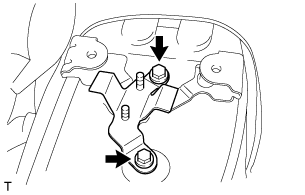

5. Removal of casing lower bracket
(1) Remove 2 bolts, and then remove the casing lower bracket.

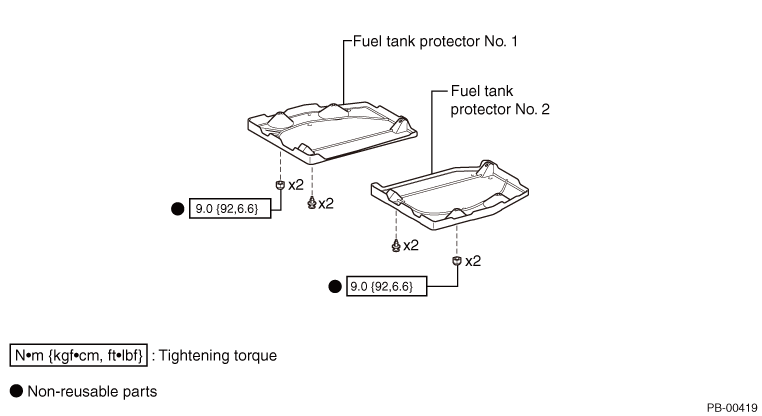

6. Removal of fuel tank protector No. 1 (Refer to )
)7. Removal of fuel tank protector No. 2 (Refer to )
)

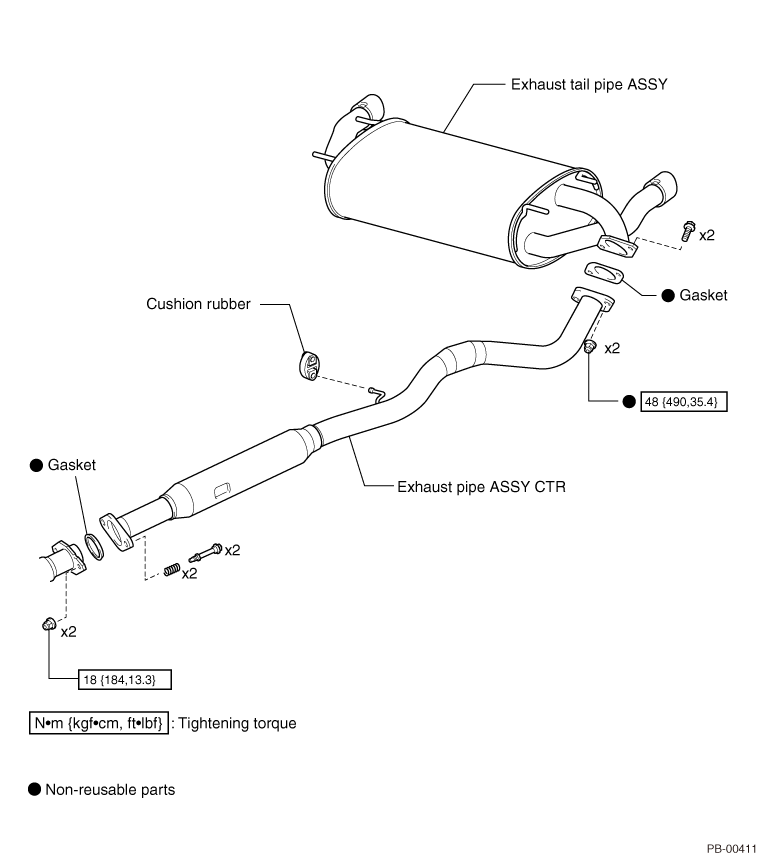

8. Removal of exhaust pipe ASSY CTR
(1) Remove the two nuts, two bolts and two compression springs to remove the exhaust pipe ASSY CTR.
(2) Remove the two nuts and two bolts to remove the exhaust tail pipe ASSY.
(3) Remove the cushion rubber, and remove the exhaust pipe ASSY CTR.
(4) Remove the gasket.
9. Removal of propeller shaft center bearing ASSY (Refer to )
)10. Removal of parking brake cable ASSY No.3
11. Removal of parking brake cable ASSY No.2
NOTE:
Perform the same procedures for the parking brake cable ASSY No.3.
INSTALLATION

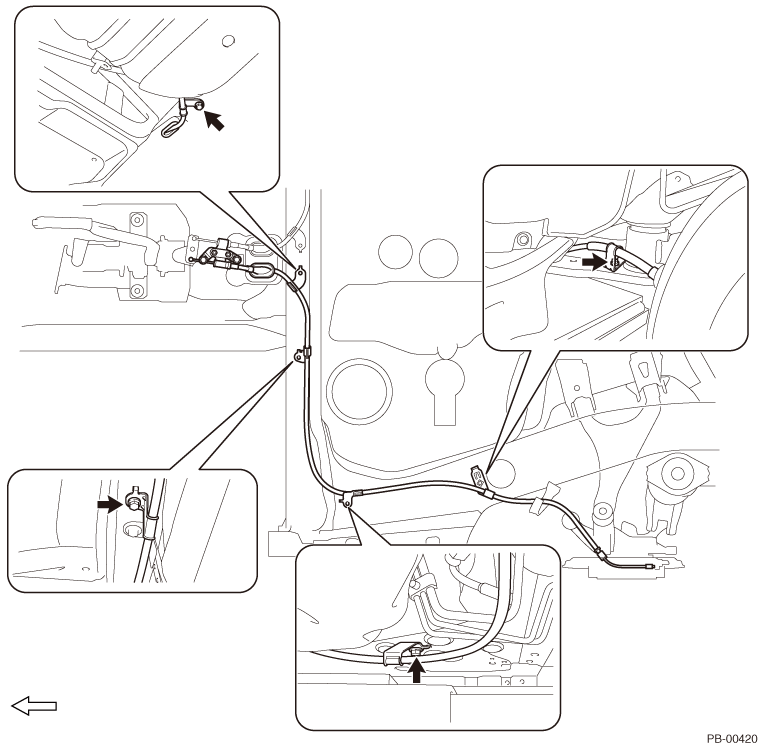

1. Installation of parking brake cable ASSY No.3
(1) Push the parking brake cable ASSY No.3 into the backing plate, and then install it with the clamp.
(2) Install the parking brake cable ASSY No.3 to the body with 4 bolts.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13.3ft·lbf}
2. Installation of parking brake cable ASSY No.2
NOTE:
Perform the same procedures for the parking brake cable ASSY No.3.
3. Installation of propeller shaft center bearing ASSY (Refer to )
)4. Installation of exhaust pipe ASSY CTR
(1) Install the exhaust pipe ASSY CTR with the cushion rubber.
(2) With 2 bolts and 2 new nuts, install the exhaust pipe ASSY CTR to the exhaust tail pipe ASSY via a new gasket.
Standard value:
Standard value:
Tightening torque=48N·m
{
490kgf·cm}
{35.4ft·lbf}
(3) With 2 bolts, 2 nuts, and 2 compression springs, install the exhaust pipe ASSY CTR to the exhaust pipe ASSY FR via a new gasket.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13.3ft·lbf}
5. Installation of fuel tank protector No. 1 (Refer to )
)6. Installation of fuel tank protector No. 2 (Refer to )
)7. Installation of casing lower bracket
(1) Install the casing lower bracket to the body with 2 bolts.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13.3ft·lbf}
8. Installation of clamp (H/B)
(1) Install the clamp (H/B) to the casing lower bracket to the body with 2 nuts.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13.3ft·lbf}
9. Installation of parking brake cable ASSY No.1 (Refer to )
)
