Parking brake lever ASSY
Components Removal / installation
PARKING BRAKE
PARKING BRAKE LEVER ASSY

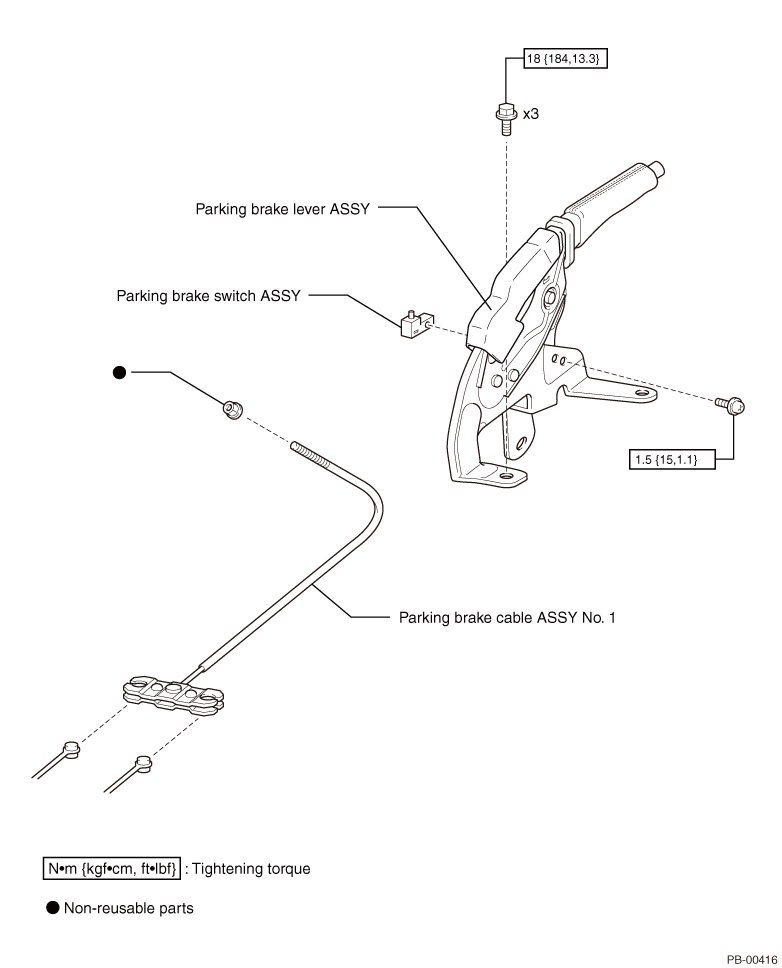

EXPLODED VIEW
REMOVAL
1. Removal of console box ASSY (Refer to
)
)2. Removal of parking brake cable ASSY No.1
(1) Release the parking brake.
(2) Remove the adjusting nut.

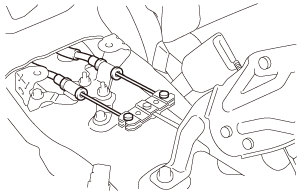

(3) Disconnect the parking brake cable ASSY No.2 and No.3 from the parking brake cable ASSY No.1.
(4) Remove the parking brake cable ASSY No.1 from the parking brake lever.
3. Removal of parking brake lever ASSY
(1) Disconnect the connector for the parking brake switch ASSY.

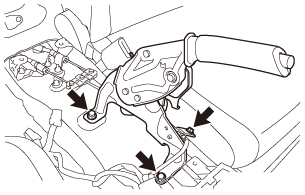

(2) Remove 3 bolts and then the parking brake lever ASSY.
4. Removal of parking brake switch ASSY

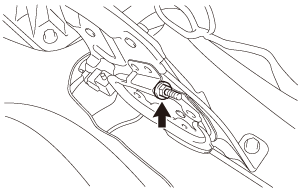

(1) Remove the screw and then the parking brake switch ASSY.
INSTALLATION
1. Installation of parking brake switch ASSY
(1) Install the parking brake switch ASSY with a screw.
Standard value:
Standard value:
Tightening torque=1.5N·m
{
15kgf·cm}
{1.1 ft·lbf}
2. Installation of parking lever ASSY
(1) Install the parking brake lever ASSY with 3 bolts.
Standard value:
Standard value:
Tightening torque=18N·m
{
184kgf·cm}
{13.3ft·lbf}
(2) Connect the connector for the parking brake switch ASSY.
3. Installation of parking brake cable ASSY No.1
(1) Attach the parking brake cable ASSY No.1 to the parking brake lever and then secure it with an adjusting nut temporarily.
(2) Connect the parking brake cable No.2 and No.3 to the parking brake cable ASSY No.1.
4. Parking brake lever stroke check (Refer to )
)5. Adjustment of parking brake lever stroke (Refer to )
)6. Installation of console box ASSY (Refer to )
)
