Parking brake switch ASSY
Components Inspection Removal / installation
PARKING BRAKE
PARKING BRAKE SWITCH ASSY

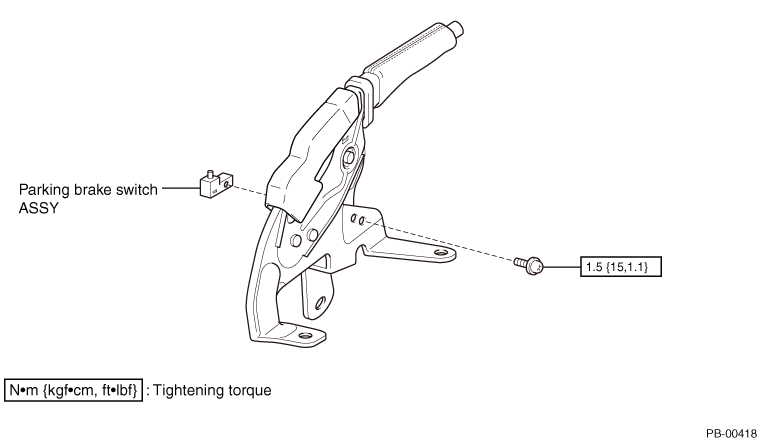

EXPLODED VIEW
REMOVAL
1. Removal of console box ASSY (Refer to
)

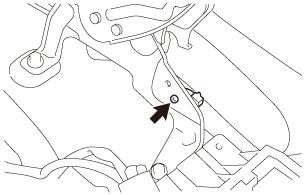

)2. Removal of parking brake switch ASSY
(1) Disconnect the connector.
(2) Remove the screw and parking brake switch ASSY from the parking brake lever ASSY.
INSTALLATION
1. Installation of parking brake switch ASSY
(1) Install the parking brake switch ASSY to the parking brake lever ASSY with screw.
Standard value:
Standard value:
Tightening torque=1.5N·m
{
15kgf·cm}
{1.1 ft·lbf}
(2) Connect the connector.
2. Installation of console box ASSY (Refer to )
)UNIT INSPECTION

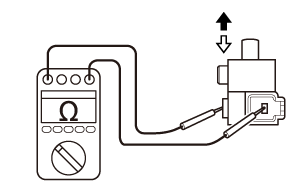

1. Parking brake switch ASSY check
