Amplifier antenna
Components Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
AMPLIFIER ANTENNA

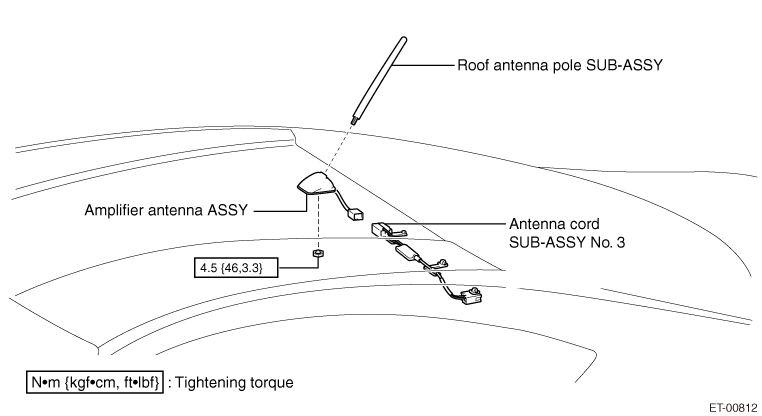

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of the roof head lining ASSY (Refer to )
)3. Removal of the roof antenna pole SUB-ASSY (Refer to )
)
4. Removal of the amplifier antenna ASSY

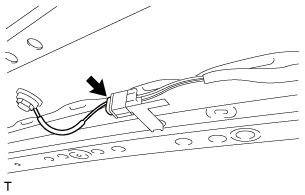

(1) Disconnect the connector.

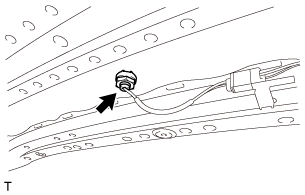

(2) Remove the antenna nut.

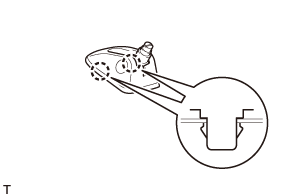

(3) Unhook the two tabs and remove the amplifier antenna ASSY.
5. Removal of the antenna cord SUB-ASSY No.3

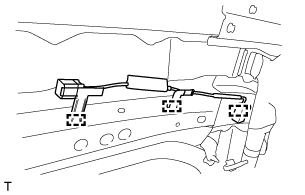

(1) Release the three clamps and remove the antenna cord SUB-ASSY No.3.
INSTALLATION
1. Installation of the antenna cord SUB-ASSY No.3
(1) Fasten the three clamps and install the antenna cord SUB-ASSY No.3.
2. Installation of the amplifier antenna ASSY
(1) Attach the two sets of tabs of the amplifier antenna ASSY to the roof.

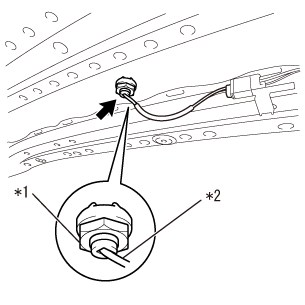

(2) Move the antenna cord so that it sticks out toward the rear of the vehicle, and attach the antenna nut.
Standard value:
Captions in illustration
| *1 |
Antenna nut |
| *2 |
Antenna cord |
Standard value:
Tightening torque=4.5N·m
{
46kgf·cm}
{3.3 ft·lbf}
(3) Connect the connector.
3. Installation of the roof antenna pole SUB-ASSY (Refer to )
)4. Installation of the roof head lining ASSY (Refer to )
)5. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4 ft·lbf}
6. Settings when connecting / disconnecting battery terminals (Refer to )
)
