Stereo jack adapter
Components Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
STEREO JACK ADAPTER

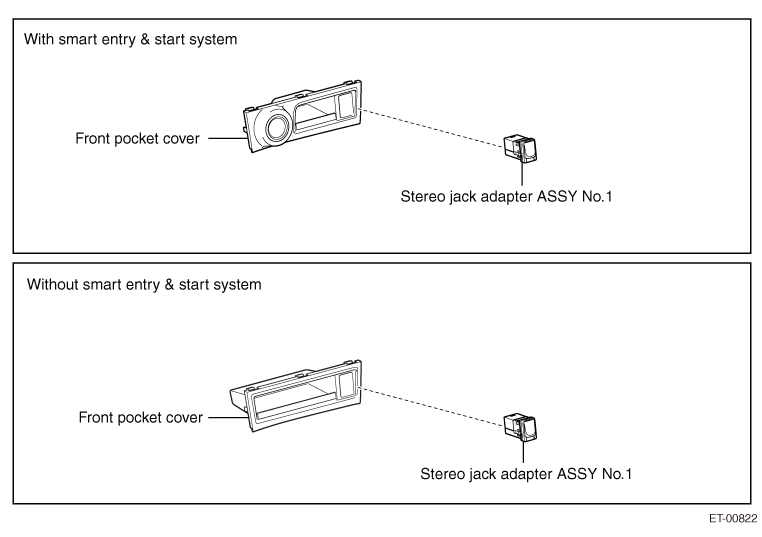

COMPONENTS
REMOVAL
1. Removal of the front pocket cover (with entry & start system) (Refer to
)
)2. Removal of the front pocket cover (without entry & start system) (Refer to )
)
3. Removal of the stereo jack adapter ASSY No.1

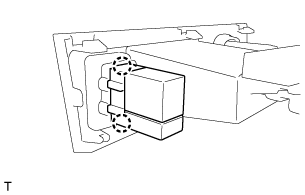

(1) Unhook the two tabs and remove the stereo jack adapter ASSY No.1.
INSTALLATION
1. Installation of the stereo jack adapter ASSY No.1
(1) Engage the two tabs and install the stereo jack adapter ASSY No.1.
2. Installation of the front pocket cover (with entry & start system) (Refer to )
)3. Installation of the front pocket cover (without entry & start system) (Refer to )
)
