Radio receiver ASSY
Components Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
RADIO RECEIVER ASSY

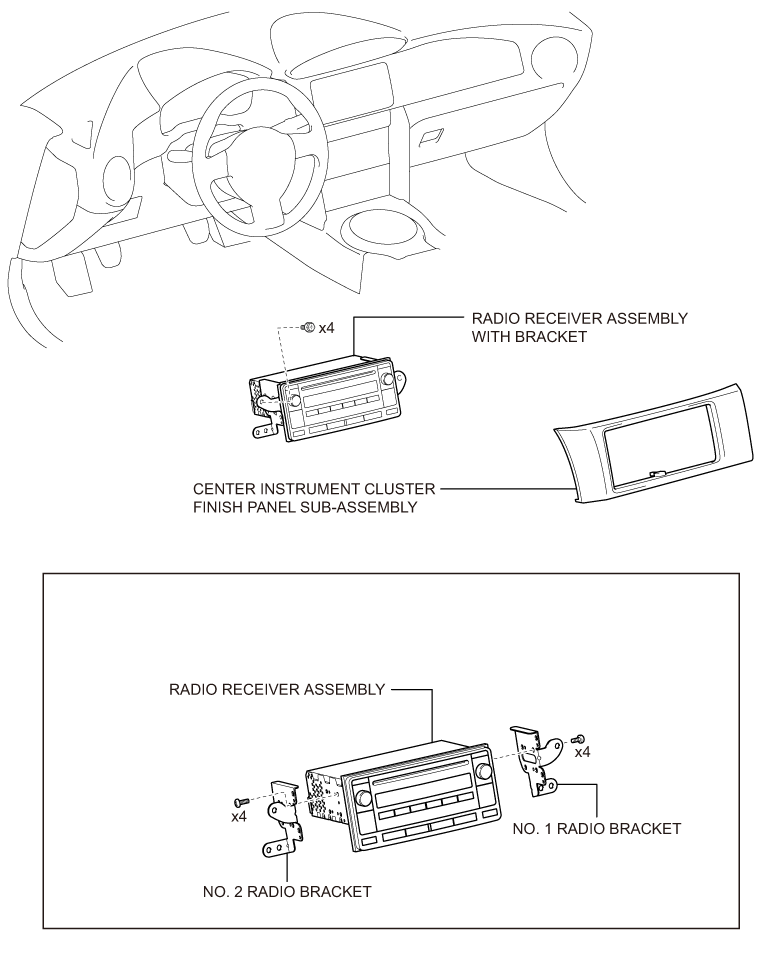

PARTS LOCATION
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of the instrument cluster finish panel SUB-ASSY CTR (Refer to )
)
3. Removal of the radio receiver ASSY
(1) Undo the 4 bolts and pull out the radio receiver ASSY toward the rear of the vehicle.
(2) Disconnect each connector and remove the radio receiver ASSY.
4. Removal of the radio receiver bracket No.1

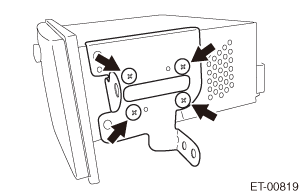

(1) Undo the four screws and remove the radio receiver bracket No.1 from the radio receiver ASSY.
5. Removal of the radio receiver bracket No.2
NOTE:
Perform the same procedure as with the radio receiver bracket No.1.
INSTALLATION
1. Installation of the radio receiver bracket No.1
(1) Install the radio receiver bracket No.1 onto the radio receiver ASSY and fasten the 4 screws.
2. Installation of the radio receiver bracket No.2
NOTE:
Perform the same procedure as with the radio receiver bracket No.1.
3. Installation of the radio receiver ASSY
(1) Connect each connector.
(2) Install the radio receiver ASSY in place with the 4 bolts.
4. Installation of the instrument cluster finish panel SUB-ASSY CTR (Refer to )
)5. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4 ft·lbf}
6. Settings when connecting / disconnecting battery terminals (Refer to )
)
