Antenna cord
Components Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
ANTENNA CORD

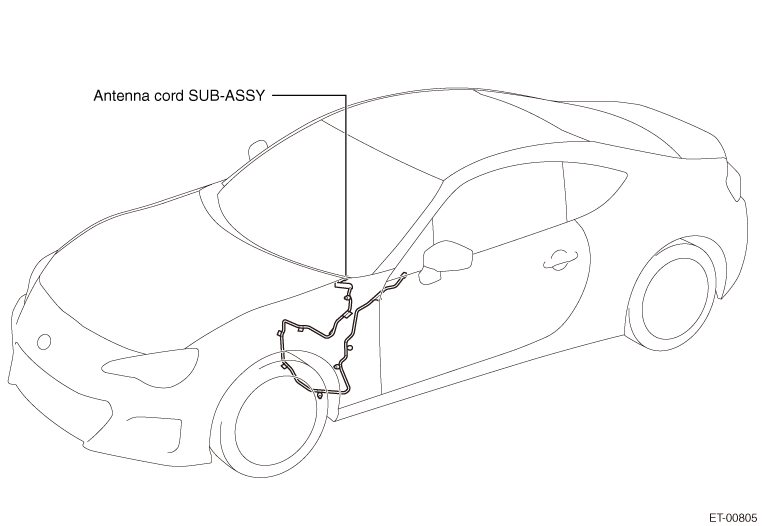

EXPLODED VIEW
REMOVAL
WARNING:
The following service operations include the works which may affect the SRS airbag system. Before starting work, always check the precautions for the SRS airbag system. (Refer to
)
)1. Precautions
CAUTION:
After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to )
)2. Disconnection of the battery ground terminal
(1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and then wait for 60 seconds before starting the work.
WARNING:
As the airbag and pretensioner system is equipped with a backup power supply, if you start work within 60 seconds of disconnecting the battery ground terminal, the airbag may accidently deploy.
3. Removal of the instrument panel SUB-ASSY (Refer to )
)4. Removal of the air conditioner radiator ASSY (Refer to )
)
5. Removal of the antenna cord SUB-ASSY

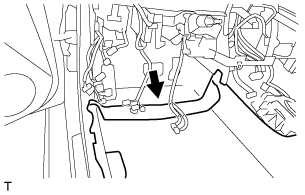

(1) Turn over the front end of the driver‘s seat floor mat.
(2) Disconnect each connector.

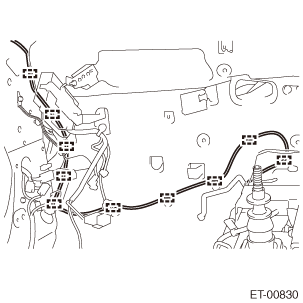

(3) Release the ten clamps and remove the antenna cord SUB-ASSY.
INSTALLATION
1. Installation of the antenna cord SUB-ASSY
(1) Fasten the ten clamps and install the antenna cord SUB-ASSY.
(2) Connect each connector.
(3) Return the floor mat to its original position.
2. Installation of the air conditioner radiator ASSY (Refer to )
)3. Installation of the instrument panel SUB-ASSY (Refer to )
)4. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4 ft·lbf}
5. Inspection of the airbag warning light (Refer to )
)6. Settings when connecting / disconnecting battery terminals (Refer to )
)
