Antenna cord No. 2
Components Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
ANTENNA CORD NO. 2

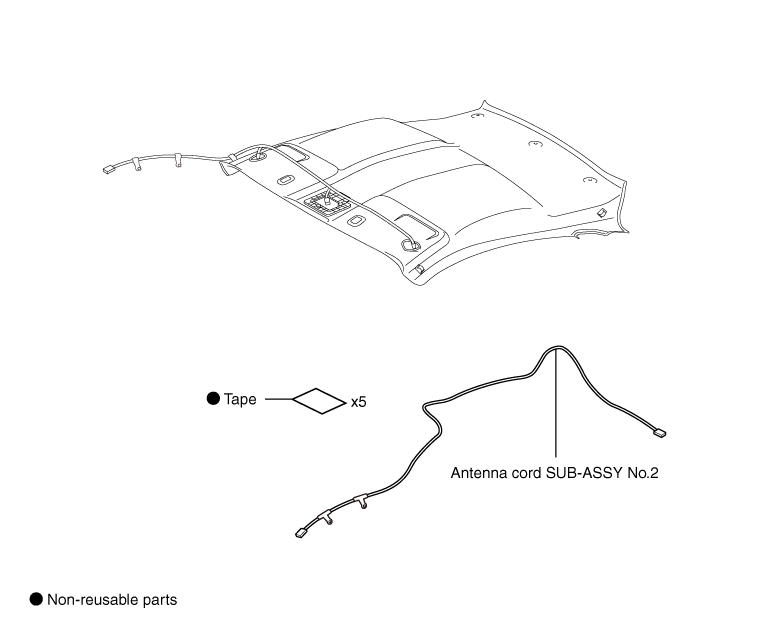

EXPLODED VIEW
REMOVAL
1. Disconnection of the battery ground terminal (Refer to
)
)2. Removal of the roof head lining ASSY (Refer to )
)
INSTALLATION
1. Installation of the antenna cord SUB-ASSY No.2

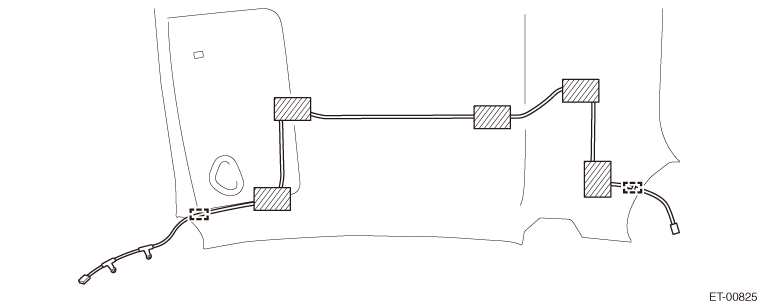

(1) Set the positioning tape areas of the antenna cord SUB-ASSY No.2 so that it matches the diagram, and fasten the 2 clamps.
Captions in illustration
| *1 |
Antenna cord SUB-ASSY No.2 |
*b |
Marked line |
| *a |
Roof head lining ASSY edge |
- |
- |
 |
Fixing tape (86359SC000/TAPE) |
 |
Positioning tape |

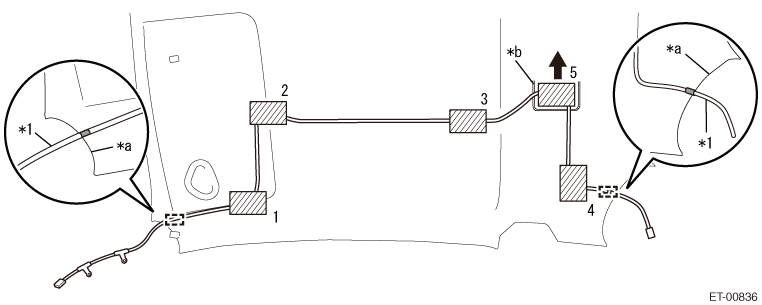

(2) Install the antenna cord SUB-ASSY No.2 along the marked line of the roof head lining ASSY using fixing tape.
NOTE:
·Secure the antenna cord SUB-ASSY No.2 in the order indicated in the diagram.
·When using fixing tape, cut it to the desired size. (the size of 50 mm × 80 mm or 2.0 in × 3.2 in is recommended)
·When applying the 5th piece of fixing tape, pull any slack in the antenna cord SUB-ASSY No.2 in the direction indicated by the arrow in the diagram before securing it in place.
·When using fixing tape, cut it to the desired size. (the size of 50 mm × 80 mm or 2.0 in × 3.2 in is recommended)
·When applying the 5th piece of fixing tape, pull any slack in the antenna cord SUB-ASSY No.2 in the direction indicated by the arrow in the diagram before securing it in place.
2. Installation of the roof head lining ASSY (Refer to )
)3. Connection of the battery ground terminal
Standard value:
Standard value:
Tightening torque=6.0N·m
{
61kgf·cm}
{4.4 ft·lbf}
4. Settings when connecting / disconnecting battery terminals (Refer to )
)5. Inspection of the airbag warning light (Refer to )
)
