Pole antenna
Components Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
POLE ANTENNA

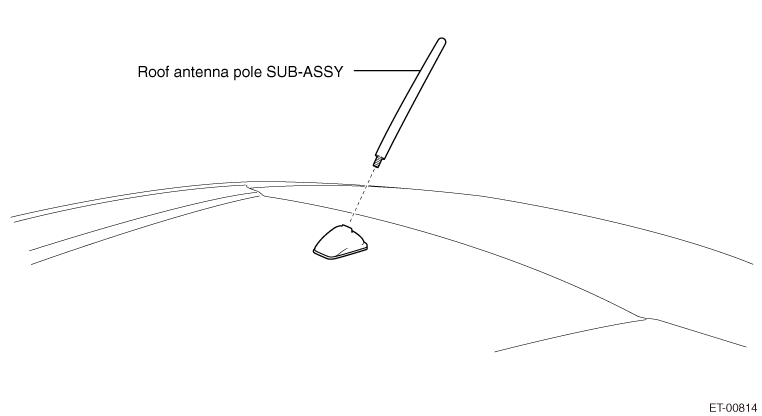

EXPLODED VIEW
REMOVAL
1. Removal of the roof antenna pole SUB-ASSY

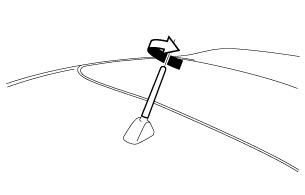

(1) Remove the roof antenna pole SUB-ASSY by rotating it in the direction indicated by the arrow in the diagram.
INSTALLATION
1. Installation of the roof antenna pole SUB-ASSY
(1) Install the roof antenna pole SUB-ASSY by rotating it in the direction indicated by the arrow in the diagram.
