Front door speaker
Components Inspection Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
FRONT DOOR SPEAKER

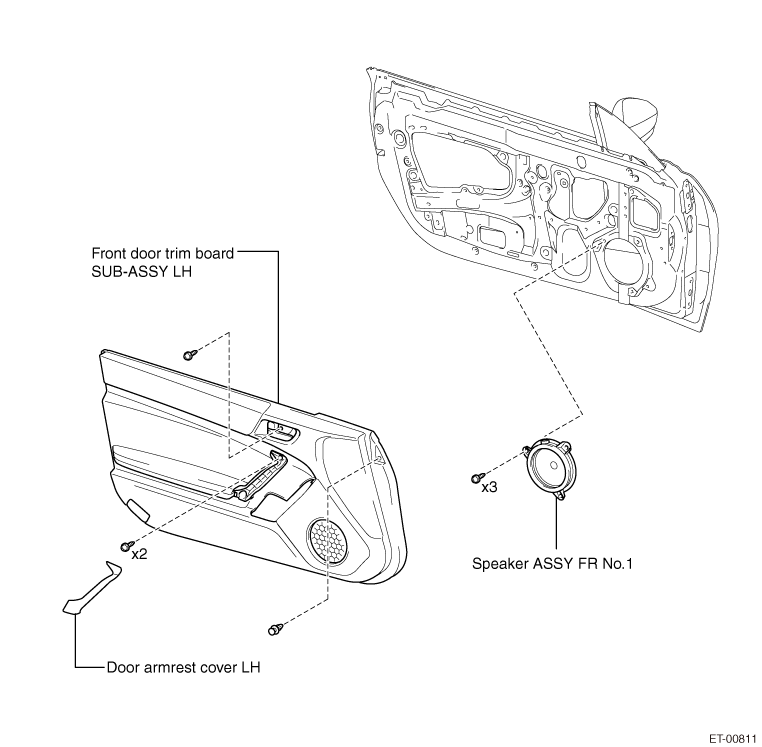

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. This same LH side procedure can also be used for the RH side.
1. Removal of the door armrest cover LH (Refer to
)
)2. Removal of the front door trim board SUB-ASSY LH (Refer to )
)
3. Removal of the speaker ASSY FR No.1
CAUTION:
Do not touch the speaker ASSY FR No.1 cone.
(1) Disconnect the connector.

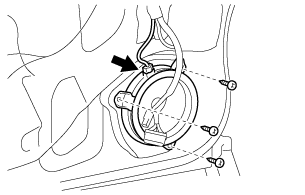

(2) Undo the three screws and remove the speaker ASSY FR No.1.
INSTALLATION
NOTE:
The following procedure is for LH side. This same LH side procedure can also be used for the RH side.
1. Installation of the speaker ASSY FR No.1
CAUTION:
Do not touch the speaker ASSY FR No.1 cone.
(1) Install the speaker ASSY FR No.1 and fasten the three screws.
(2) Connect the connector.
2. Installation of the front door trim board SUB-ASSY LH (Refer to )
)3. Installation of the door armrest cover LH (Refer to )
)UNIT INSPECTION
1. Inspection of the speaker ASSY FR No.1
CAUTION:
Do not touch the speaker ASSY FR No.1 cone.
(1) When installing the speaker ASSY FR No.1, always confirm that there are no abnormalities such as looseness or excessive play.
(2) Check that no foreign objects have entered into the speaker ASSY FR No.1, and that there are no abnormalities such tearing or damage to the cone paper.

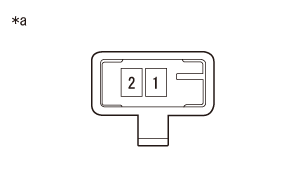

(3) Disconnect the speaker ASSY FR No.1 connector.
