Quarter trim speaker
Components Inspection Removal / installation
AUDIO SYSTEM / VISUAL SYSTEM
QUARTER TRIM SPEAKER

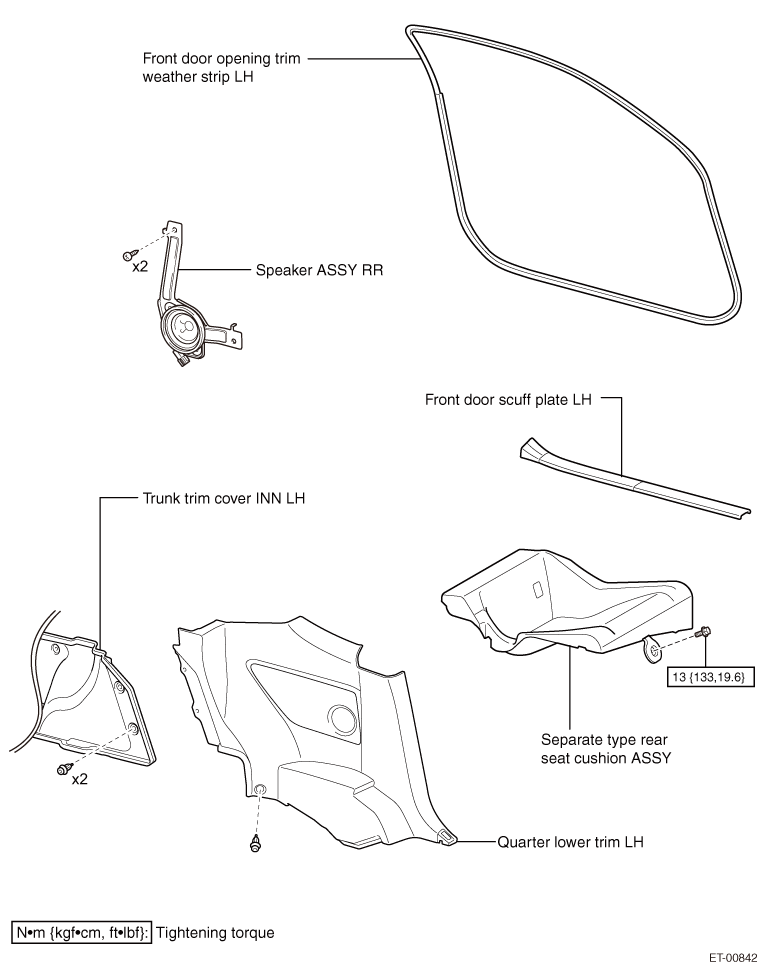

EXPLODED VIEW
REMOVAL
NOTE:
The following procedure is for LH side. This same LH side procedure can also be used for the RH side.
1. Disconnection of the front door opening trim weather strip LH (Refer to
)
)2. Removal of the front door scuff plate LH (Refer to )
)3. Removal of the separate-type rear seat cushion ASSY (Refer to )
)4. Disconnection of the trunk trim cover INN LH (Refer to )
)5. Removal of the quarter lower trim LH (Refer to )

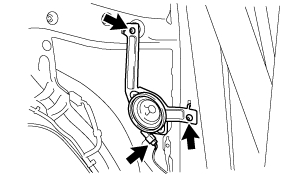

)6. Removal of the speaker ASSY RR
CAUTION:
Do not touch the speaker ASSY RR cone.
(1) Disconnect the connector.
(2) Undo the two screws and remove the speaker ASSY RR.
INSTALLATION
NOTE:
The following procedure is for LH side. This same LH side procedure can also be used for the RH side.
1. Installation of the speaker ASSY RR
CAUTION:
Do not touch the speaker ASSY RR cone.
(1) Install the speaker ASSY RR and fasten the two screws.
(2) Connect the connector.
2. Installation of the quarter lower trim LH (Refer to )
)3. Installation of the trunk trim cover INN LH (Refer to )
)4. Installation of the separate-type rear seat cushion ASSY (Refer to )
)5. Installation of the front door scuff plate LH (Refer to )
)6. Installation of the front door opening trim weather strip LH (Refer to )
)UNIT INSPECTION
1. Inspection of the speaker ASSY RR
CAUTION:
Do not touch the speaker ASSY RR cone.
(1) When installing the speaker, always confirm that there are no abnormalities such as looseness or excessive play.
(2) Check that no foreign objects have entered into the speaker, and that there are no abnormalities such cone paper tearing.

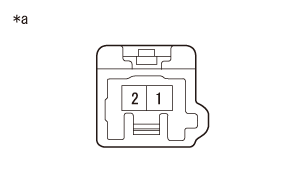

(3) Resistance check
(a) Disconnect the speaker ASSY RR connector.
